Upgrade your traditional bicycle into a powerful and efficient electric bike with our newest BAFANG 750W G0900 rear hub motor. This high-quality e-bike conversion kit is designed to seamlessly integrate with your existing bike setup, providing you with an enhanced cycling experience.



Compatibility and Integration

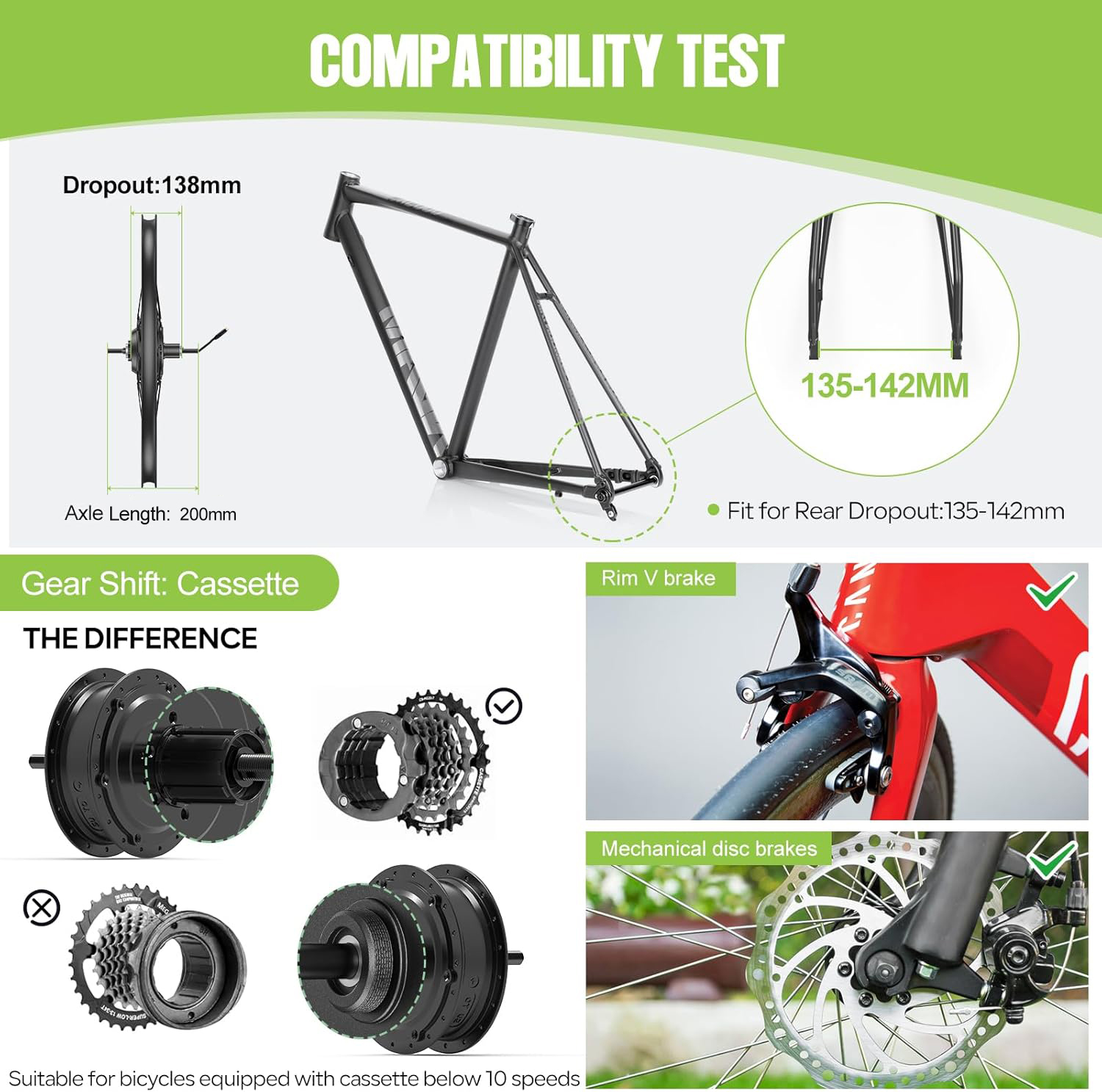

① Rear Dropout Compatibility: The G0900 48V750W motor is compatible with 135-142mm rear dropouts, ensuring a perfect fit for a wide range of bicycle frames.
② Tire Size Range: It supports tire sizes from 1.5" to 2.4", accommodating various types of bikes, from city cruisers to mountain bikes.
③ Brake System Integration: Effortlessly integrates both V brake or with disc brake systems, allowing you to maintain your preferred braking setup while enjoying the benefits of an electric motor.



Performance and Efficiency
① Max Torque: With a maximum torque of 80N.m, this 750W motor delivers strong and efficient power, providing ample support for your cycling efforts.
② Top Speed: The motor can reach a maximum speed of 45 km/h (28 mph), making it perfect for adventure enthusiasts and daily commuters alike.
③ Waterproof Design: The IPX5 waterproof rating ensures that the motor operates smoothly and silently in any weather condition, with noise levels kept below 55 dB.

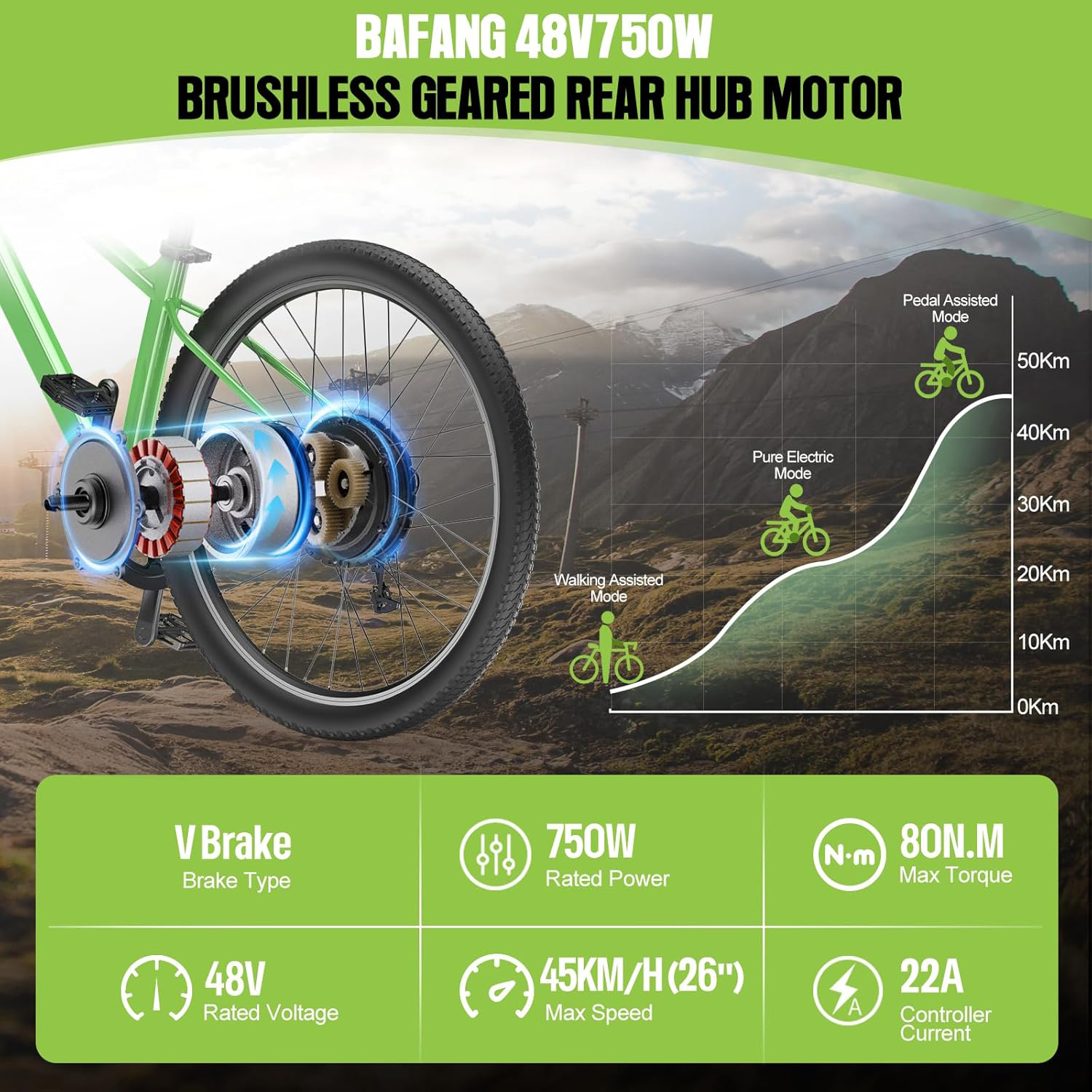

48V750W Brushless Rear Hub Motor V Brake specification:
Voltage: 48V
Power: 750W
Brake Type: V Brake
Maximum Torque: 80 N.m.
Efficiency: ≥80%
Spoke Holes: 36H*12G
Dropout Width: 138mm
Motor Type: Brushless
Brake Compatibility: V brake or Disc brake
Water Resistance: IPX5 Rating
Operating Temperature: -20°C to 45°C
Drive Type: Rear motor drive
Available Sizes: 26 inch/27.5 inch/700C(Optional)

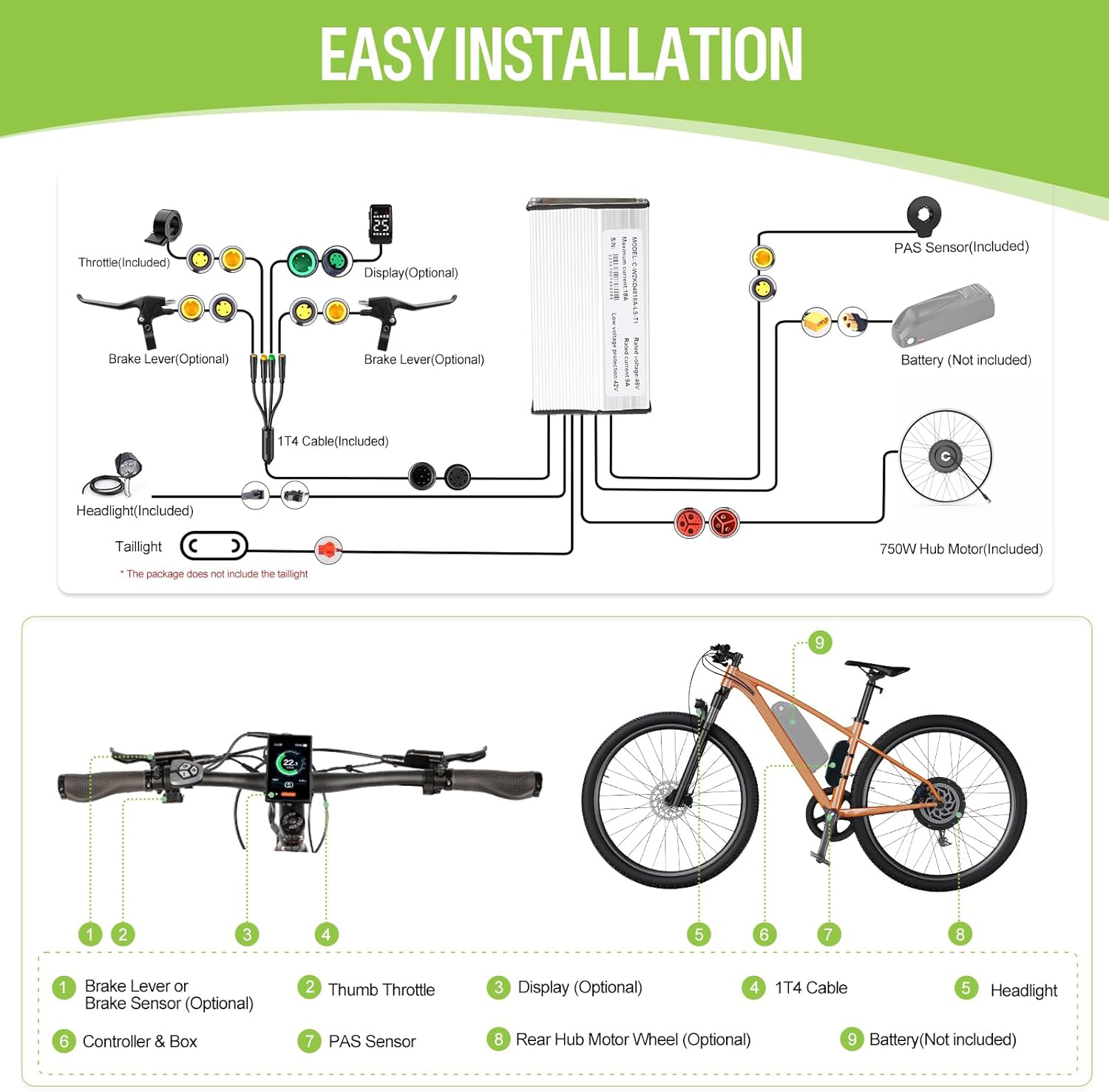

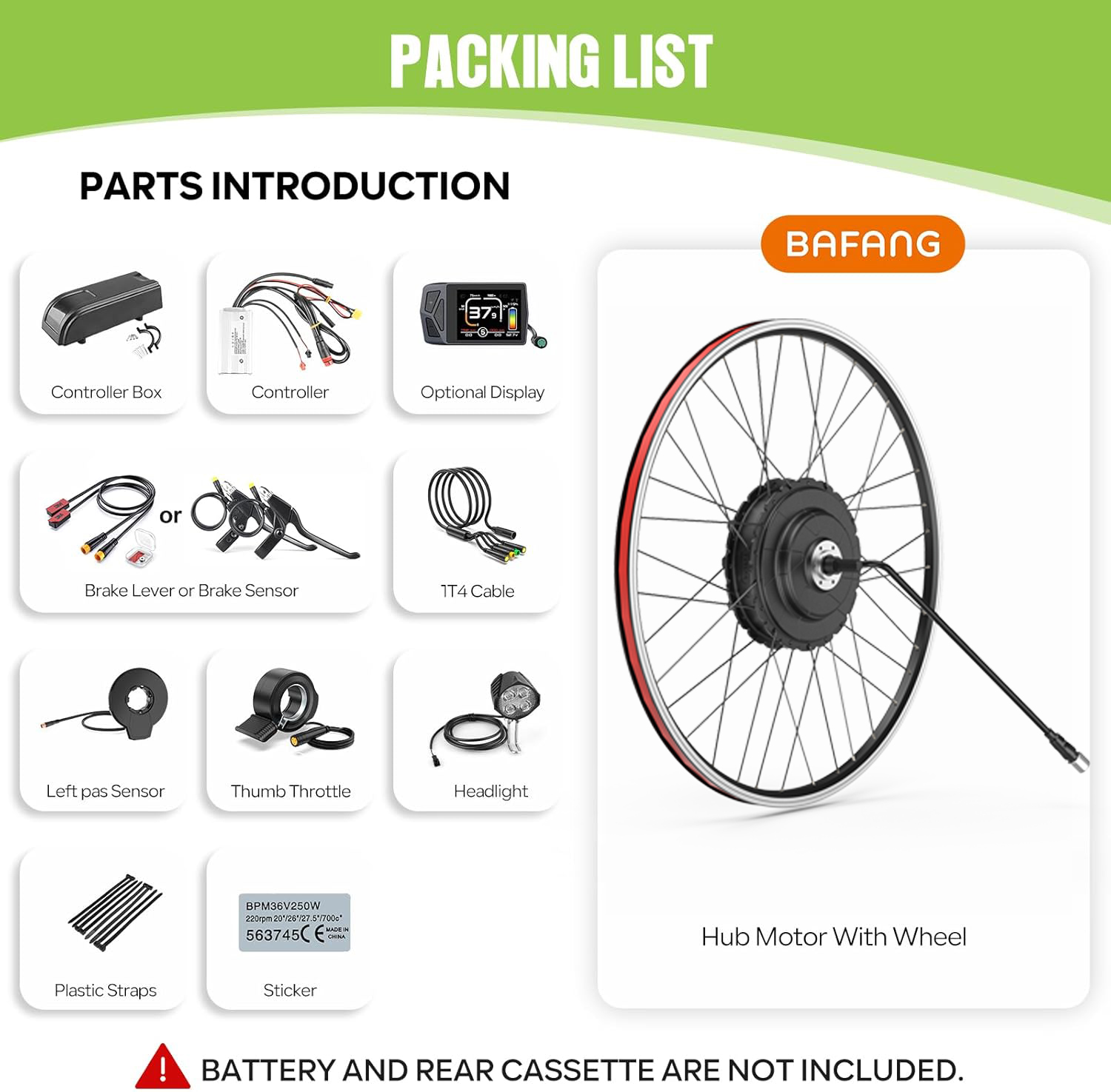

Packing List:
48V 750W Rear Hub Motor * 1
48V 750W Motor Controller * 1
Controller Box * 1
Display * 1 (Optional: 500C/SW2-M58/P860ML/DPC18/EKD01/DZ40)
1T4 Cable * 1
Thumb Throttle * 1
Left PAS Sensor * 1
Headlight * 1
Brake Lever * 1 pair (Pls contact us if you want to exchange to brake sensors)
Rim with Spokes * 1

FAQ:
① What is the maximum voltage this motor can handle?
The 48V model should only be powered by a fully charged 48V battery.

② Which bike can be used with this motor kit?
The rear dropout size should be 135-142mm (V brake).

③ Does the motor kit come with a battery?
Yes, if you select a battery option. If you select "no battery," the battery will not be included.
