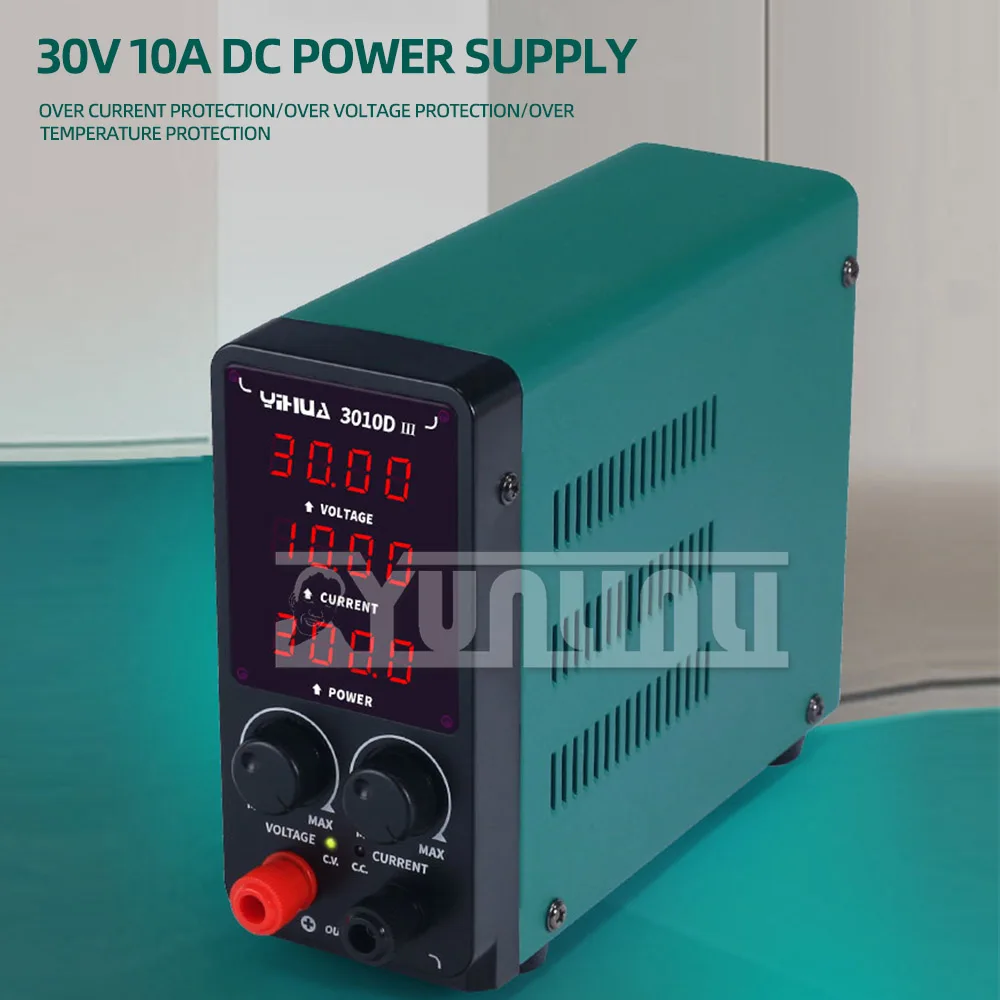

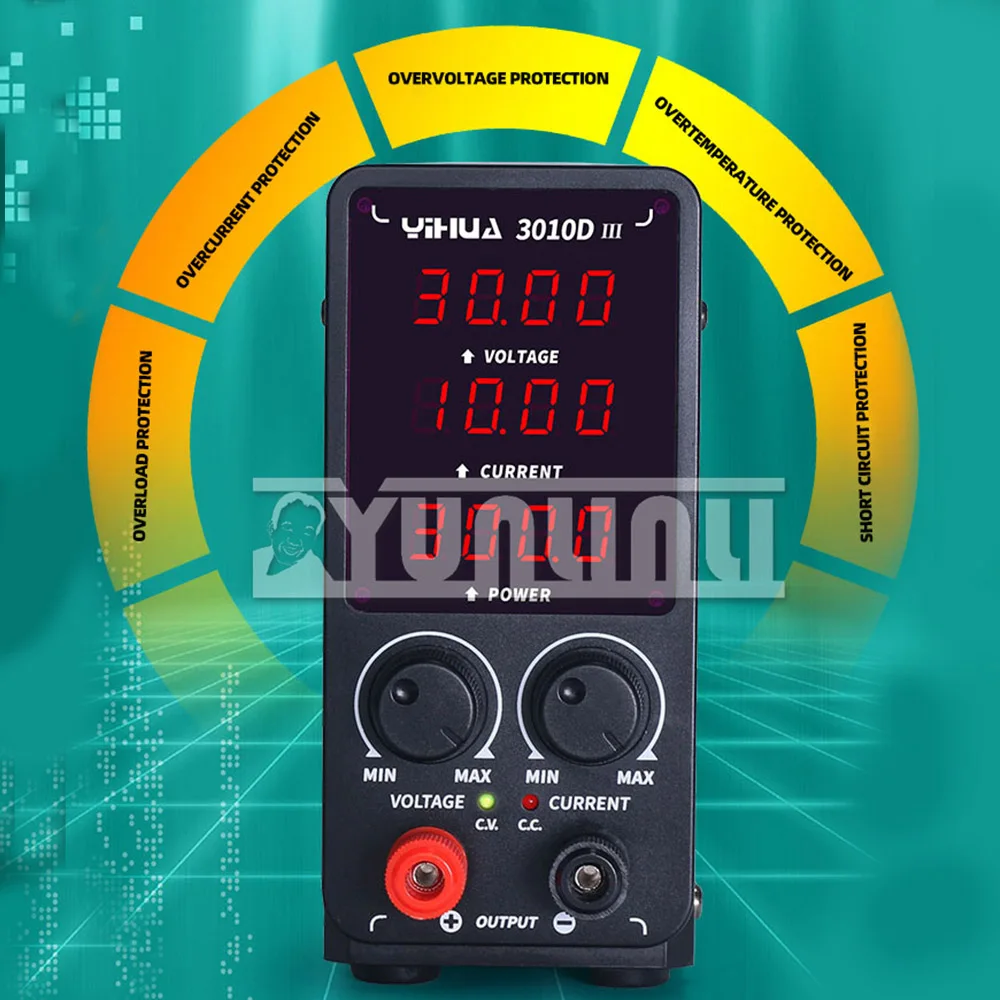

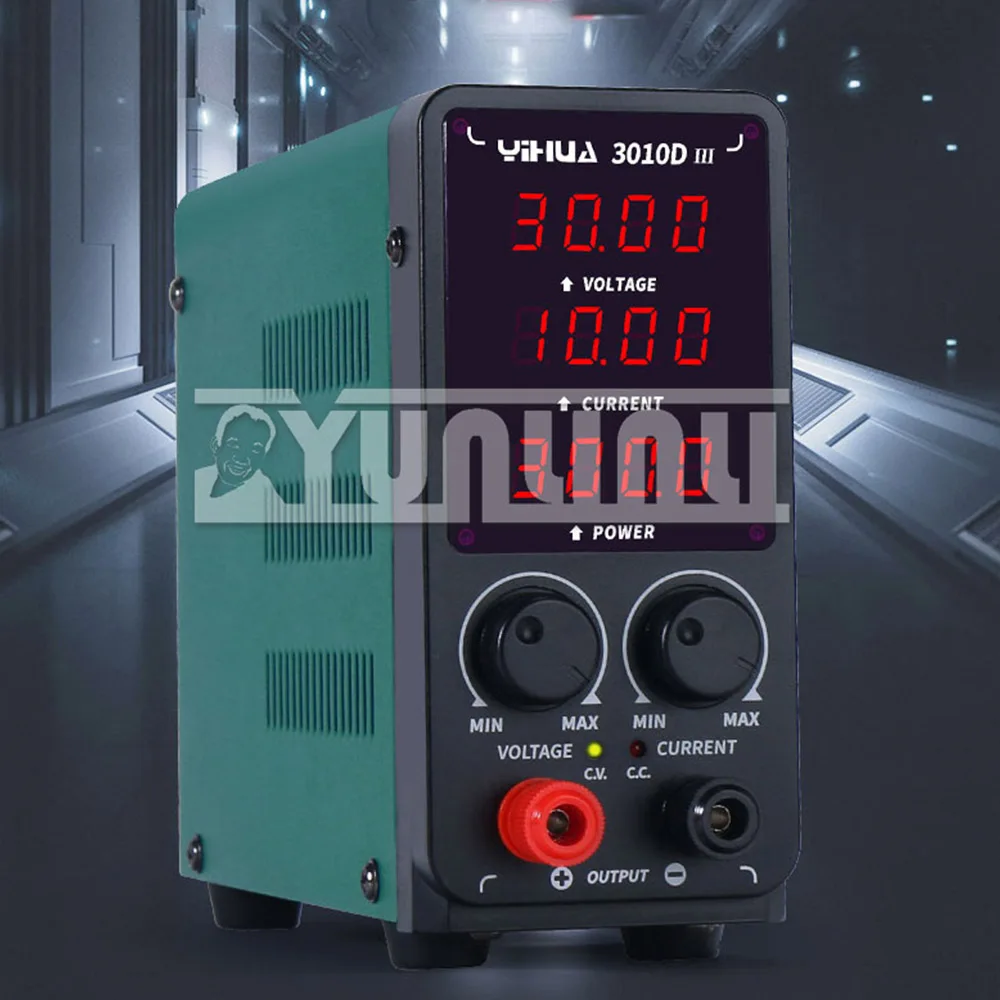

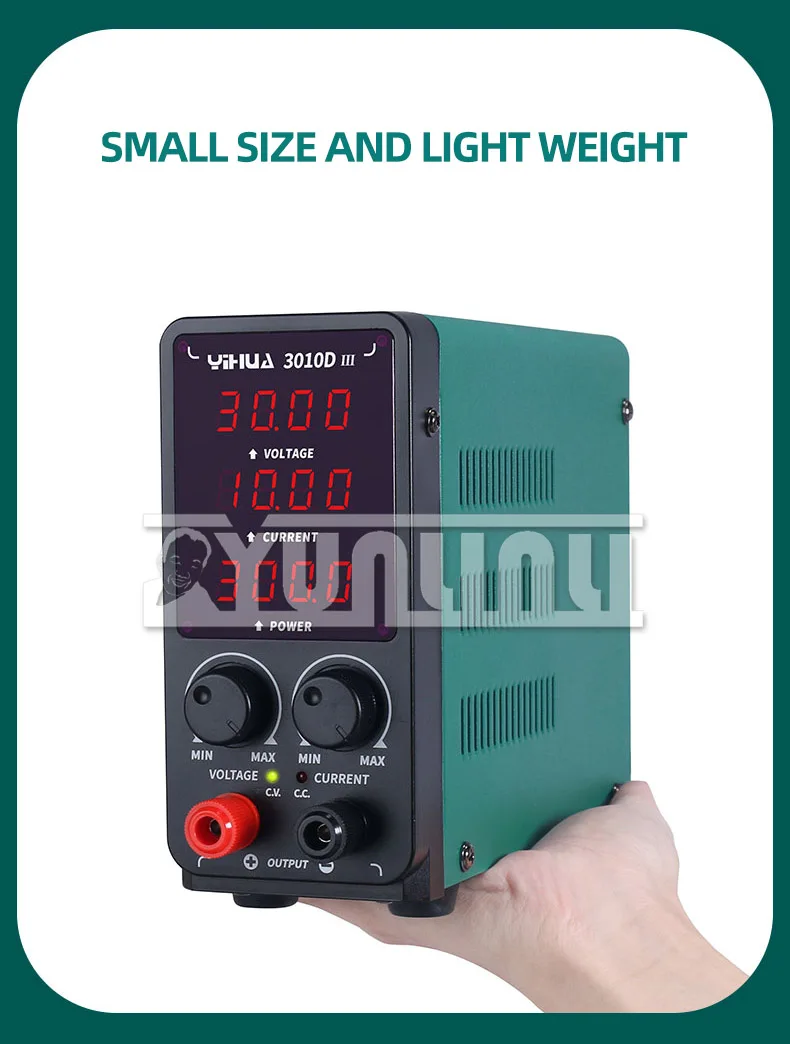

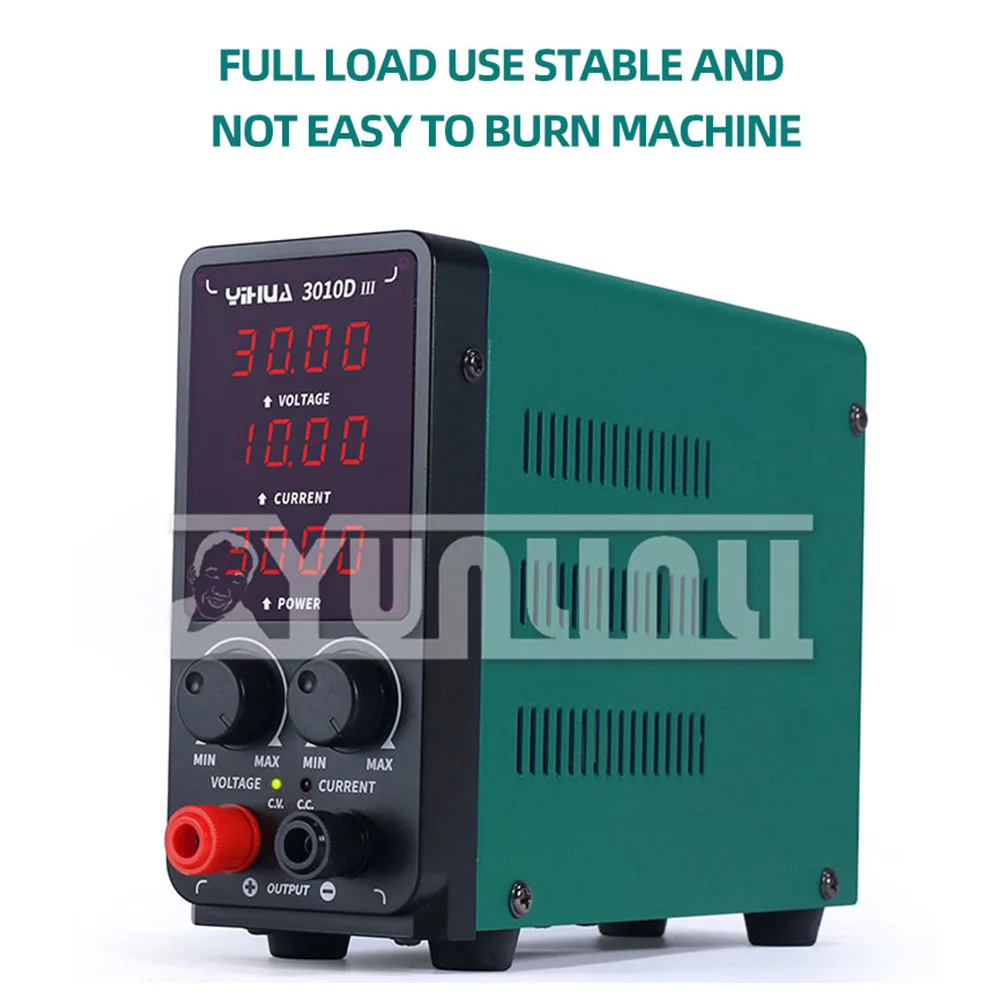

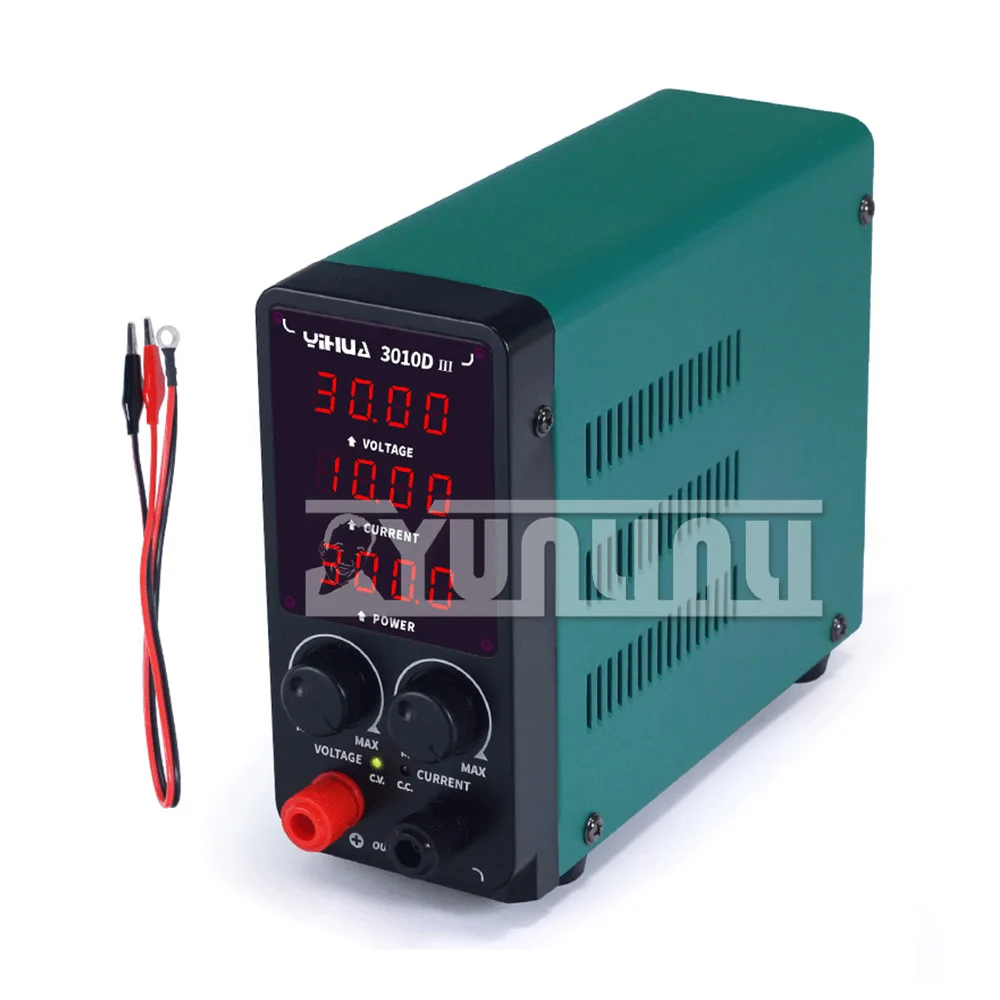

Adjustable DC Voltage Regulator Power Supply 15V/30V Voltage Regulator

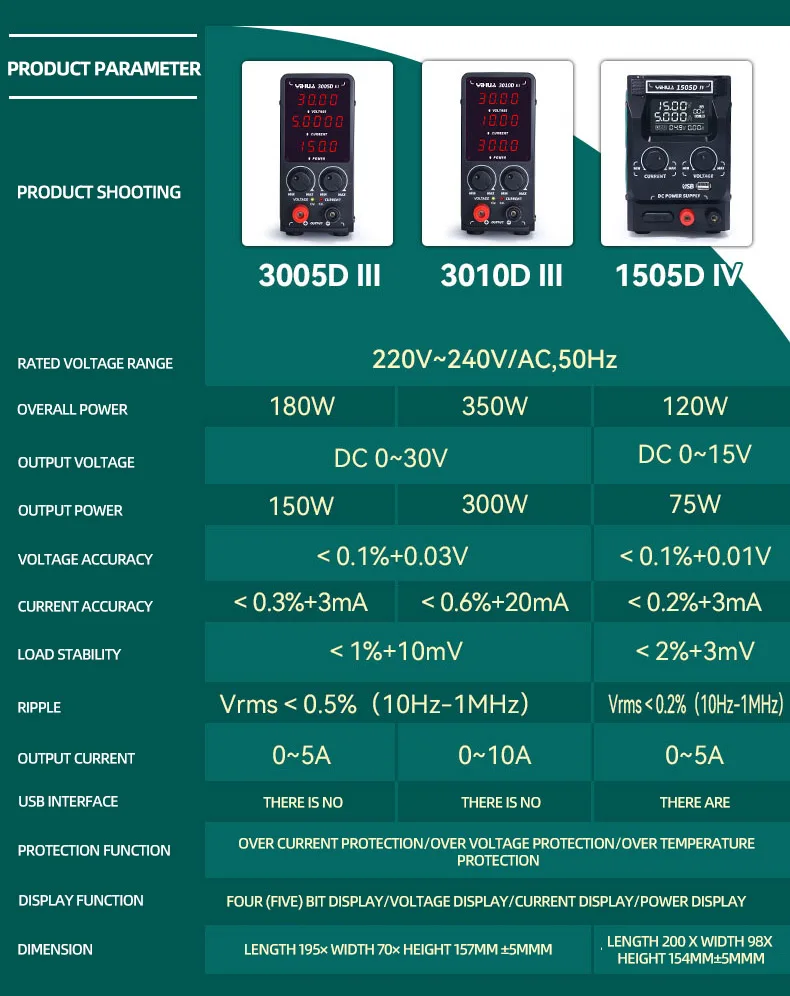

3005D I11 3010D III 1505D IV
RATED VOLTAGE RANGE 220V~240V/AC,50Hz
OVERALL POWER 180W 350W 120W
OUTPUT VOLTAGE DC 0~30V DC 0~15V
OUTPUT POWER 150W 300W 75W
VOLTAGE ACCURACY <0.1%+0.03V <0.1%+0.01V
CURRENT ACCURACY <0.3%+3mA <0.6%+20mA <0.2%+3mA
LOAD STABILITY <1%+10mV <2%+3mV
RIPPLE Vrms <0.5% (10Hz-1MHz) Vrms<0.2%(10Hz-1MHz)
OUTPUT CURRENT 0~5A 0~10A 0~5A
Gross weight: 6kg
