Tesla Meter Gaussmeter Digital Magnetic Field Tester Instrument with Hall Probe
Note: Battery cannot be included during the shipping !!!
Introduction:
Tesla meter is a portable, multifunctional magnetic field measuring instrument equipped with high sensitivity, low drift hall sensor, and the application of advanced digital signal processing technology, suitable for measuring surface magnetic field of permanent, remanence of mechanical parts, magnetic separator or iron remover, etc. It can be used as a basic magnetic parameter measuring instrument in magnetic material manufacturers and companies, mechanical manufacturing enterprises, scientific research institute in colleges and universities.
- Three types of accuracy: Level 1, Level 2 and Level 5 for different magnetic field measurement situations.
- Two magnetic field units: mT (mtr), Gs (Gauss), 1 mT=10Gs

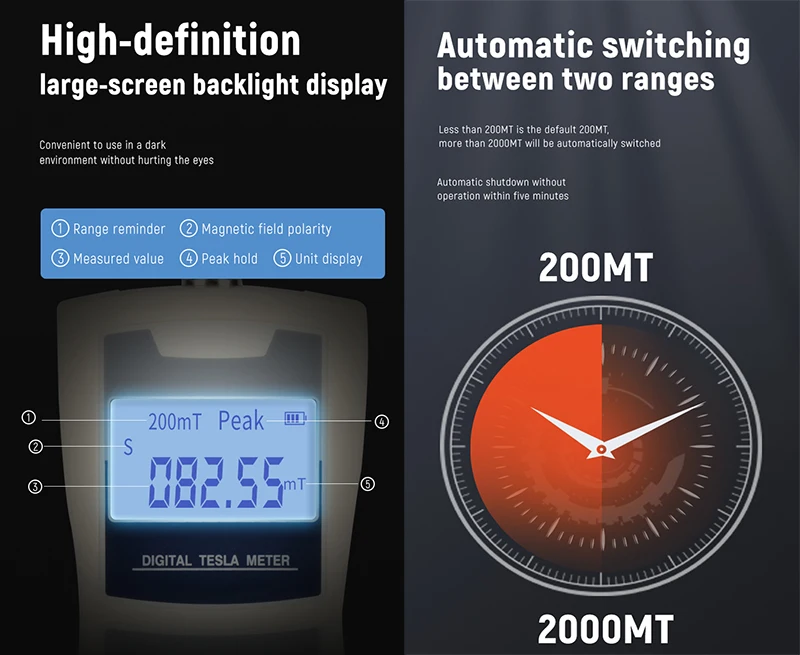

- with automatic range switching, one-click zero, maximum value retention function.
- Display backlight, 5 minutes automatic shutdown function.
- Low power consumption, portable.
- Multiple Hall probes available.
Technical Parameters:
|
Range |
200 mT (2000Gs) |
2000 mT (20000Gs) |
|
Load divison value |
0.01 mT (0.1 G) |
0.1 mT (1G) |
|
Accuracy (level 1) |
±1.0% |
|
|
Accuracy (level 2) |
±2.0% |
|
|
Accuracy (level 5) |
±2.0%(0...1000 mT), ±5.0%(1000 mT...2400mT) |
|
|
Power supply |
1 pcs 9 V Battery (not included) |
|
|
Working environment |
0℃~50℃, 20~85%R·H, No condensation |
|
|
Storage environment |
-20℃~70℃, 85%R·H, No condensation |
|
|
Instrument dimensions |
160 mm×75 mm×34 mm |
|
|
Weight of instrument |
About 260g (including batteries and conductors) |
|
|

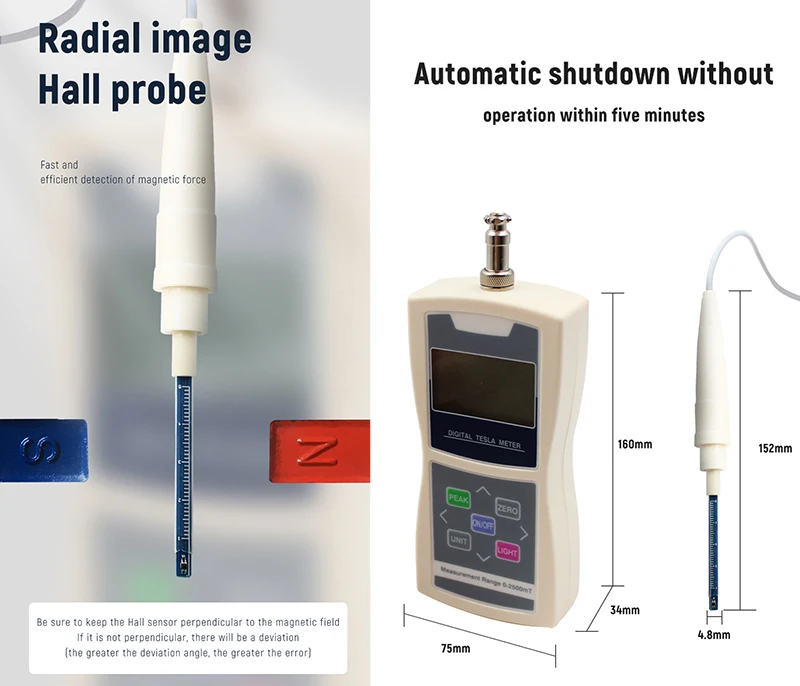

Hall probe |
Standard radial Hall probe, wire length about 1 meter |
|

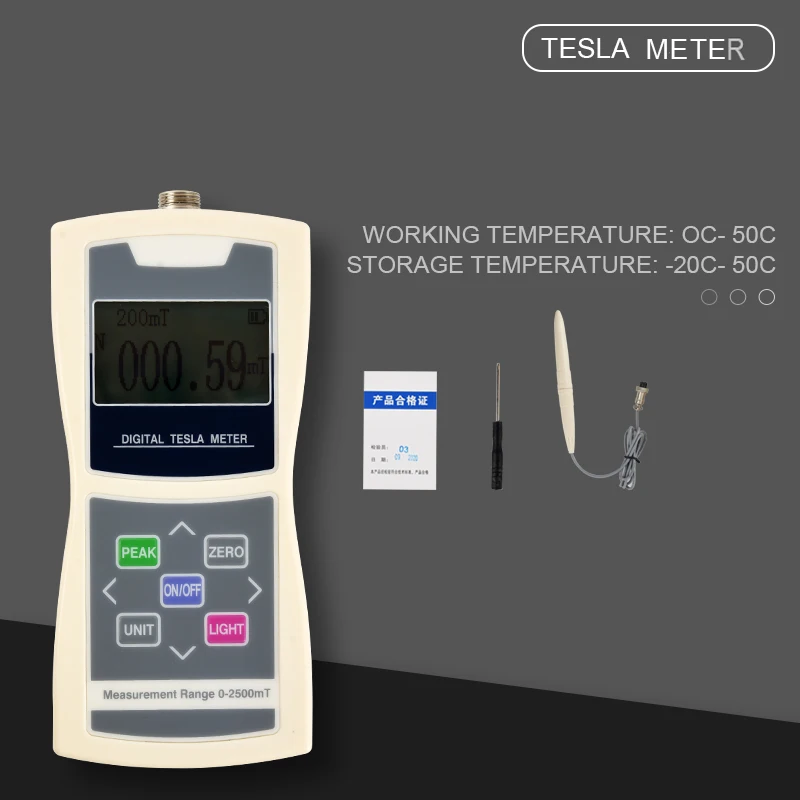

Packing List:
|
Serial Number |
Name |
Quantity |
|
1 |
Tesla meter |
1 |
|
2 |
Radial Hall probe |
1 |
|
3 |
Instructions |
1 |
|
4 |
Warranty card |
1 |
|
5 |
Desiccant |
1 |
