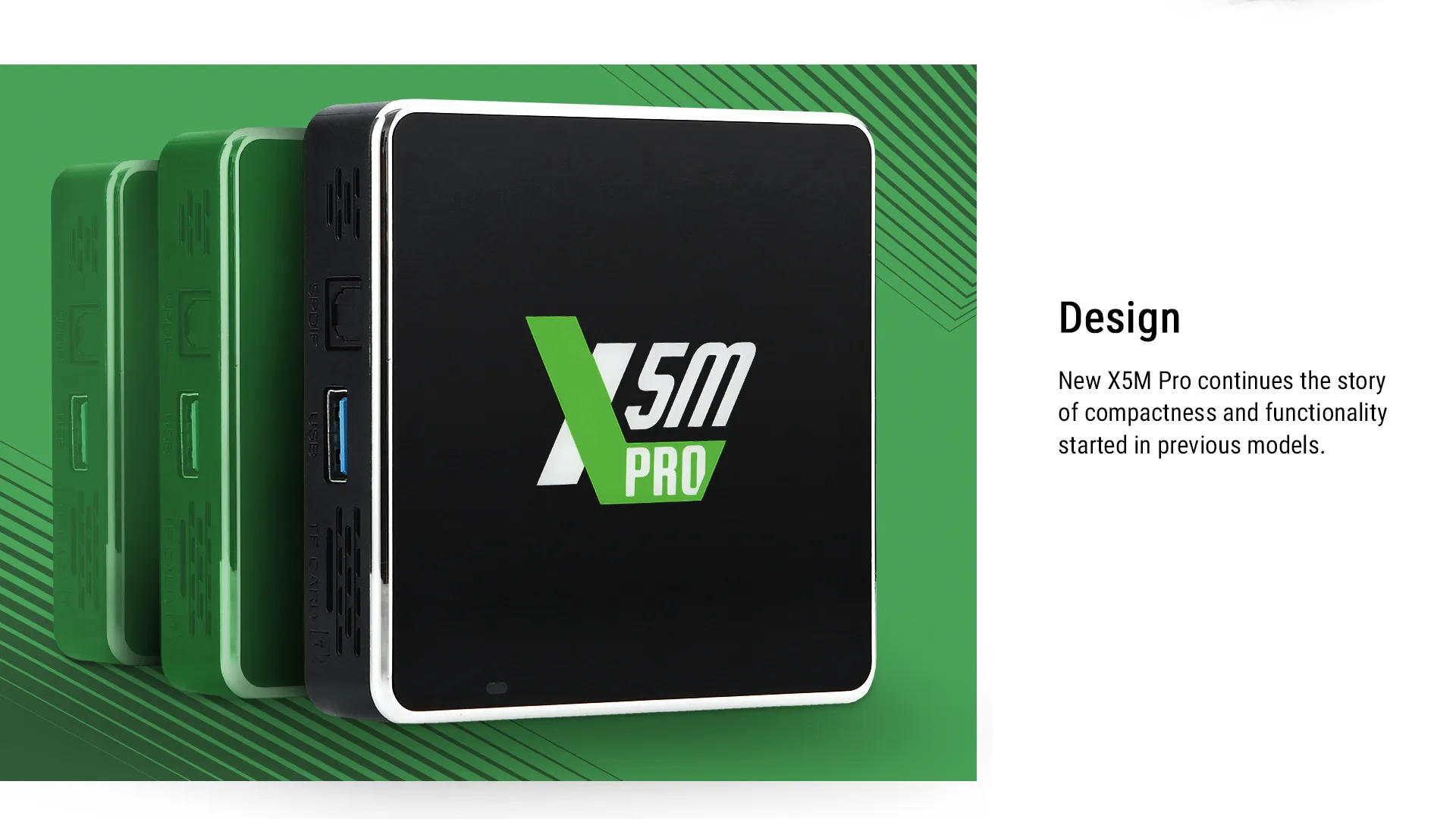

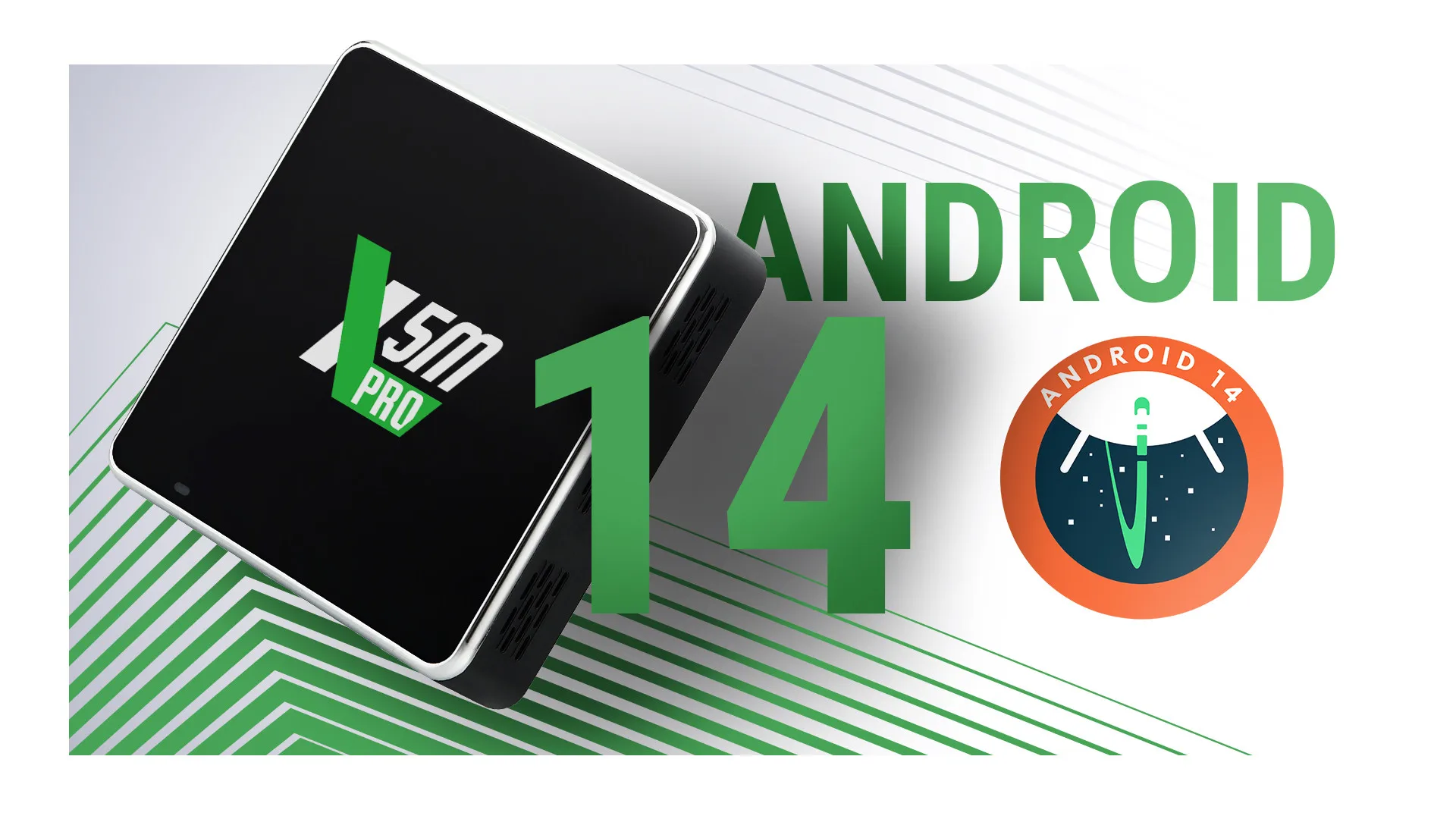

Original Ugoos X5M Pro Smart TV Box Android 14 Amlogic S905x5m 4GB 32GB WiFi BT5.4 1000M HDR CEC RTC Set Top Box Media Player
Hardware Spec:
Operation System
Android 14.0
Language
Multi-Language support
CPU

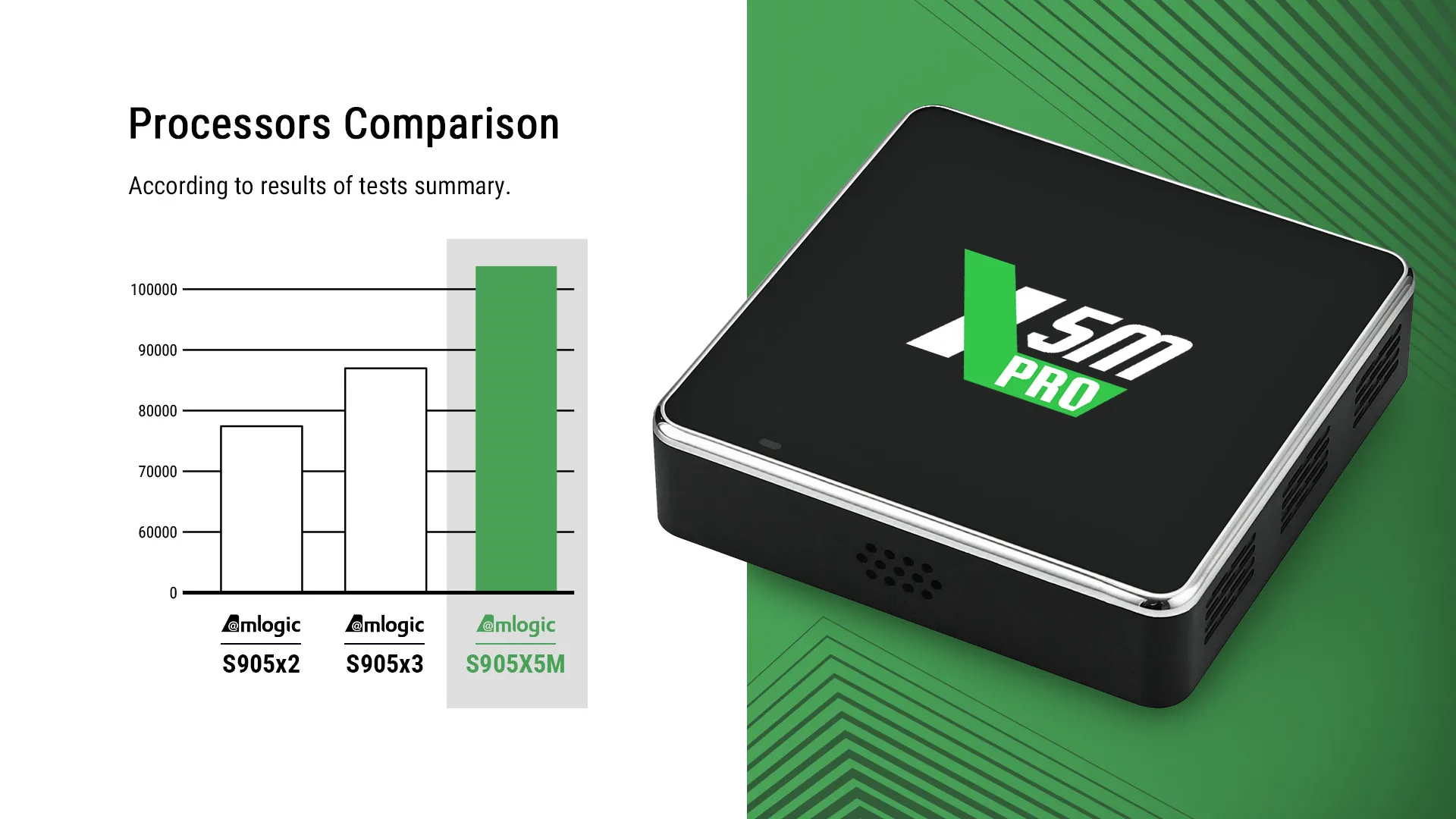

Amlogic S905x5m ARM Cortex-A55 CPU
GPU
Mali G310 V2
RAM
LPDDR4 4GB
Storage Capacity (Flash)
32GB (EMMC)
WIFI
2.4G/5G 802.11a/b/g/n/ac/ax 2T2R
Bluetooth
Bluetooth 5.4 Module
The Extended Storage
TF Card (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply
TYPE-C 5V/2.5A
HDR
Support

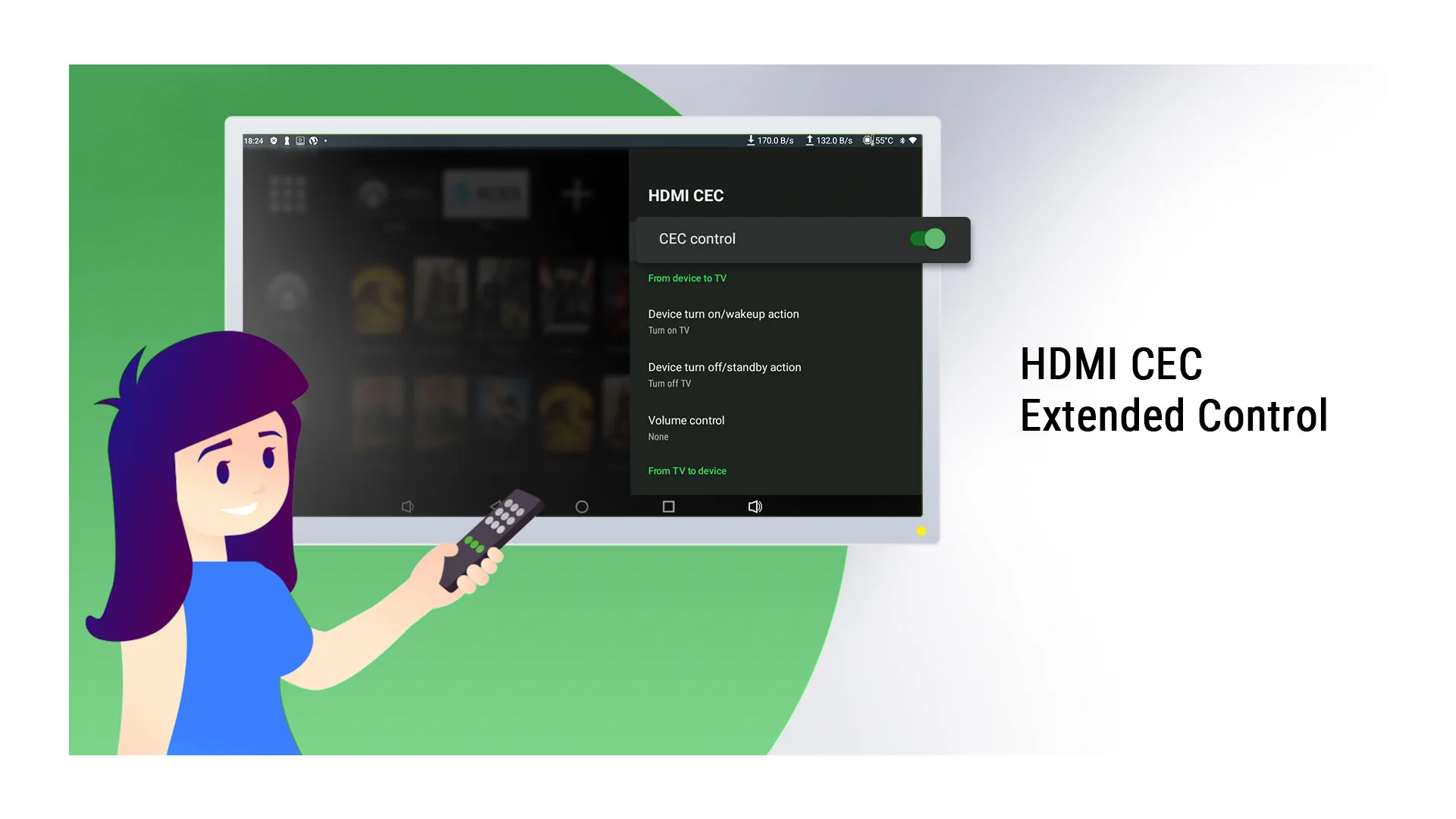

CEC
Support
RTC
Support
Interfaces:
HDMI Output
HDMI(1.4 and 2.1b) supports maximum 4K@60fps output(HDCP2.2)
USB Ports
1*USB 2.0 OTG + 1*USB 2.0 host
Optical Output
1*SPDIF
Led Work Light
Support
Network
1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII
interface)
Media Parameters:
Audio
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable 7.1/5.1 Built-in SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC
Video Output
Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4KX2K
Video CODEC
− AV1 MP-10@L5.1 up to 4Kx2K@60fps
− VP9 Profile-2 up to 4Kx2K@60fps
− H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
− AVS2-P2 Profile up to 4Kx2K@60fps
− H.264 AVC HP@L5.1 up to 4Kx2K@30fps
− MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
− WMV/VC-1 SP/MP/AP up to 1080P@60fps
− AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
− MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
− MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
− Multiple language and multiple format sub-title video support
− MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
− Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension
Support Google Play & APK install
Other Parameters:

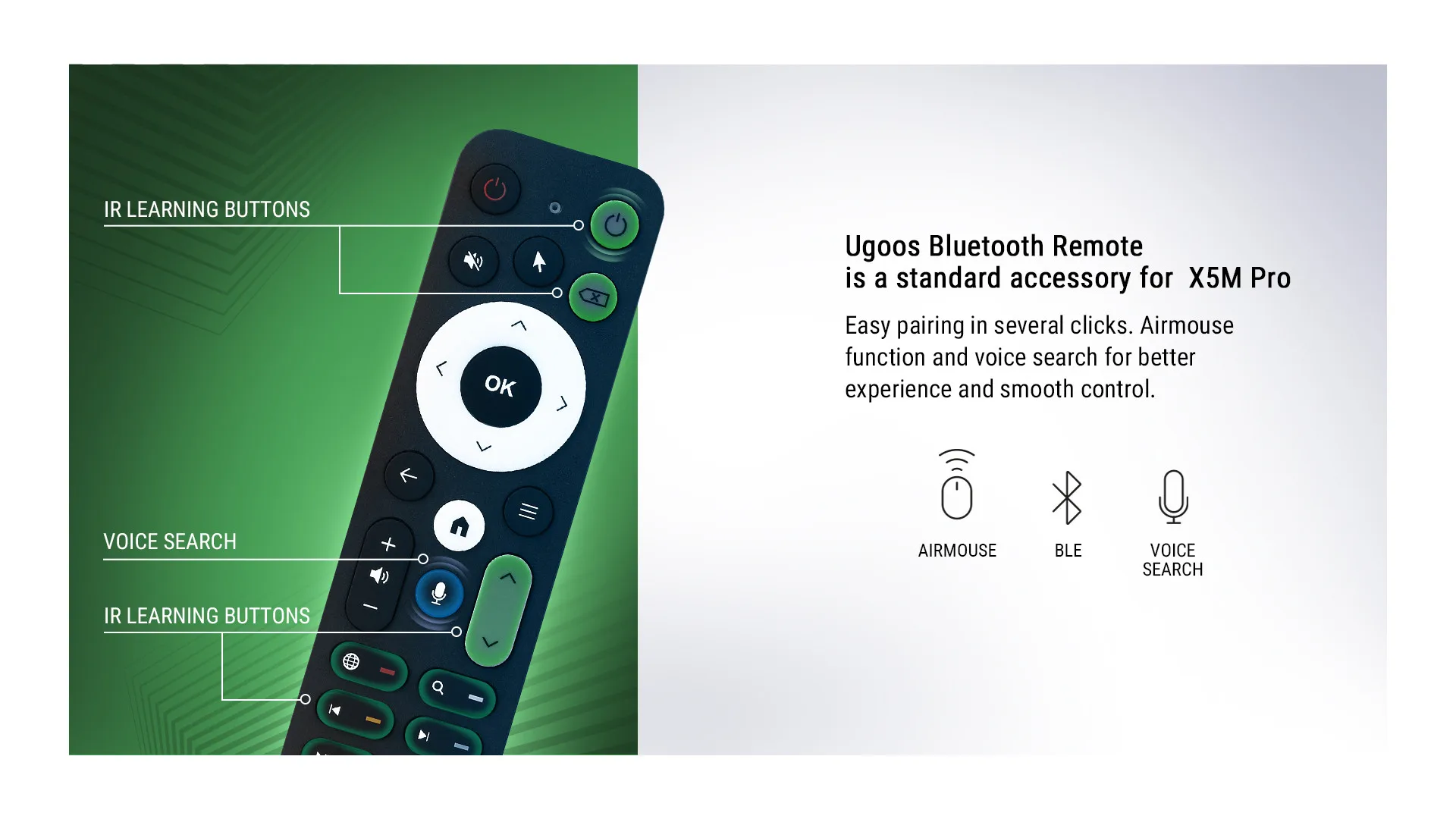

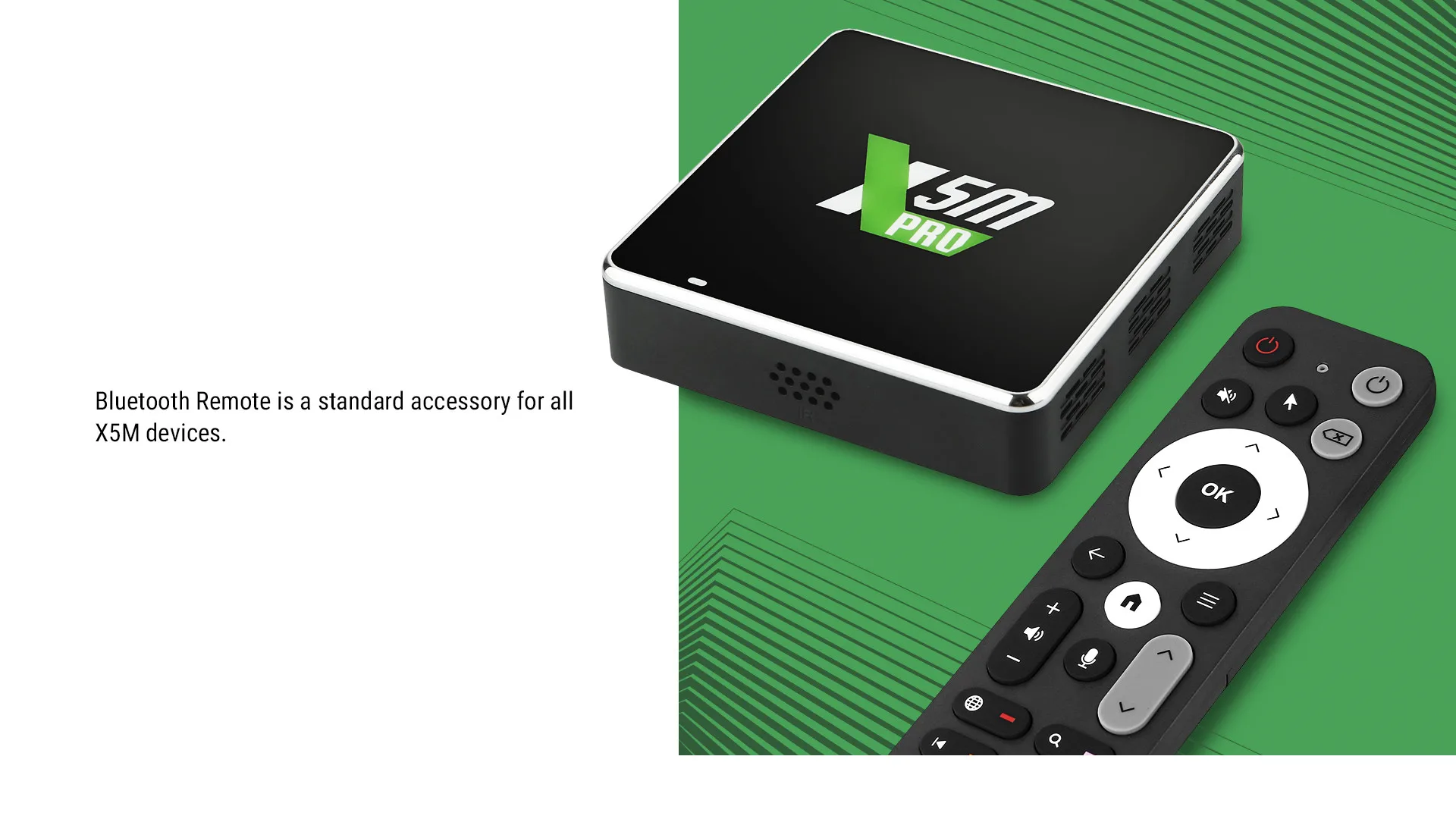

Remote Control
BT remote with Voice+Gyro
Humidity Environment
5%-90%(No condensation)
Certificates
CCC, CE, FCC, Wi-Fi
Package:
Dimensions
8.8X8.8x2.2 CM
Gift Box Size
18.7x18x4.8 CM
