Important Notice

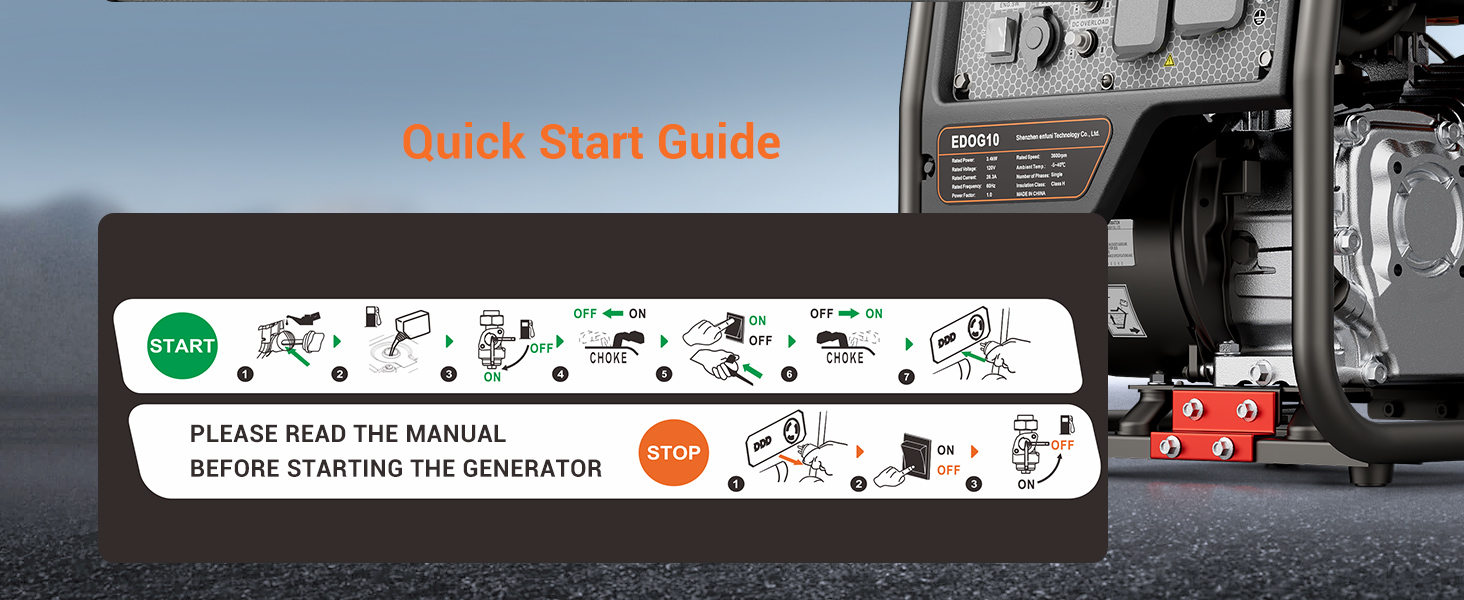

Cold start
1. Close the air damper.
2. Turn on the switch on the panel.
3. Pull the starter rope firmly. After the generator runs for a few seconds, turn the air damper to ON, and the generator will enter normal operation.
Hot start
1. You can skip the step of operating the air damper and pull the starter rope directly in the ON position.
2. If the start distance is too short, close the air damper and pull the starter rope once (the generator will most likely not start at this point). If it starts, open the air damper and run normally. If it does not start, open the air damper and pull the starter rope again to start the generator.
ECO Mode

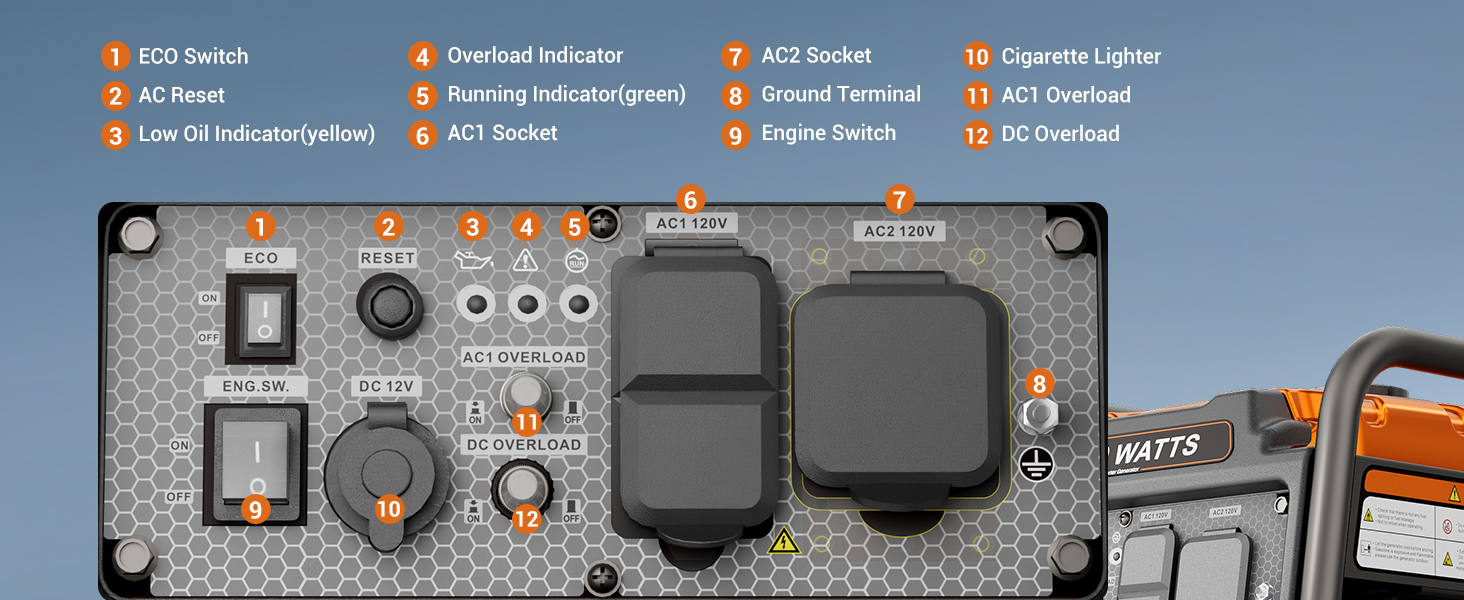

Activated by a switch on the control panel, this mode slightly reduces the generator's output power. It is generally recommended for use when power demand is low, offering greater energy efficiency and quieter operation. Note that the energy-saving mode must be engaged after starting in normal mode; attempting to start in energy-saving mode may cause starting difficulties.
1. Do not pull the pull rope to start the machine without refilling oil. Starting the generator without refilling oil can cause permanent damage to the internal engine components.
2. All inverter portable functionally tested in the factory and may contain minimum residual oil or fuel odor, which is a normal phenomenon.
3. Please follow the instructions to use, if you have any questions, please contact our customer service!
