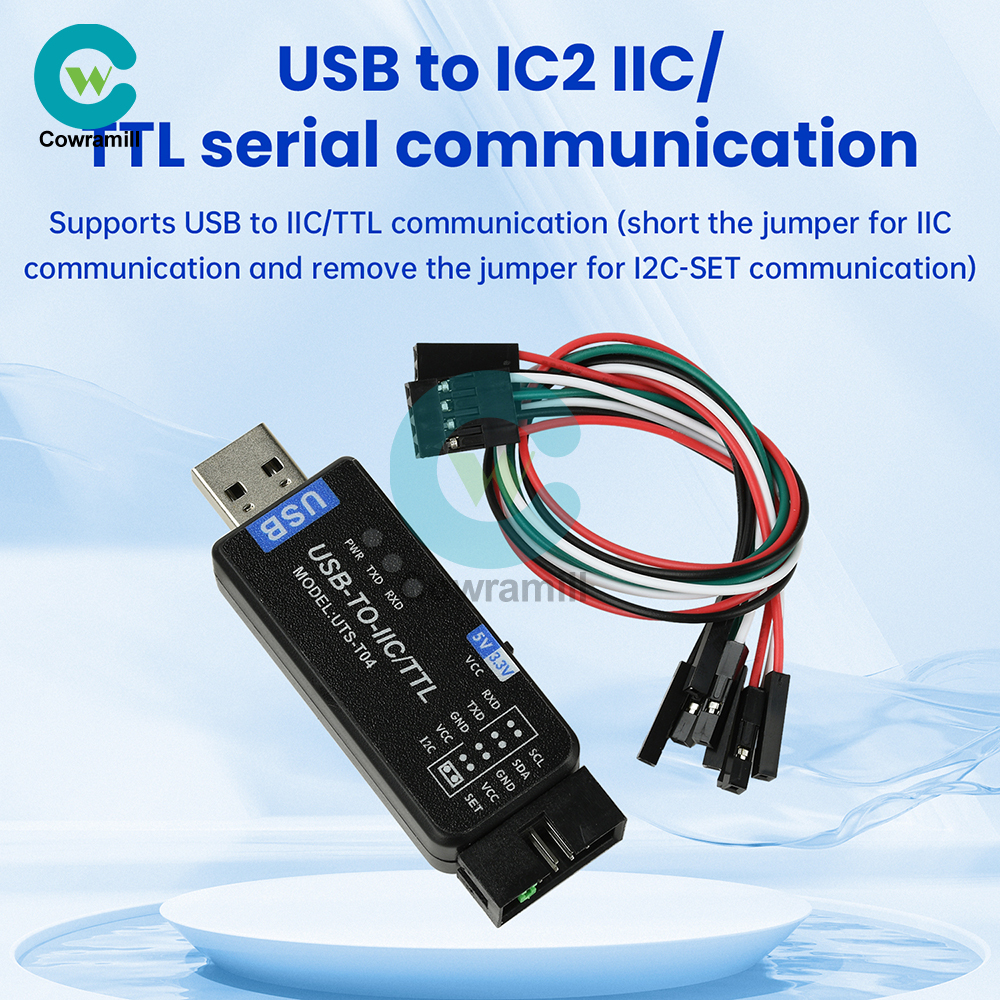

1. Supports USB to IIC/TTL communication (IIC communication: jumper pin connected; I2C-STTTL communication: jumper pin removed)
2. USB to UART (serial data, ISP programming for STC/STM series microcontrollers); Serial data communication (50bps~2Mbps, configurable for non-standard baud rates) ISP programming (STC/STM series microcontrollers)

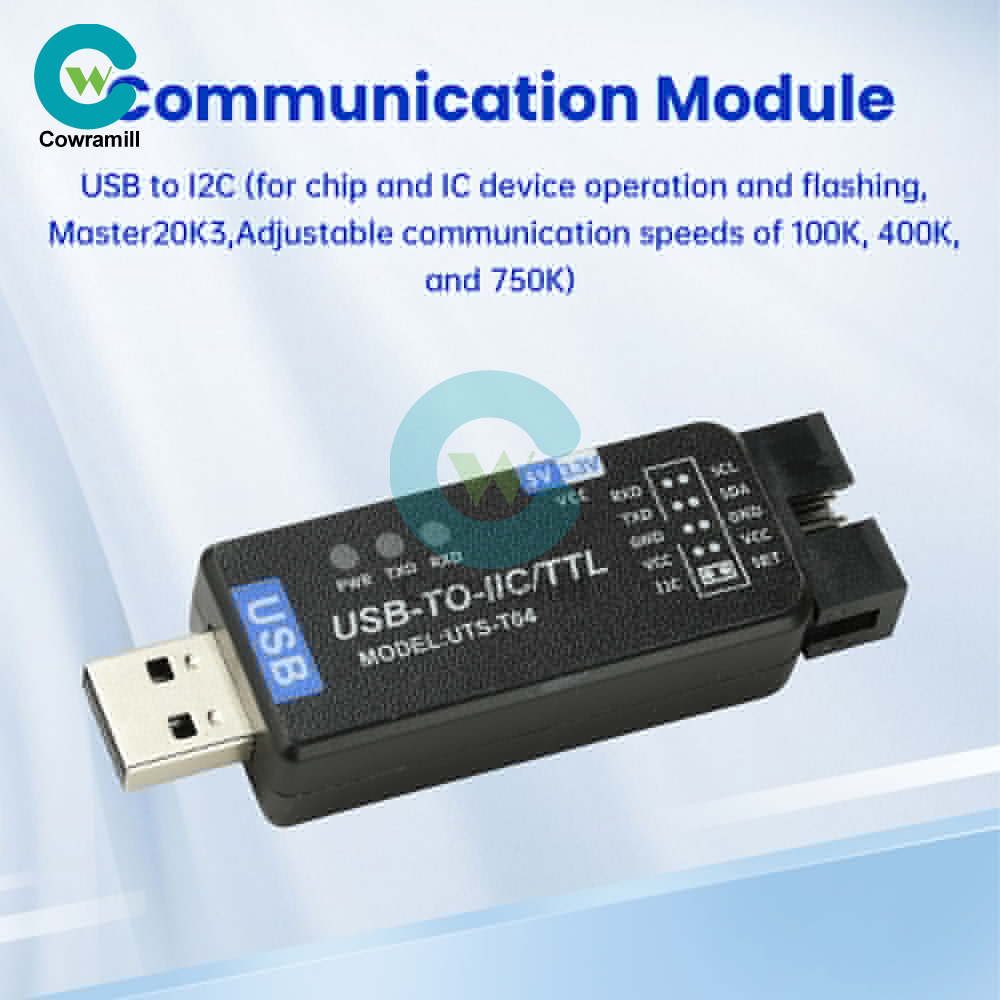

3. USB to I²C (chip/IC device operation, flashing; Master 20K3, 100K, 400K, 750K adjustable communication speeds)

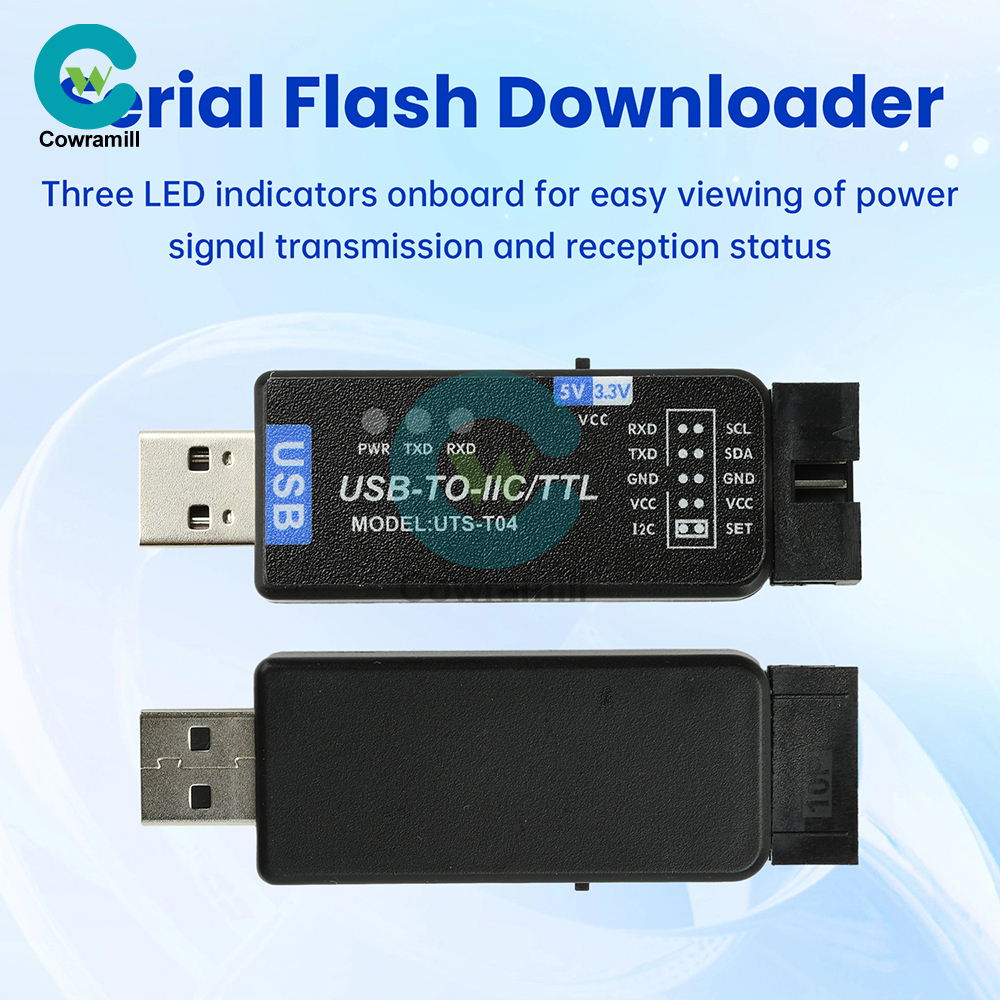

4. Three onboard LED indicators for monitoring power, signal, and transmission status

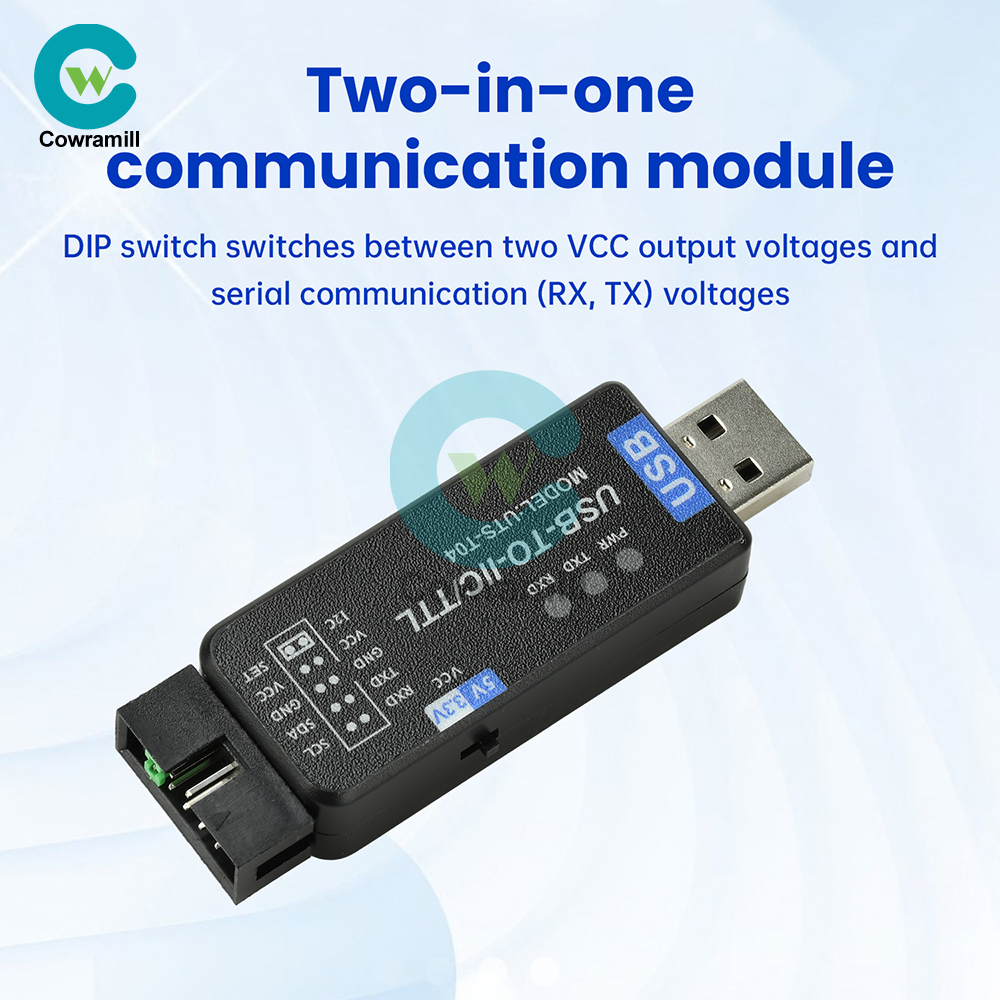

5. DIP switch toggles two VCC output voltages and serial communication (RX, TX) voltages

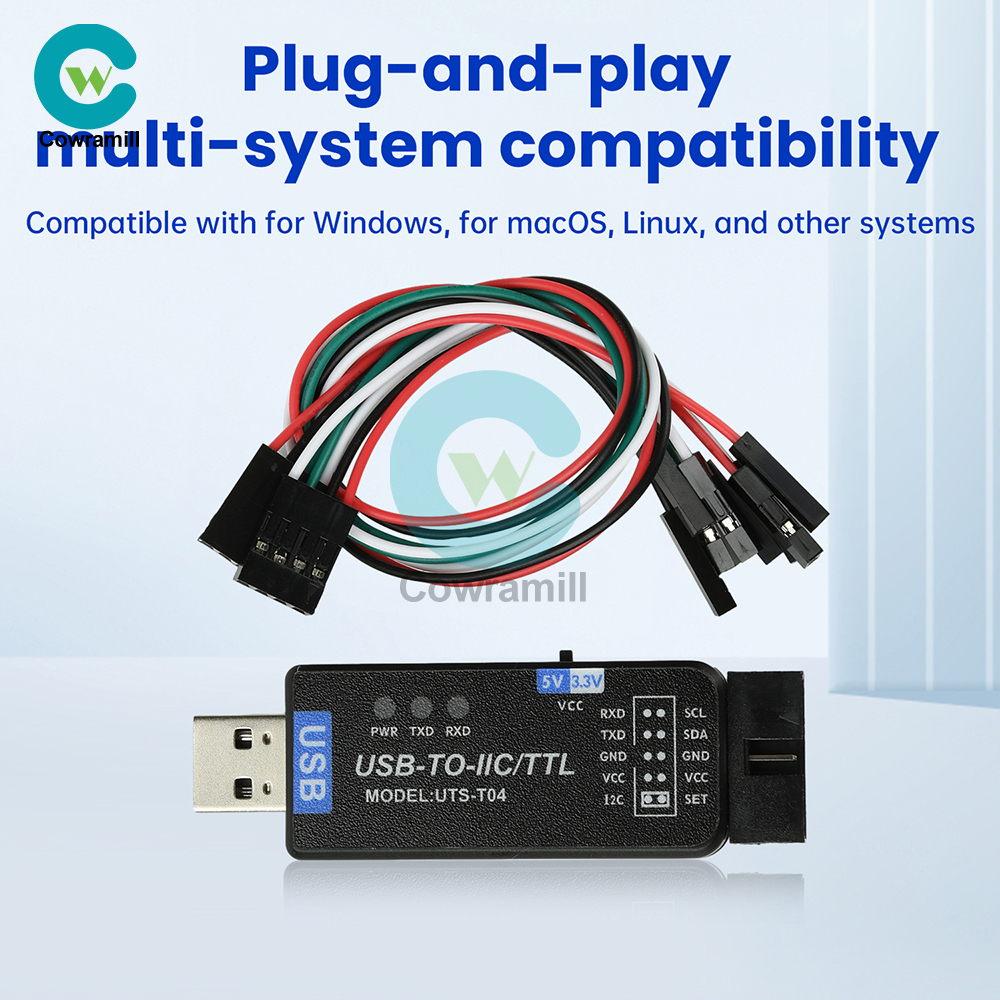

6. Plug-and-play multi-system compatibility with Windows, macOS, Linux, and more

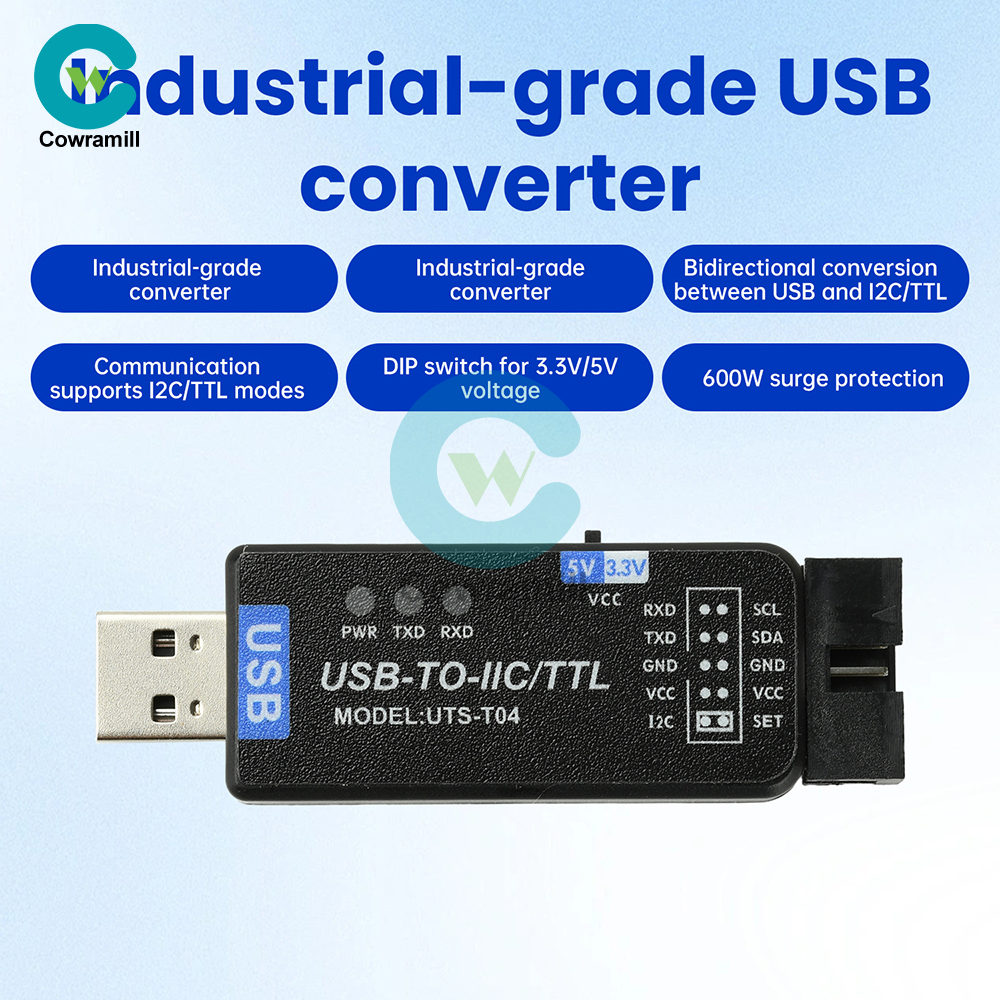

Name: USB to IIC/TTL Module
Dual Voltage: DIP switch toggles 3.3V/5V
Expansion Module Compatibility: WIN7/win10/11
Processor Architecture: ARM
Expansion Slot Type: USB
Network Interface Configuration: I²C Communication
Supported Operating Systems: Windows, Linux
Dimensions: 73.5 × 23.5 × 14 mm
Serial Port Expansion: Emulates standard serial ports for upgrading legacy serial peripherals or adding additional serial ports via USB.
Serial Debugging: Debugs I²C interface chips via I²C, programs I²C interface EEPROMs.
MCU Programming: Uploads firmware to MCUs via UART interface.
Program Debugging: Captures program output and monitors runtime status through UART interface.
Data Acquisition: Retrieves and stores sensor device data via I²C.
Flashing: Serial flashing for firmware updates on TVs, routers, motherboards, and similar devices.

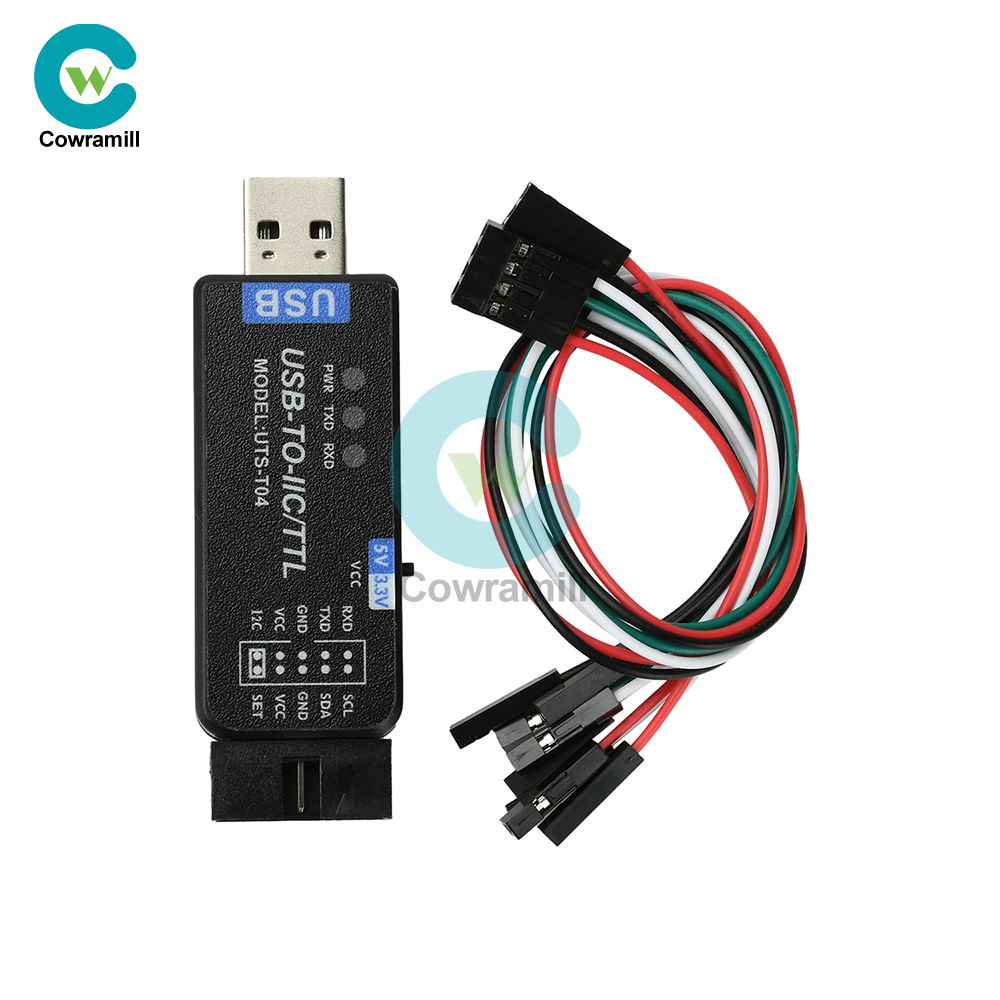

1x Communication Module
2x 4-pin Dupont Cables
