RV Van Truck HD Reversing Rear View System 5" TFT LCD Color Monitor+ 4 Pin Night Vision Waterproof Backup Camera

Specification |
|

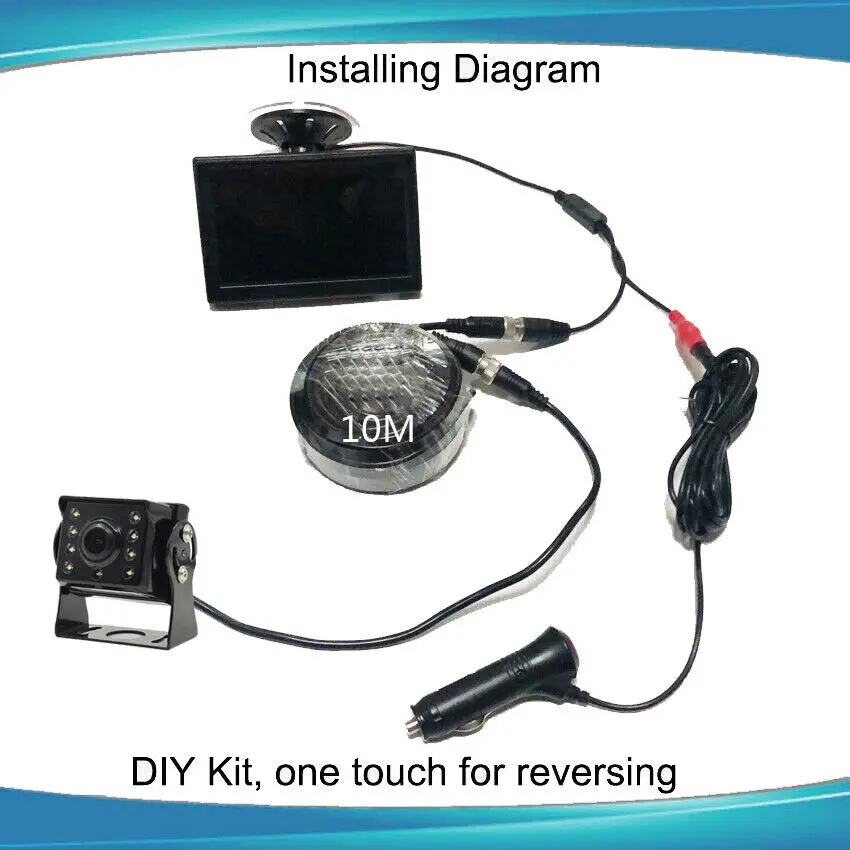

You can use the power supply of the cigarette lighter to power it on or off.
Easy to connect and avoid complex wiring. |
|
There is no reverse scale line, which can be used for long-term monitoring during driving and observing the situation behind
|
|
Automatic back sight function for car backing |
|

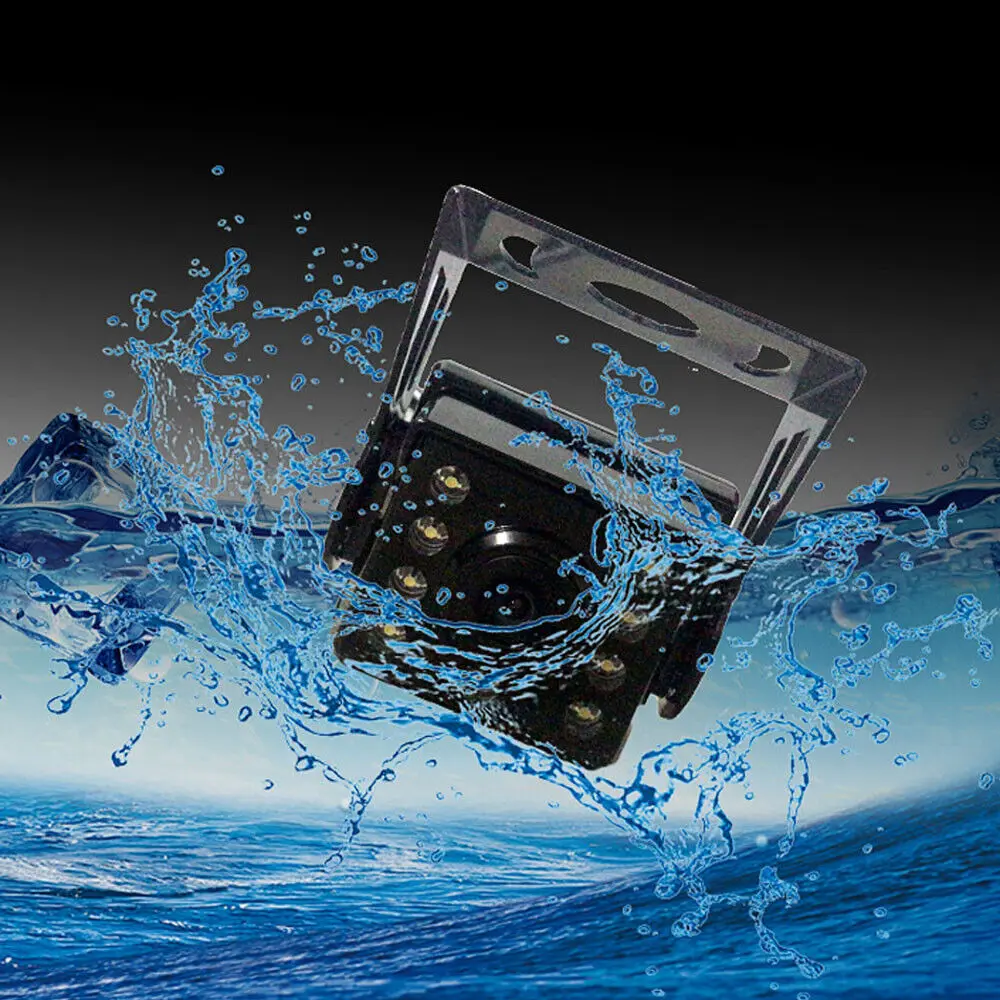

100% waterproof IR camera with 120° wide view angle |
|
8 LED Night Vision Metal heavy Duty car rear view camera |
|
Can easily adjust the camera installation angle in multi-level |
|
|
|
With menu buttons, you can adjust brightness, saturation, contrast, hue, etc |
|
Delicate and uique Baffle design, stable performance, clear picture and excellent color effect. |
|
|
|
Highly prevent accidents to save you from unnecessary loss or troubles while driving in reverse by avoiding children, traffic, pedestrians, toys, and pets |
|
|
|
|
Specification
|
|

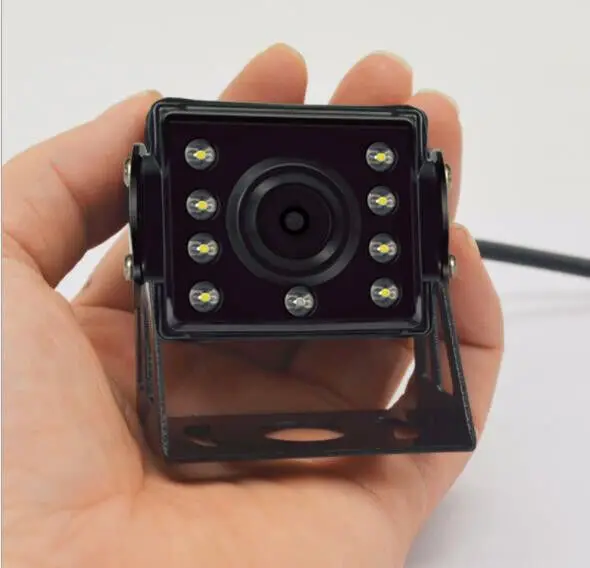

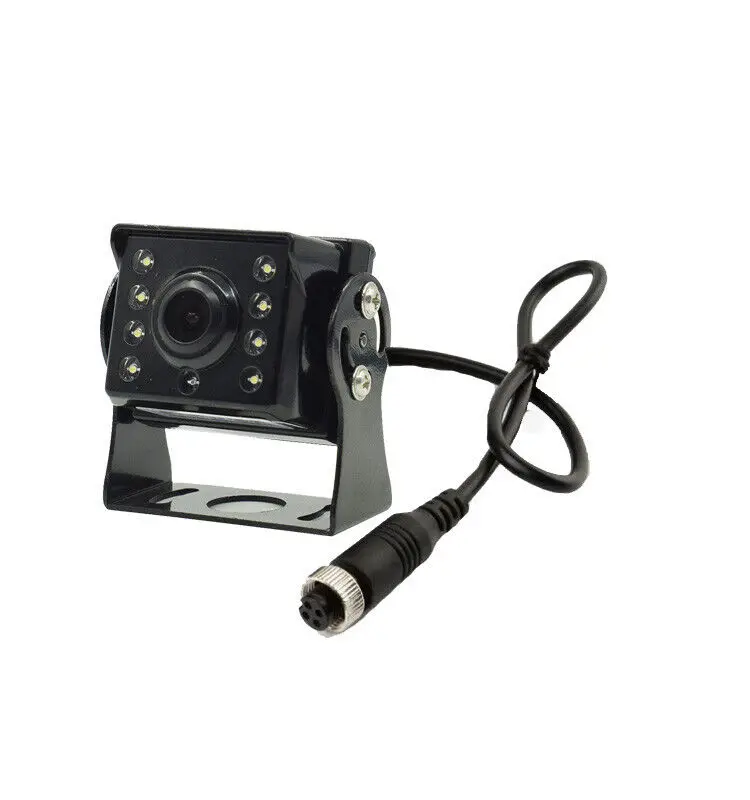

Camera: |
|
Image Sensor: |
1/4 inch CMOS |
|
Pixels: |
PAL: 628(H) x 582(V); NTSC: 510(H) x 492(V) |
|
Resolution: |
420TV lines |
|
Minimum Illumination |
0Lux / F1.2 (IR ON) |
|
Video Output: |
1.0vp-p, 75Ohm |
|
Gamma Consumption: |
0.45 |
|
White Balance: |
Auto |
|
S/N Ratio: |
Better than 48dB |
|
Electronic Shutter: |
1/60-1/15,000 Seconds |
|
Video Output: |
RCA Connector, 1.0Vp-p, 75ohm |
|
View Angle: |
120° |
|
Size: |
60.5(L)*27.5(W)*31.6(D)mm |
|
Power Supply: |
DC 12V-24V |
|
Operating Temperature: |
-40 to +80 RH95%Max |
|
Trapeziform sign direct parking |
|
OmniPixel technology for low-light performance |
|
|
|

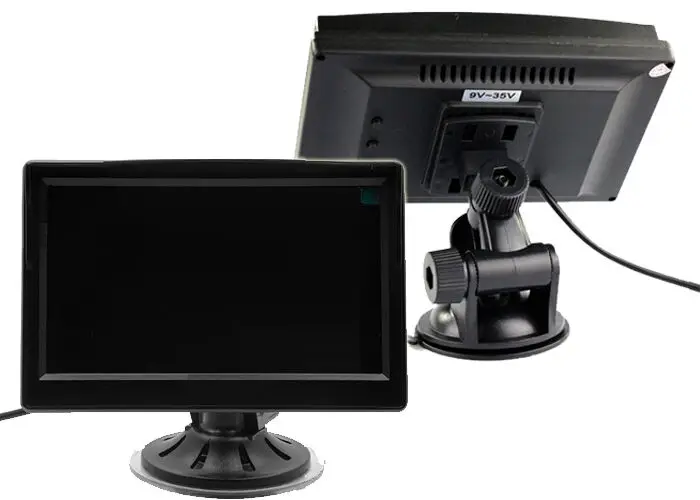

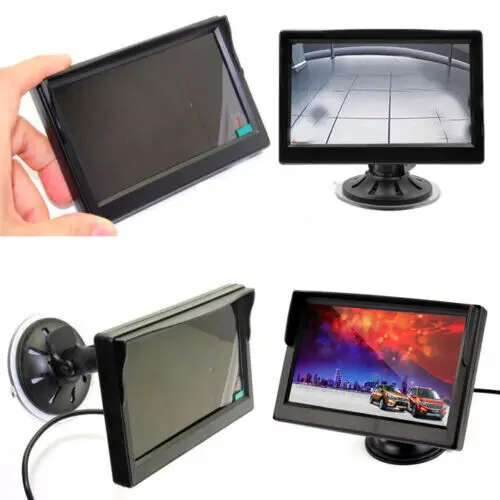

Monitor: |
|
Function: |
Car Rear View Mirror Monitor |
|
Display Screen: |
TFT-LCD |
|
Display size : |
5 Inch |
|
Display Resolution: |
800 x RGB x 480pixels |
|
TV System: |
PAL/NTSC |
|
Power: |
< / = 3W |
|
Power supply: |
DC 12V-24V |
|
Video: |
1-channel video input |
|
Environment Humidity: |
10% ~ 90% |
|
Operating Voltage: |
DC 12V-24V |
|
Operating temperature: |
-20 ~ 60 degree Celsius |
|
Storage temperature: |
-40 ~ 85 degree Celsius |
|

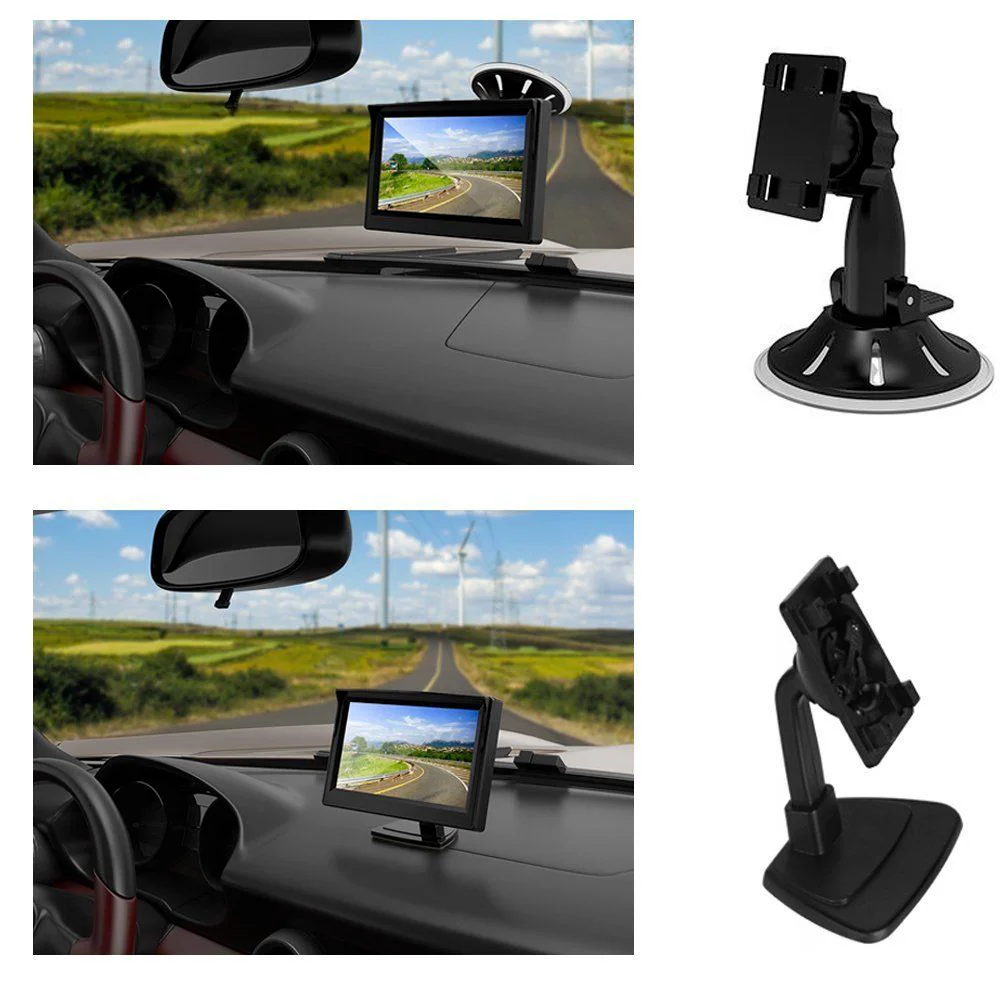

Installation: |
Install on the Dashboard, Easy for installation and uninstallation |
|
Car Make: |
All Car |
|
|
|
|
Package Contains
|
|
1 x 4-Pin 5" LCD Monitor |
|
1 × Power Cable |
|
1 × Manual |
|

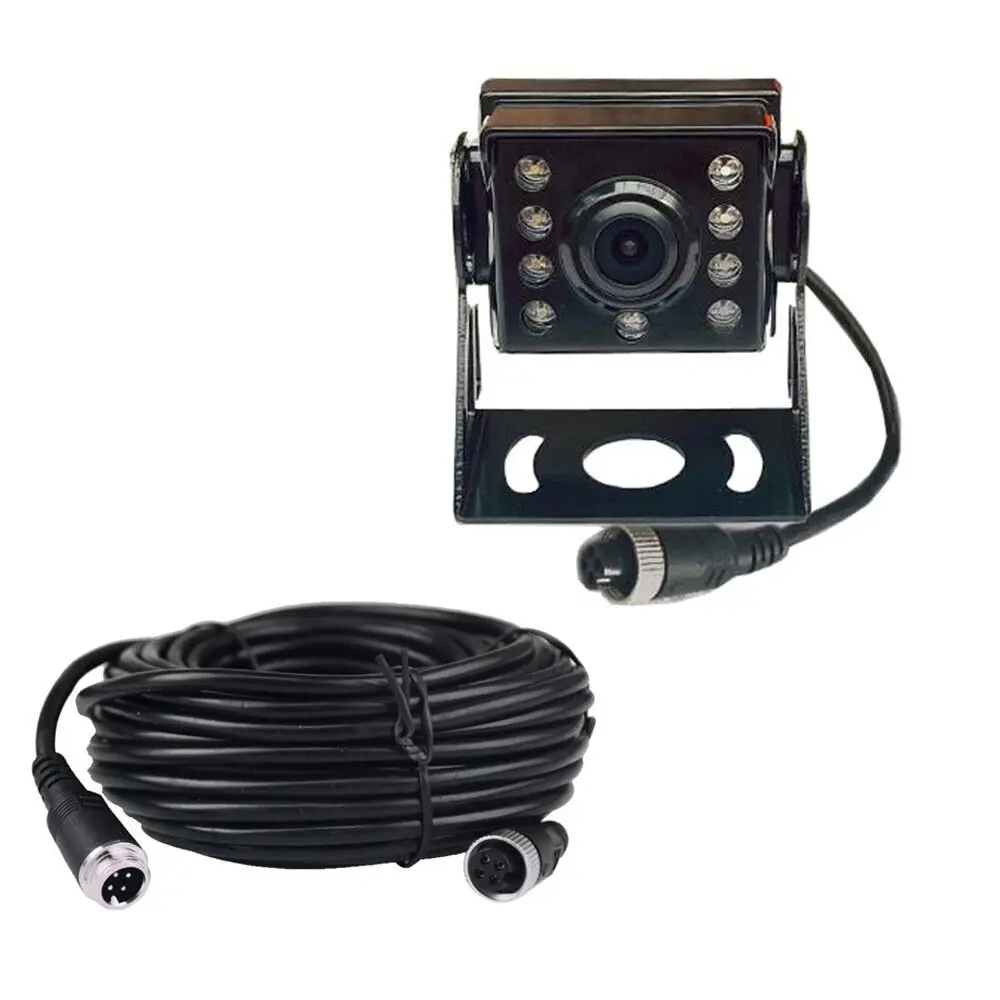

1 x 8 LEDs Car rear view camera |
|
1 x Cigarette lighter power adapter |
|
1 x 10M （33ft） 4Pin Cable |
|
|
|
|
|
|
|
