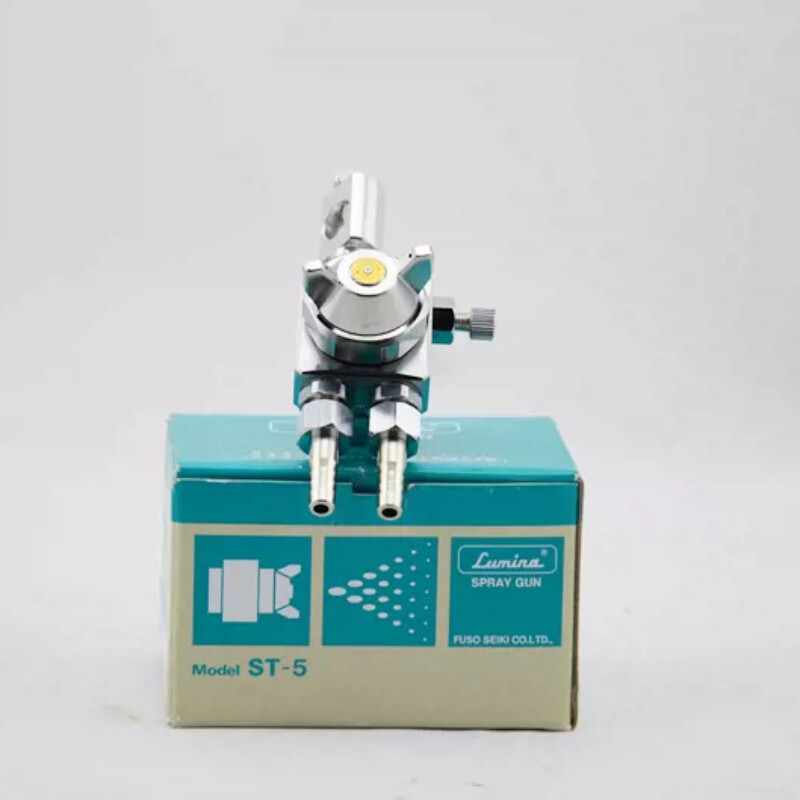

ST-6 nozzle st6 automatic spray gun Lumina ST-5 flux blister machine wave soldering nozzle
Products
ST-6 spray gun is suitable for steel plate cooling, steel plate lubrication, vacuum blister, medicine, food, textile, printing and other industries operation.
1. Paint supply method is pressure-feeding type.
2. The spray pattern is fan-shaped and round.
3. The caliber is 0.5/1.0/1.3/2.0mm;
4.ST-6 blowing distance is 200mm-300mm;
5. The spray width is 200~400mm;
6. Approximate weight: 500g.
Complete set of configuration: Lumina box, an automatic spray gun, a special wrench, 3 hose connector, 3 hexagonal nuts, manual.
Advantages
Small gun body, simple operation; with a variety of nozzle caliber for choice, so that you can use more convenient; nozzle and thimble made of stainless steel, suitable for spraying water-based paint.
Working Principle
There is a pneumatic piston mechanism inside the nozzle, a stainless steel needle is installed above the piston, and a set of high-tension spring is installed behind the piston. When the compressed air supply stops, the spring will be the piston and the spray needle forward top, the spray needle and the nozzle to high-precision close fit to block the liquid through, on the contrary, the pressure of the compressed air, will be pushed away from the piston, the spray needle and the nozzle has a gap to let the liquid sprayed, the liquid and the atomization of the air contact to produce the effect of atomization. Spray gun piston action air and atomizing air with a common, compressed air pressure must be higher than the spring force of the piston (2Kg/cm2) spray gun to work properly.
It is suitable for working environments with high atomization requirements and low spray switching frequency.
Typical applications
High atomization paint spraying, assembly line spraying, paint and other paint spraying surface treatment, automatic spraying line, self-control cooling, self-control wax spraying.
