51MP 2K 1080P FHD Digital Microscope 150X C-Mount Lens HDMI USB Electronic Industrial Microscope Camera for Phone Repair Soldering

Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)


Camera Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
 Image resolution: 51 MegaPixel
 Video format: MP4(for TF card)
 Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
 White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions

 Camera Specification:
Image sensor: 51 megapixel CMOS sensor 1/2.33 inch
 Effective pixel: 51 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

150X Objective Lens:
Working distance: 50mm-350mm
Field of view: 3.1mm-66mm
zoom c-mount Lens
zoom ratios: 5:1
Magnification Power by 0.11X - 2X
Size: 100mm(L) * 28mm(DIA)
Ring adapter: 35mm(default), 42mm, 50mm (optional)

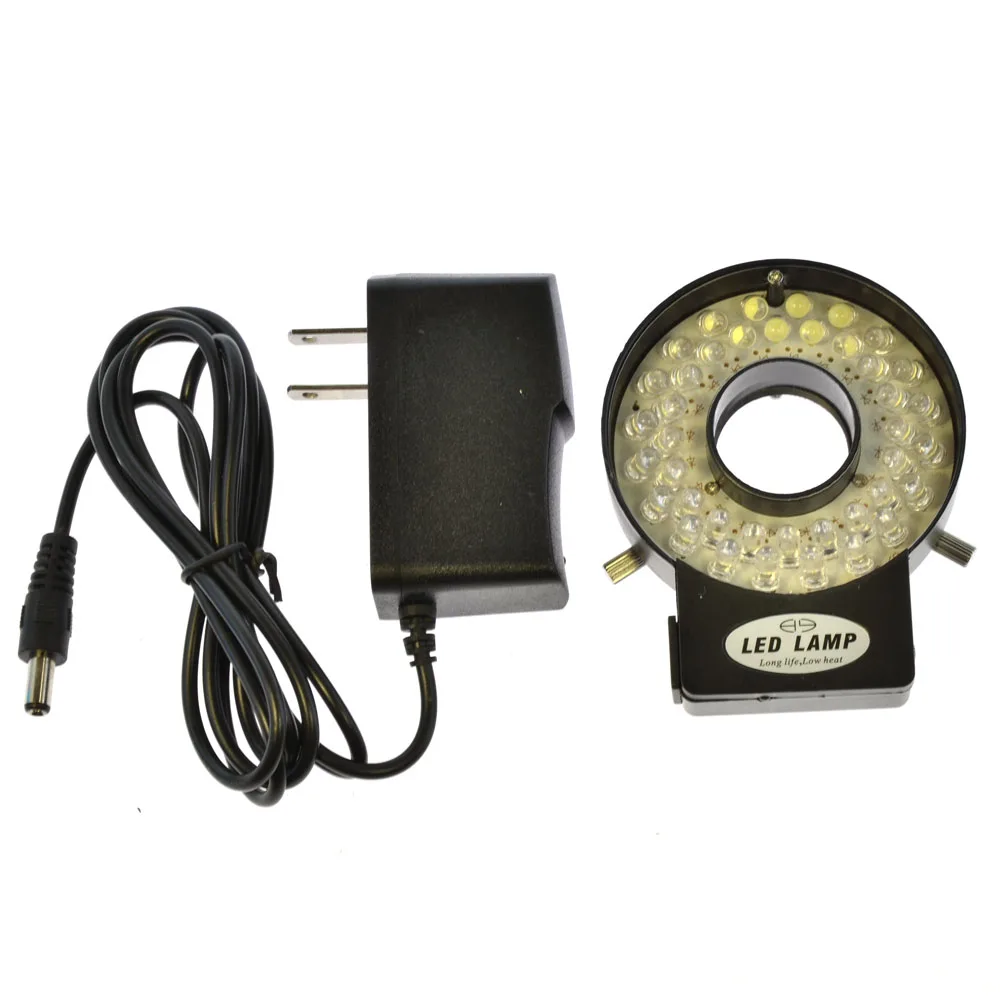

40 LED Light
40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm

Package including:
1 x 51MP Microscope Camera
1 x Power supply
1 x USB line
1 x Remote Control
1 x 40 LED Light (Optional)

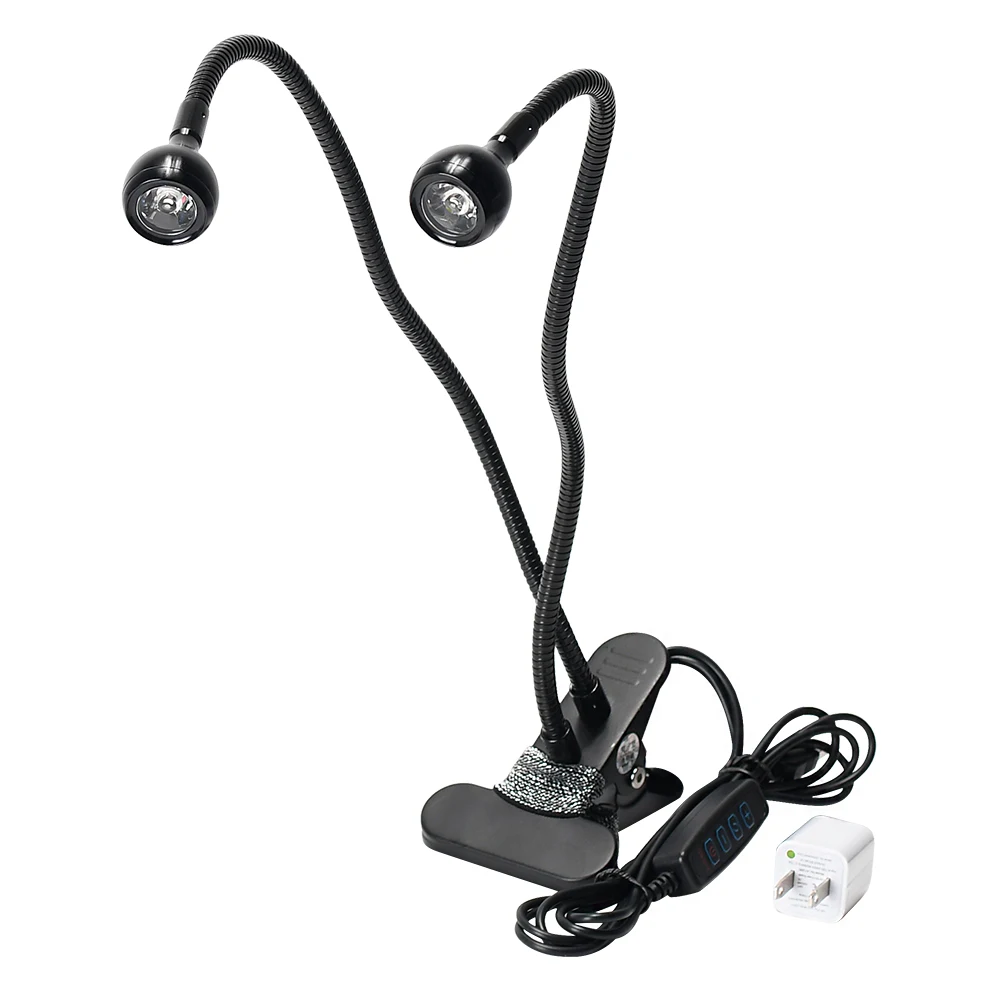

1 x Double Head Light (Optional)
1 x 150X C-Mount Objective Lens (Optional)
1 x Stand(Optional)
