This Item Has A Current Calibration!
|
|
|
|

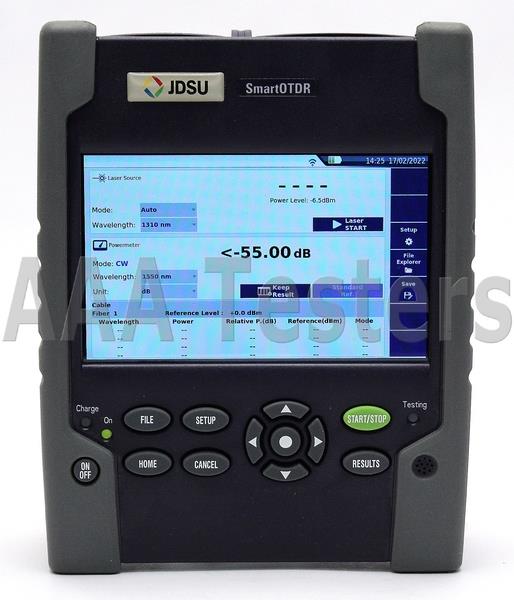

JDSU SmartOTDR E126A SM 1310 / 1550nm Fiber OTDR w/ SmartLink Option
Dynamic Range:
1310 / 1550 nm : 37 / 35 dB

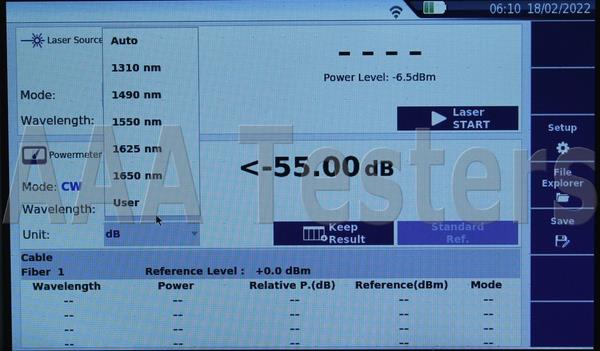

Power Meter:
- 1310nm
- 1490nm
- 1550nm
- 1625nm
- 1650nm

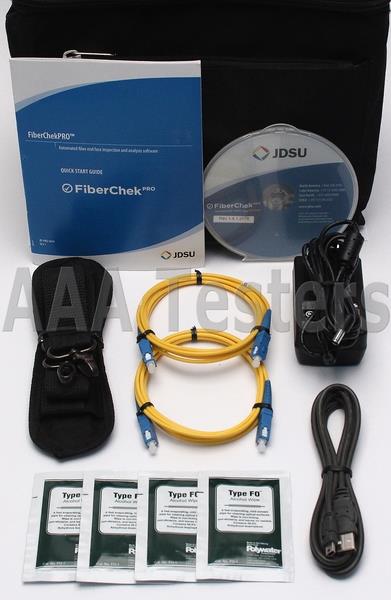

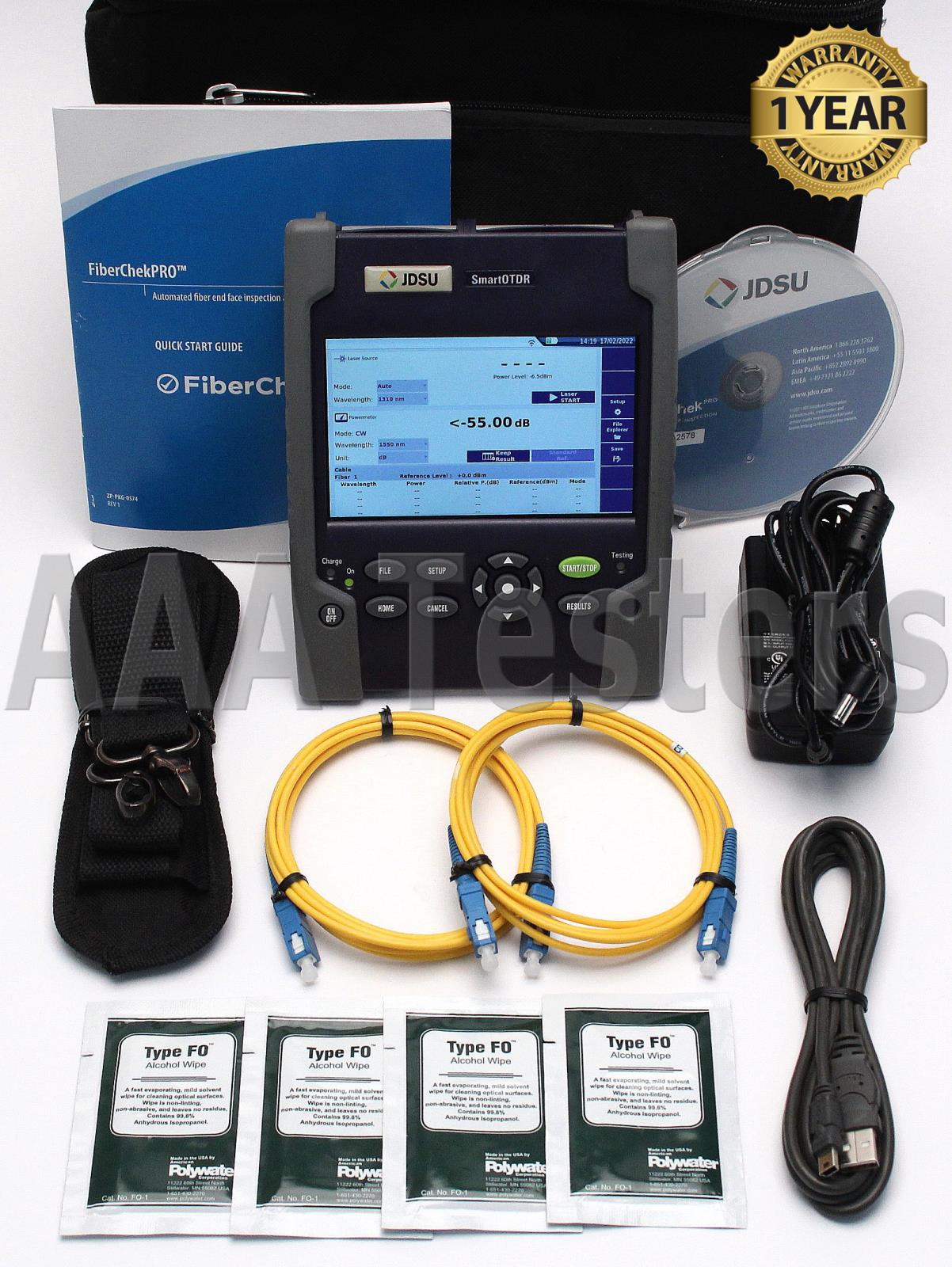

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
JDSU E126A SmartOTDR SM Fiber OTDR
The lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks— with a tailored OTDR interface and automatic analysis that any technician can understand.
With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.
Powerful Connectivity
Several connectivity options (3G/4G smartphones via USB and optional Bluetooth/WiFi) enable remote control as well as data and work-order transfers to-and-from tablets, smartphones, and computers. The SmartOTDR quickly resolves field issues in real time, and optional SmartAccess Anywhere (SAA) can open a tunnel in the cloud so a technician can remotely access and operate the instrument. Compatible with a wide range of cloud servers (WebDAV service providers), the SmartOTDR can also instantly share measurement reports using onboard FastReport .pdf report generation.
Benefits:
- Combines all essential fiber tests in one handheld with visual fault locator (VFL), optical power meter (OPM), and P5000i microscope options

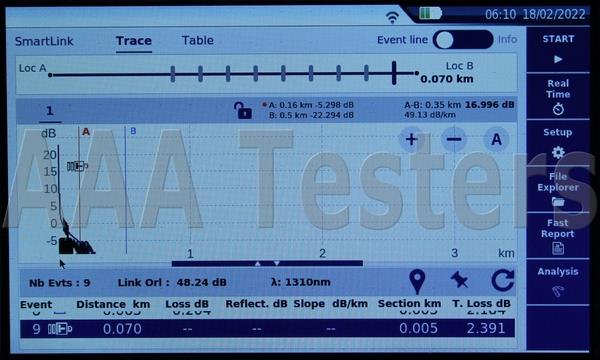

- Simplifies OTDR analysis with Smart Link Mapper (SLM) result view
- Upgrades easily in the field
- Automates testing with objective, pass/fail results
- Enhances productivity anywhere with powerful network connectivity options)
Features:
- Single-/dual-/tri-wavelength versions with 1310/1550 nm and in-service 1625 or 1650 nm wavelengths
- Light, compact, hands-free design includes 5” high-visibility outdoor touch screen
- Integrated CW light source
- PON optimized to test through 1x128 splitter ratio with FTTH-SLM
- Built-in PON/XG-PON power meter (1490/1550/1578 nm)
- Automated fiber inspection and macrobend detection with pass/fail analysis software
- 3G/4G connectivity via USB, Bluetooth®/WiFi options
Specifications:
| General |
| Display |
5-inch capacitive color touch screen (12.5 cm) |
| Display resolution |
800 x 480 W VGA |
| Interfaces |

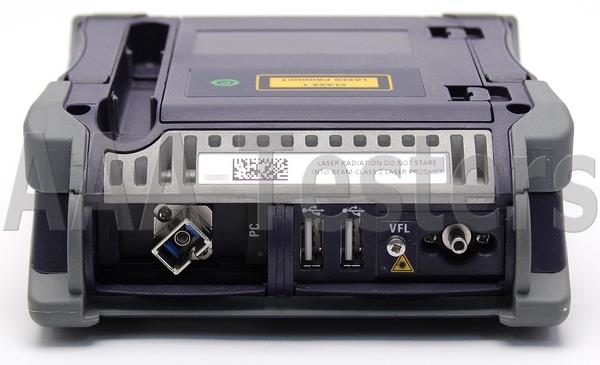

2x USB 2.0 ports, 1x mini-USB 2.0 port, built-in Bluetooth and WiFi (optional, dongles also available) |
| Storage |
10,000 OTDR traces typical |
| Battery |
Rechargeable Lithium-polymer battery, up to 20 hours of operation |
| Power supply |
AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W |
| Electrical safety |
EN60950 compliant |
| Size (HxWxD) |
175 x 138 x 57 mm (6.9 x 5.4 x 2.24 in) |
| Weight (battery included) |
Approx. 0.9 kg (1.98 lb) |
| Operating/Storage temperature |
Operating: –20 to +50°C; storage: –20 to +60°C |
| Humidity (noncondensing) |
95% |
| OTDR |
| Laser safety class (21 CFR) |
Class 1 |
| Number of data points |
Up to 256,000 data points |
| Display range |
0.1 km to 260 km |
| Sampling resolution |
4 cm |
| Distance accuracy |
(±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties |
| Attenuation resolution |
0.001 dB |
| Attenuation linearity |
±0.04 dB/dB |
| Central wavelength |
1310/1550 nm ±20 nm |
| RMS dynamic range |
37/35 dB |
| Pulse widths |
5 ns to 20 µs |
| Event dead zone |
1.35 m |
| Attenuation dead zone |
4 m |
| Splitter attenuation dead zone |
Not available |

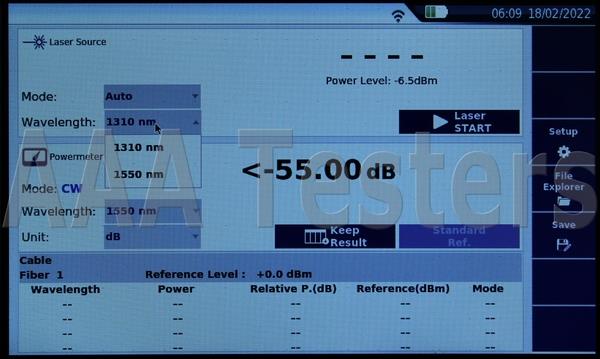

| CW light Source |
| Output power level |
–3.5 dBm |
| Stability long term (8 hr) |
±0.05 dB |
For full JDSU E126A SM Fiber OTDR product specifications, please click here: JDSU E126A
|
|
|
|
