Purchase Notes:
1.This is a wired POE camera, it needs POE NVR device to work, it is not a wireless WIFI camera. 2.The camera is compatible with most POE NVR through Onvif protocol, the premise needs to determine whether your NVR supports Onvif protocol. |
|

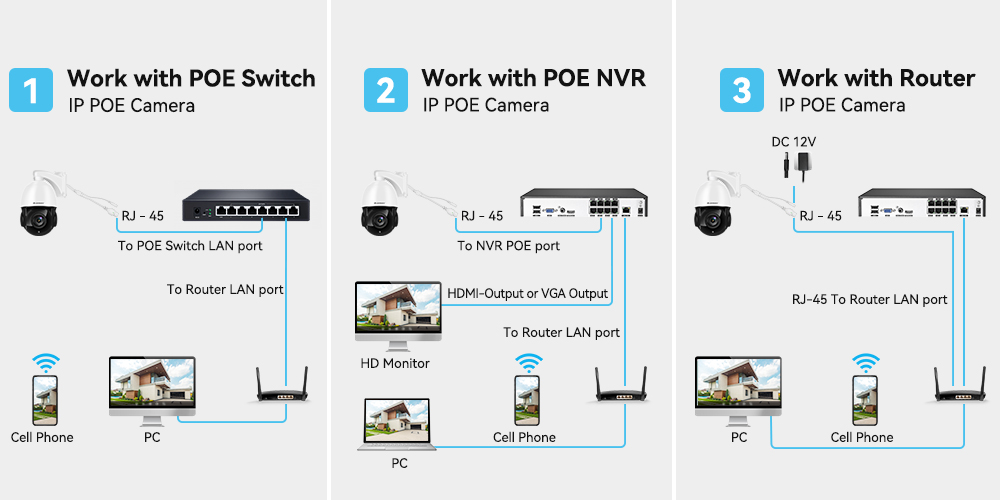

Working principle
When the camera is directly connected to a POE NVR or POE switch, no power adapter is required. Only when the camera is connected directly to a router does an additional 12V power supply become necessary, as routers cannot directly supply power to POE cameras.
|
|
Ultra 8MP HD & 20X Optical Zoom
This POE camera outdoor features ultra-high clarity of 8MP Ultra HD, which can capture more detailed and clear images, making the details of the monitoring area clear at a glance. With 4.7~94mm motorized lens, it allows 20X optical zoom & 10X digital zoom without impairing image quality. It supports viewing the car license plate remotely, great for use in large places such as parking lots, hypermarkets, gardens, roadsides, etc.
|
|
Auto Tracking & Human Detection
Equipped with auto-tracking and humanoid detection function, detection area or sensitivity can be adjusted to reduce false alarms. When the detected person enters the video area, it will automatically track and send the real-time video/snapshot to your mobile phone. Support 8 groups of cruising routes, each route can be set to 16 preset positions and cyclically check according to your preset position, cruise patrol to guard your home, no any blind corner.
|
| Guard Your Property with Daily Patrol Support 8 cruise lines, up to 128 preset points, zoom lens status can be saved during the preset. |
|
Power Over Ethernet & Two Way Audio
The 8MP POE IP Security Camera features a POE function. Only one Ethernet cable is needed for power and data connection. This simplifies the wiring process and enhances the convenience of installation. In addition, the two way audio function enables users to achieve real-time communication. The camera is equipped with a microphone and speakers, allowing users to have remote conversations with the location of the camera through the monitoring system.
|
| Instant Response to Motion Events 328ft IR Night Vision & Siren Alarm Jennov POE PTZ camera is equipped with 6 infrared lights that automatically switch to night vision mode within 50m. When suspicious activities are detected, it will trigger audio alarm. |
|

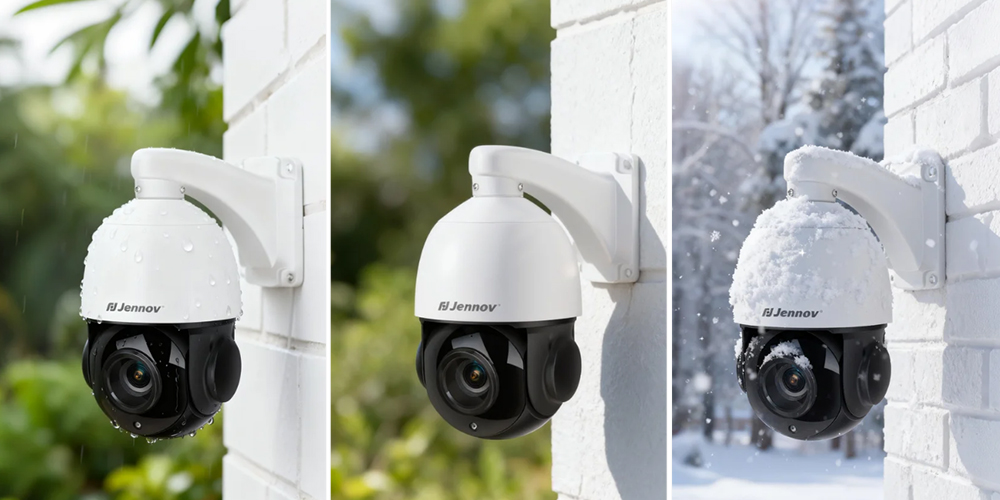

IP66 Waterproof
The IP66 feature ensures that the surveillance camera can operate normally under various adverse weather conditions, ensuring 24-hour monitoring services.
|
| Multi-user Sharing & Remote access ane share with friends You can grant access to your camera's feed and controls to multiple users, allowing your family and friends to stay connected and monitor your space. Please note that sharing should be done through the main account, allowing up to 5 users to watch at the same time.Supports Android / iOS / Windows systems and sharing to 5 users via main account. |
|
Intelligent Timeline Playback
Your daily videos and photos are invaluable, and capturing and storing this data in real time is the core value of using security cameras. Whether sharing with loved ones or safeguarding your home, the key lies in quickly retrieving, playing back, and exporting the content you need. JENNOV cameras feature an intuitive, searchable timeline function that saves you time and effort while serving as a powerful built-in video player.
|
| Camera Module | |
| Image Sensor | 1/2.8” 8Megapixel progressive scan Sony CMOS |
| Min. Illumination |
Color: 0.1 Lux @(F1.6, AGC ON) B/W:0.01 Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz: 1/25 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 10x |
| Privacy Mask | 3 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Lens | |
| Focal Length | 4.7 mm to 94 mm, 20 × optical zoom |
| Zoom Speed | Approx. 2 s (optical lens, wide-tele) |
| Field of View |
Horizontal field of view: 75° to 31.6° (Wide-Tele) Vertical field of view: 34.4° to 17.7° (Wide-Tele) Diagonal field of view: 64.5° to 36.3°(Wide-Tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F2.8 |
| PTZ |
|
| Movement Range (Pan) | 0° to 360° |
| Pan Speed | Configurable, from 0.5°/s to 60°/s. Preset speed: 60°/s |
| Movement Range (Tilt) | -15° to 90° |
| Tilt Speed | Configurable, from 0.5°/s to 60°/s. Preset speed: 60°/s |
| Proportional Zoom | Yes |
| Presets | 255 |
| Power-off Memory | Yes |
| Image | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP/4MP/3MP/1080P/720P |
| Sub-Stream | VGA/640x360/480X360P/CIF@25fps, etc |
| Image Enhancement | 3D DNR, EIS, Regional Exposure, Regional Focus |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols | IPv4/IPv6, HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP/TCP/IP, etc. |
| API | (Profile S, Profile G, Profile T) |
| Simultaneous Live View | Up to 20 channels |
| Web Browser | IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+ |
| General | |
| Language (Web Browser Access ) |
7 languages: Chinese, English, Russian, German, Italian, , Turkish, 한국어 |
| Power |
12 VDC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR) |
| Working Environment | Temperature: -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90% |
| Protection Level |
IP66 standard, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5 |
| Material | Aluminum alloy+plastic |
| Dimension | Φ 135.5 mm × 235.7 mm (Φ 5.33" × 9.28") |
| Weight | Approx. 2.2 kg (4.85 lb.) |
