5x L7805cv  5v to-220 Positive Voltage Regulators LM7805 MC7805 (Pack of 5) - UK STOCK

L7805-Dv-Transistor-small

 BUY FROM A TRUSTED & GENUINE UK SELLER!

5x L7805cv  5v to-220 Positive Voltage Regulators LM7805 MC7805 (Pack of 5)
5pcs
These are high quality and reliable components.

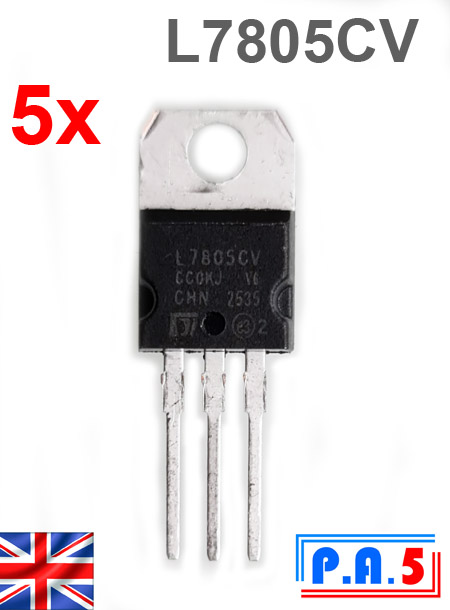

L7805CV is a positive voltage regulator IC in a 3 pin TO-220 package. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. It employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.

  • 5V output voltage
  • Thermal overload
  • Short circuit protection
  • Output transition SOA protection

100% new and high quality



  • Maximum Output Current 1.5A
    Regulator Type Linear Voltage
    Output Voltage 5 V
    Number of Outputs 1
    Line Regulation 100 mV
    Load Regulation 100 mV
    Mounting Type Through Hole
    Polarity Positive
    Quiescent Current 8mA
    Package Type TO-220
    Pin Count 3
    Output Type Fixed
    Dimensions 10.4 x 4.6 x 15.75mm
    Minimum Operating Temperature 0 °C
    Height 15.75mm
    Maximum Input Voltage 35 V
    Maximum Operating Temperature +125 °C
    Length 10.4mm
    Width 4.6mm
    		•
