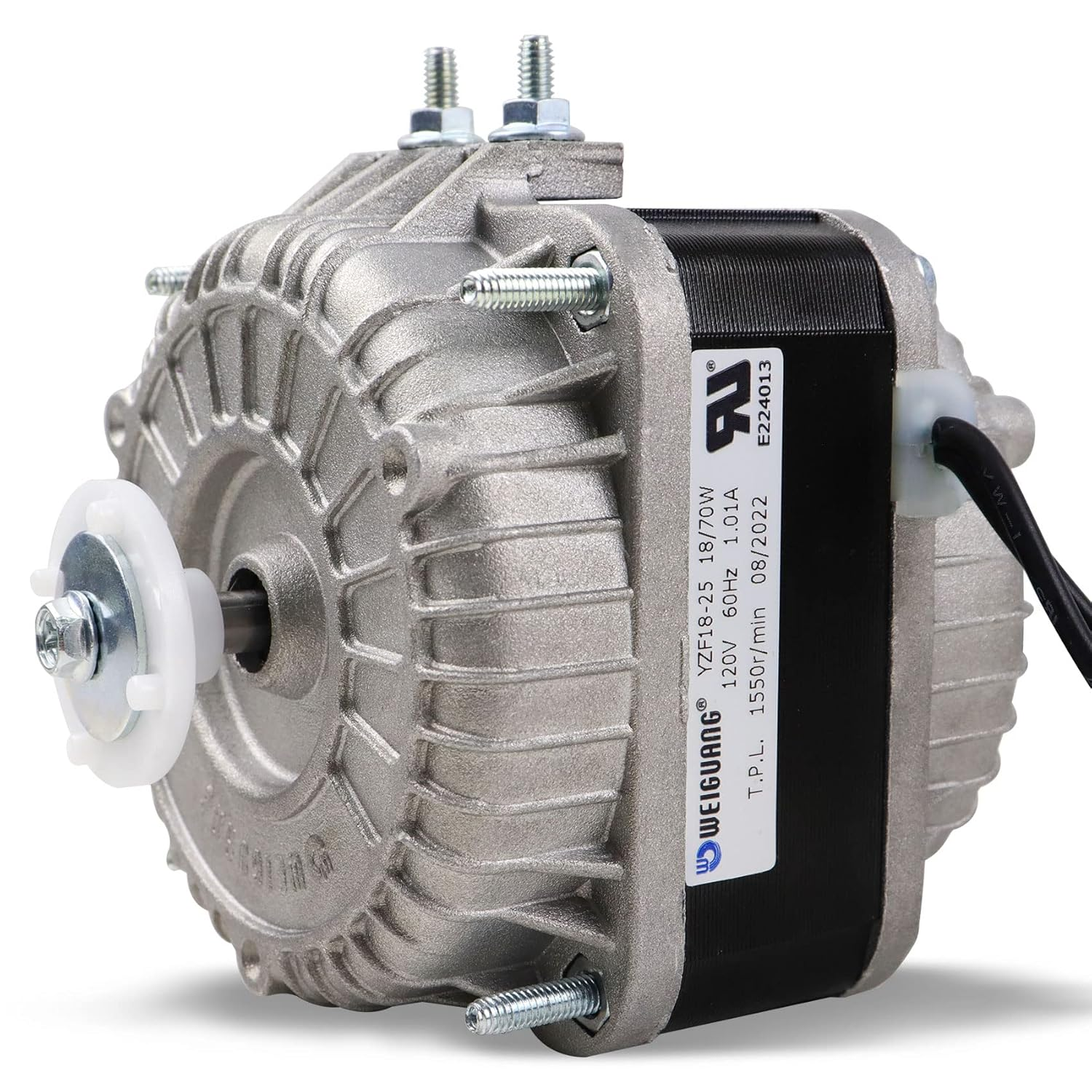

YZF18-25 Fan AC Motor 120V 18W 1.01A 60Hz Shaded Pole Condenser Motor Replace YZF10-20 YZF6-13 W0301905 for Refrigeration Equipment Radiator Evaporator Freezer, Small Ventilation Equipment 1550Rpm
Description
| Item model number | YZF18-25 |
| Style | YZF18-25 18/70w |
| Voltage | 120 Volts |
| Model Name | YZF18-25 |
| Horsepower | 18 Watts |
| Speed | 1550 RPM |
| Package Dimensions | 11.22 x 8.15 x 6.06 inches; 3.33 Pounds |
| Size | YZF18-25 |
- 【Important parameters】: YZF18-25 fan motor can replace YZF10-20(120V, 60HZ, Input power 55W, output power 10W) YZF6-13(120V, 60HZ, Input power 33W, output power 6W) W0301905(120V, output power 10W) W0301904(115V, output power 9W) etc & fit for many brands refrigeration requipment : Atosa, Avantco, Fasco, Elco, Supco, Mars etc. ▶Rated voltage 120 Volts, ▶Current 1.01A, ▶Output power 18 W, ▶Input power 70 W, ▶Operating frequency 60Hz, ▶Rated air volume 940m3/h
- 【High-quality】: YZF18-25 fan motor is made by professional fan motor manufacturer- Weiguang, made of high-quality high-temperature and corrosion-resistant metal materials, precisely processed, strictly tested in terms of quality and performance, and certified by UL/CSA. All materials comply with ROHS. Therefore, it is very stable and has long service life.
- 【Easy to install】: YZF18-25 fan motor does not need drilling or welding and is very simple to install. The body is also very small, easy to use and operate. You can easily replace your old parts by watching videos on Youtube.（Note: This item does not include a fan blade）
- 【Wide range of application】: YZF18-25 fan motor can dissipate heat, suitable for small ventilation equipment, various refrigeration equipment, such as condensers, freezers, radiator evaporators, etc.
- 【Good after-sales Service】: If you have any questions, please contact us in time, we will try our best to give you a satisfactory answer and you can unconditionally request a free replacement. We always provide 2 year free replacement.
Product description
YZF18-25 Fan Motor
Advantage of YZF18-25 Fan Motor
Powerful Motor
YZF18-25 fan motor has a single-phase motor and 120V voltage, which can save energy in a long time, reduce energy costs or overhead. Move effortlessly.
High Performance
YZF18-25 fan motor runs at 18W, and the maximum speed is 1550 RPM, high hardness shaft is more durable, insulation class: F.
Sturdy & Durable Construction
YZF18-25 fan motor housing is made of durable metal material, robust and reliable, with strength and durability, corrosion resistance, and smooth surface provides comfortable use.
Advantage of YZF18-25 Fan Motor
Specifications of YZF18-25 Fan Motor
| MOTOR TYPE | YZF18-25 fan motor |
| VOLTAGE | AC 120V |
| FREQUENCY | 60Hz |
| OUTPUTPOWER | 18W |
| INPUTPOWER | 70W |
| CURRENT | 1.01A |
| SPEED | 1550r/min |
| FAN BLADES | Φ254 / 28°(MAX) |
| ROTATION | CCW (looking towards the shaft) |
| AIRFLOW DIRECTION | Sucking or Blowing |
| MOTOR PROTECTION | Terminal protection |
| TEMPERATURE RISE | 95K max (with load) |
| PROTECTION CLASS | IP 42 |
| OPERATING TYPE | S1 |
| MOUNTING TYPE | Horizontal or Vertical |
| AMBIENT TEMPERATURE | BEARINGS -25°C +50°C |
| BEARINGS | Sleeve bearings |
| ELECTRICAL CONNECTION | UL 18AWG 2C lead wire 500-550mm free length |
| HI-POT TEST | 1800V/1s Ileakage<=0.7mA |
| APPROVALS | UL |
| WEIGHT PER UNIT | 1.4kg |
| ROHS CERTIFICATION | All materials comply with ROHS. |
| LONG SERVICE LIFE | The average service life of the motor is over 30,000 hours. |
| NOTE | Before running the motor, be sure to effectively connect the external grounding device to the motor casing. The external ground wire can be connected to the bolt of the motor, or the motor housing can be connected to an external ground through conductive metal. |
