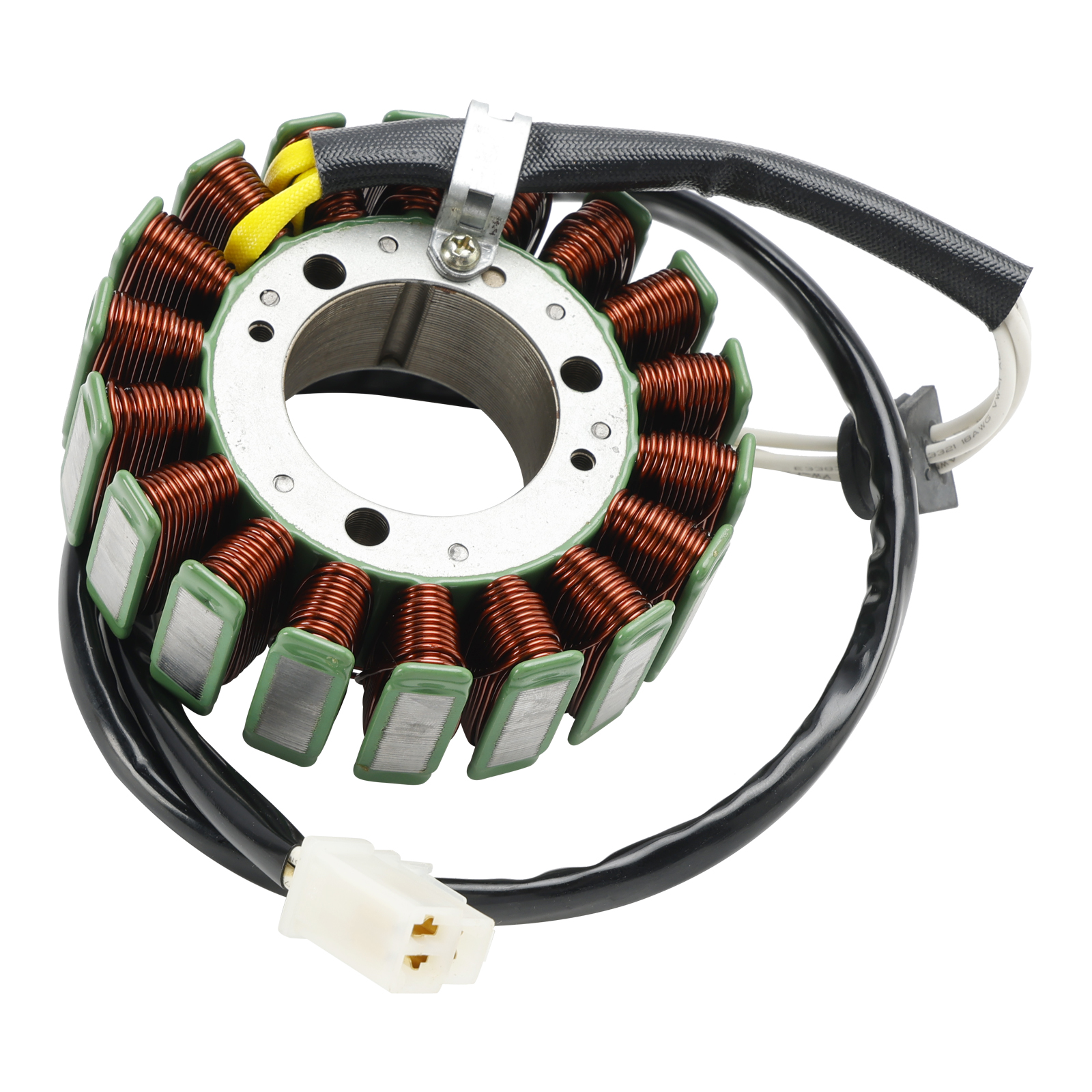

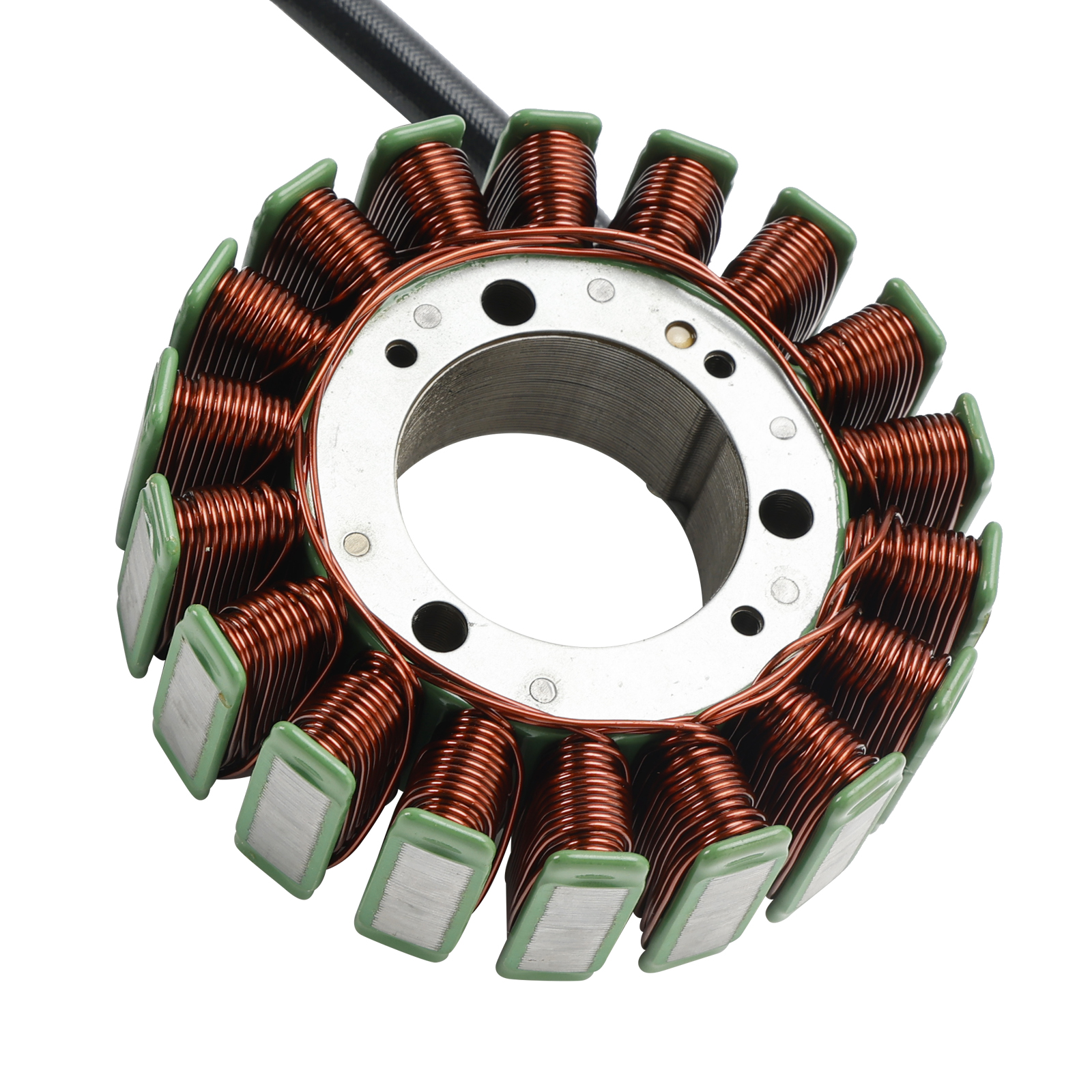

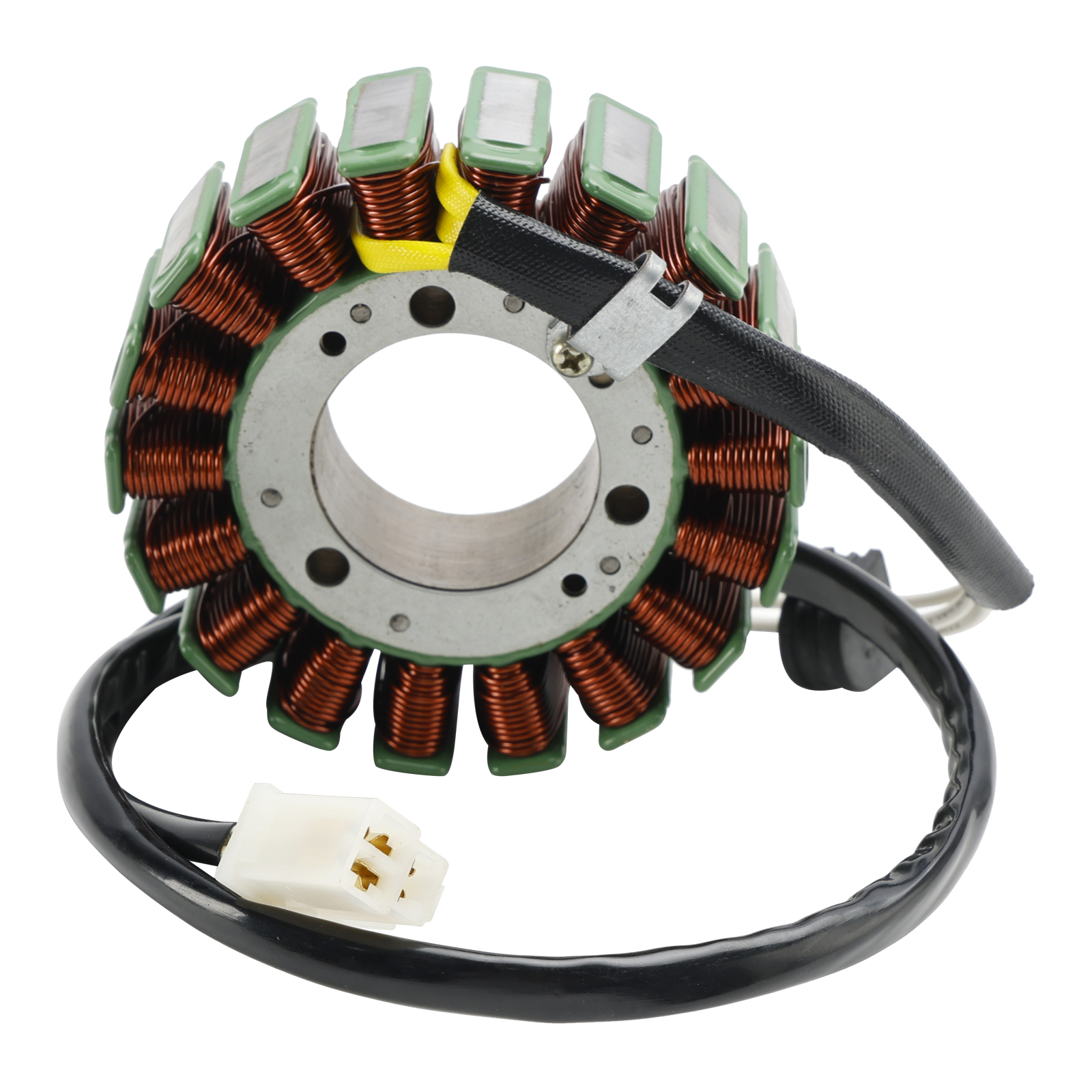

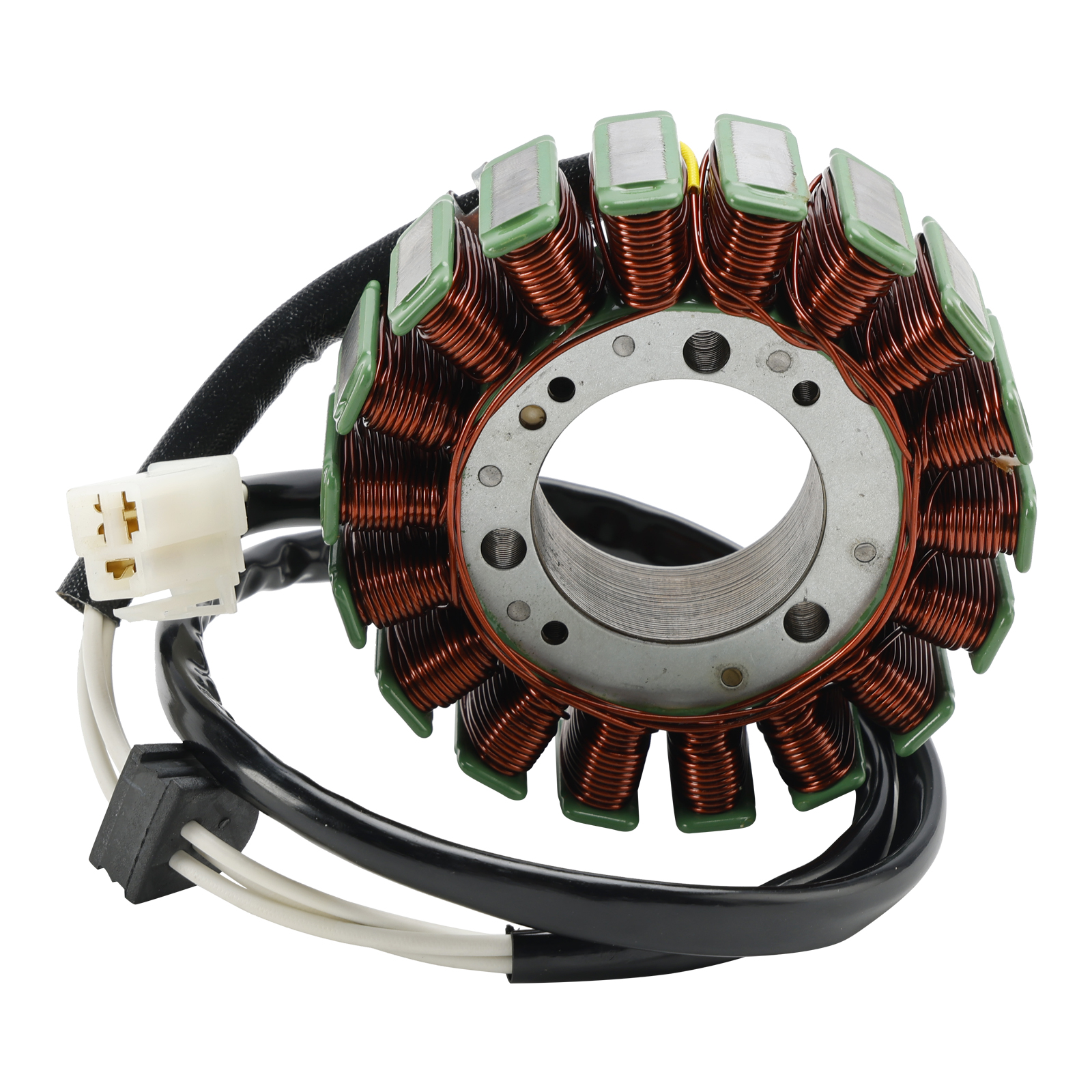

Generator Stator Fit for Ducati Monster 696 796 800 900 1000 1100 - 26440143B

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

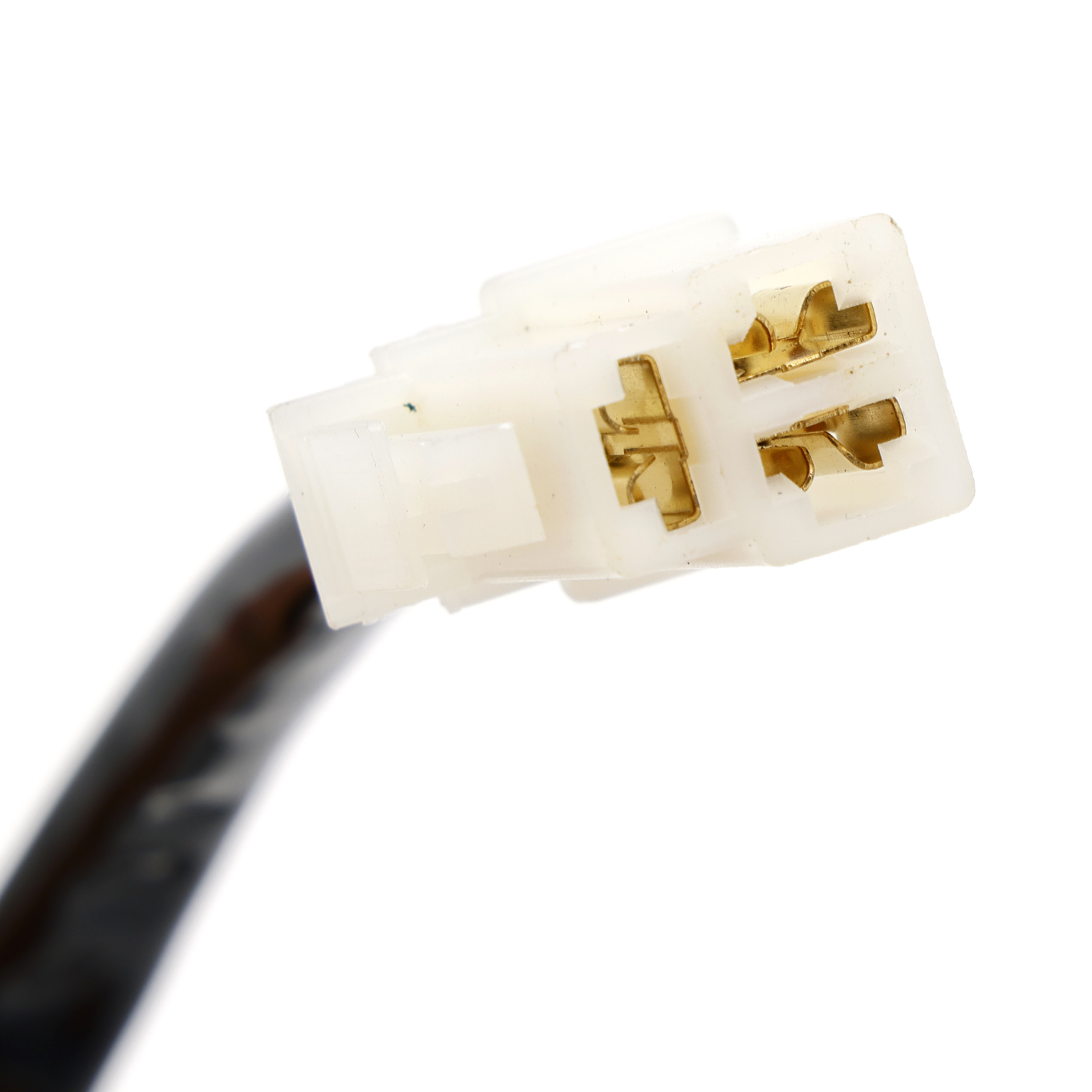

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

Dimensions :
Exterior diameter : 104mm
Interior diameter : 42mm

Replacement Part Number:
26440143B

Fits Make/Model/Year:
Fit for Ducati Monster – 400 cc – 2000 – 2008
Fit for Ducati Monster Dark – 400 cc – 2005 – 2005
Fit for Ducati Monster ie – 620 cc – 2002 – 2006
Fit for Ducati Supersport ie – 620 cc – 2003 – 2004
Fit for Ducati Monster – 695 cc – 2007 – 2008
Fit for Ducati Monster – 696 cc – 2009 – 2013
Fit for Ducati 748 – 748 cc – 2001 – 2001
Fit for Ducati 748 R – 748 cc – 2001 – 2002
Fit for Ducati 748 S – 748 cc – 2001 – 2002
Fit for Ducati Monster ie – 750 cc – 2000 – 2002
Fit for Ducati Supersport – 750 cc – 2001 – 2002
Fit for Ducati Monster 796 – 796 cc – 2012 – 2012
Fit for Ducati Monster ie – 800 cc – 2003 – 2004
Fit for Ducati Monster S2R – 800 cc – 2005 – 2007
Fit for Ducati Supersport – 800 cc – 2003 – 2005
Fit for Ducati Monster – 900 cc – 2001 – 2002
Fit for Ducati Supersport SS – 900 cc – 2001 – 2002
Fit for Ducati 996 – 996 cc – 2001 – 2001
Fit for Ducati 996 R – 996 cc – 2001 – 2001
Fit for Ducati 996 S – 996 cc – 2001 – 2001
Fit for Ducati 998 – 998 cc – 2002 – 2004
Fit for Ducati 998 R – 998 cc – 2002 – 2004
Fit for Ducati 998 S – 998 cc – 2002 – 2004
Fit for Ducati 1000 GT – 1000 cc – 2007 – 2008
Fit for Ducati 1000 Sport S – 1000 cc – 2007 – 2008
Fit for Ducati Monster – 1000 cc – 2003 – 2005
Fit for Ducati Monster S – 1000 cc – 2005 – 2005
Fit for Ducati Monster S2R – 1000 cc – 2006 – 2008
Fit for Ducati Monster S4R – 1000 cc – 2007 – 2008
Fit for Ducati Monster S4RS – 1000 cc – 2007 – 2008
Fit for Ducati Multistrada – 1000 cc – 2003 – 2004
Fit for Ducati Multistrada – 1000 cc – 2005 – 2006
Fit for Ducati Multistrada S – 1000 cc – 2005 – 2006
Fit for Ducati Paul Smart – 1000 cc – 2006 – 2006
Fit for Ducati Supersport – 1000 cc – 2003 – 2006
Fit for Ducati Monster – 1100 cc – 2009 – 2010
Fit for Ducati Monster S – 1100 cc – 2009 – 2010
Fit for Ducati Multistrada – 1100 cc – 2007 – 2008
Fit for Ducati Multistrada S – 1100 cc – 2007 – 2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 118mm Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.

MOTORCYCLE PART FITMENT GUIDE

This part fits vehicles listed in the description and compatibility chart ONLY

✔ 100% FITMENT VERIFICATION REQUIRED

This aftermarket/remanufactured part requires matching:

• Exact Year/Make/Model/Engine CC

• OEM Part # (stamped on your original component)

• Physical Measurements (see dimension diagrams in photos)

CRITICAL CHECK POINTS:

[✓] Compare mounting hole patterns

[✓] Match electrical connectors (if applicable)

[✓] Verify clearance requirements

[✓] Check sub-model variations (e.g., ABS vs non-ABS)

FREE FITMENT CONFIRMATION:

Send us:

    ✅ VIN (17-digit)   ✅ Clear photos of your original part    ✅ OEM numbers from your current component
