Features:
1. Utilizes TEC1-7103 semiconductor cooling chip with a maximum temperature difference exceeding 65°C for powerful and efficient cooling
2. Supports DC 5V power supply with multiple interface options, compatible with smartphones, tablets, and various devices

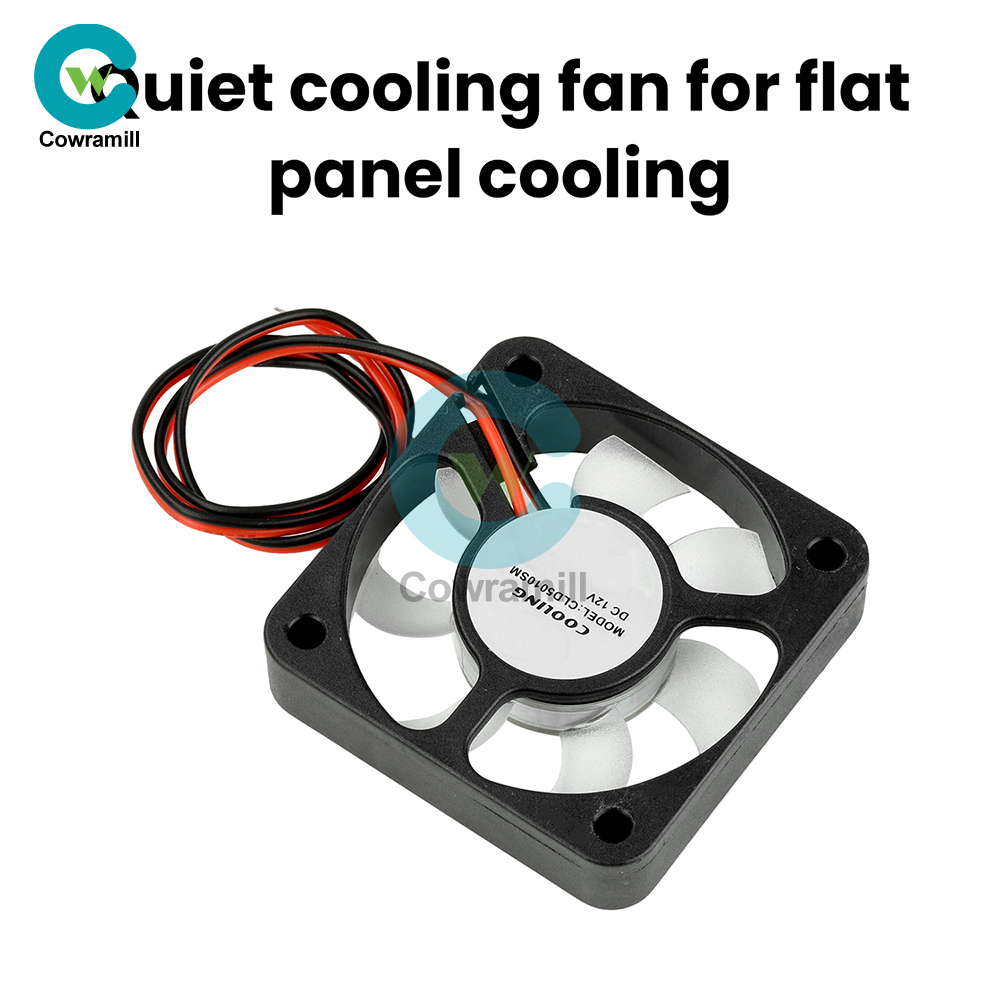

3. Equipped with a high-speed silent fan for efficient heat dissipation, low-noise operation, and enhanced cooling performance

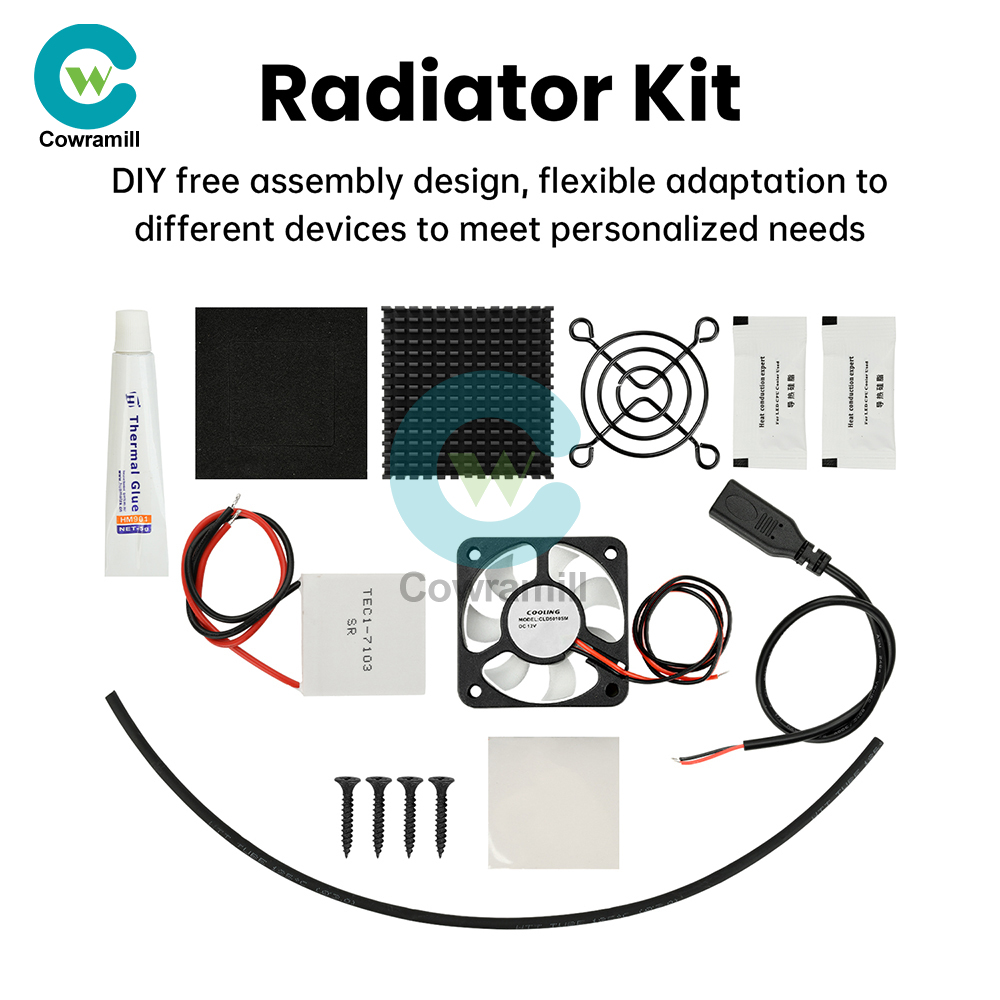

4. DIY modular assembly design for flexible adaptation to different devices, meeting personalized needs

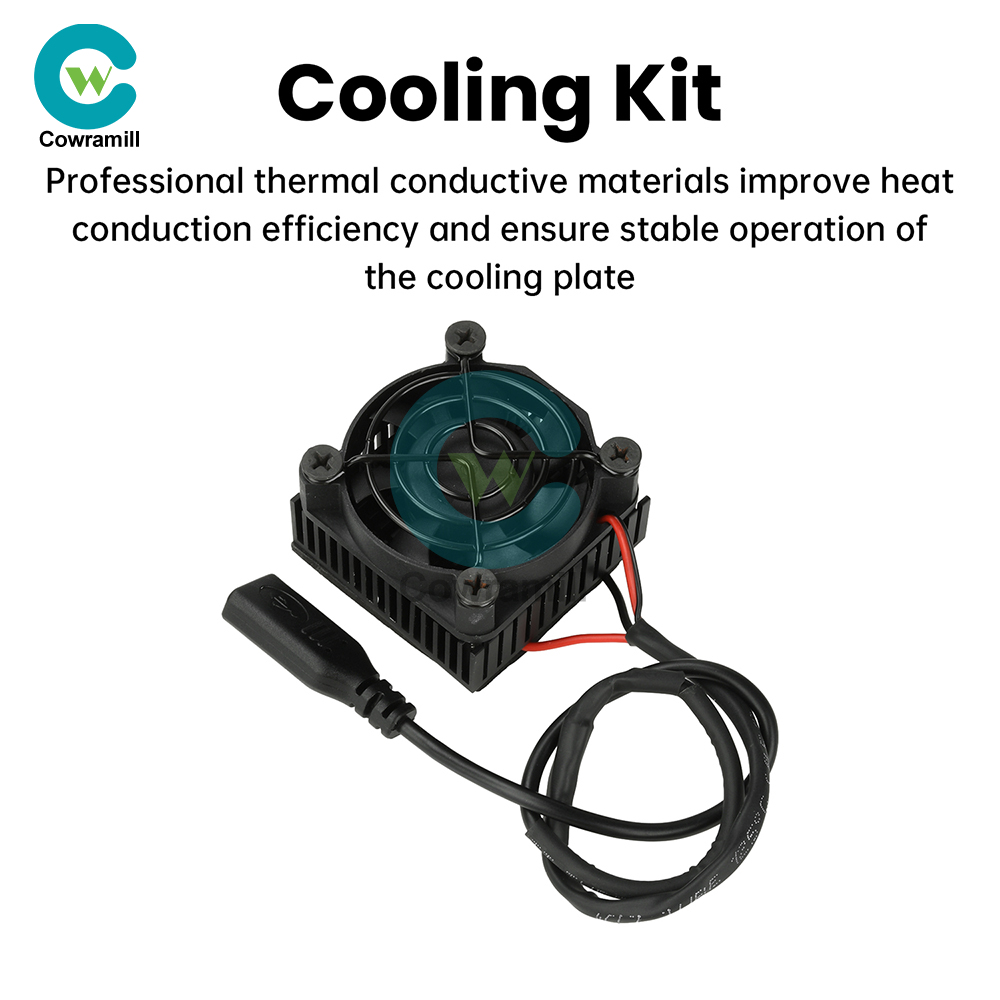

5. Professional thermal interface material enhances heat transfer efficiency, ensuring stable operation of the cooling plate

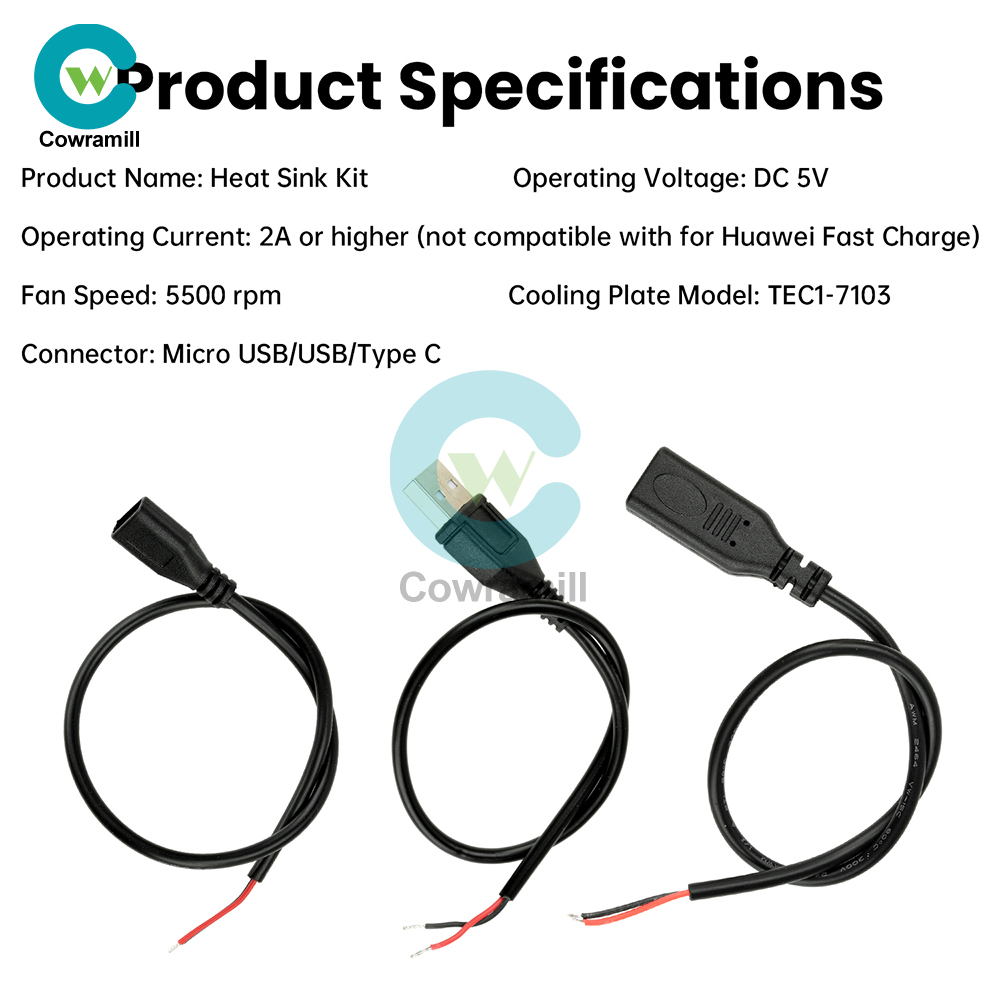

Parameter:
Product Name: Radiator Kit
Operating Voltage: DC 5V
Operating Current: 2A or higher (Not compatible with Huawei Fast Charge)
Fan Speed: 5500 RPM
Cooling Plate Model: TEC1-7103
Cable Interface: Micro USB/USB/Type C

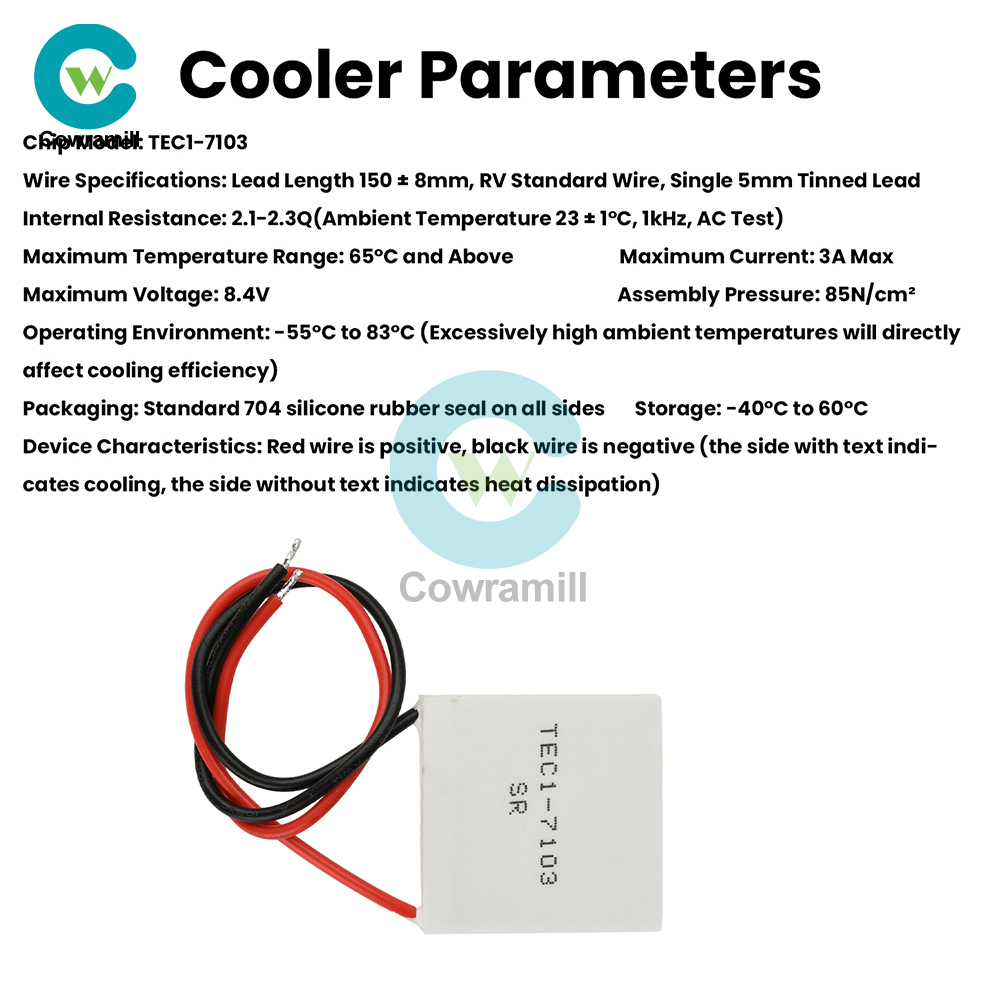

Thermal Electric Cooling Module Specifications:
Chip Model: TEC1-7103
Lead Specifications: Lead length 150±8mm, RV standard wire, single-ended 5mm tin-plated
Internal Resistance: 2.1-2.3Ω (at ambient temperature 23±1°C, 1kHz, AC test)
Maximum Temperature Difference: 65°C+
Maximum Current: 3A Max
Maximum Voltage: 8.4V
Mounting Pressure: 85N/cm²
Operating Environment: -55~83°C (Excessively high ambient temperatures will directly impact cooling efficiency)
Encapsulation Process: Standard 704 silicone rubber sealing around perimeter
Storage Conditions: -40~60°C
Device Characteristics: Red wire is positive terminal, black wire is negative terminal (Labeled side is cooling surface, unlabeled side is heat dissipation surface)
Note:
1. Inadequate heat dissipation may cause the cooling plate to burn out. When testing without heat dissipation, connecting power will immediately activate cooling. Disconnect power within 1 second; otherwise, the cooling plate will likely burn out. Exercise extreme caution when testing; beginners should not use this method.
2. A heat sink or water cooling system must be installed on the heat dissipation surface to prevent burnout. Apply thermal grease regardless of whether using water cooling or air cooling.

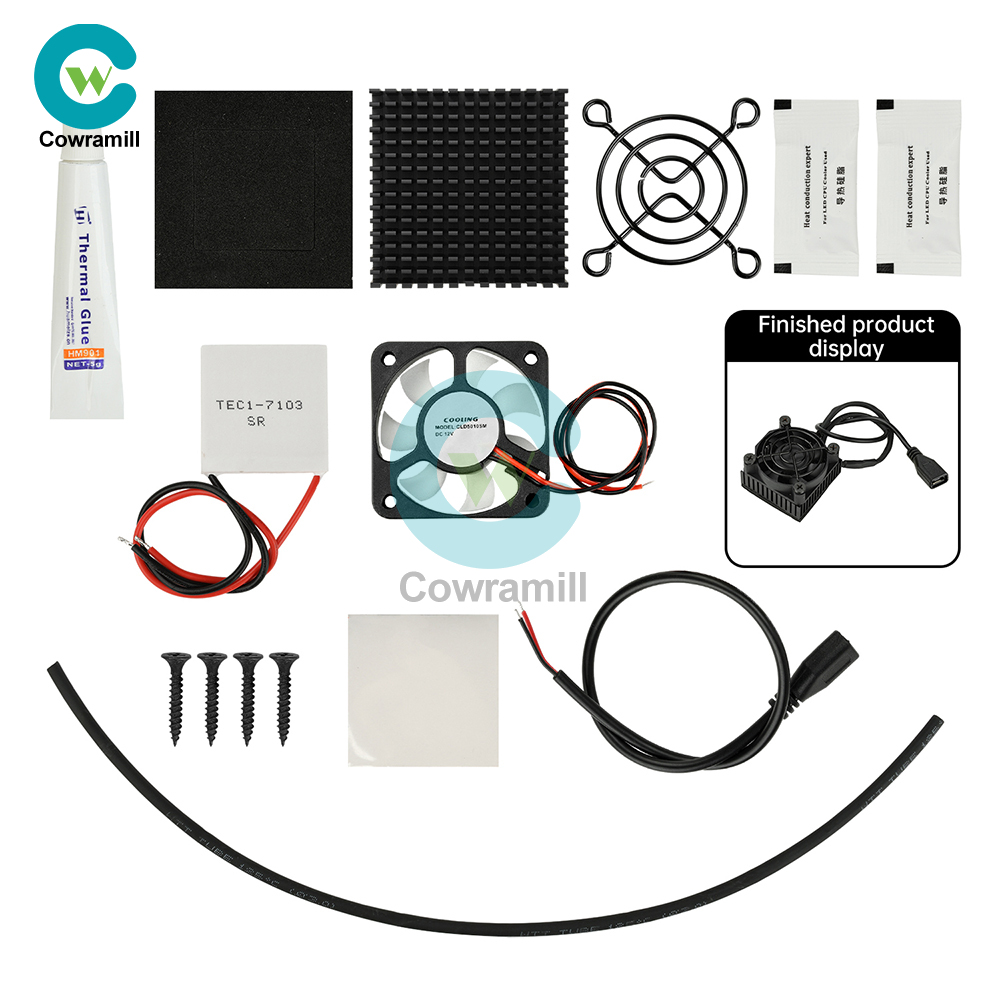

Kit Contents:
Heat spreader x1
Heat sink x1
Wiring harness x1
Fan x1
Screws x4
Thermal adhesive x1
Heat shrink tubing x1
Thermal paste x1
Mesh guard x1
Heat sink x1
Heat insulation pad x1
Package include:
Kit x1
