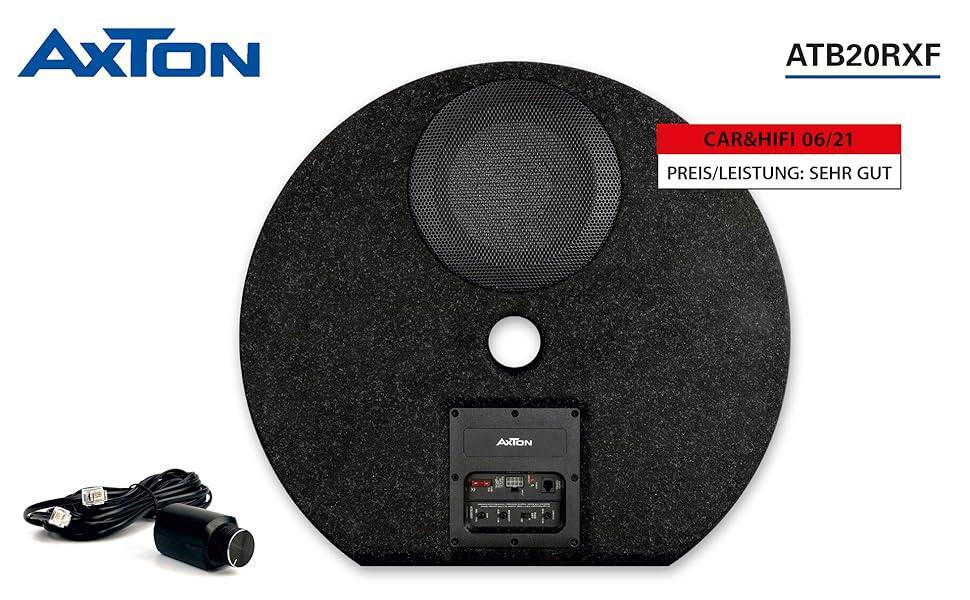

AXTON ATB20RXF

20 cm / 8″ active subwoofer

ffor the spare wheel well

with bass level remote control

Flat active subwoofer for the spare wheel well, bass reflex bass box for cars with 20 cm/8" long-throw woofer, enclosure only 125 mm high, high-level inputs, 100 watts

PACKAGE CONTENTS

ATB20RXF Active Subwoofer

connector

Bass level remote control

User manual

Suitable for spare wheel wells with a diameter of 58 cm and a height of 125 mm or more.

12 dB/Oct. Active crossover with 50 – 150 Hz low-pass filter

High-level input with auto-turn-on

Bass level remote control

Technical data

Playback frequency response: 35 - 180 Hz

100 W RMS

High-level inputs with auto turn-on function

Variable low pass filter: 50 - 150 Hz/12 dB/Oct.

Bass boost: 0 dB - 12 dB

Phase switch: 0 / 180°

Bass level remote control

Input sensitivity RCA: 150 mV - 5 V, high level: 1 - 16 V

Signal-to-noise ratio: > 90 dB

Dimensions

(D x H): 580 x 125 mm

Highlights

8" / 20 cm active subwoofer

Bass-reflex enclosure with flow-optimized port

Powerful 20 cm subwoofer with strong ferrite magnet drive and torsionally rigid diaphragm

Playback frequency response: 35 – 180 Hz

Amplifier module with 100 W RMS

Variable low pass filter: 50 – 150 Hz/12 dB/Oct.

Bass boost: 0 dB – 12 dB

Phase switch: 0 / 180°

Bass level remote control

Input sensitivity (RCA): 150 mV – 5 V

Input sensitivity (high-level): 1 – 16 V

Signal-to-noise ratio: > 90 dB

Dimensions (diameter x height): 580 x 125 mm

Weight: 11.6 kg

Specifications

Playback frequency response 35 - 180 Hz

Output power 4 ohms (< 1.0 % THD/14.4V) 1 x 100 W RMS

Output power 4 ohms (< 10 % THD/14.4V) 1 x 120W max

Input sensitivity RCA 0.15 – 5 V

Input sensitivity High-Level 1.0 – 16V

Variable low pass filter 50 – 150 Hz / 12 dB/Oct.

Switchable bass boost 0 dB / 6 dB

Dimensions (Ø x H, mm) Ø 580 x 125

Suitable for the following vehicles:

Audi A1 2010 - present (Type 8X) Standard Subwoofer

Audi A2 1999 - 2005 (Type 8Z) standard subwoofer

Audi A3 1998 - 2003 (Type 8L) standard subwoofer

Audi A3 2003 - 2008 (Type 8P/8PA) standard subwoofer

Audi A3 2012 - present (Type 8V) Standard Subwoofer

Audi A4 1994 - 2000 (Type B5) Standard Subwoofer

Audi A4 2000 - 2004 (Type B6) Standard Subwoofer

Audi A4 2004 - 2008 (Type B7) standard subwoofer

Audi A4 2012 - present (Type B8) Standard Subwoofer

Audi A5 2007 - 2016 (Type 8T) standard subwoofer

Audi A5 2016 - present (Type F5) Standard Subwoofer

Audi A6 1994 - 2005 (Type 4A) standard subwoofer

Audi A6 2018 - present (Type 4G) Standard Subwoofer

Audi A7 2010 - 2018 (Type 4G) standard subwoofer

Audi A8 1994 - 2002 (Type D2/D3) standard subwoofer

Audi Q2 2016 - present (Type GA) Standard Subwoofer

Audi Q3 2011 - 2018 (Type 8U) Standard Subwoofer

Audi Q3 2018 - present (Type F3) Standard Subwoofer

Audi Q5 2008 - 2016 (Type 8R) standard subwoofer

Audi Q5 2017 - present (Type FY) Standard Subwoofer

Audi TT 1998 - 2006 (Type 8N) standard subwoofer

Hyundai Accent 2010 - 2017 (Type RB) standard subwoofer

Hyundai Accent 2017 - present (Type YC) Standard Subwoofer

Hyundai Genesis 2014 - 2017 (Type BH) standard subwoofer

Hyundai Genesis 2014 - 2017 (Type DH) standard subwoofer

Hyundai IONIQ 5 2021 - present (Type NE) Standard Subwoofer

Hyundai Santa Fe 2006 - 2012 (Type CM) standard subwoofer

Hyundai Santa Fe 2012 - 2018 (Type DM) standard subwoofer

Hyundai Tucson 2015 - 2018 (Type TL) standard subwoofer

Hyundai Tucson 2018 - 2020 (Type TL2) standard subwoofer

Hyundai Veloster 2011 - 2018 (Type FS) standard subwoofer

Hyundai i10 2014 - present (Type IA) Standard Subwoofer

Hyundai i20 2014 - present (Type GB) Standard Subwoofer

Hyundai i30 2011 - 2016 (Type GD) standard subwoofer

Hyundai i30 2017 - present (Type PD) Standard Subwoofer

Hyundai i40 2011 - 2019 (Type VF) standard subwoofer

Hyundai ix20 2010 - 2019 (Type JC) standard subwoofer

Hyundai ix35 2009 - 2015 standard subwoofer

Kia Carens 2006 - 2013 Standard Subwoofer

Kia Carens 2013 - 2016 standard, navigation system without CD subwoofer

Kia Carens 2016 - 2017 Standard Subwoofer

Kia Cee'd 2006 - 2013 Standard Subwoofer

Kia Cee'd 2012- 2016 standard, navigation system without CD subwoofer

Kia Cee'd 2017 - present, standard navigation without CD subwoofer

Kia Niro 2017 - present, standard navigation without CD subwoofer

Kia Optima 2010 - 2016 standard, navigation system without CD subwoofer

Kia Optima 2017 - present, standard navigation without CD subwoofer

Kia Picanto 2011 - 2016 standard, navigation without CD subwoofer

Kia Picanto 2017 - present standard subwoofer

Kia Rio 2005 - 2011 standard subwoofer

Kia Rio 2011 - 2016 Standard, Navigation without CD Subwoofer

Kia Rio 2017 - present, standard navigation without CD subwoofer

Kia Sorento 2009 - 2014 Standard Subwoofer

Kia Sorento 2014 - present, standard navigation without CD subwoofer

Kia Soul 2014 - present, standard navigation without CD subwoofer

Kia Sportage 2004 - 2010 Standard Subwoofer

Kia Sportage 2010 - 2016 Standard, Navigation without CD Subwoofer

Kia Sportage 2017 - present, standard navigation without CD subwoofer

Kia Stonic 2017 - present, standard navigation without CD subwoofer

Kia Venga 2009 - 2013 Standard Subwoofer

Kia Venga 2014 - present, standard navigation without CD subwoofer

Mercedes-Benz A-Class 1997 - 2004 (W168) Standard Subwoofer

Mercedes-Benz A-Class 2004 - 2012 (W169) Standard Subwoofer

Mercedes-Benz A-Class 2012 - 2018 (W176) Standard Subwoofer

Mercedes-Benz A-Class 2018 - present (W177) Standard Subwoofer

Mercedes-Benz B-Class 2005 - 2011 (W245) standard subwoofer

Mercedes-Benz B-Class 2011 - 2018 (W246) standard subwoofer

Mercedes-Benz B-Class 2018 - present (W247) Standard Subwoofer

Mercedes-Benz C-Class 2000 - 2007 (S203/W203) Standard Subwoofer

Mercedes-Benz C-Class 2007 - 2015 (C204) standard subwoofer

Mercedes-Benz C-Class 2007 - 2015 (S204) standard subwoofer

Mercedes-Benz C-Class 2007 - 2015 (W204) standard subwoofer

Mercedes-Benz C-Class 2014 - 2022 (C205) standard subwoofer

Mercedes-Benz C-Class 2014 - 2022 (S205) standard subwoofer

Mercedes-Benz C-Class 2014 - 2022 (W205) standard subwoofer

Mercedes-Benz C-Class 2021 - present (W206) Standard Subwoofer

Mercedes-Benz E-Class 2002 - 2009 (W211) Standard Subwoofer

Mercedes-Benz E-Class 2009 - 2016 (S212) Standard Subwoofer

Mercedes-Benz E-Class 2009 - 2016 (W212) Standard Subwoofer

Mercedes-Benz E-Class 2016 - 2020 (W213) Standard Subwoofer

Mercedes-Benz E-Class 2020 - 2023 (W213 FL) Standard Subwoofer

Mercedes-Benz E-Class Coupe 2017 - 2023 (C238) Standard Subwoofer

Opel Adam 2012 - 2019 (Type MA) standard subwoofer

Opel Astra 2009 - 2015 (Type J) standard subwoofer

Opel Astra 2015 - 2021 (Type K) Navi 900 Intellilink subwoofer

Opel Cascada 2013 - 2019 Standard subwoofer

Opel Corsa 2006 - 2015 (Type D) standard subwoofer

Opel Corsa 2014 - 2019 (Type E) standard subwoofer

Opel Crossland 2020 - present standard subwoofer

Opel Crossland X 2017 - 2020 Standard subwoofer

Opel Grandland X 2021 - present standard subwoofer

Opel Insignia A 2008 - 2013 (type OGA) standard subwoofer

Opel Insignia A 2014 - 2017 (type OGA-FL) standard subwoofer

Opel Insignia B 2017 - 2022 Standard subwoofer

Opel Mokka 2012 - 2016 (Type A) standard subwoofer

Opel Mokka 2016 - 2019 (Type A-FL) standard subwoofer

Opel Vivaro A 2006 - 2014 (Facelift) standard subwoofer

Opel Vivaro B 2014 - 2019 Standard subwoofer

Opel Zafira 2006 - 2014 (Type B) Standard Subwoofer

Opel Zafira 2012 - 2019 (Type C) standard subwoofer

Seat Alhambra 2010 - 2016 Standard subwoofer

Seat Alhambra II 2016 - present standard subwoofer

Seat Altea 2004 - 2015 standard subwoofer

Seat Altea XL 2006 - 2015 Standard subwoofer

Seat Arona 2018 - 2022 Standard subwoofer

Seat Ateca 2016 - present standard subwoofer

Seat Cordoba II 2002 - 2009 Standard subwoofer

Seat Exeo 2008 - 2013 standard subwoofer

Seat Ibiza 6F 2017 - present standard subwoofer

Seat Ibiza 6J-6P 2008 - 2017 Standard subwoofer

Seat Ibiza 6L 2001 - 2008 Standard subwoofer

Seat Leon 1M 2000 - 2005 Standard subwoofer

Seat Leon 1P 2006 - 2012 Standard subwoofer

Seat Leon 5F 2012 - present standard subwoofer

Seat Mii 2012 - 2021 standard subwoofer

Seat Toledo 5P 2004 - 2009 Standard subwoofer

Seat Toledo IV 2012 - 2019 Standard subwoofer

Skoda Citigo 2012 - 2020 Standard subwoofer

Skoda Fabia 5J 2007 - 2014 Standard subwoofer

Skoda Fabia 6X 1999 - 2007 Standard subwoofer

Skoda Fabia NJ 2014 - 2021 Standard subwoofer

Skoda Karoq 2017 - present standard subwoofer

Skoda Kodiaq 2017 - present standard subwoofer

Skoda Octavia 1U 1996 - 2004 Standard subwoofer

Skoda Octavia 1Z 2004 - 2012 Standard subwoofer

Skoda Octavia 5E 2012 - 2020 Standard subwoofer

Skoda Octavia IV 2020 - present standard subwoofer

Skoda Rapid NH 2011 - present standard subwoofer

Skoda Roomster 5J 2006 - 2015 Standard subwoofer

Skoda Superb 3T 2008 - 2015 Standard subwoofer

Skoda Superb 3U4 2001 - 2008 Standard subwoofer

Skoda Superb 3V 2015 - present standard subwoofer

Skoda Yeti 2009 - 2017 Standard subwoofer

Volkswagen Amarok 2010 - 2016 standard subwoofer

Volkswagen Amarok 2016 - 2022 standard subwoofer

Volkswagen Arteon 3G 2017 - present standard subwoofer

Volkswagen Beetle 5C 2011 - 2016 Standard subwoofer

Volkswagen Beetle 5C FL 2016 - present Standard Subwoofer

Volkswagen Bora 1J 1998 - 2005 Standard subwoofer

Volkswagen CC Type35 2012 - 2016 standard subwoofer

Volkswagen Caddy 2K 2003 - 2015 Standard subwoofer

Volkswagen Caddy 2K FL 2015 - 2020 Standard MIB subwoofer

Volkswagen Caddy 2K FL 2015 - 2020 Standard RNS/RCD subwoofer

Volkswagen Caddy V 2020 - present standard subwoofer

Volkswagen Crafter 2006 - 2016 Standard Subwoofer

Volkswagen Crafter II 2017 - present Standard Subwoofer

Volkswagen Eos 1F 2006 - 2015 standard subwoofer

Volkswagen Fox 5Z 2005 - 2011 Standard subwoofer

Volkswagen Golf IV 1997 - 2003 Standard subwoofer

Volkswagen Golf Plus 2004 - 2014 Standard Subwoofer

Volkswagen Golf Sportsvan 2014 - present Standard Subwoofer

Volkswagen Golf V 2003 - 2008 standard subwoofer

Volkswagen Golf VI 2008 - 2012 Standard Subwoofer

Volkswagen Golf VII 2012 - 2020 Standard subwoofer

Volkswagen Golf VIII 2020 - present standard subwoofer

Volkswagen ID.3 2019 - present standard subwoofer

Volkswagen ID.4 2020 - present standard subwoofer

Volkswagen ID.Buzz 2022 - present standard subwoofer

Volkswagen Jetta V 2005 - 2010 standard subwoofer

Volkswagen Jetta VI 2010 - present Standard Subwoofer

Volkswagen New Beetle 1997 - 2010 Standard subwoofer

Volkswagen Passat B8 FL 2020 - present Standard Subwoofer

Volkswagen Passat B5 1996 - 2005 standard subwoofer

Volkswagen Passat B6 2005 - 2010 standard subwoofer

Volkswagen Passat B7 2010 - 2014 standard subwoofer

Volkswagen Passat B8 2014 - 2020 standard subwoofer

Volkswagen Passat CC 2008 - 2012 standard subwoofer

Volkswagen Phaeton 2001 - 2010 Standard Gamma Subwoofer

Volkswagen Phaeton 2001 - 2010 Standard RNS/RCD subwoofer

Volkswagen Polo IV 2003 - 2008 standard subwoofer

Volkswagen Polo V 2008 - 2014 standard subwoofer

Volkswagen Polo VI 2014 - 2017 standard subwoofer

Volkswagen Polo VII 2017 - present Standard Subwoofer

Volkswagen Scirocco 2008 - 2014 standard subwoofer

Volkswagen Scirocco 2014 - 2017 standard subwoofer

Volkswagen Sharan 2000 - 2010 Standard Gamma Subwoofer

Volkswagen Sharan 2000 - 2010 Standard RNS/RCD subwoofer

Volkswagen Sharan II 2010- 2016 standard subwoofer

Volkswagen Sharan II FL 2016 - present Standard Subwoofer

Volkswagen T-Roc 2017 - present standard subwoofer

Volkswagen T6.1 2019 - present standard subwoofer

Volkswagen T5 2003 - 2014 standard subwoofer

Volkswagen T6 2014 - 2019 standard subwoofer

Volkswagen Taos 2020 - present standard subwoofer

Volkswagen Tiguan Allspace 2017 - present standard subwoofer

Volkswagen Tiguan I 2005 - 2011 standard subwoofer

Volkswagen Tiguan I FL 2011 - 2015 standard subwoofer

Volkswagen Tiguan II 2016 - present Standard Subwoofer

Volkswagen Touareg 2002 - 2009 standard subwoofer

Volkswagen Touareg II 2010 - 2018 standard subwoofer

Volkswagen Touareg III 2018 - present Standard Subwoofer

Volkswagen Touran I 2003 - 2015 standard subwoofer

Volkswagen Touran II 2015 - present Standard Subwoofer

Volkswagen Up! 2012 - 2016 standard subwoofer

Volkswagen Up! FL 2016 - today Standard Subwoofer

Want to enjoy bass in your car without sacrificing valuable trunk space? Car audio specialist AXTON is adding to its product range with a special, very space-saving active subwoofer variant: The ATB20RXF (RRP 259 Euro) is a round, extra flat bass box with built-in amplifier module and, with a diameter of 58 cm, fits into almost any standard spare wheel well. With a height of just 12.5 cm, this bass speaker is even suitable for installation in most spare wheel wells or intermediate floors of current trunk designs.

AXTON's new active bass box features a powerful 20 cm (8") long-throw woofer with a strong ferrite magnet drive and torsionally rigid diaphragm, guaranteeing powerful, dynamic punches. The amplifier module delivers 100 watts RMS for all-around bass enjoyment and ensures crisp, powerful bass. The thoughtfully designed bass reflex enclosure with flow-optimized port combines stability, minimal space requirements and low weight (11.6 kg).

The compact, easy-to-install ATB20RXF – the housing also has a central recess for the wheel mounting center pin, for example – naturally offers all the necessary adjustment options. These include a variable 12 dB low-pass filter (50 – 150 Hz), phase shift, gain and a bass boost. Helpful for connecting to factory radios (without REM output) are the high-level inputs with Auto Turn-On function, which automatically switches on the ATB20RXF as soon as a music signal is present.

The active module is conveniently located on top of the subwoofer. This allows all settings to be conveniently made – even if the ATB20RXF is already installed in the spare wheel well. A bass level remote control is included.

ATB20RXF Extra-flat 20 cm / 8″ active subwoofer for the spare wheel well 100 W RMS

Welcome to Extremeaudio!

Experience the diverse world of Extremeaudio products and explore our extensive range.

In our categories Multimedia, Navigation, Packages, Car Radios, Speakers, Amplifiers, Subwoofers, Power Caps, Alarm Systems, Special Offers

or you can find many items at affordable prices, including a wide range of accessories.

Are you looking for a new navigation device?

Then you've come to the right place! Discover our wide selection of car radios and vehicle-specific navigation receivers, as well as alarm systems, radio adapters, radio bezels, and connection cables. Our product range includes renowned manufacturers from Audio System to Zenec.

Be sure to check out our special offers section; you're guaranteed to find a bargain or two!

Guaranteed fast delivery and shipping of car audio and much more!

Our online shop – www.extremeaudio.de – has been voted one of the best German online shops several times!

We will consistently offer you the best possible price/performance ratio. Should you find an item cheaper at a competitor,

Don't hesitate to contact us, we will make you an unbeatable offer.

We sell various car audio products from different manufacturers in our store.

Of course, quality and customer service are our top priorities!

Therefore, take advantage of our comprehensive range of diverse and high-quality products and secure unique sound experiences in your vehicle!

You are welcome to use our services and benefit from our expertise.

which we have acquired over the last 20 years of car audio experience!

Advice before purchase

Your advantages with ExtremeAudio at a glance:
Brand new goods from a retailer, top quality
Specialist retailers with many years of industry experience
Perfect support from car infotainment specialists
Invoice including VAT. in your name
Collection of the auctioned goods is possible during our business hours.
After Sales Support Team

We would be happy to advise you individually about our products via email.

and help you find the right components.

Important to note!

Any applicable import duties, taxes and fees are not included in the item price or shipping costs.

The buyer is responsible for these fees.

If you are ever not satisfied...

...simply send us an email

We always strive to describe the offered item in the best possible way.

Should you have any complaints about an item, please contact us.

Our friendly staff will be happy to assist you!

Payment & Shipping

The logos and brand names shown belong to their respective trademark and license holders and are used within this offer only as sample images.

Complaints & Repairs

Is your item malfunctioning or defective?

Don't despair, that's what we're here for.

Simply send us the defective item along with a copy of the invoice. a contact option and a brief error description

and we will find a solution as quickly as possible, whether it be a replacement or a repair.

We will keep you informed of new developments at all times and will do everything we can to ensure that

that you and your product become best friends!

contact

Is anything still unclear or do you have any questions about our offers?

Please contact us here on eBay.

We look forward to your inquiry!

Email: kontakt(at)extremeaudio(.)de

return

Deadline: Accepted within 1 month

Return shipping

Buyer pays return shipping

For eBay Plus members, domestic return shipping is free. Learn more

Return policy

You have the right to withdraw from this contract within 1 month without giving any reason.

The cancellation period is 1 month from the day on which you or a third party named by you, who is not the carrier, has taken possession of the goods.

To exercise your right of withdrawal, you must inform us (Stefan Baum and Thorsten Immekus GbR, Schweinfurter Str.10,D - 97469 Gochsheim, kontakt(at)extremeaudio(.)de, Tel:+49 9721 3880526, Fax: +49 9721 3880527) by means of a clear declaration (e.g. a letter sent by post, fax or email) of your decision to withdraw from this contract. You can use this sample cancellation form (PDF) (https://www.extremeaudio.de/doc/Widerrufsformular_Extremeaudio.pdf).

Sample cancellation form (PDF)

To meet the cancellation deadline, it is sufficient that you send your notification of exercising your right of cancellation before the cancellation period expires.

Consequences of the revocation

If you withdraw from this contract, we will reimburse all payments received from you, including delivery costs (excluding any additional costs incurred if you chose a delivery method other than our cheapest standard delivery option), without undue delay and no later than fourteen days from the day on which we received your notification of withdrawal. For this reimbursement, we will use the same payment method that you used for the original transaction, unless expressly agreed otherwise; in no case will you be charged any fees as a result of this reimbursement. We may refuse reimbursement until we have received the goods back or you have supplied evidence of having sent back the goods, whichever is the earliest.

You must return or hand over the goods to us without undue delay and in any event no later than fourteen days from the day on which you informed us of your withdrawal from this contract. The deadline is met if you send the goods before the end of the fourteen-day period.

You bear the direct costs of returning the goods.

You are only liable for any loss in value of the goods if this loss in value is due to handling of the goods that is not necessary for testing their condition, properties and functionality.

Exclusion of the right of withdrawal in the case of:

Contracts for the supply of goods that are not prefabricated and for whose production an individual selection or specification by the consumer is decisive or which are clearly tailored to the personal needs of the consumer;

Contracts for the supply of goods that are liable to deteriorate or expire rapidly;

Contracts for the supply of alcoholic beverages, the price of which was agreed upon at the time of conclusion of the contract, but which can be delivered no earlier than 30 days after conclusion of the contract and whose current value depends on fluctuations in the market over which the entrepreneur has no influence;

Contracts for the delivery of newspapers, magazines or periodicals, with the exception of subscription contracts

Premature expiry of the right of withdrawal in the following cases:

Contracts for the supply of sealed goods which are not suitable for return due to health protection or hygiene reasons if their seal has been removed after delivery;

Contracts for the supply of goods if, after delivery, these goods have become inseparably mixed with other goods due to their nature;

Contracts for the supply of audio or video recordings or computer software in a sealed package, if the seal has been removed after delivery;

Contracts for the purchase of digital content stored on a physical medium, provided that the customer has expressly agreed that the entrepreneur may begin performance of the contract before the expiry of the withdrawal period and the customer has acknowledged that by giving his consent he loses his right of withdrawal.

return

Extreme Audio

Quality

service

Security

Shipment

imprint

payment

ACr Schweinfurt

Extreme Audio
