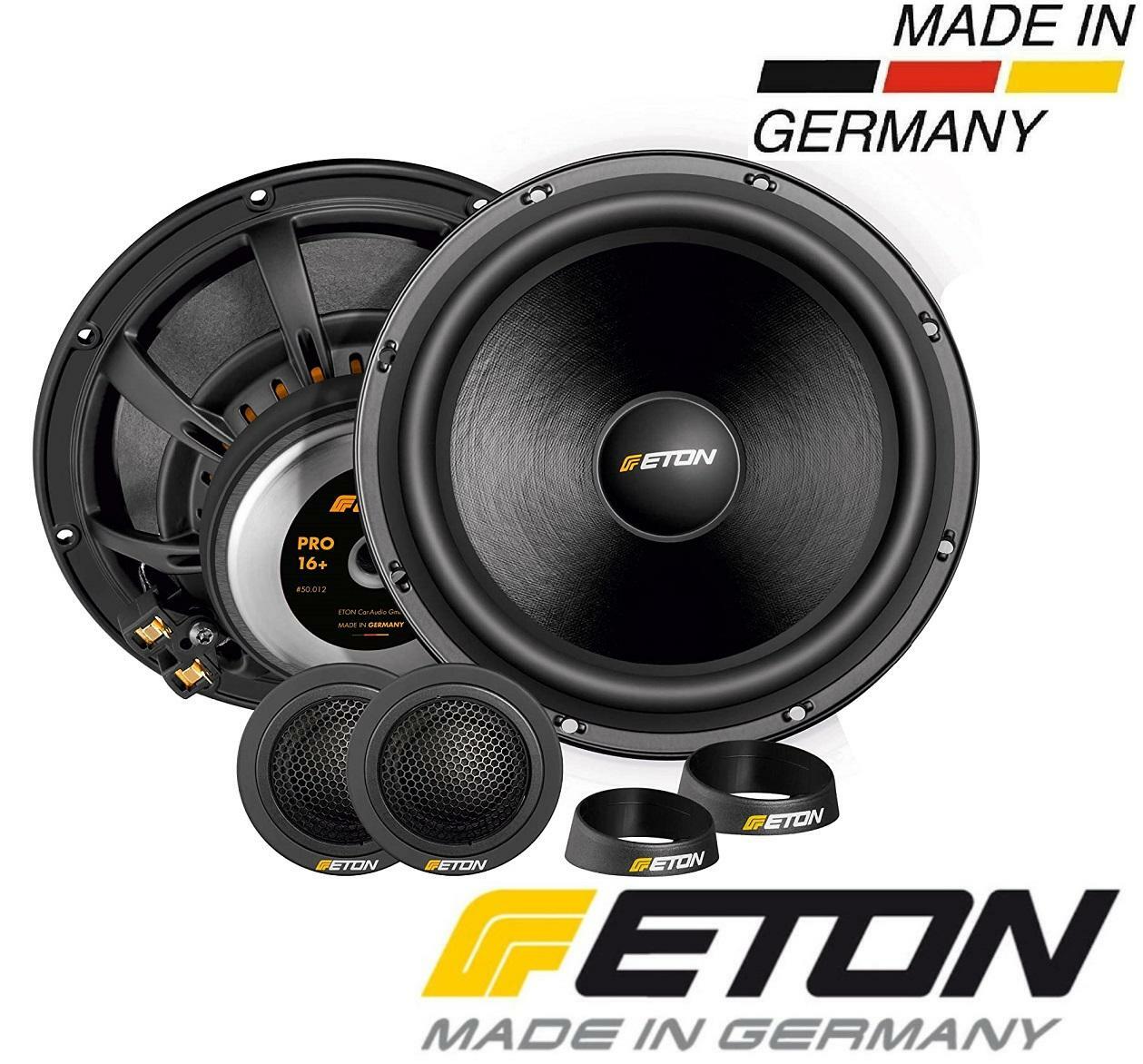

ETON PRO 16+
High End 16.5cm / 6.5" 2-Way Component System,
Car speakers made in Germany, 100 Watts
Included
2 x Midrange
2 x Tweeters
2 x Crossover
Installation Accessories
Installation Instructions
(165mm) hand coated high-end paper membrane
Black Semi-Gloss Powdered Die Cast Aluminium Basket
High quality connection terminals
Gloss-turned base plate with large core hole for optimum ventilation
strong ferrite magnet
28 mm hand-painted fabric tweeters with coupling volume in small installation dimensions
70 Watts RMS
165 mm (6.5") 2-way component system with 28 mm (1 1/8") hand-coated fabric tweeters with coupling volume and rear sound diffusion in a compact installation dimension. Hand-coated high-end paper diaphragm with strong ferrite magnet and high-gloss base plate with large core bore. Powder coated die-cast aluminium basket with ventilation and high-quality connection terminals. Tweeter assembly and installation housing with rotary and swivel function, including high-quality housing crossover, 4 Ohm impedance, nominal/music load capacity 70 W RMS/100 W, 90 dB (1 W/m) efficiency. Development and production made in Germany!
With this audiophile 16.5 cm 2-way component system, the legendary ETON PRO series goes into the 3rd generation! The POW16+ features a high-end air-dried paper membrane with a specially designed hand-applied coating that ensures a warm, full and harmonious sound. Development and manufacture of the system: made in Germany!
The powerful ferrite magnet drives the light, stiff diaphragm powerfully: enormous dynamics with precise kick basses are the result. The drive is optimally ventilated and cooled by a high-sheen base plate with a large core hole. A powder-coated die-cast aluminium basket provides the necessary rigidity and cooling. In addition, there are high-quality connection terminals, a heavy-duty centering and a temperature-resistant 4 Ohm voice coil.
The PRO 16+ impresses with punchy, room-filling sound and silky, fine-graining highs. The newly developed CXSV28 + tweeter scores with an increase in performance - while maintaining the same size: because the PRO 16 + has a 28 mm voice coil in the smart installation dimension of a 25 mm tweeter. The tweeter is made of high-quality fabric material that has been precisely pressed into a dome and hand-coated using a specially developed material and process.
The strong neodymium magnet of the tweeter is surrounded by a coupling volume with reverse sound diffusion. A special damping pad reduces reflections and ensures detailed sound. The tweeter guarantees dynamic sound reproduction with optimized omnidirectional characteristics and significantly more levels. This also allows for a lower crossover frequency and easier connection to the woofer/midrange driver.
Package Included:
2 x Woofer
2 x Tweeters
2 x External Case Crossover
High End Top Quality
Made In Germany
This is what ETON stands for uncompromising performance with the highest quality standards.
Whether high-performance amplifiers, subwoofers that combine the highest dynamics with strong efficiency,
sophisticated and high-quality coaxial and 2-way systems or reference systems for the highest demands
dedication to the product can be experienced in every component of ETON.
Bavarian precision merges with internationally renowned design and leading technical
know-how.
