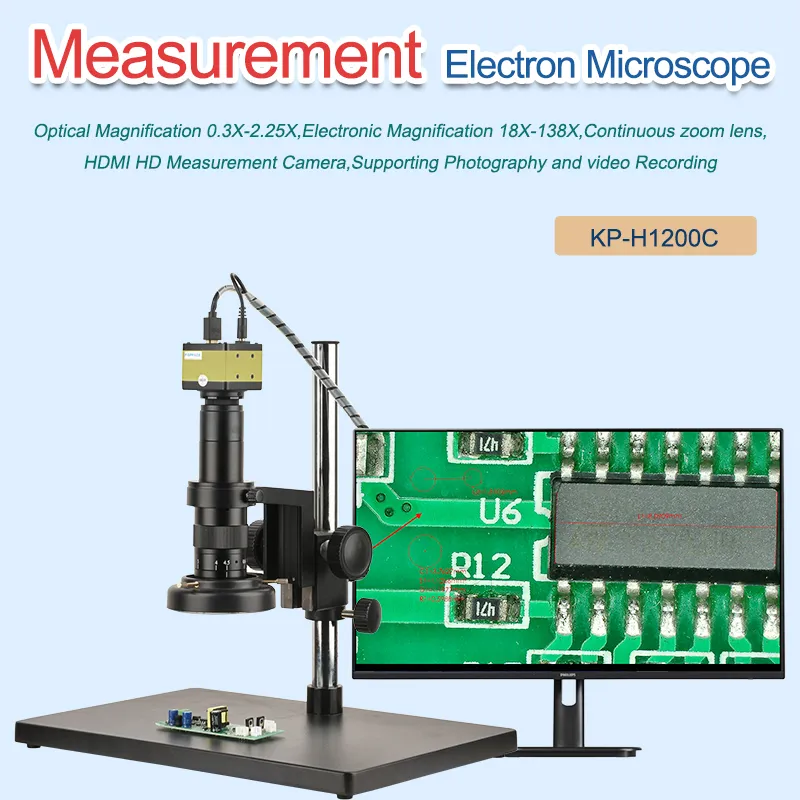

| Model | KP-H1200C |
| Optical Enlargement | 0.3X-2.25X |
| Electronic Amplification | 18X-138X |
| Field of View | 3.93mm-29.53mm |

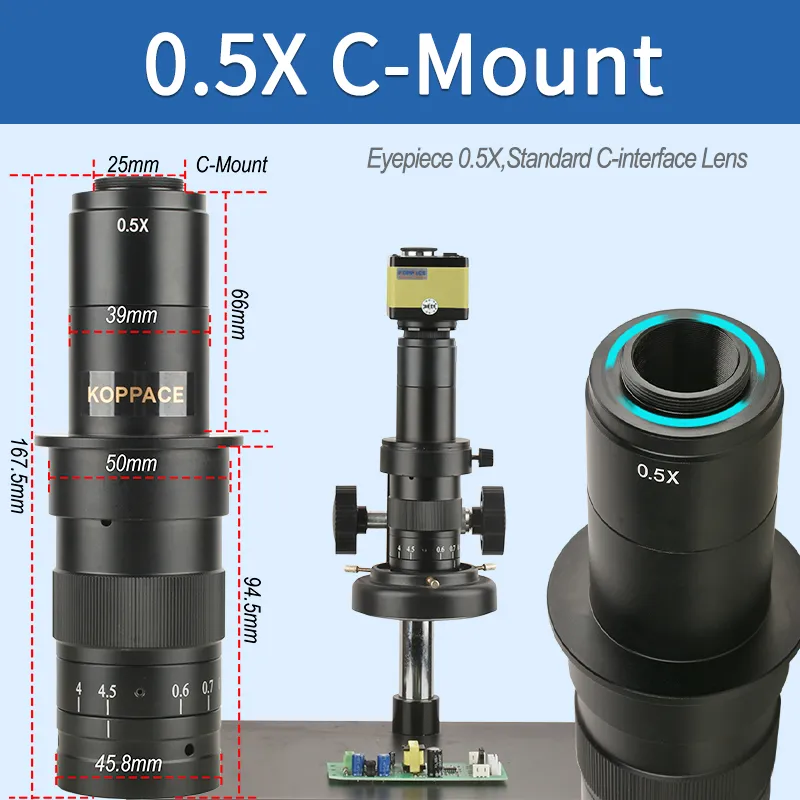

| Eyepiece | 0.5X C-Mount |

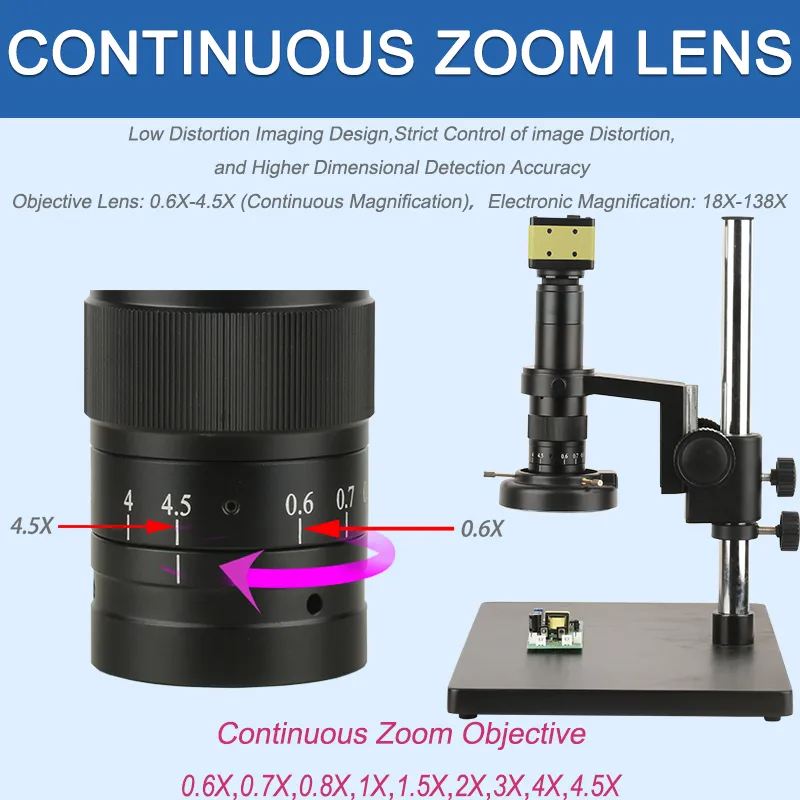

| Objective Lens | 0.6X-4.5X（Continuous Zoom） |
| Working Distance | 100mm |

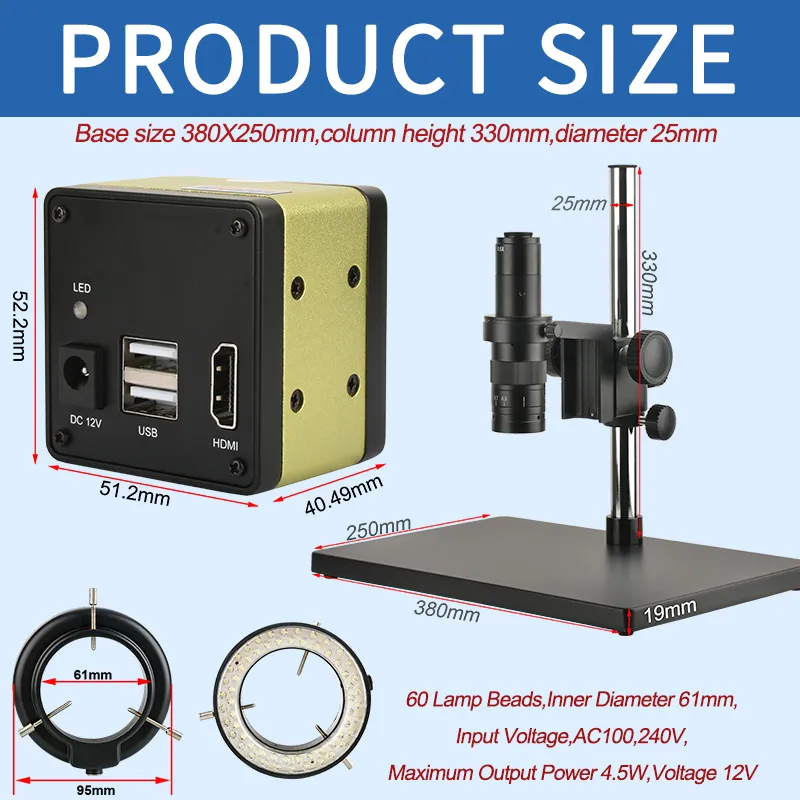

| Bracket Size | The base size is 380mmX250mmX19mm,and the center distance of the focusing frame is 140mm,Lens hole 50mm,lifting range 62mm,column height 330mm, diameter 25mm |

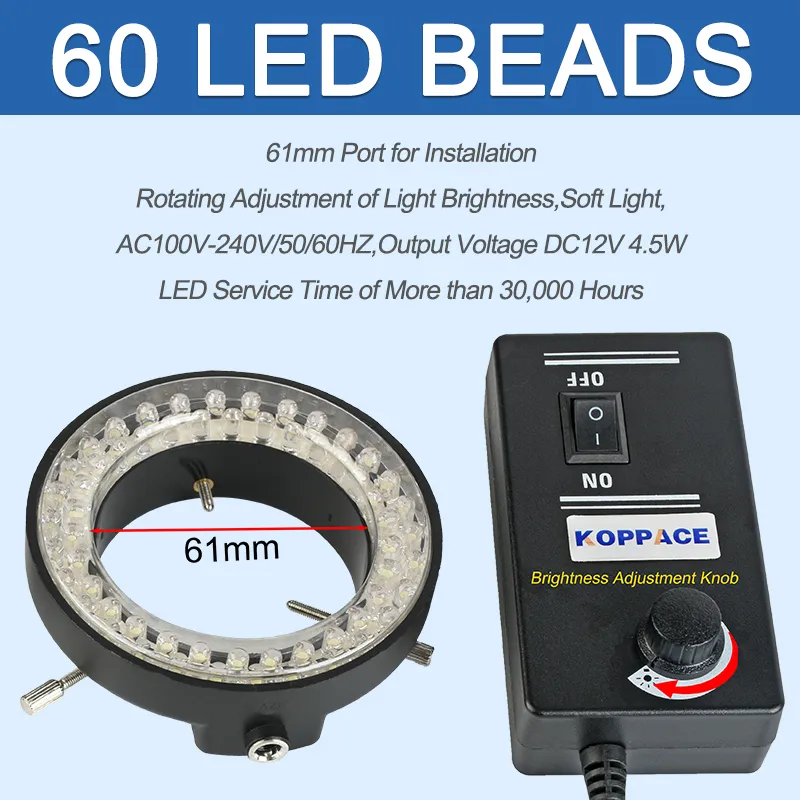

| LED Light Source | 60 Lamp Beads,Inner Diameter 61mm,Input Voltage,AC100,240V,Maximum Output Power 4.5W,Voltage 12V |
| Sensor | 2 Million Pixels |

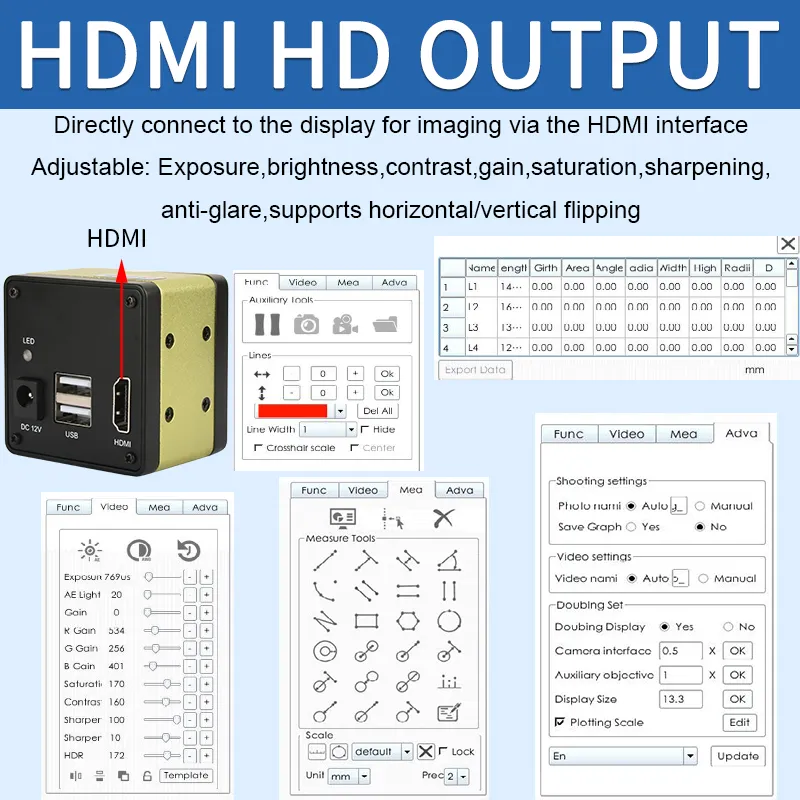

| Output Method | HDMI |
| Sensor Size | 1/1.8 |
| Pixel Size | 4.0μm X 4.0μm |
| HDMI Resolution Ratio | 1920X1080 @60FPS |
| Reduce Reflection | Manual |
| Video | 1920X1080@30FPS |

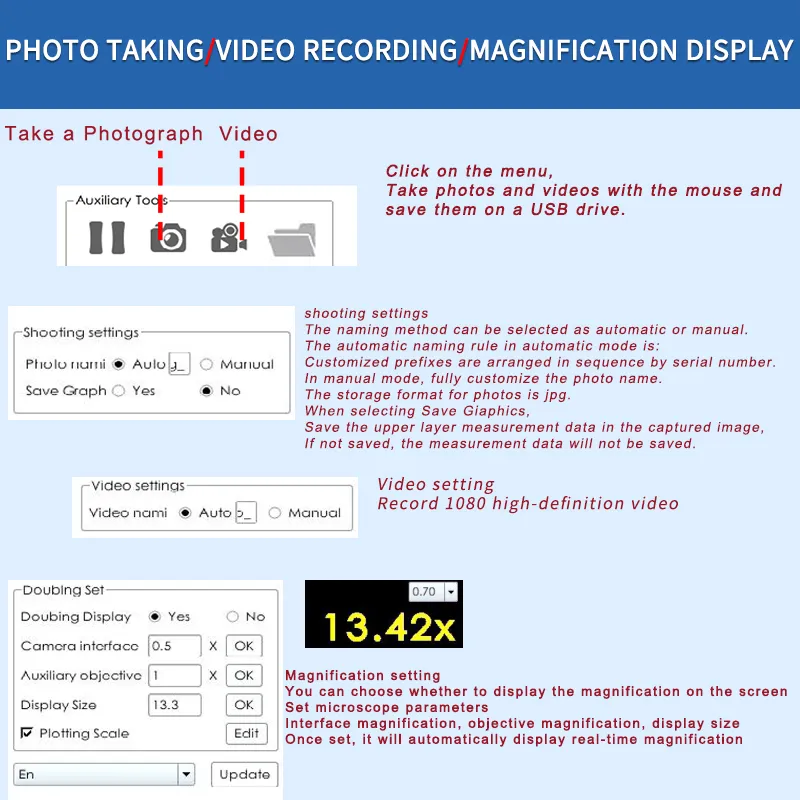

| Magnification Display | Real time display of Magnification |
| White Balance | Manual/Automatic |
| Grid Line | Supports 5 groups of horizontal and vertical lines, with adjustable colors and line widths |
| Image Adjustment | Exposure,Saturation,Brightness,Contrast,Sharpening,anti reflection,Black and white,Freezing,Supports Horizontal/Vertical Flipping |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |
| Camera Interface | C/CS |
| Input Voltage | AC100V—240V 12V |
| Language | Chinese,English,Traditional Chinese |

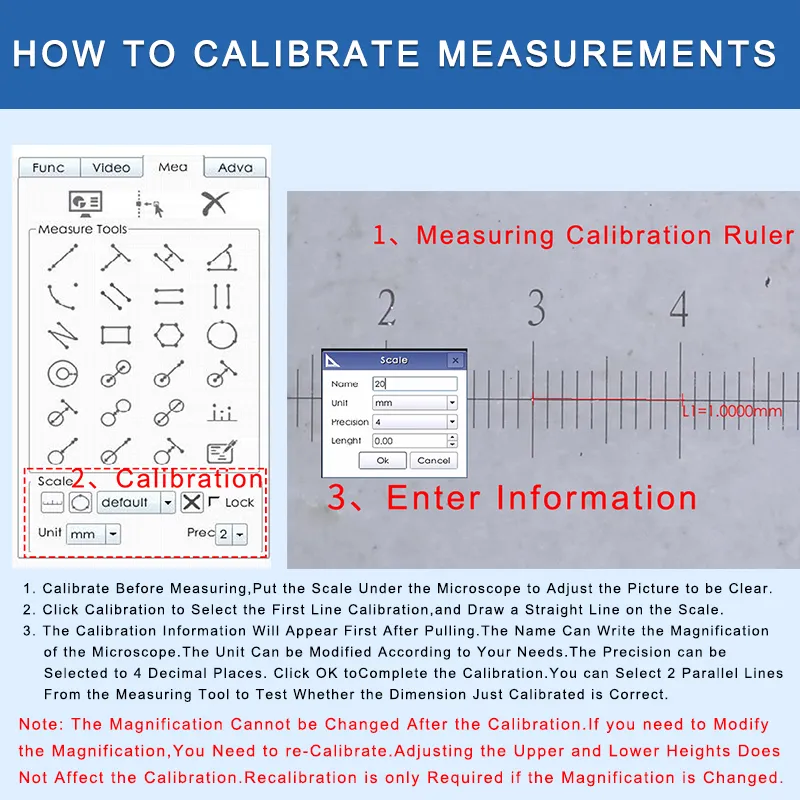

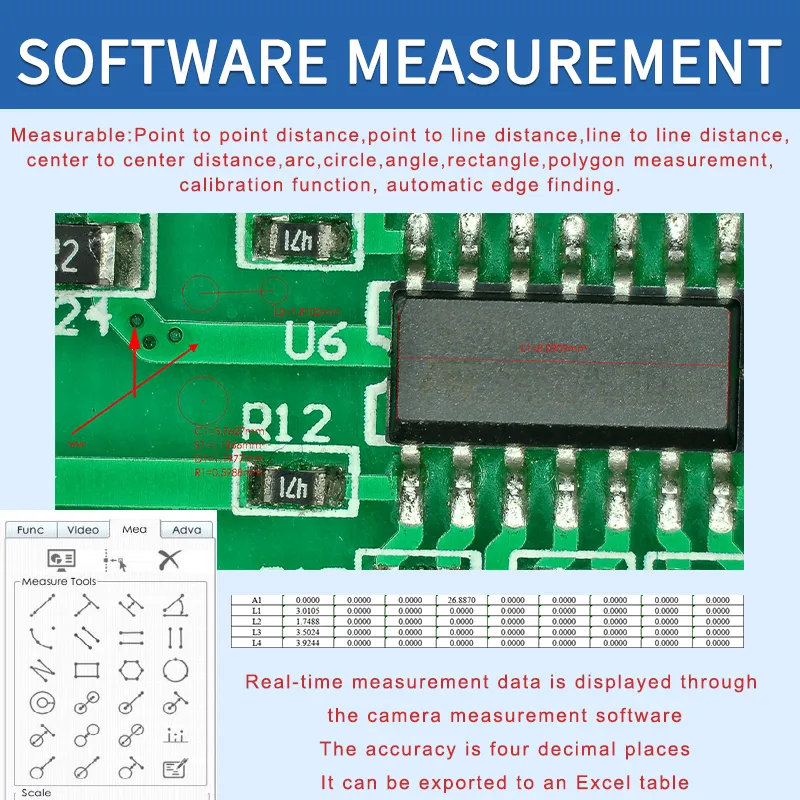

| Measurement Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |

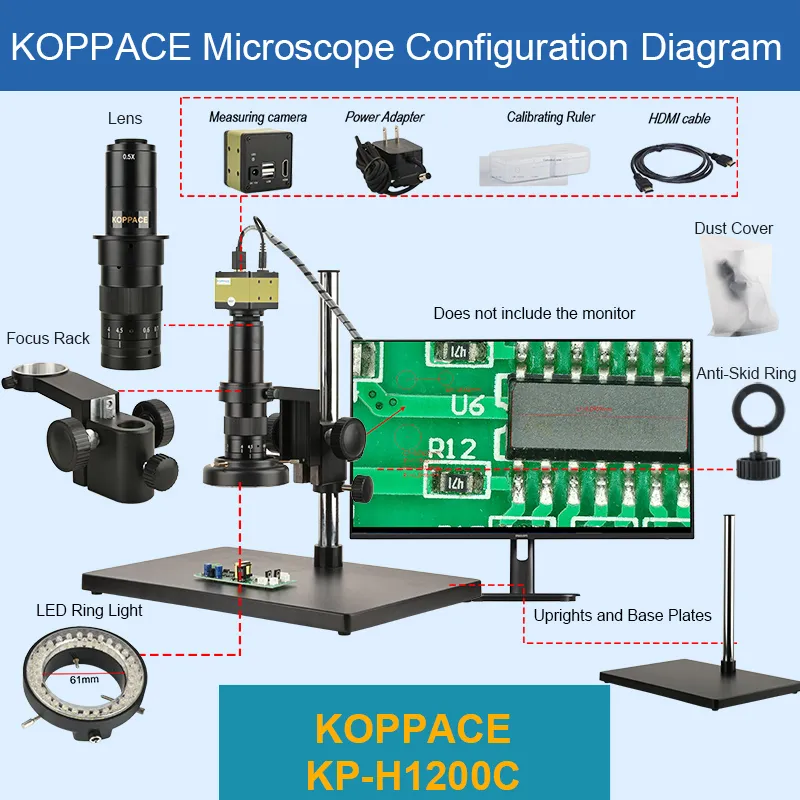

| Packing List | 1. Pillar Stand and Base Plate *1 2. Focusing Bracket *1 3. Anti-Skid Ring *1 4. Continuous Zoom Lens *1 5、LED Ring Light *1 6、Dust Cover *1 7、Camera *1 8、The Camera Power Adapter *1 9、HDMI Line *1 10、 Calibrating Ruler *1 |
| Note | 1、This product does not contain a monitor. 2. This product is an HDMI output that can be directly connected to a monitor through an HDMI cable, 3. This product stores photos and videos through a USB drive. |
******************************************************************************************************************************************************
