Introduce:
- Name: Metal Film Resistor

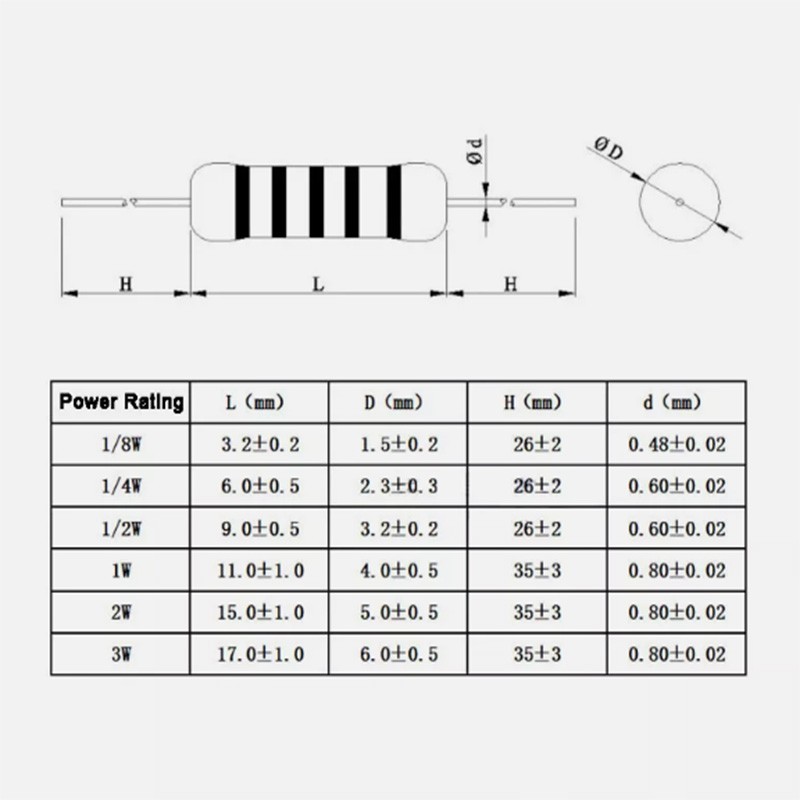

- Product power: 1/6W 1/4W 1/2W 1W 2W 3W
- Resistance Rating: 1 ohm~1M ohm
- Product accuracy: 1%
- Maximum working voltage: 500V
- Maximum overload voltage: 1000V
- Resistance temperature coefficient: ±100 PPM℃
- Rated power ambient temperature: ±70℃
- Power characteristics: small power
- Color ring: five-color ring resistance
- Shape: Cylindrical
- Applicable ambient temperature: -50℃~125℃

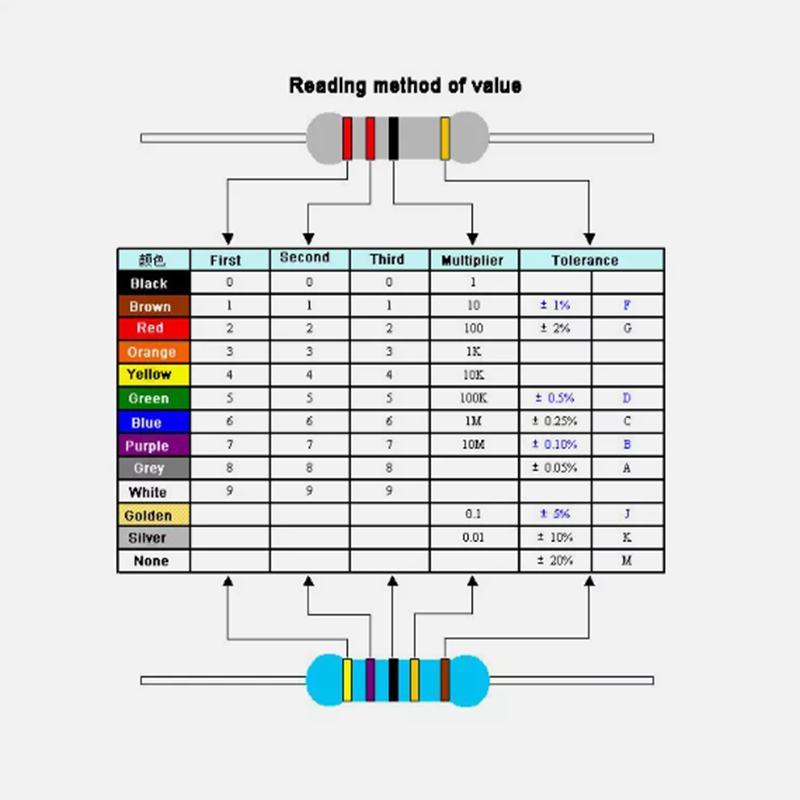

Five-color ring resistance (metal film resistance) The meaning of each color ring is as follows:
- The first color ring: the first digit of the resistance value.
- The second color ring: the second digit of the resistance value.
- The third color ring: the third digit of the resistance value.
- The fourth color circle: the power of 10 of the resistance multiplier (how many powers of 10).
- The fifth color circle: error indication (usually brown, the error is ±1%).
Example 1: Resistor Color Ring: Red Black Black Black Brown.
1st place: 2
Second place: 0
Third place: 0
Fourth digit: The power of 10 is 0 (ie 100=1)
Fifth place: the error is ±1%
Resistance value: 200×1=200Ω=0.2kΩ=0.2K, error ±1%
Example 2: Resistance Color Ring: Brown Red Black Orange Brown.
1st place: 1
Second place: 2
Third place: 0
Fourth digit: The power of 10 is 3 (ie 103=1000=1K)
Fifth place: the error is ±1%
Resistance value: 120×1000=120000Ω=120KΩ=120K, error ±1%
- The first color ring: the first digit of the resistance value.
- The second color ring: the second digit of the resistance value.
- The third color ring: the third digit of the resistance value.
- The fourth color circle: the power of 10 of the resistance multiplier (how many powers of 10).
- The fifth color circle: error indication (usually brown, the error is ±1%).
Example 1: Resistor Color Ring: Red Black Black Black Brown.
1st place: 2
Second place: 0
Third place: 0
Fourth digit: The power of 10 is 0 (ie 100=1)
Fifth place: the error is ±1%
Resistance value: 200×1=200Ω=0.2kΩ=0.2K, error ±1%
Example 2: Resistance Color Ring: Brown Red Black Orange Brown.
1st place: 1
Second place: 2
Third place: 0
Fourth digit: The power of 10 is 3 (ie 103=1000=1K)
Fifth place: the error is ±1%
Resistance value: 120×1000=120000Ω=120KΩ=120K, error ±1%
Package Including:
Metal Film Resistor X According to your choice .
