Please NOTE: The AHD-1080p signal format only support with AHD-1080p monitors, please check whether your car monitor support AHD-1080p signal. lf not support AHD-1080p signal, please For Switch to CVBS and restart the camera power.




If your car monitor can not support AHD-1080p camera, the AHD-1080p signal will not work. Pleasecut the orange loop For Switch to CVBS signal and restart the camera power.




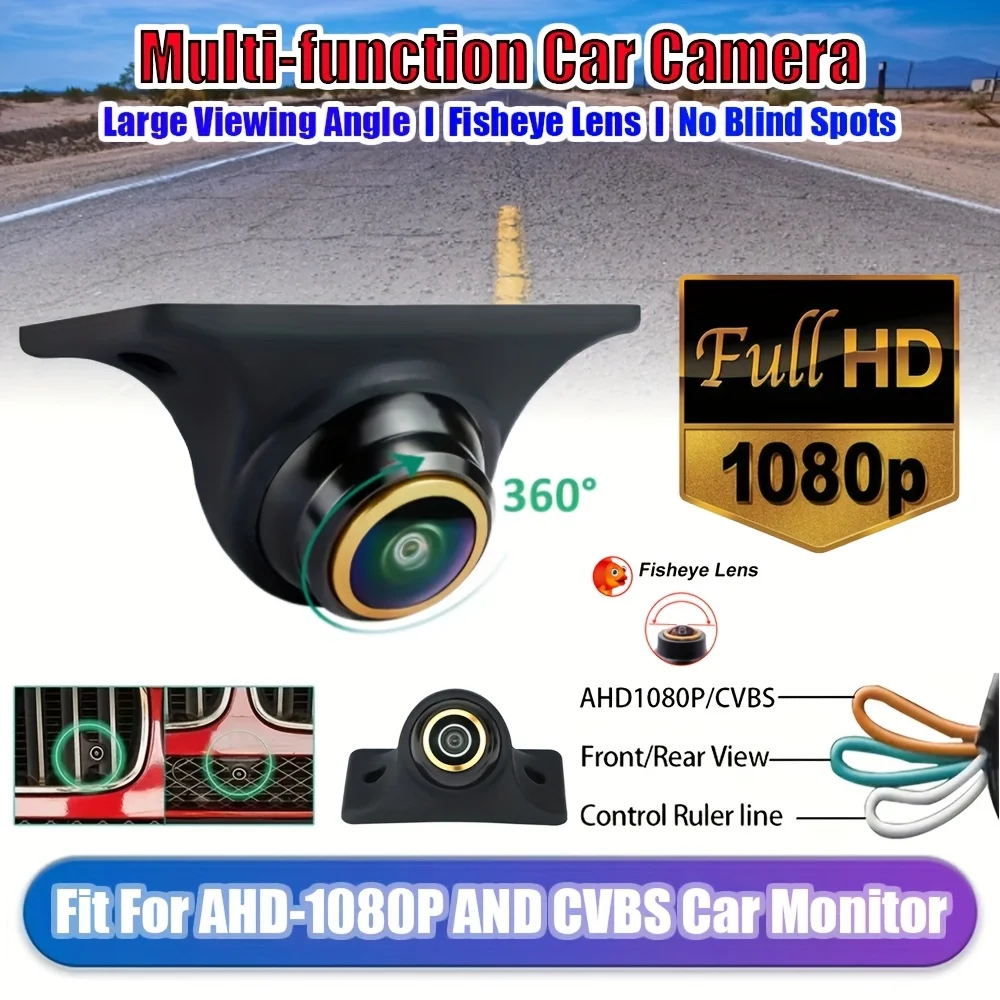

The 3 cable controlled features

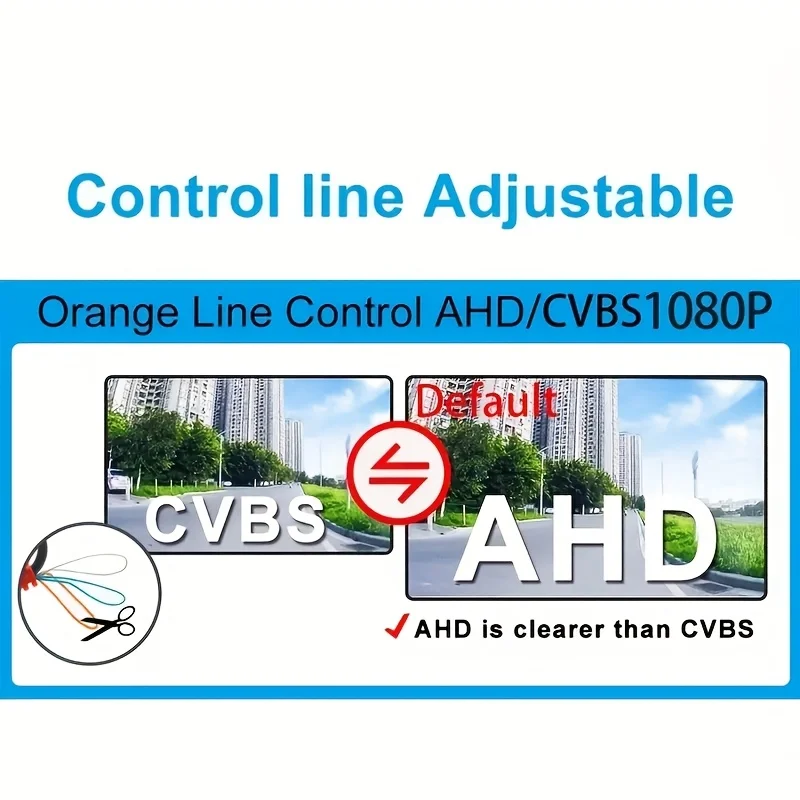

Orange cable: AHD-1080p signal (default) For Switch to CVBS signal (cut)

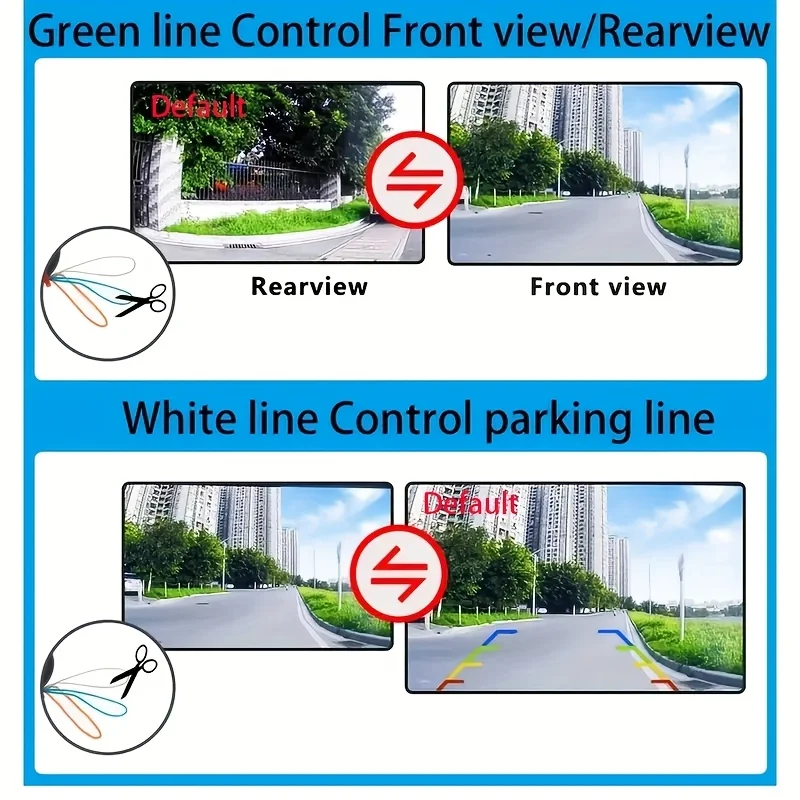

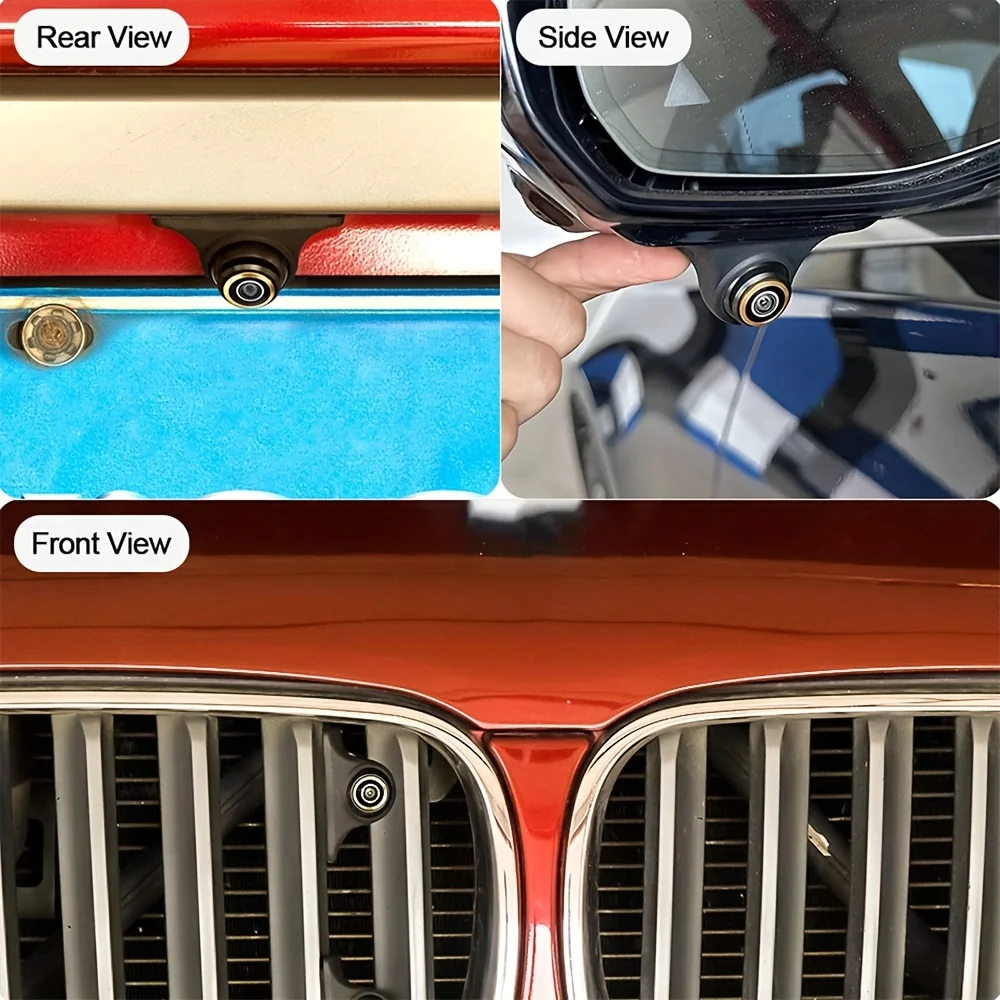

Green cable: Mirror (default) For Switch to Front (cut)



White: Guideline ON (default) For Switch to guideline OFF(cut)




FAQ:

After connecting the rear view camera, the screen shows no signal, gray screen and no picture, what should I do?




A) Please check your signal format (AHD-1080p/CVBS), choose right signal to run the camera.

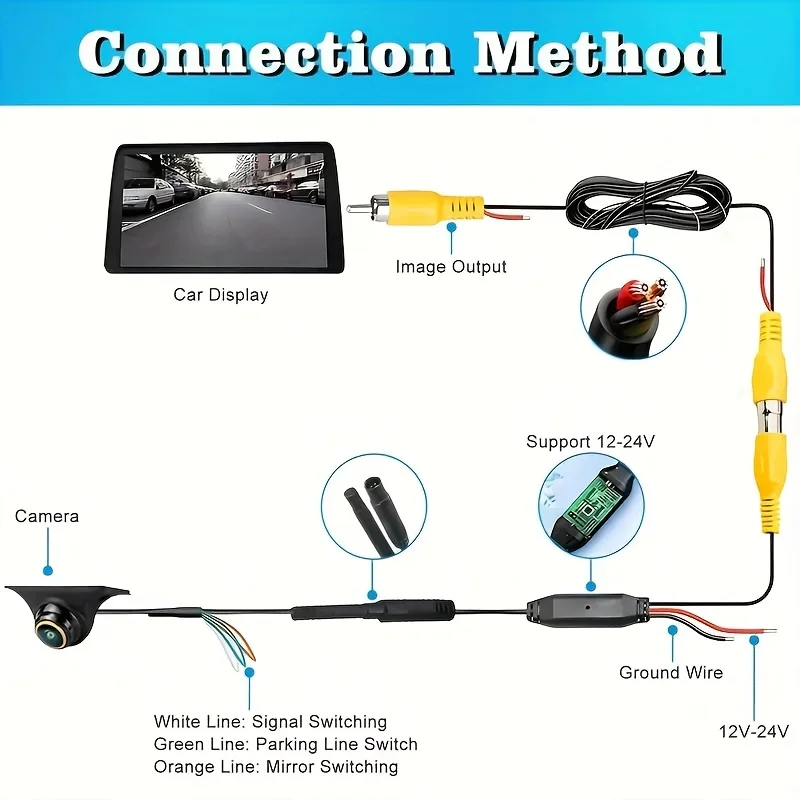

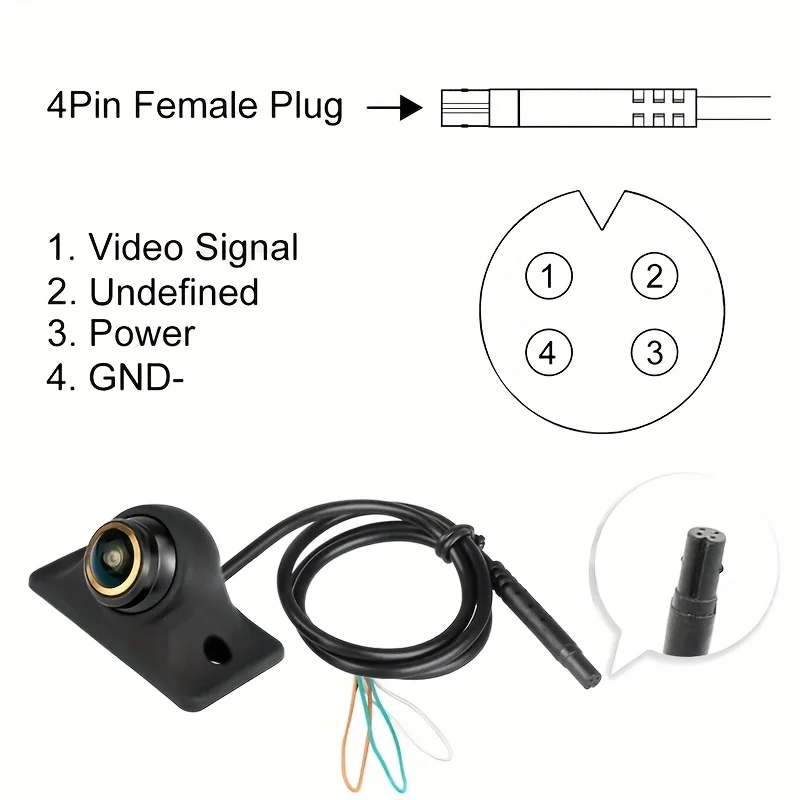

B) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.




D) Choose wrong signal standard(such as PAL/NTSC) will cause the screen to be Gray and White. Please select the right signal standard to run the camera and restart thecamera power. CVBS camera is NTSC standard, AHD1080P camera is PAL standard.
