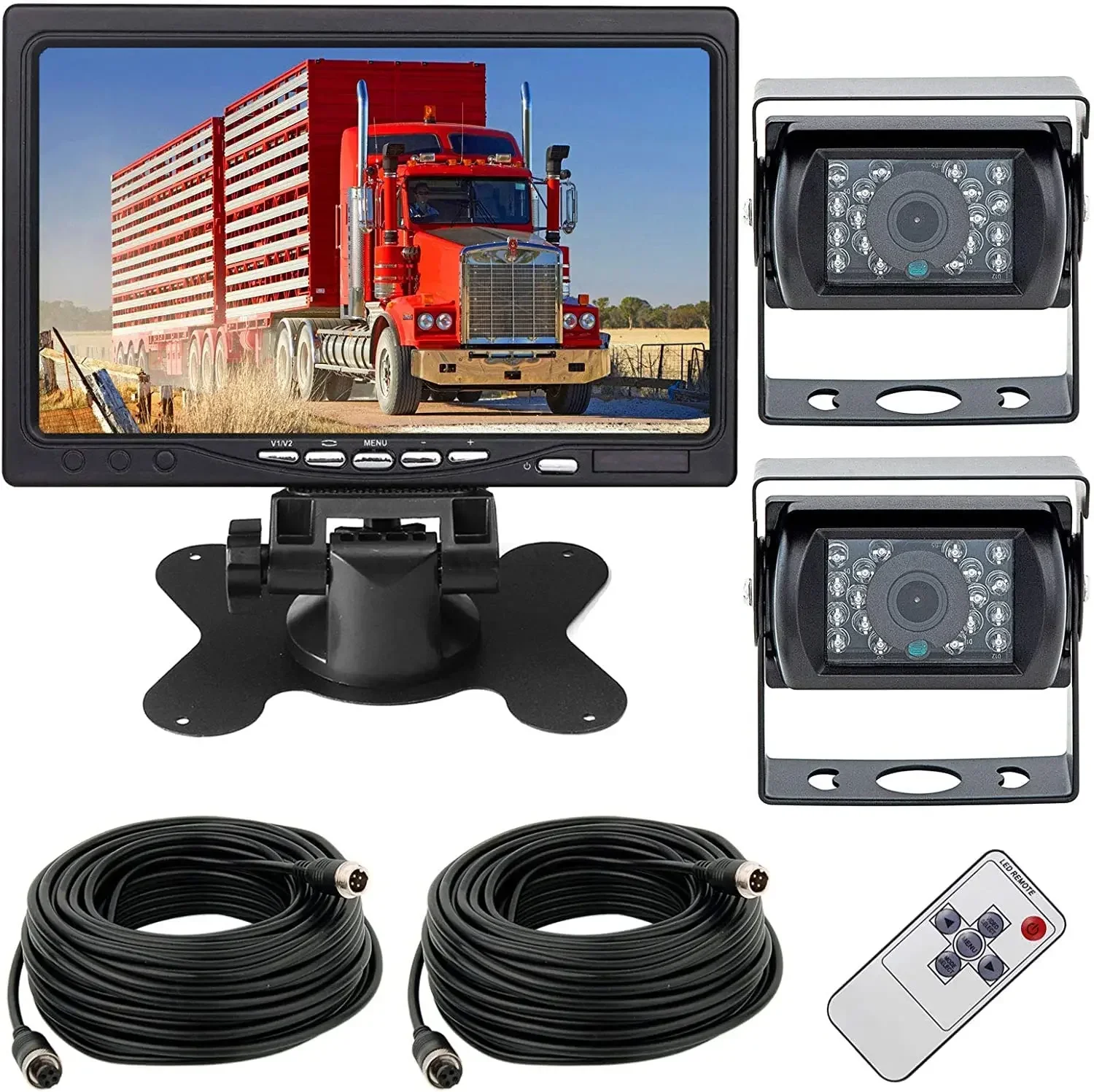

Reversing Camera Kit，4 Pin 2X Waterproof 18LEDs Night Vision Reverse Rear View Camera with 2X Aviation Cables +12-24V 7" TFT LCD Car Monitor for Large Truck/Bus/RV/Trailer/Tractor/Camper



•


  7 inch TFT LCD Monitor- This rear view camera kit includes large screen with high resolution monitor. Has 2 Channel Video Input.The resolution is 800 (W) x 480 (H). Color display and low power consumption, adjustable brightness, contrast and color.



•


  2xRear View Cameras- Carbide camera with IP67 waterproof and anti-mud. With a sun-visor and metal bracket,18 IR LEDs for night vision + 95 ° horizontal wide angle + 180 ° vertical adjustable angle for viewing angle. You can keep it running all day long if you plug it into a constant power source.



•


  Easy to Install- Each customer can use the installation instructions to complete the installation individually. You can save additional installation costs. Let each customer experience the pleasure of the installation.Compared with the wireless reversing camera, the signal transmitted by the wired reversing camera is more stable, reducing the situation of unstable image due to the weak signal.



•

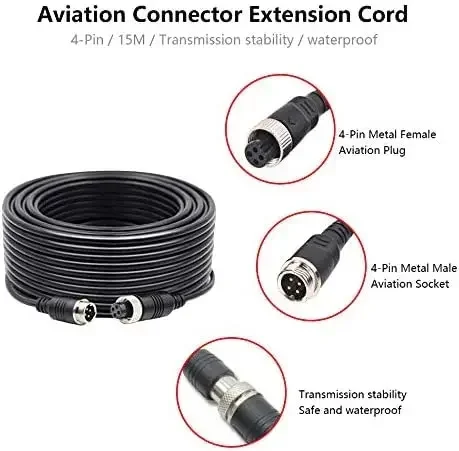

  Wide compatibility- 12 V 24 V There are two aviation cables in the kit,corresponding to the two matching cameras,The length of the aviation cable is 6M+10M. It is widely used for most models, bus / truck / van / trailer / RV / RV / school bus / pick-up / dump truck / excavator / excavator / horse / trailer / agricultural machine in agriculture for the rear view monitor, etc.





2 x Reversing Camera + 7" LCD Monitor Car Rear View Kit For Bus Truck 12V/24V UK





Description:



•


  Use as a Full-Time Rear View Monitor When connect the camera to 12V-24V, so it could also used as security monitor.






•


  It's very outstanding device for car reverse system






•


  Waterproof IR camera with wide view angle






•


  This reversing camera output digital signals have better picture clarity, color contrasting and sharpness, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances. This heavy duty CMOS camera is hard metal cased, waterproof and mud proof. It also can last for longer without heating up, so you can show the rearview all the time.



7-inch TFT LCD Car Monitor:



•


  Screen Size:7 inch





•


  Resolution: 800*480





•


  Housing: ABS





•


  TV System: NTSC/PAL





•


  Video: 2 video input





•


  Rear-view: V2 auto reverse when trigger activated



•


  Screen: up/down/left/right





•


  Power Supply: DC 12V - 24V





•


  Power Consumption: 5W





•

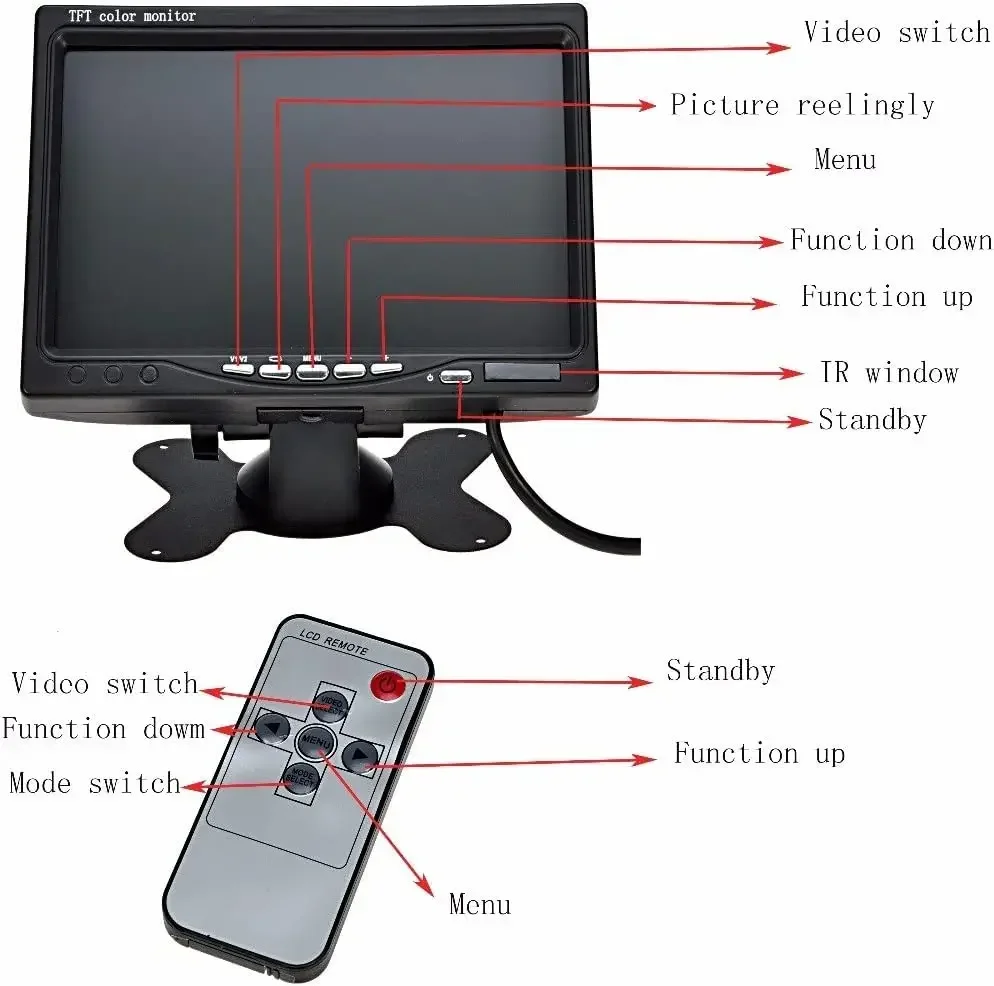

  Operate mode: the key operation and remote control



•


  Work temp.: -10℃~+40℃





•


  Storage temp.:-25℃~+80℃

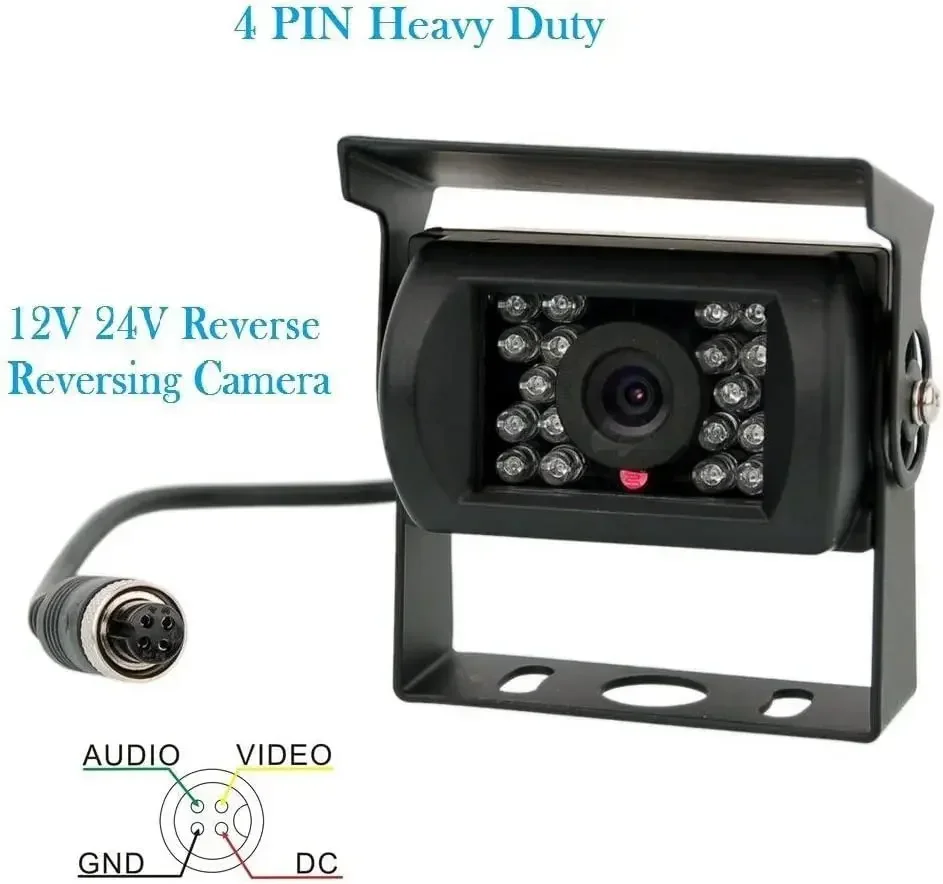

18 IR LEDs Backup Camera:

•


  Metal body with bracket for easy installation





•


  High-definition and wide viewing angles





•


  Support color CMOS image





•


  Waterproof: IP67





•


  Horizontal Resolution: 420TV lines





•


  Effective Pixels: NTSC: 648×488 pixels





•


  Power Supply: DC 12V-24V





•


  Operating Temperature:-20°C~70°C ,RH95％ MAX





•


  Storage Temperature:-40°C~85°C ,RH95％ MAX
