Origin : Mainland China
Certification : CE
Alarm Type : Vehicle Backup Cameras
Guiding Line : Yes
Hign-concerned Chemical : None
Features:
◆ Bus Truck Trailer Car Rear View Reverse Camera
◆ CCD HD Sensor

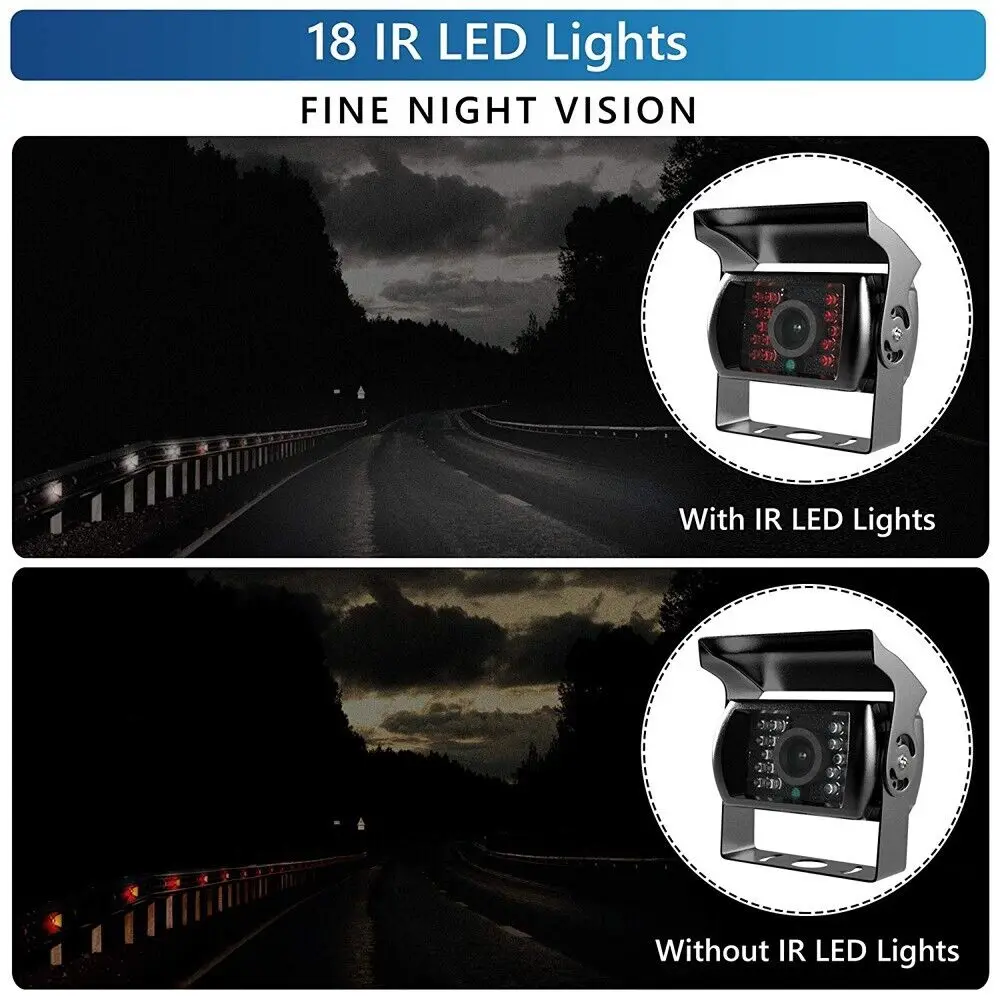

◆ With 18IR LEDs used in dark up to 10-15 meters (Night Vision Automatic)
◆Built-in IR-CUT, eliminate chromatic aberration at day time
◆ DC12V-DC24V Input

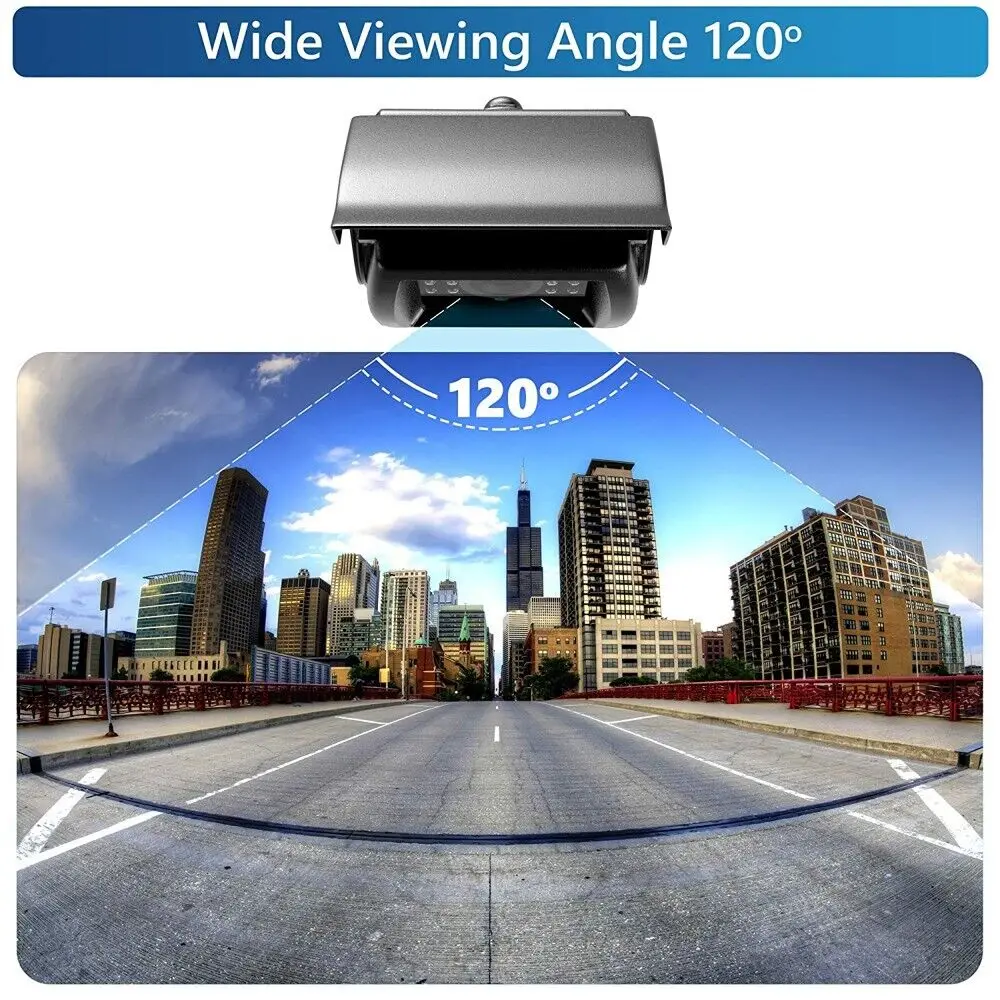

◆ 120 degree angle lens

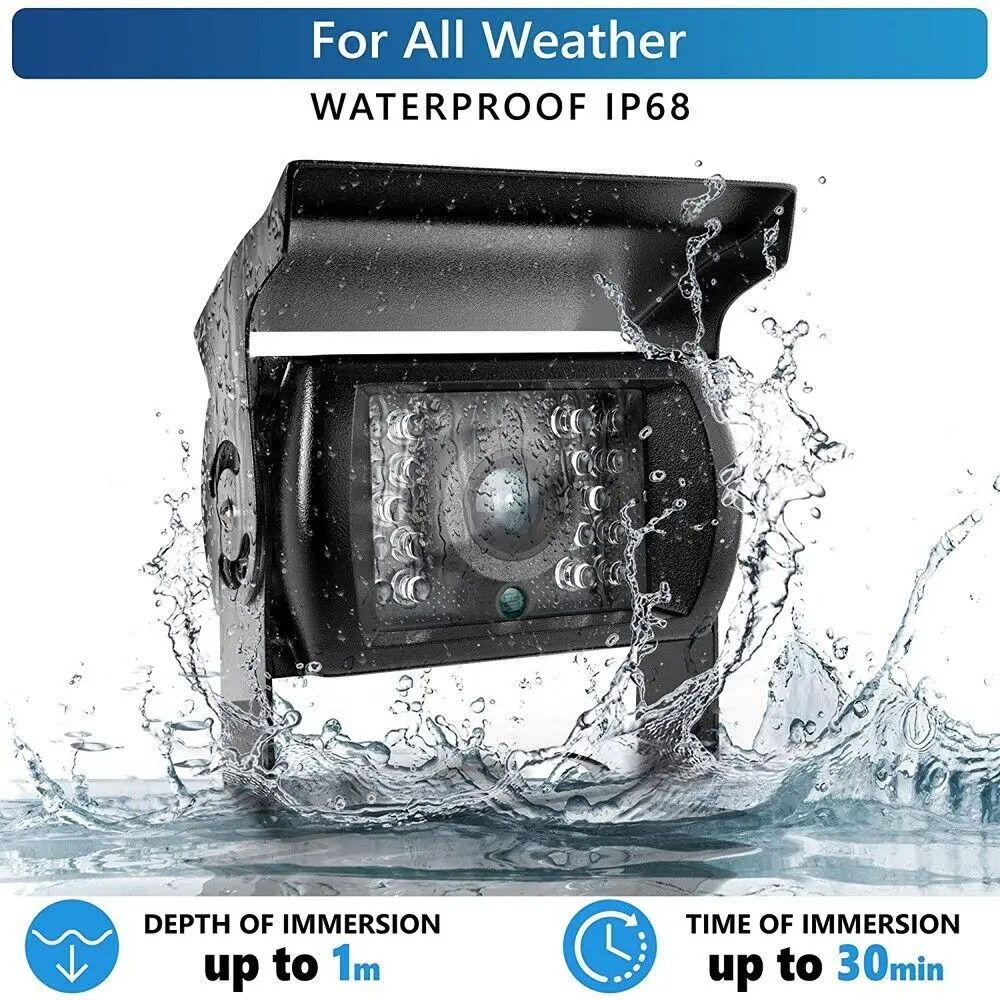

◆ IP68 Waterproof
◆ Easy and safe to mount
! The camera is no guide line, rear mirror image and system is PAL. If you want guide line
or front normal view or NTSC camera, please contact us.

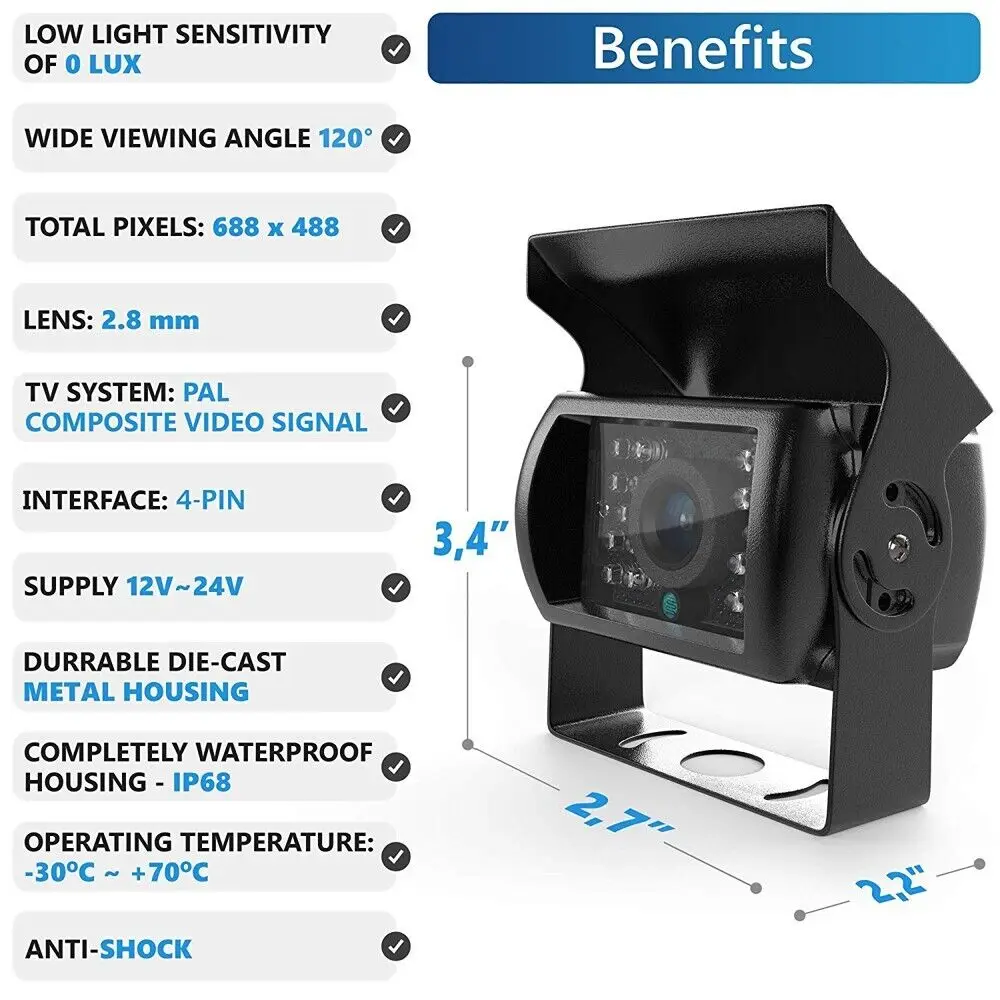

Specification:
● Number of Pixels: NTSC: 512(H)*492(V); PAL: 512(H)*582(V)
● Horizontal Resolution: 420 TV Lines
● Auto Gain Control: Auto
● Usable Illumination: 0LUX with 18 IR LED
● IR project distance: 15M

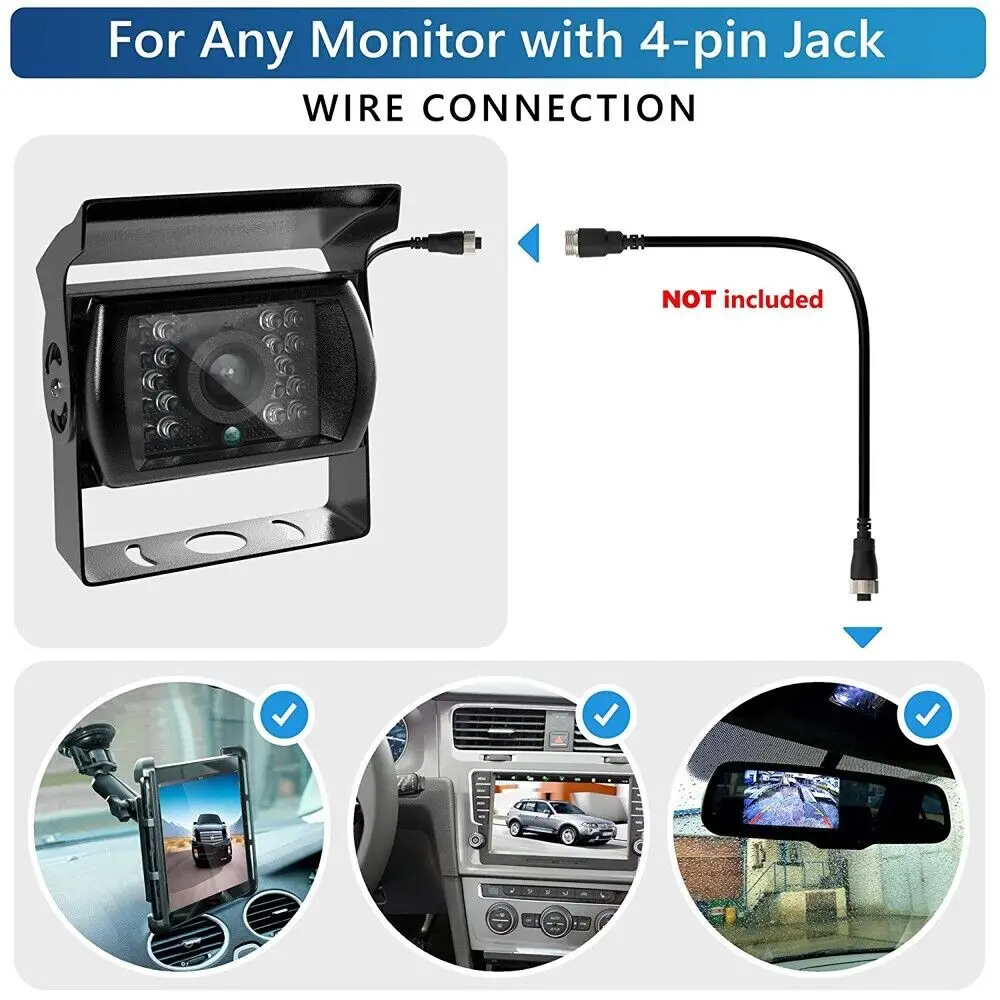

● Connector: 10mm 4Pin
● Video Output:1.0Vp-p 75Ω, Negative
● Electronic Shutter Time: Auto: NTSC 1/60-1/100,000Sec,PAL 1/50-1/100,000Sec
● Gamma Characteristic: 0.45
● The lens focal length: 2.8mm
● White Balance: Auto
● Scanning System: NTSC 525 Lines, 60Field/Sec, PAL 625 Lines 50Field/Sec
● Sync System: Internal Synchronization
● Power Supply: DC12V -DC24V, 250mA
● Size: as picture shown
● Operation Temperature: -10℃- +50℃ RH 95% Max
● Storage Temperature: -20℃- +60℃ RH 95% Max
● Waterproof: IP68

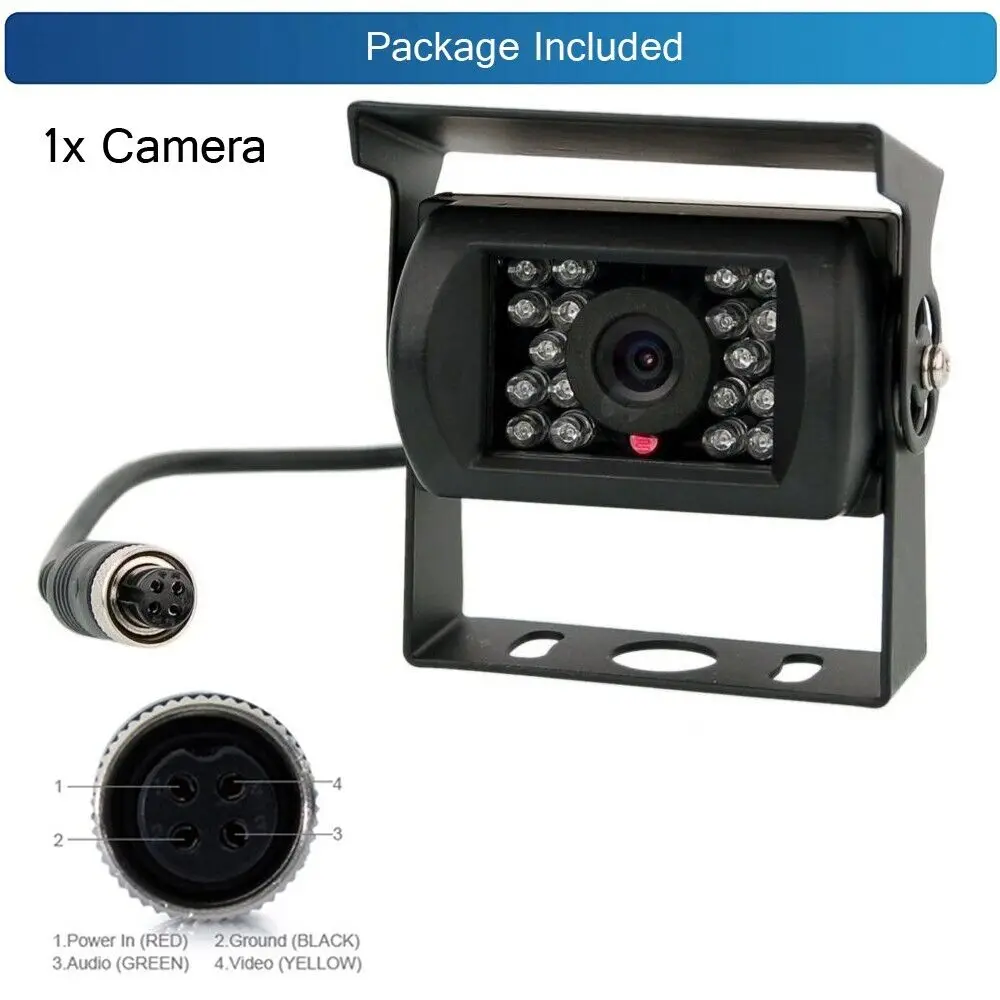

Package included: 1 x Truck Camera
Note:
Please allow 1-10mm deviation due to manual measurement.
Due to light and screen difference, the item's color may be slightly different from the pictures
