Brand Name : QueenDer
Origin : Mainland China
Certification : CE
Alarm Type : Vehicle Backup Cameras
Guiding Line : Yes
Hign-concerned Chemical : None
Camera Connection Type : Wired

Product Description

Features:

100% brand new and high quality.

Backup Camera and Monitor Kit For Car, Universal Waterproof Rear-view License Plate Backup Camera + 4.3 inch TFT LCD Adjustable Rear View Monitor(12V only).

Adopts 4.3 inch 480x272 TFT-LCD display screen, PAL and NTSC system. This monitor is designed to defy glare brought about by the sun and city lights.With 8 night vision LED lights.

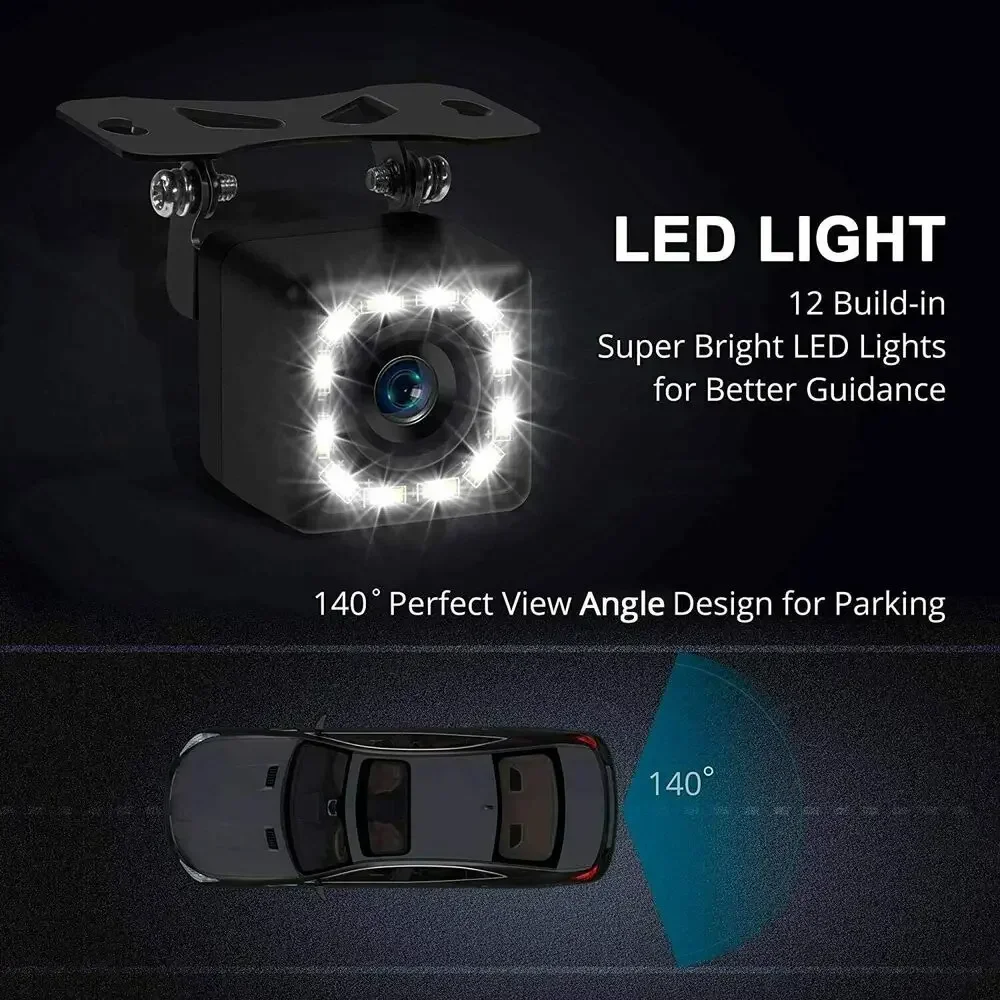

Auto Backup System Vehicle Backup Cameras with AUTO-Lighting LED Lights Make Your Night Driving Much Safety.

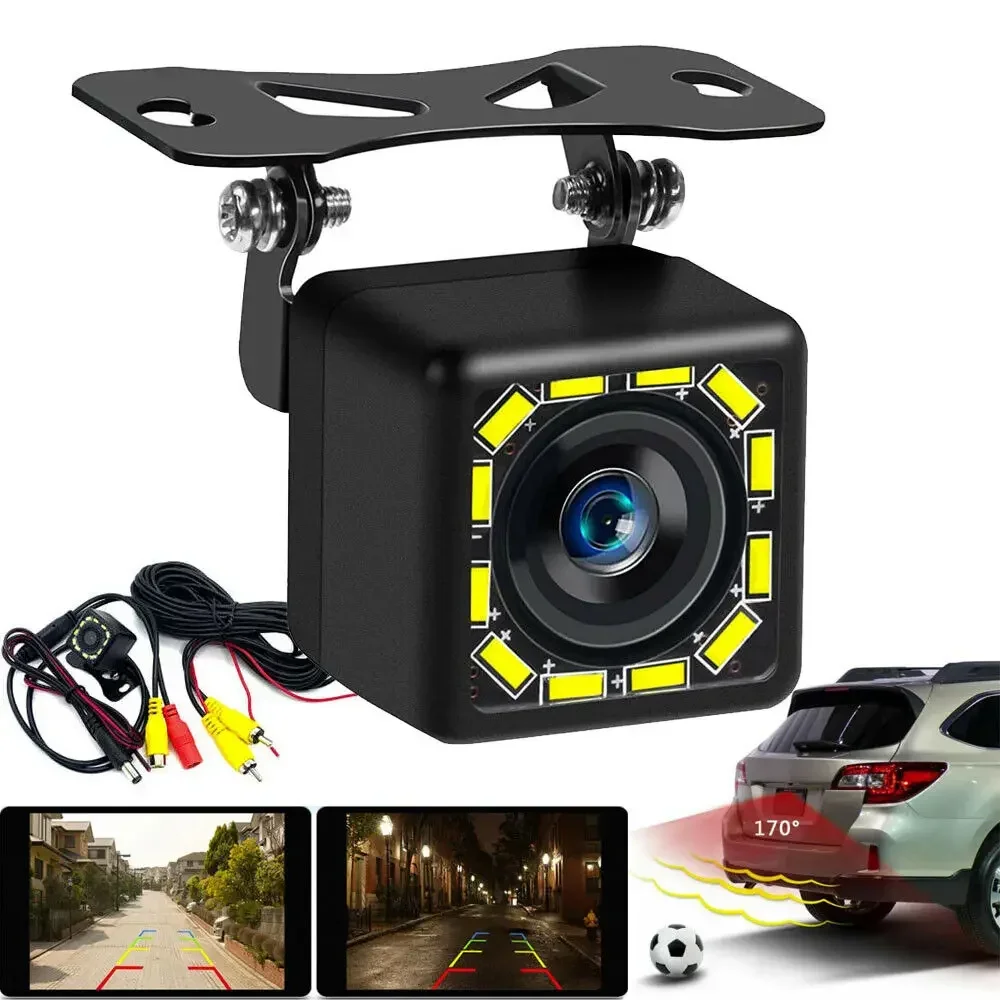

Rearview Backup Parking Reverse Assist Camera:

For Parking, Reversing, Depth Perception - Night Vision Illumination IR LED Lights for Illumination - Color Picture Output - Auto Image Adjustment.

PARKING ASSISTANCE: Hit the reverse gear and the monitor will automatically show what's behind you.

No Delay and No Interference Rear Image.

120 degree wide viewing angle.

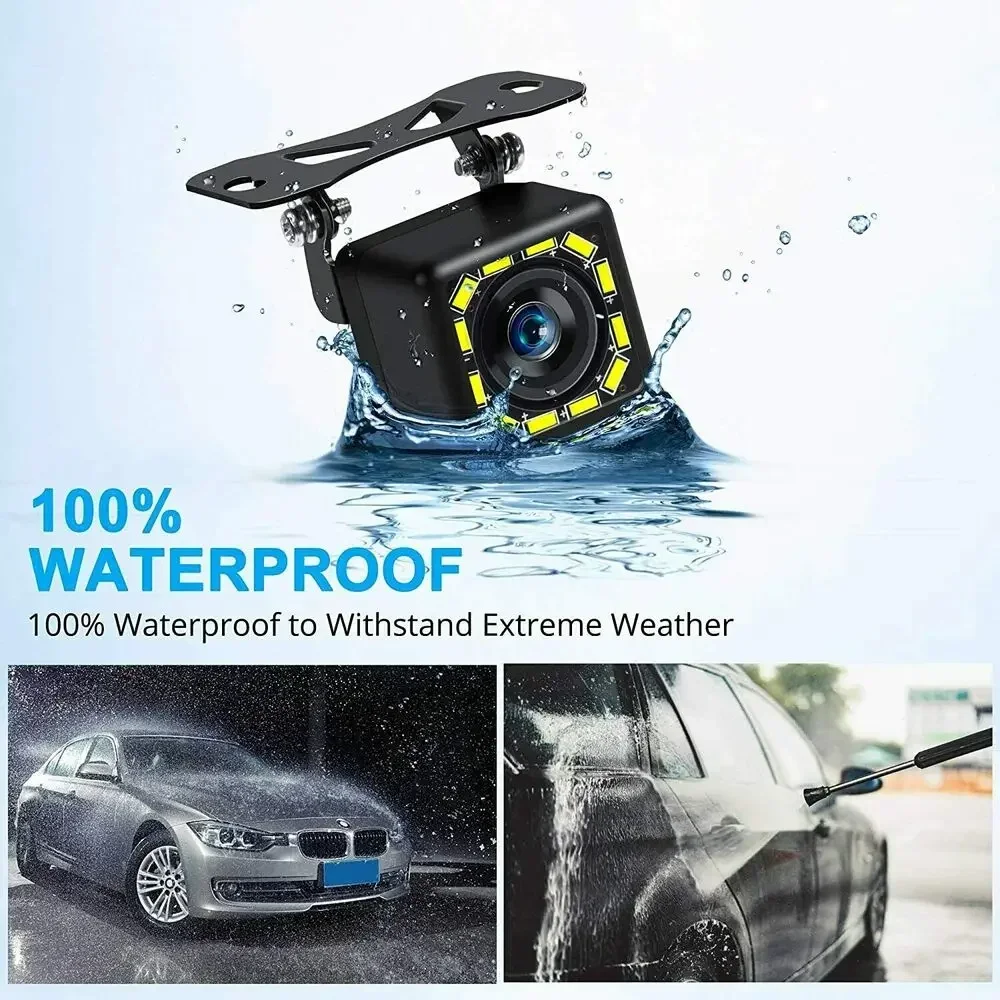

IP68 waterproof function, can used in outdoor environment.

Specification:

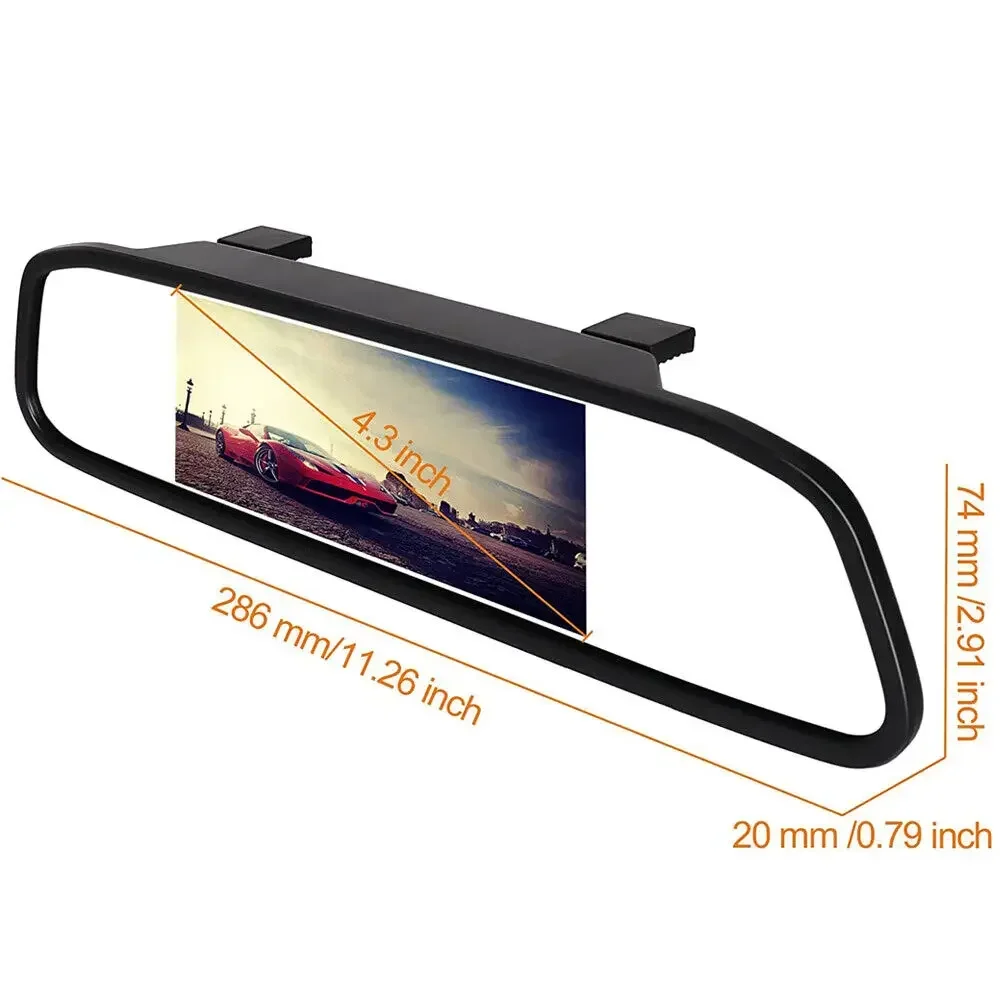

4.3" Mirror Monitor Technical Parameters:

Display Size: 4.3"

Resolution: 480x272

Screen Resolution: 480x272

Aspect ratio: 16:9

Video: AV1/ AV2

System: PAL/NTSC AUTO-switch

Power Consumption: 2W MAX

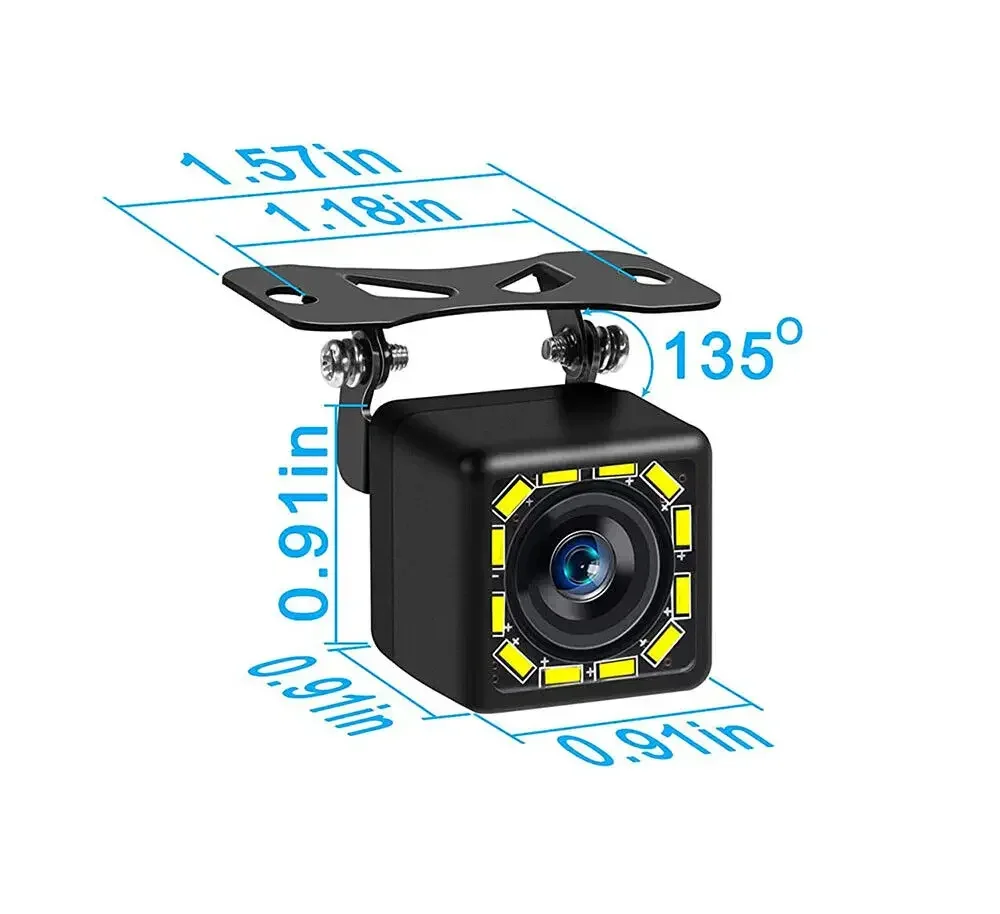

Backup Camera Technical Parameters:

Image Device: 1/4 Inch Color CMOS

Effective Pixels: 628 X 586 / 510 x 496

Video Output: RCA connector, 1.0vp-p,750hm

TV System: NTSC

Lens: 120 Degree

Power Supply: DC 12V

Waterproof Grade: IP68

Installation:

Attach camera to license plate.

Get power to camera: Connect Red wire of the camera power wire to reverse light(+) and black wire to any metal ground screw or reverse light(-).

Attach red wire of video cable to same power source(reverse light+) as in step 2.

Plug video cable into camera and route it to front of car and up onto dash.

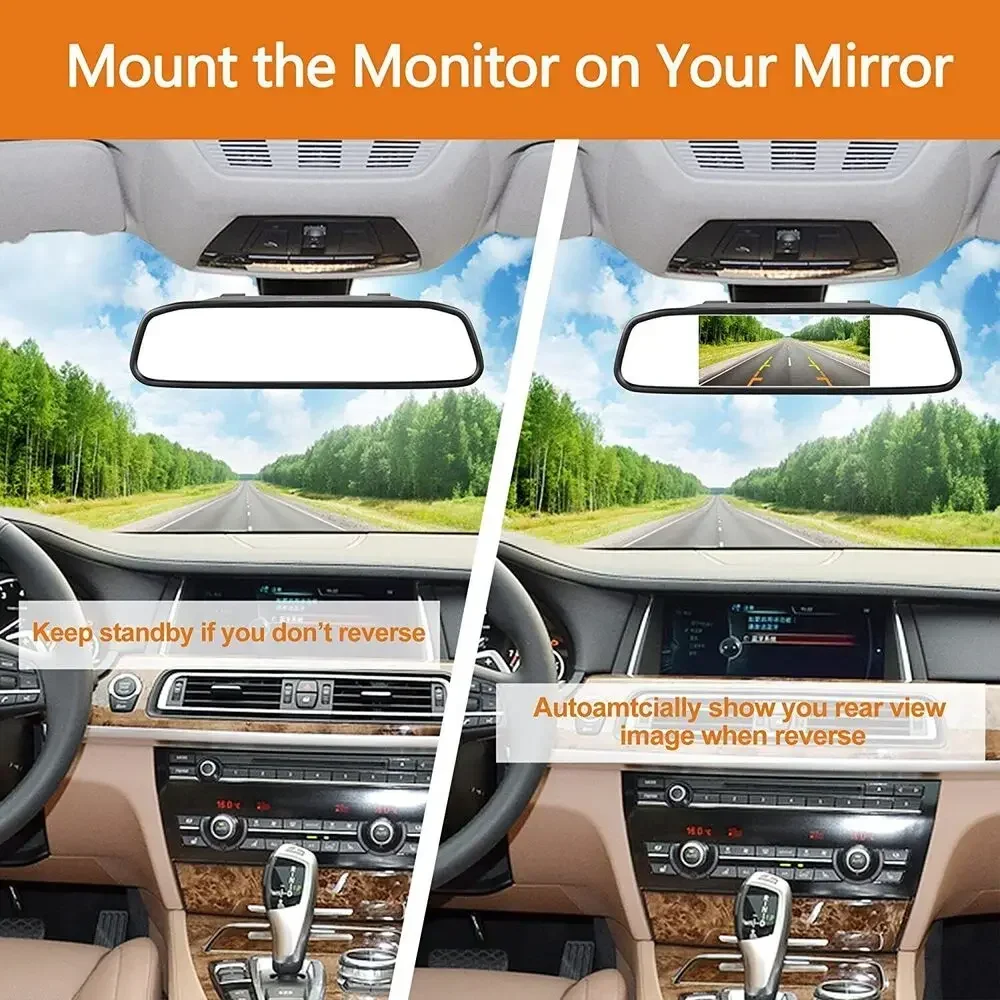

Clip the monitor on the original mirror, plug video cable into white AV2 video connector(support reversing priority), plug power cable into it.

Get power to monitor: Attach red monitor power wire to red wire on video cable, attach black monitor power wire to ground.

Test system.

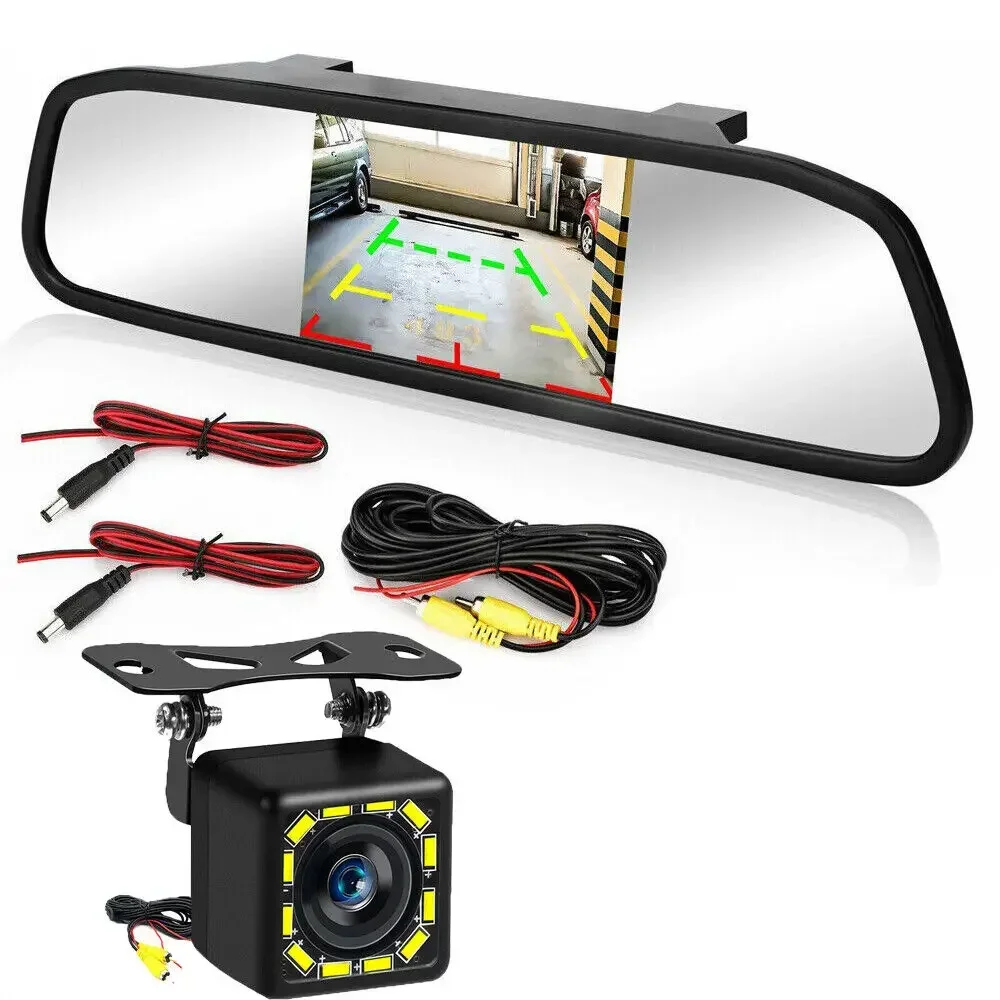

Package:

1 x 4.3 inch TFT LCD Monitor

1 x Backup Camera

2 x DC Power Cable (Black or Red)

1 x AV Cable
