12V Heavy Duty Linear Actuator - 1320lbs/6000N 0.2"/s Speed 6''-40'' Optional with Mounting Brackets

Product Description

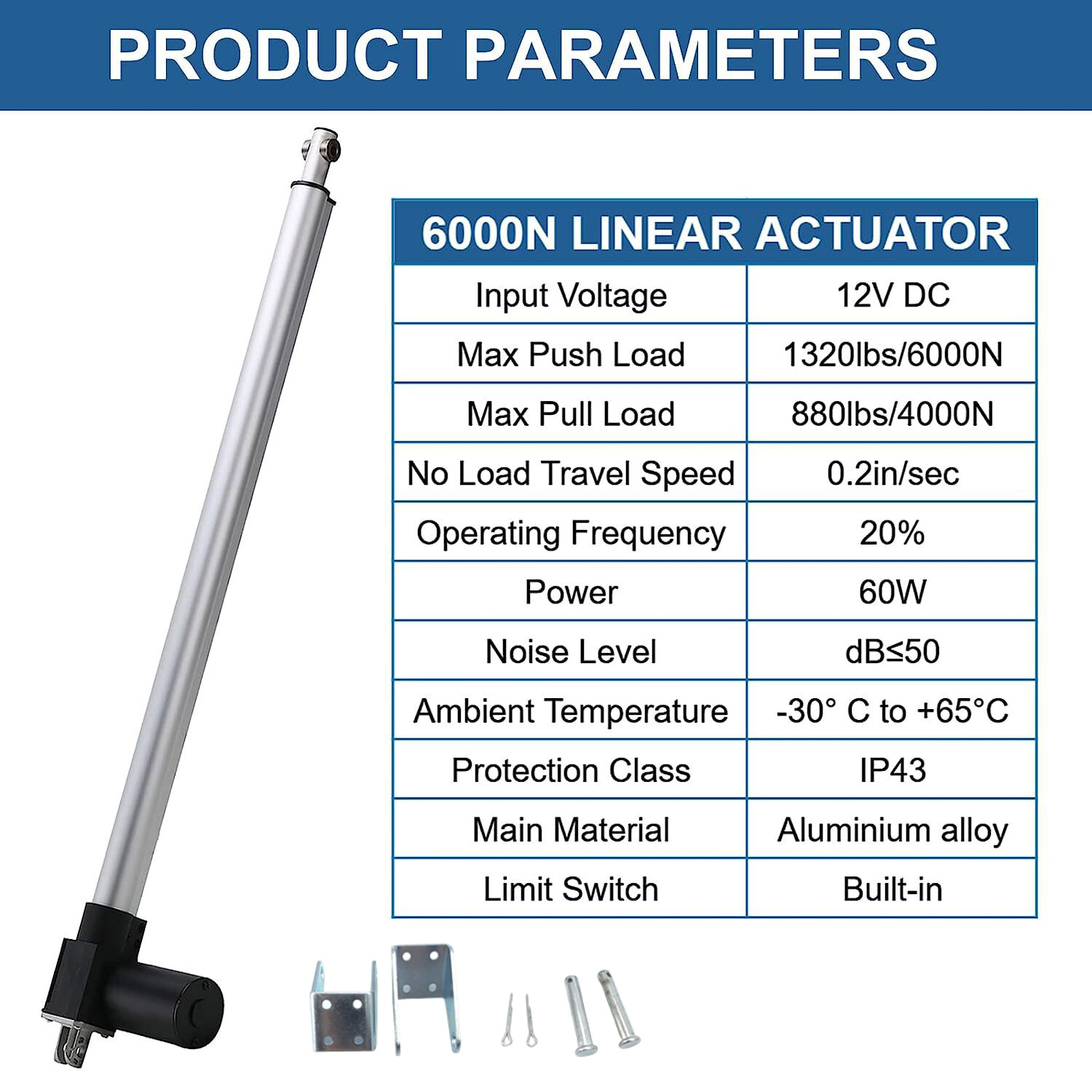

⚙️【Specification】

    Input Voltage     DC 12V

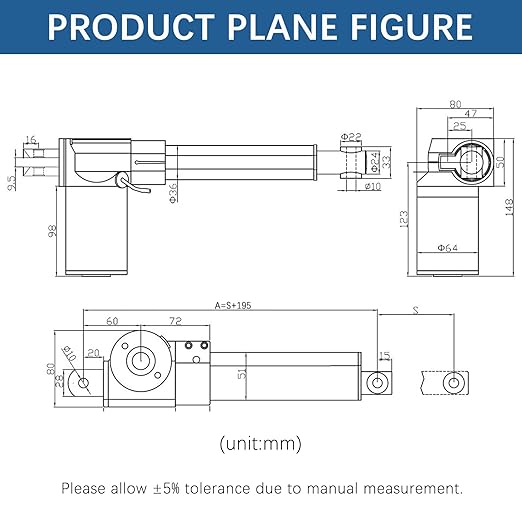

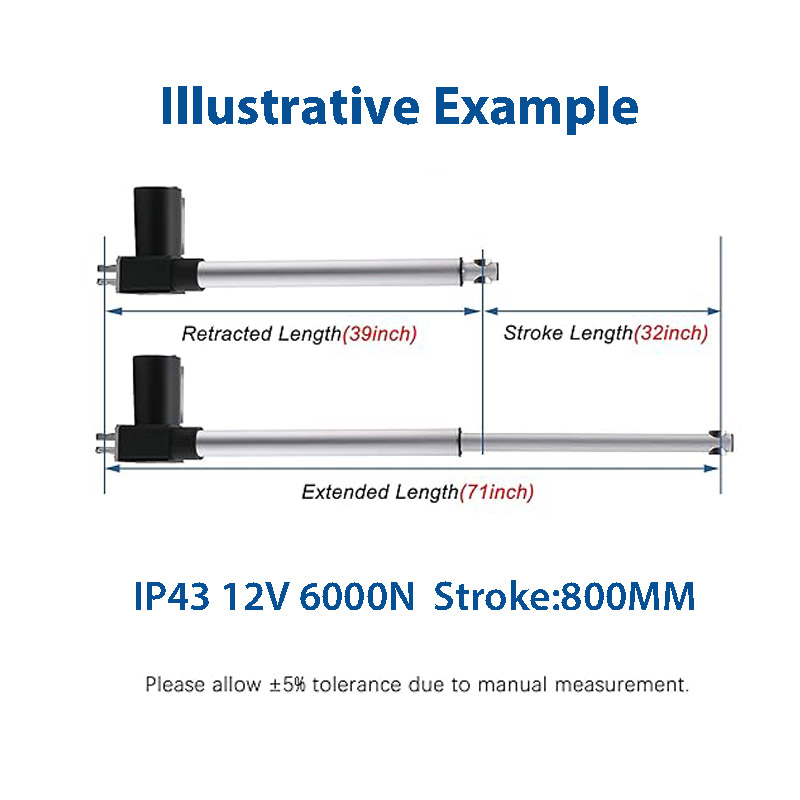

    Stroke length     150-1000mm (Optional)
    Max Push Load     1320Ibs / 6000N
    Max Pull Load     880lbs / 4000N
    No Load Travel Speed     0.2"/sec (5mm/s)
    Load Speed     0.16"/sec (4mm/s)
    Power     60W
    Noise Level     dB≤50
    Protection Class     IP43
    Main Material     Aluminium Alloy
    Ambient Temperature     -30°C to +65°C

🛡️ 【High quality】
  • The linear actuator is made of high quality aluminum;with high performance motor and built-in limit switch,it can be stopped at any position and automatically stop at the top,with self-locking function.
💡 【Features】
  • Protection class: IP43 ;
  • Noise level below 50dB ;
  • Ambient temperature:-30° C to +65°C;
  • With reliable performance, stable running, and good environment adaptability.
  • It is recommended to use a 12V 20A battery or power adapter.
🛠️ 【Wide application】
  • Linear actuator can be widely used in industrial electric lifting system, electric bed, traction bed, electric sofa, electric lifting lever, electric booth,electric sunroof.
🔒 【Package included】
  • 1 × DC 12V Linear Actuator
  • 2 × Mounting Brackets
  • 1 × Remote Controller(Optional)

⚠️【Details】

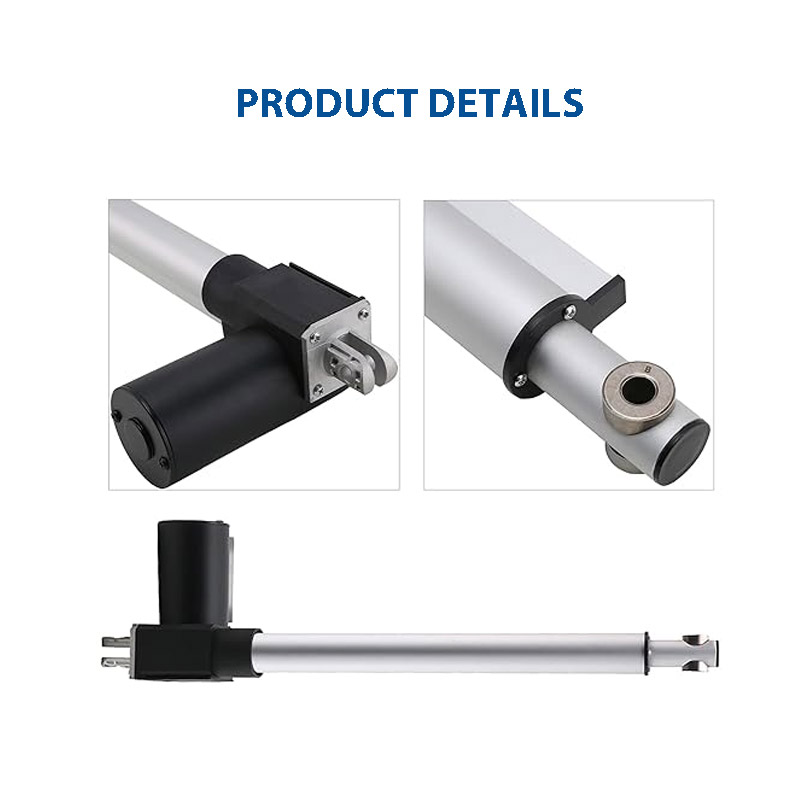

Linear Actuator：
  • Power Suggestion: Recommended 12V 20A battery or power adapter for stable startup under heavy loads.
  • Red wire to the positive terminal and black wire to negative terminal will make it extend. To make it retract, reverse the terminal connections.
  • The operating frequency of this actuator is 20%. It means that your actuator needs 8 minutes to rest for every 2 minute of work.
  • The linear actuator is not completely waterproof, please do not directly immerse in water.
Remote Controller：
  • 【Basic Information】Working voltage DC 12V , It is specially designed for DC 12V linear actuator.It can control your actuator to move forward & reverse more easily.
  • 【Remote Control Distance】Without doors and walls blocking,remote control distance up to 230 feet / 70 meter.
  • 【Easy to use】Press the up button linear actuator move forward, press the down button linear actuator move backward. Press the middle button,linear actuator stop moving.
  • 【Stable & Safe】The wireless remote controll with high receive sensitivity and more stable.Made of the ABS material and flame retardant material,more safer.
