Origin : Mainland China
Certification : CE
Alarm Type : Vehicle Backup Cameras
Guiding Line : Yes

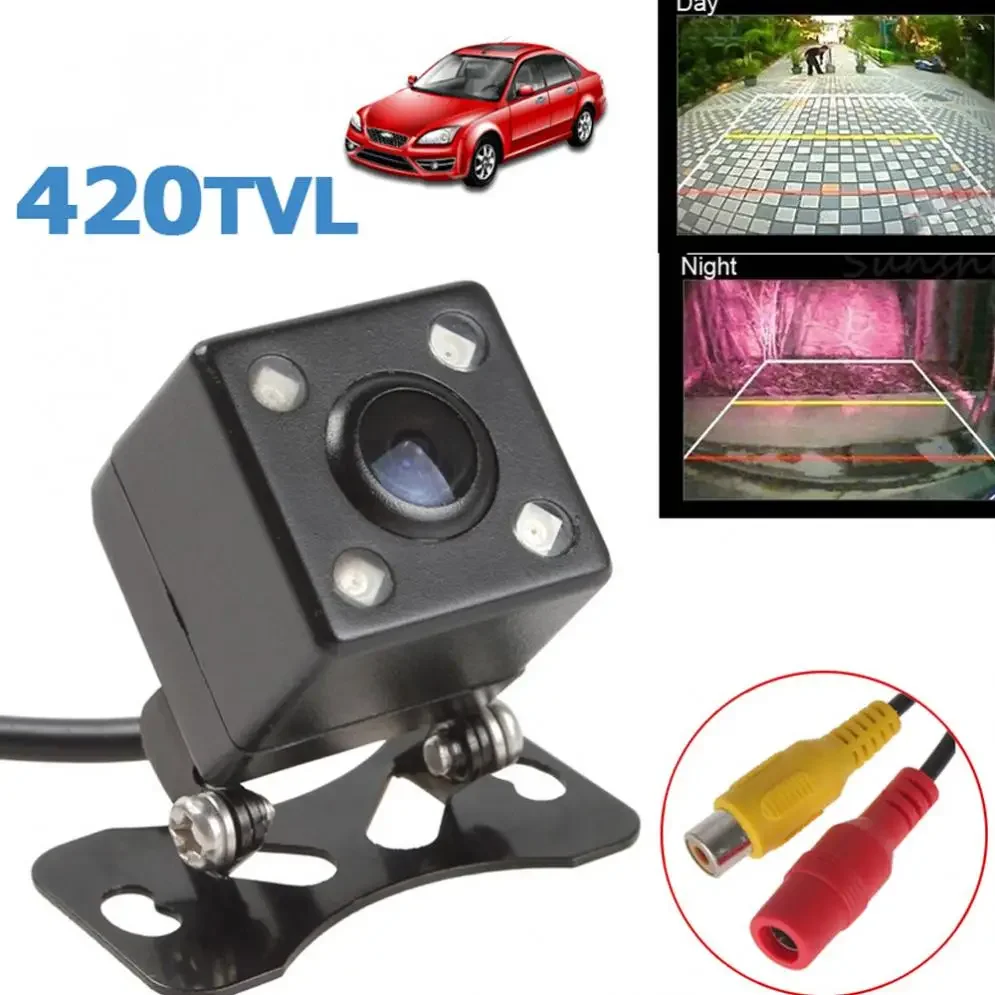

Horizontal Resolution: 420 TV lines
System: NTSC / PAL
Voltage: 12V
Camera Connection Type: Wired
Night Vision Function: Yes
Material Type: ABS

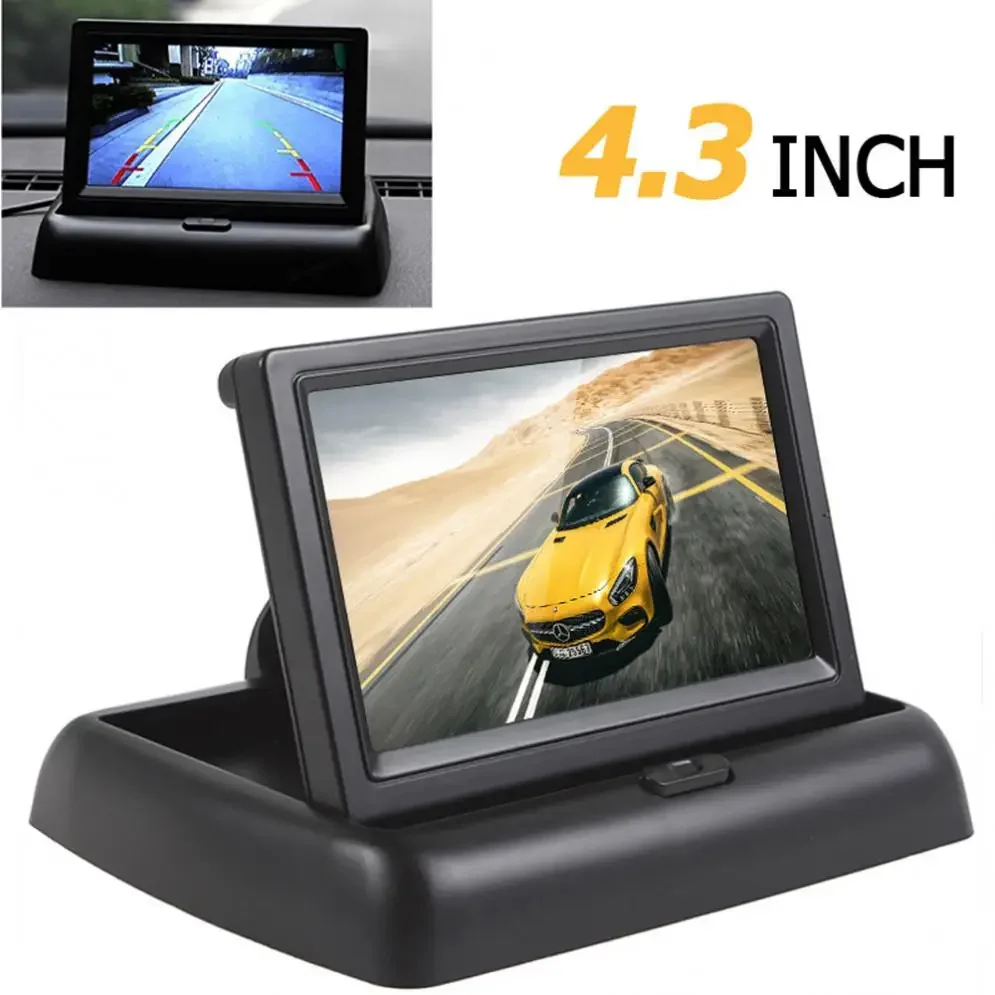

Display Size: 4.3 Inch
Placement: In-Dash
Waterproof Rate: IP67
Resolution: 480 * 272
Features:
- No audio input or output.

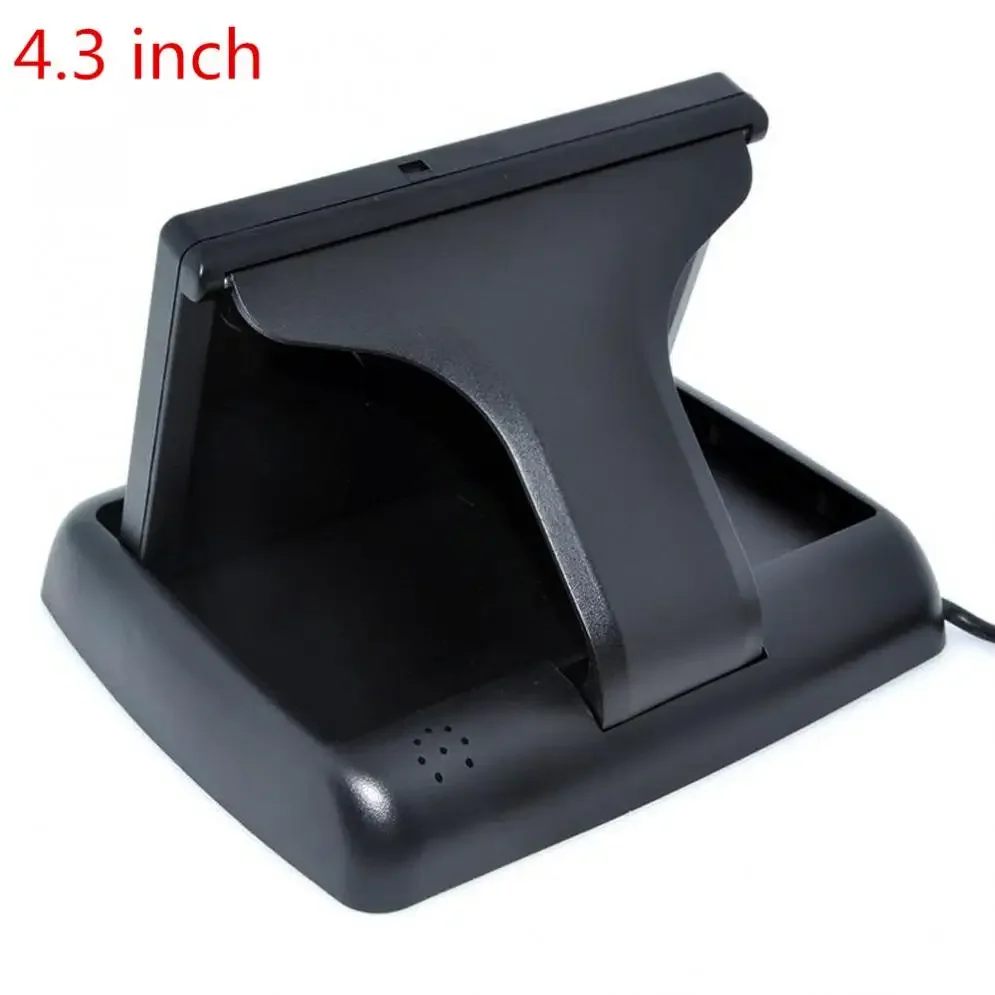

- Foldable design can better protect the screen against dust, dirt, bumps and scratches.

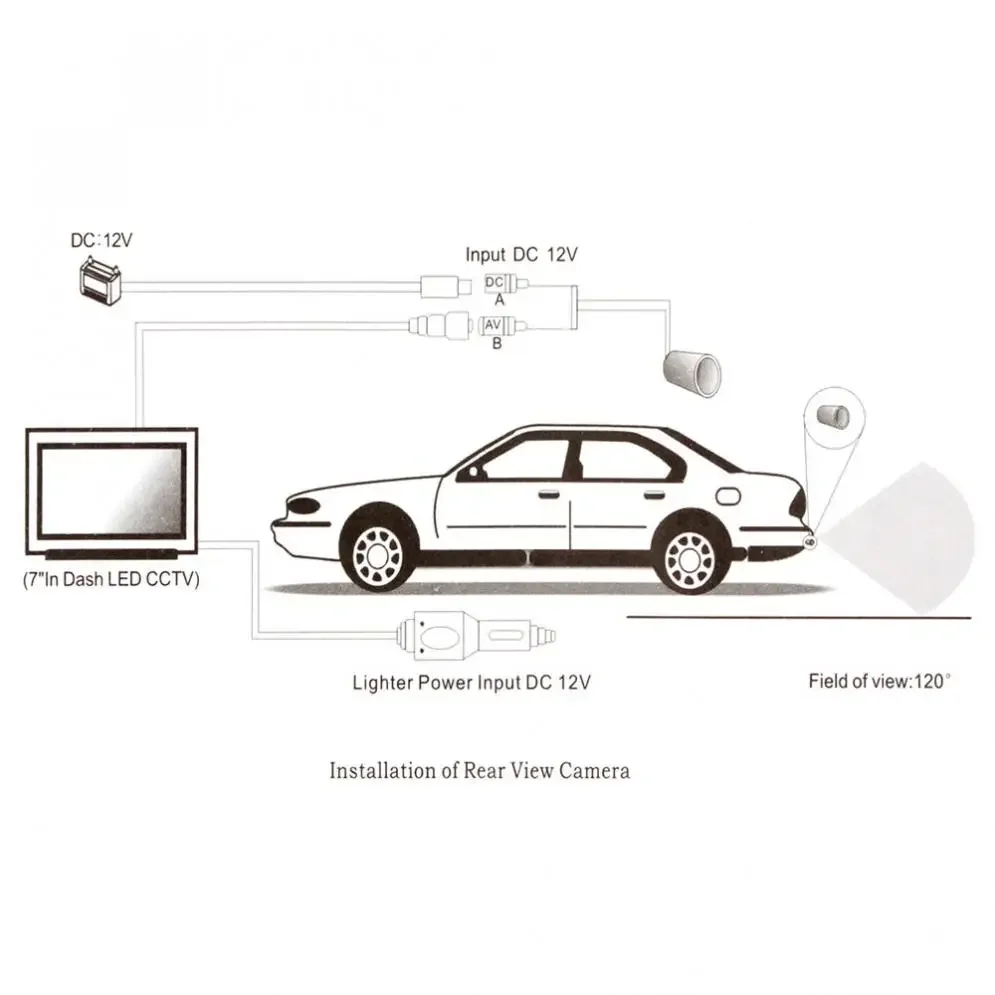

- Parking rearview priority: the monitor will start up automatically and synchronously display - the video from rearview camera when you're backing your car.

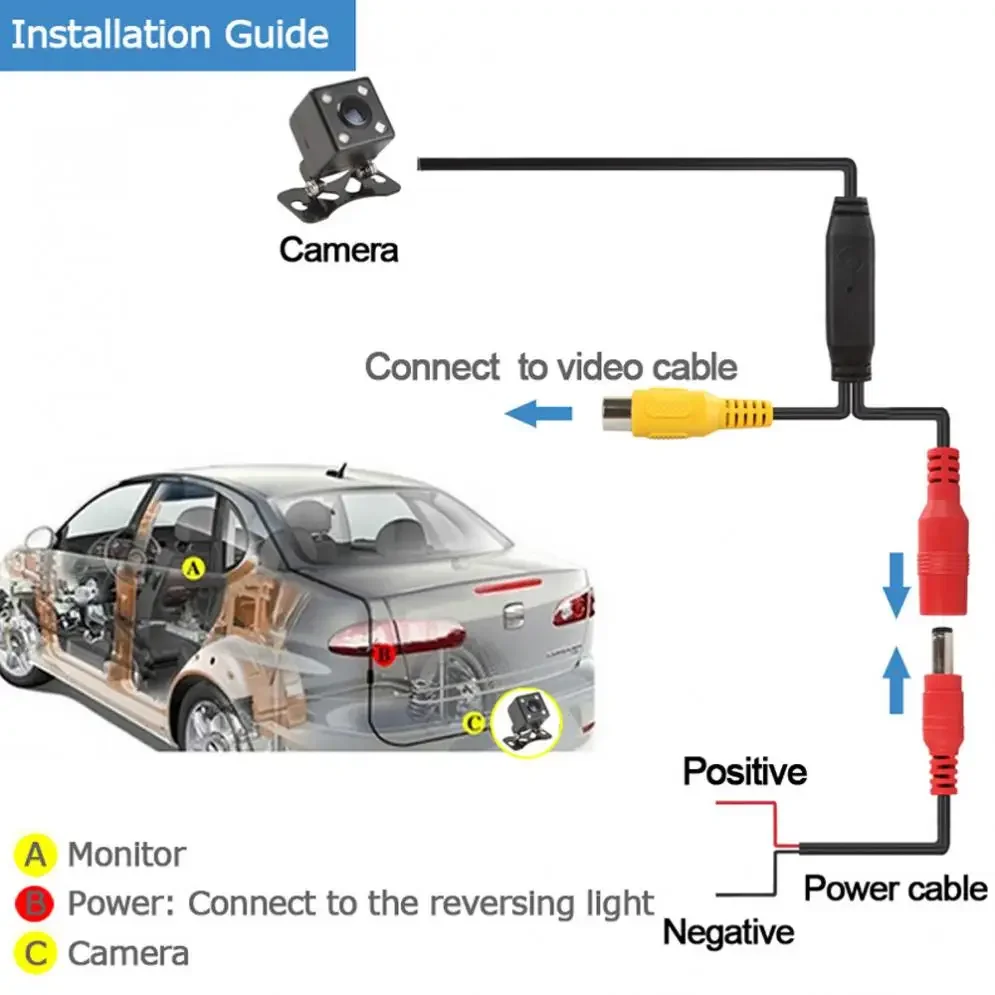

- With 2 video input: white video cable connects to car rearview camera, yellow one to other video equipment.
- Supports car DVD, VCD, camera and other video equipment.
- High-resolution picture: 480W * RGB * 272H.

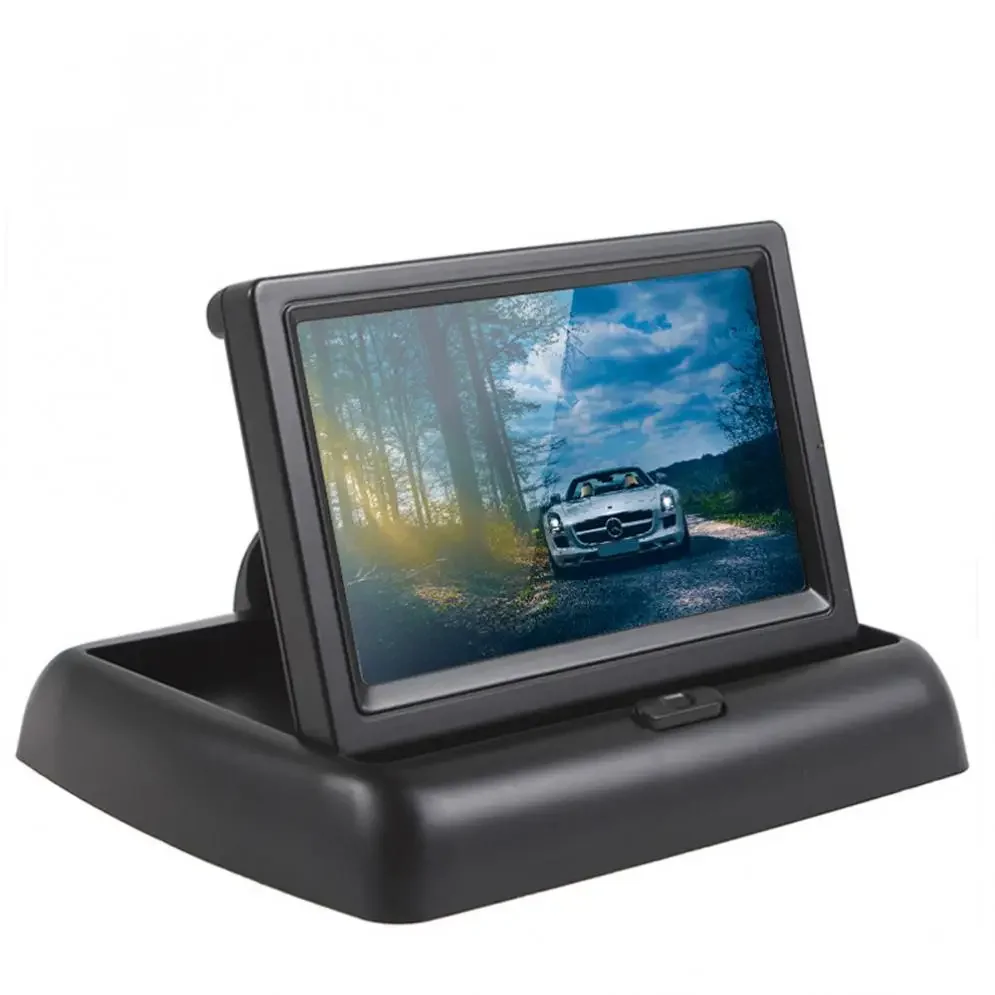

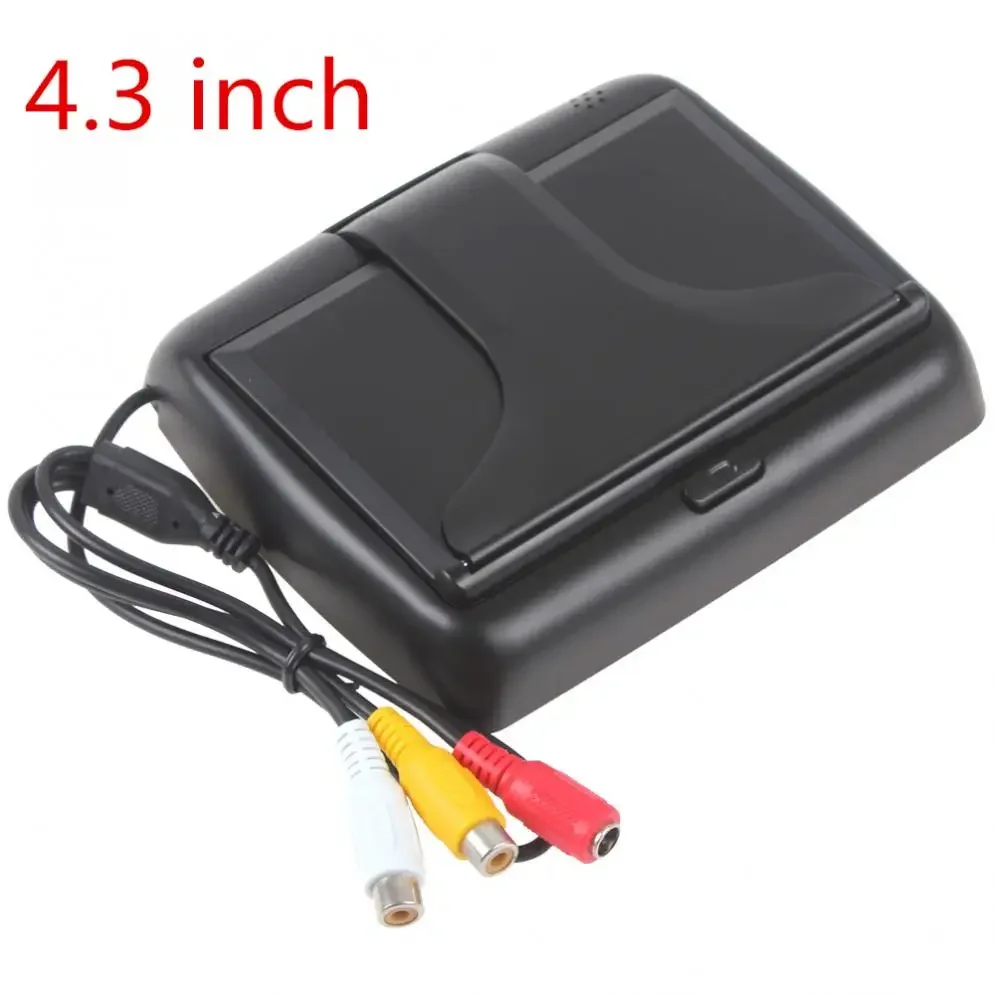

- 4.3" color TFT LCD monitor.
- 4.3" color TFT LCD car rearview monitor with 2 video input, which can work perfectly with car rearview cameras and also support car DVD and other video equipment.
Color: Black
Aspect ratio: 16:9
Operation temperature: -20~+50 Celsius degree

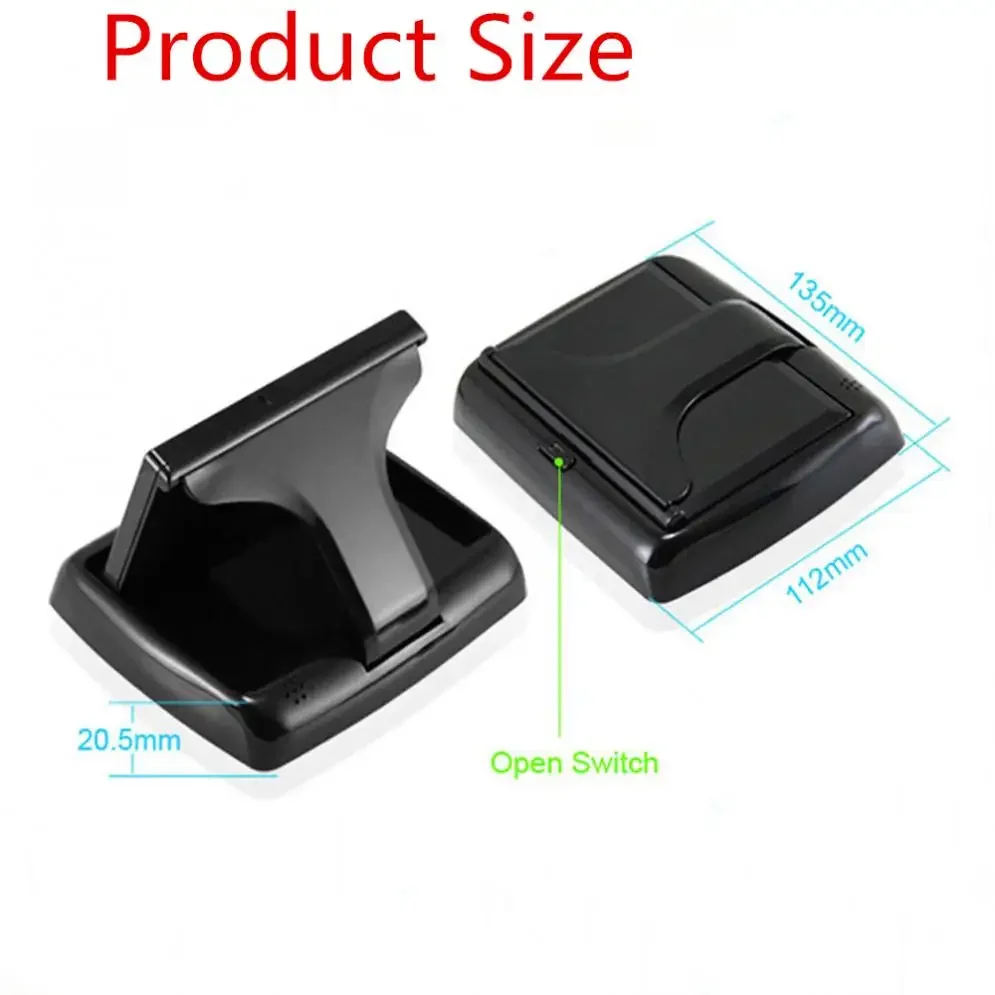

Monitor size: Approx 115 * 75 * 18mm
Features:

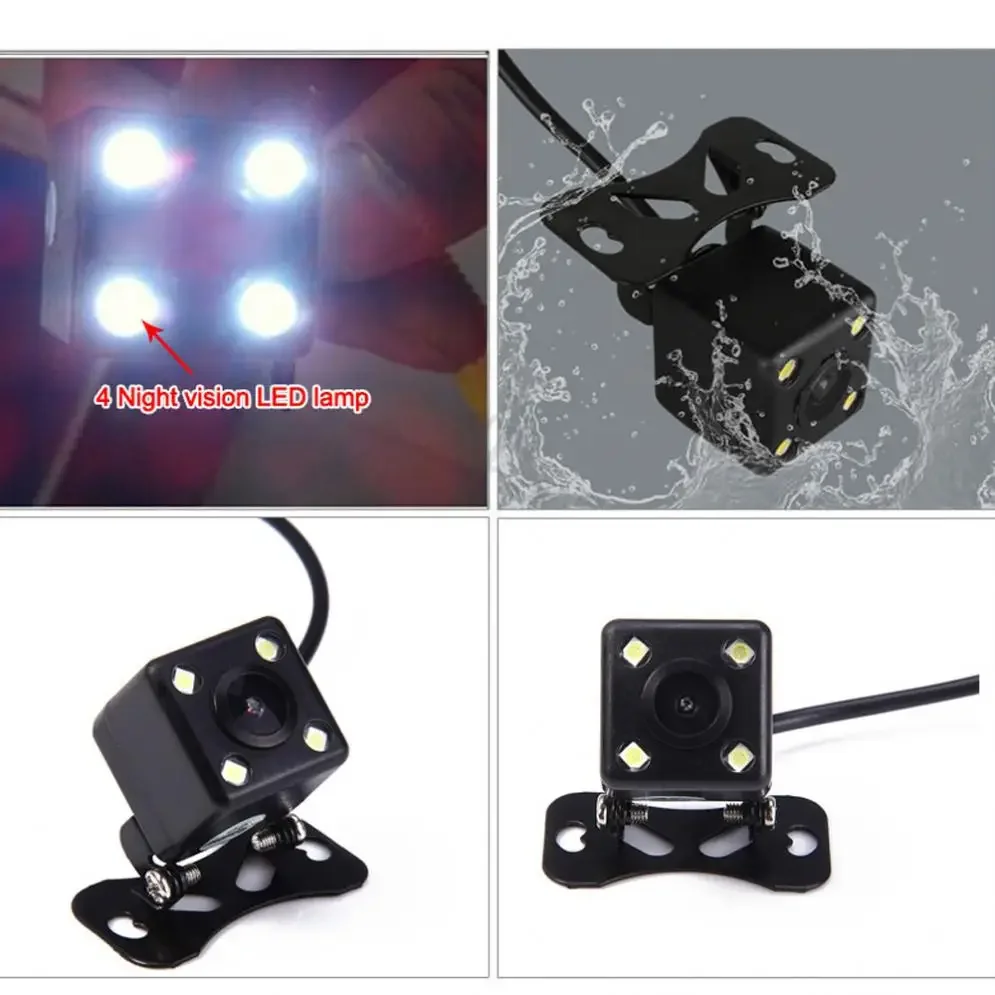

- 170 degree diagonal viewing angle micro lens with mirror image.
- High resolution color image sensor and PAL/ NTSC TV system.
- With IPX6 waterproof level, so it can also be used even in rainy days.
- With dustproof design.
- Suitable for all cars.

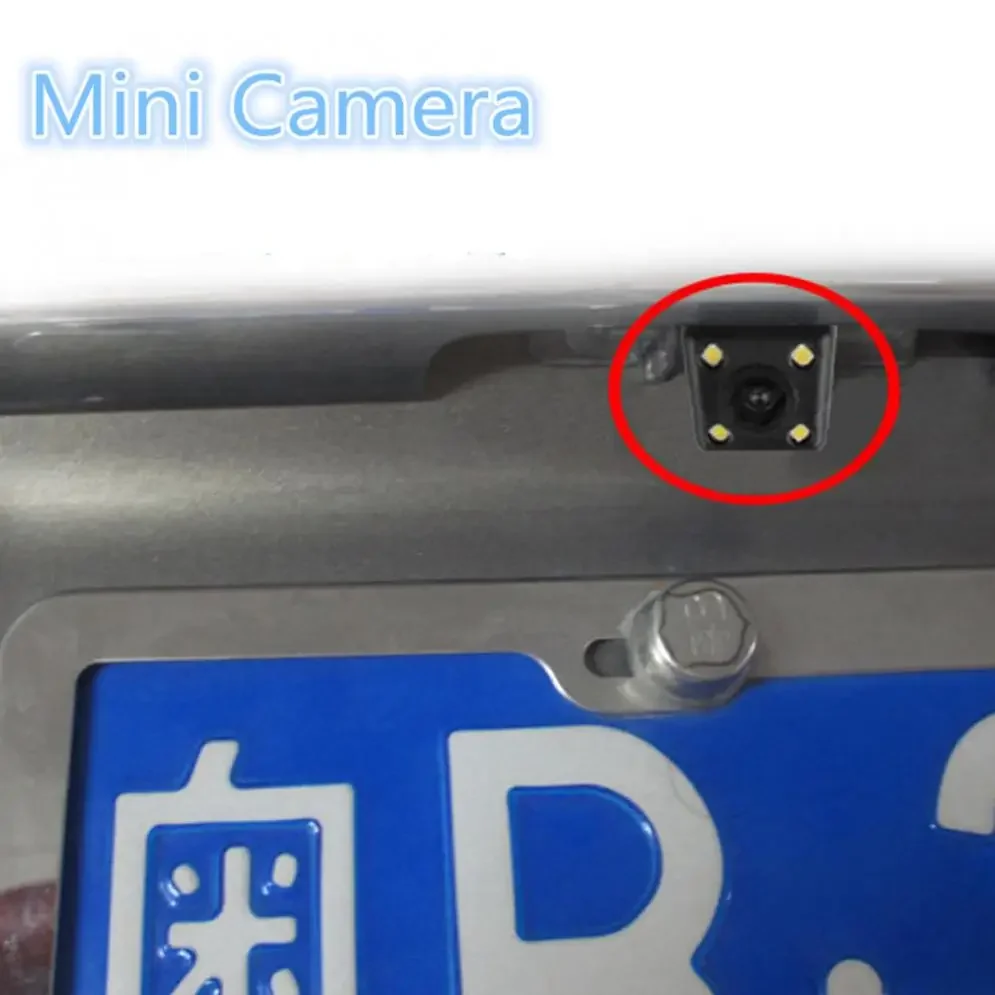

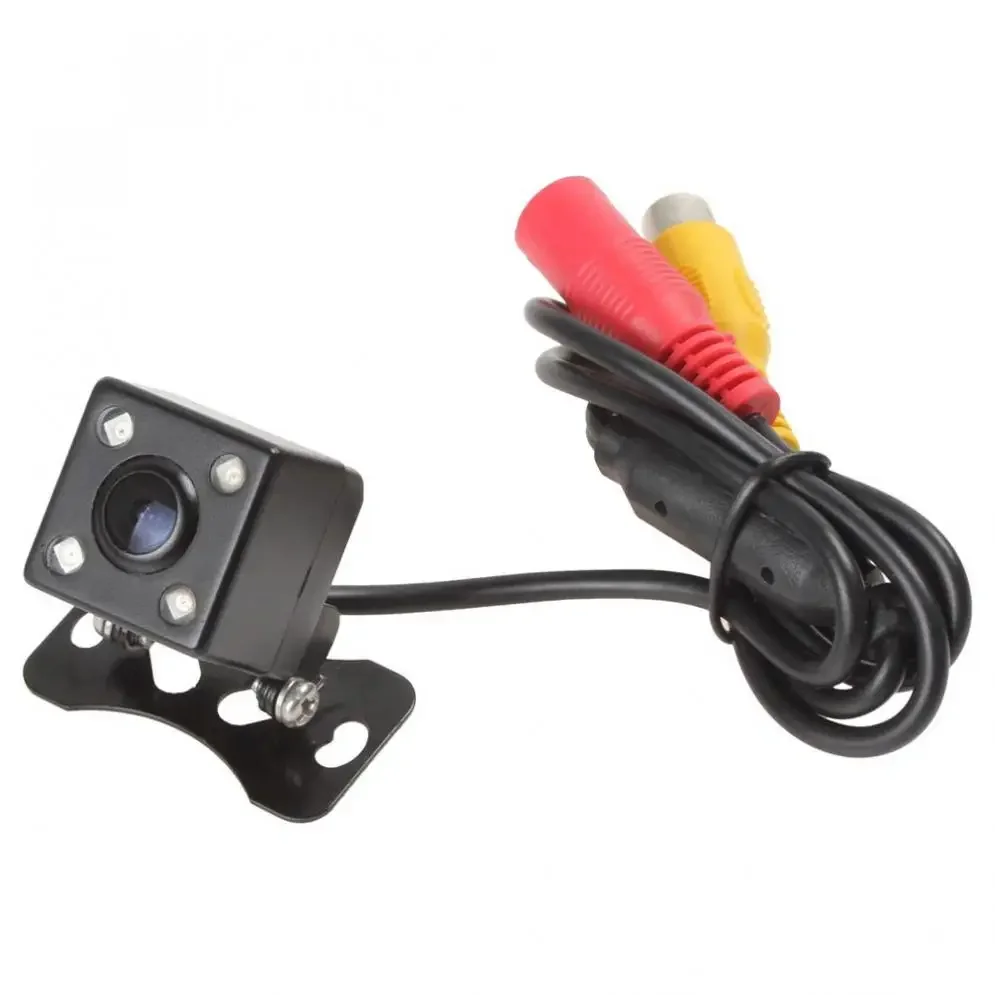

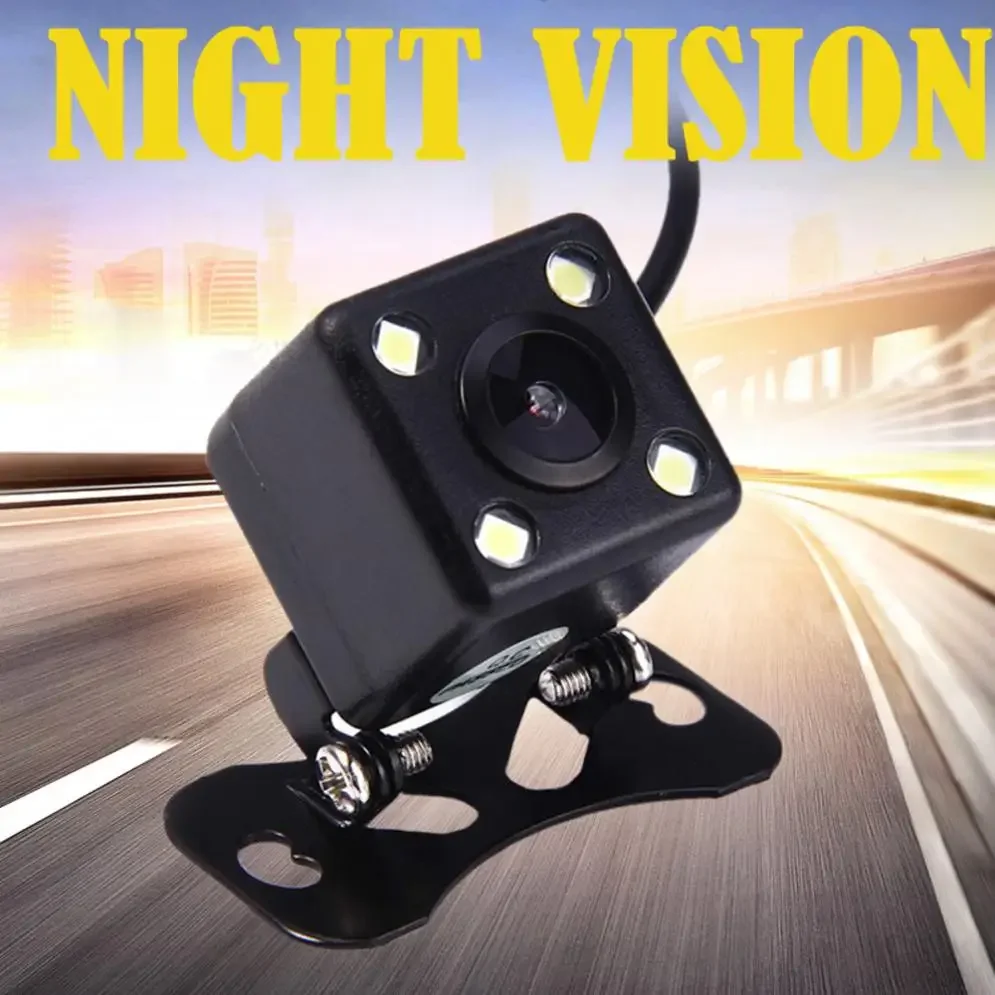

Item: Night vision car rear view backup camera
Shell Material: Aluminium Alloy
Lens Material: Plastic + Glass
Video Line Length: 6m
Effective Pixel: 656 x 492 pixels
Electronic Shutter: 1/50-1/100.000sec, 1/60-1/100.000sec
Scanning System: 2:1 interface
Sync System: Internal
Lens Angle: 170degrees
Sensor Area: 5.961 x 4.276mm
Min Illumination: 0.1Lux
Waterproof: IPX6
Power Supply: DC 12V
Operation Temperature: -10~60 centigrade degrees
Color: Black
Place of Application: Vehicle Reversing Parking System
Package Weight: 400.0 G / 14.11 Ounces
Package Dimensions (L*W*H): 200*100*50 MM / 7.87*3.94*1.97 Inches
Retail Packaging: Yes, General Box
Package Including:

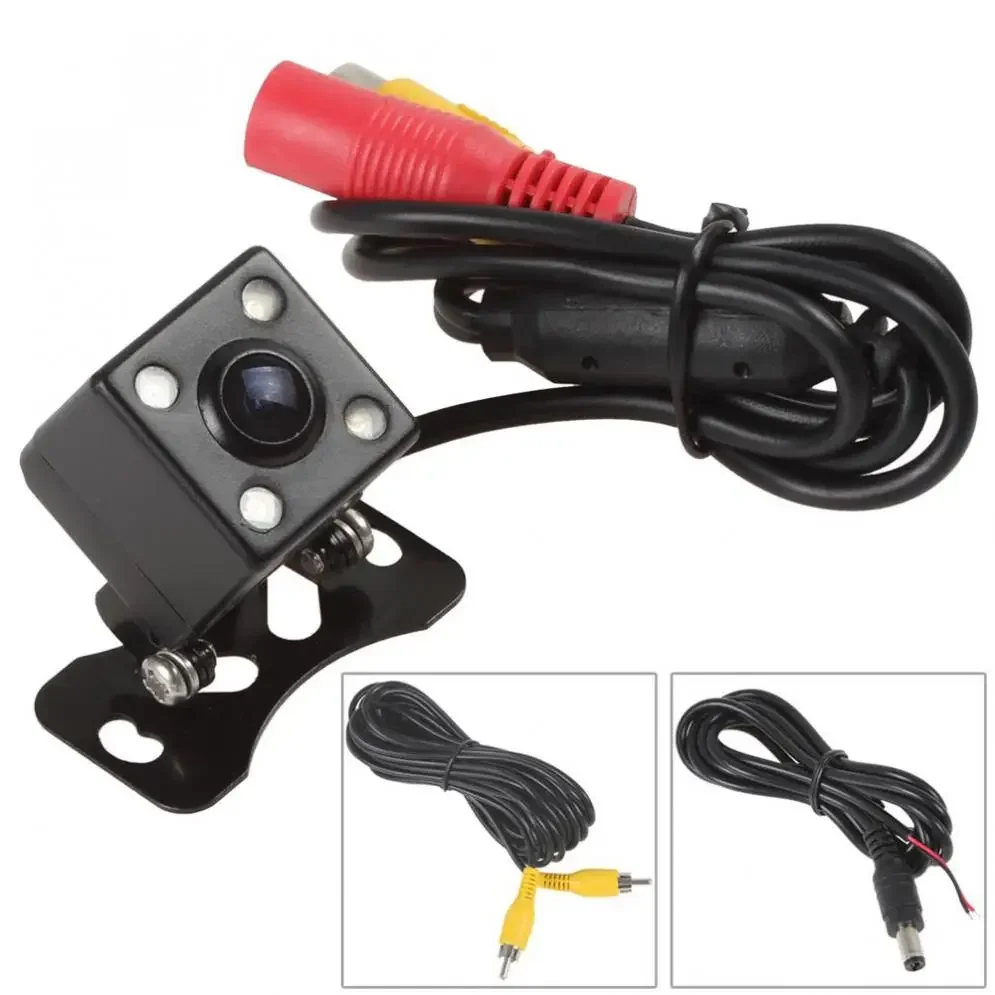

1 * Video Cable for rear view camera

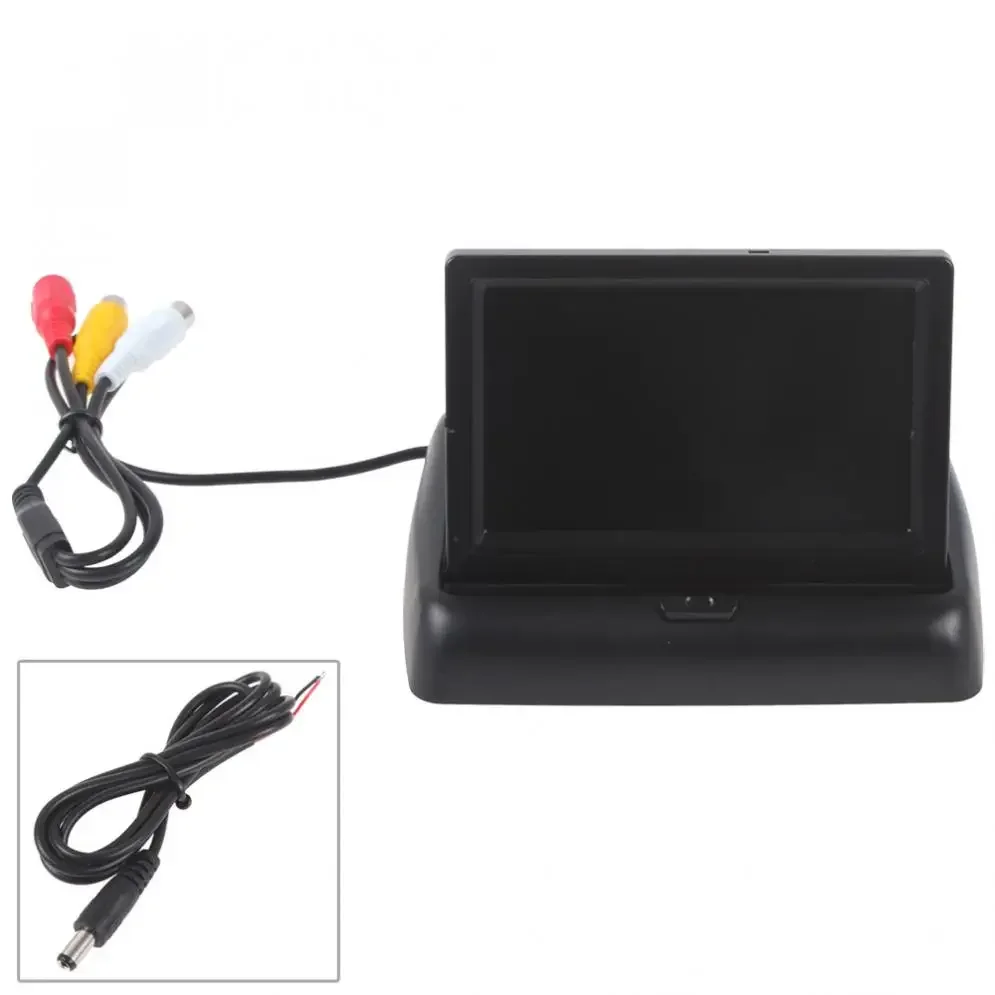

1 * 4.3" Car Monitor (with video cable)
1 * Power Cable for monitor
1 * Rear View Camera
1 * Power Cable for rear view camera
