HD 7″ TFT LCD Monitor



+Remote (No Battery Inside due to Airline Limitations)



+1x  Black Color 18 IR LED Rearview Reversing Backup Camera Night Vision Waterproof IP68

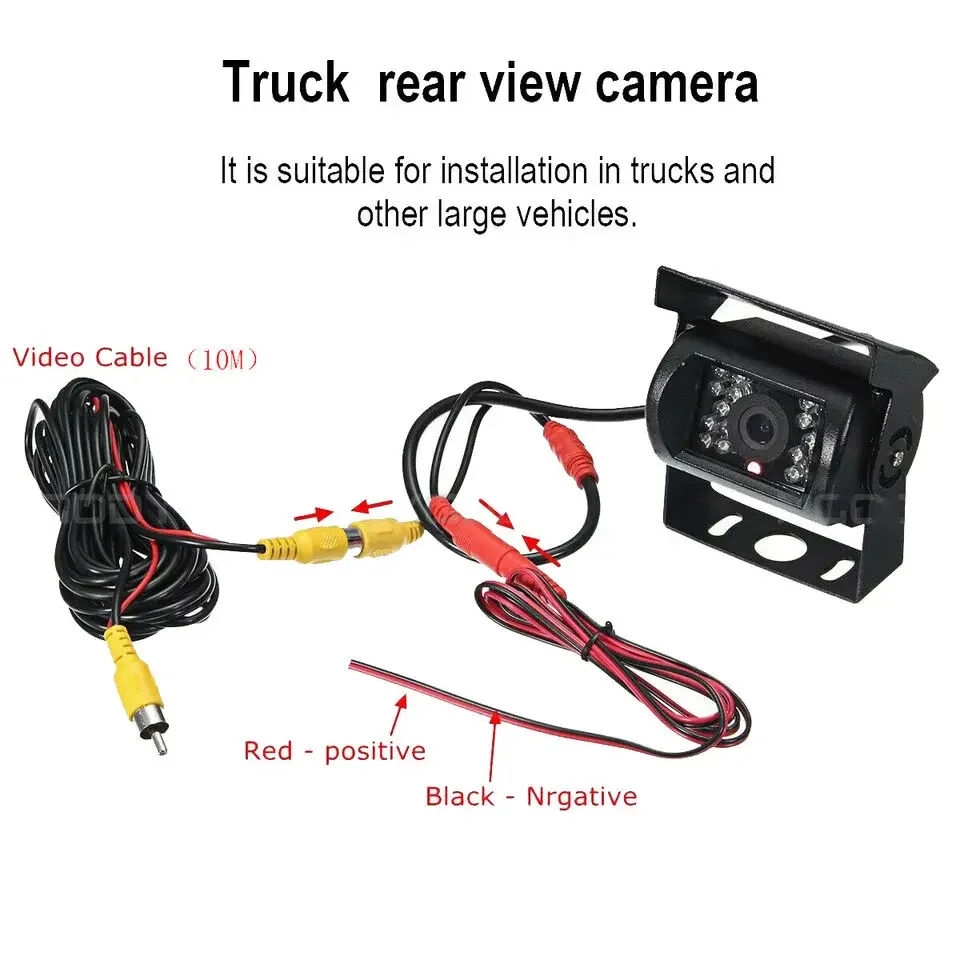

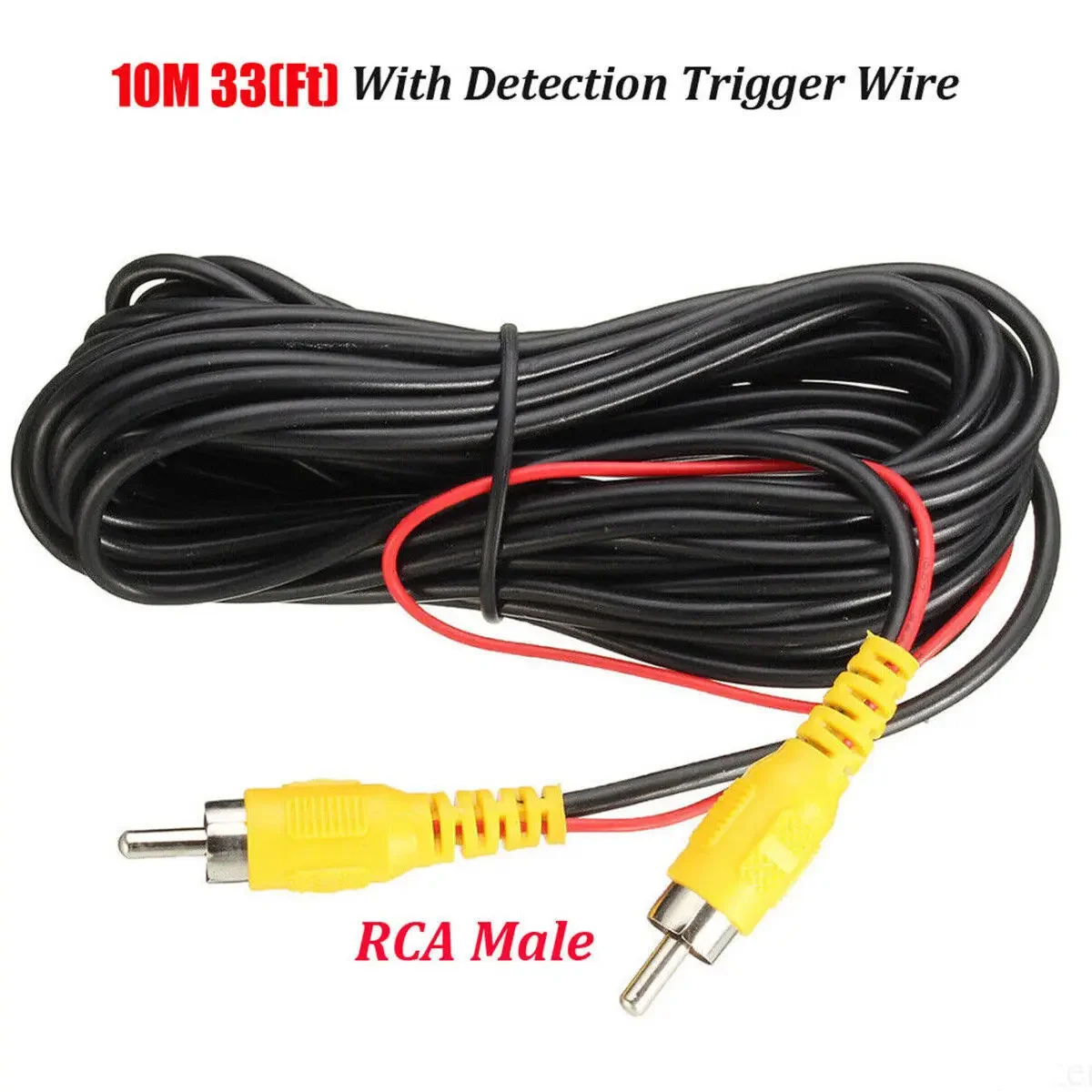

+1x 10m Video Cable Kit



+1x Power Cable for camera

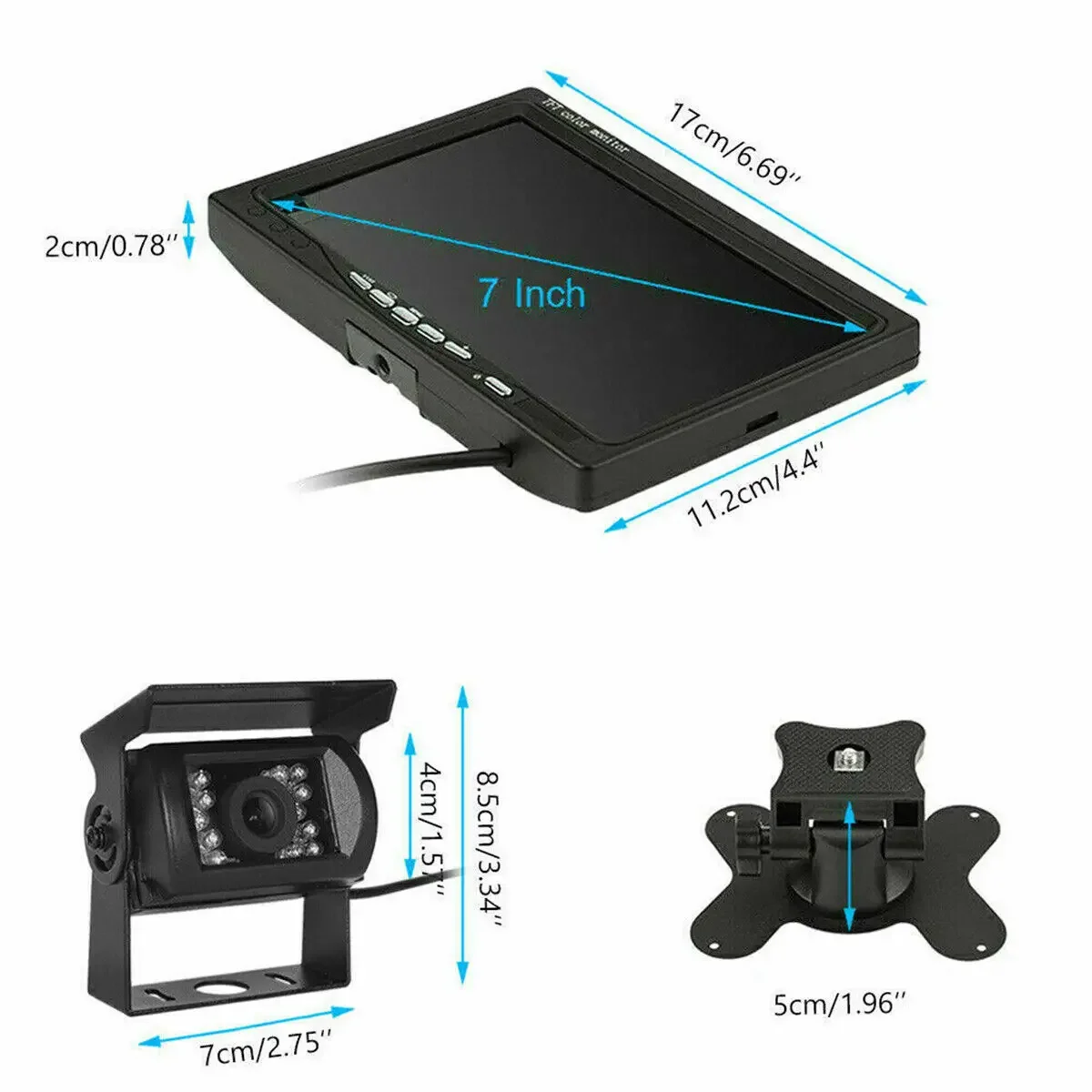

HD 7″ TFT LCD Car Monitor:
Specification:
Aspectratio: 7″ / 16:9
Consumption: 7W
Power: 12-24V DC
System: PAL/NTSC
Video: 2 way video input
Wireless system Working Range：30-50m
Resolution: 800(H) x RGB x 480(W)

Monitor Feature:

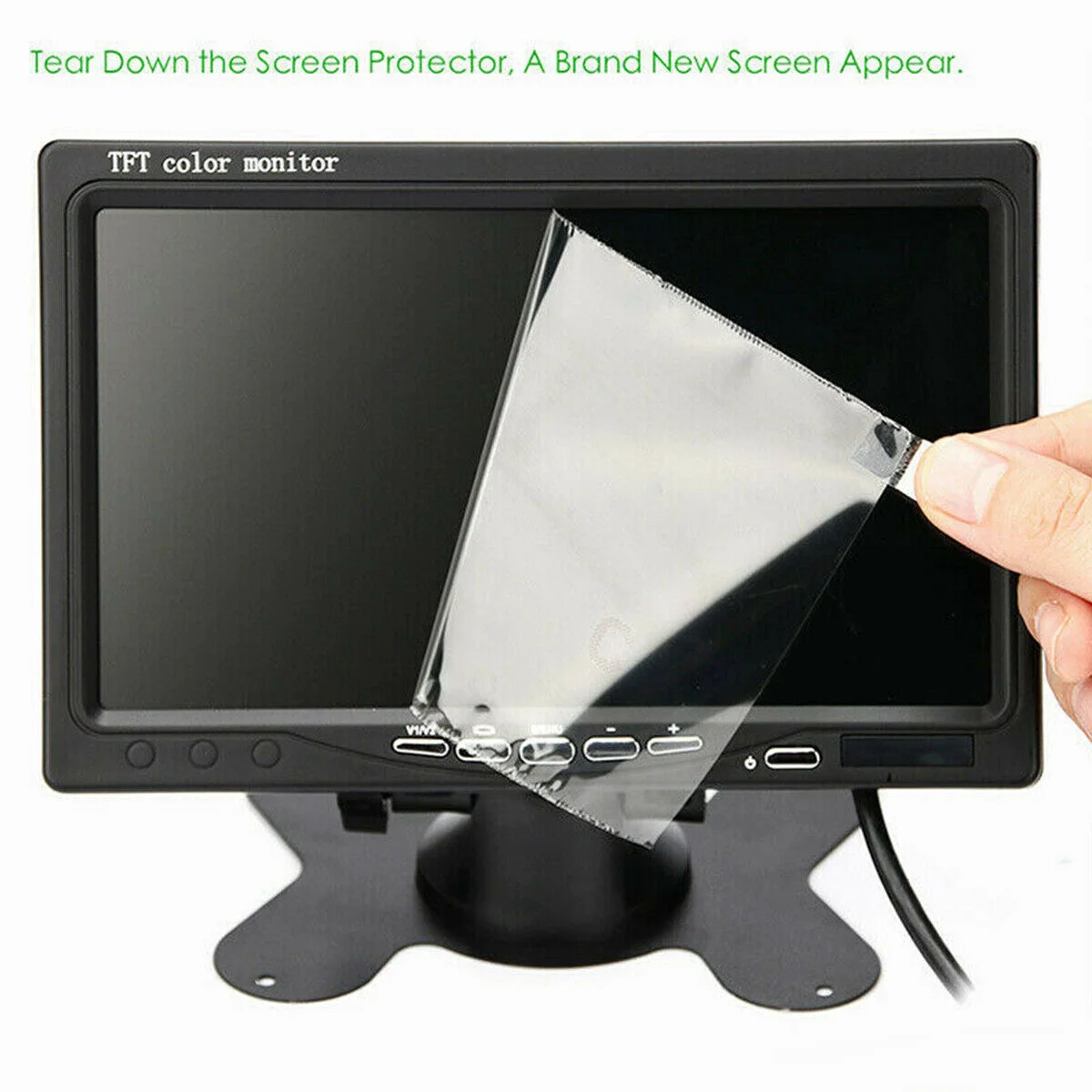

-7" LED Backlight Color TFT LCD monitor.

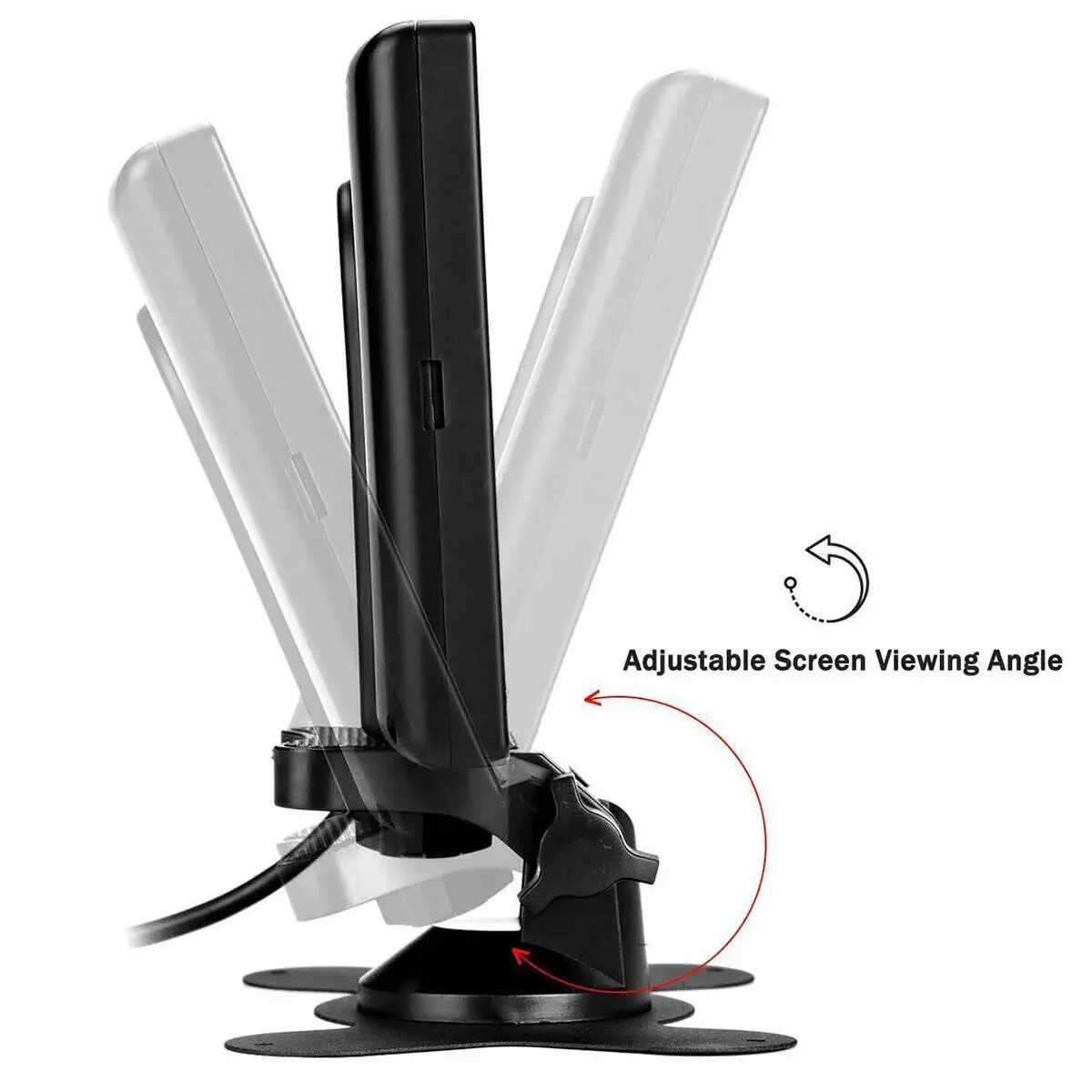

-Can easily adjust the camera installation angle in multi-level.

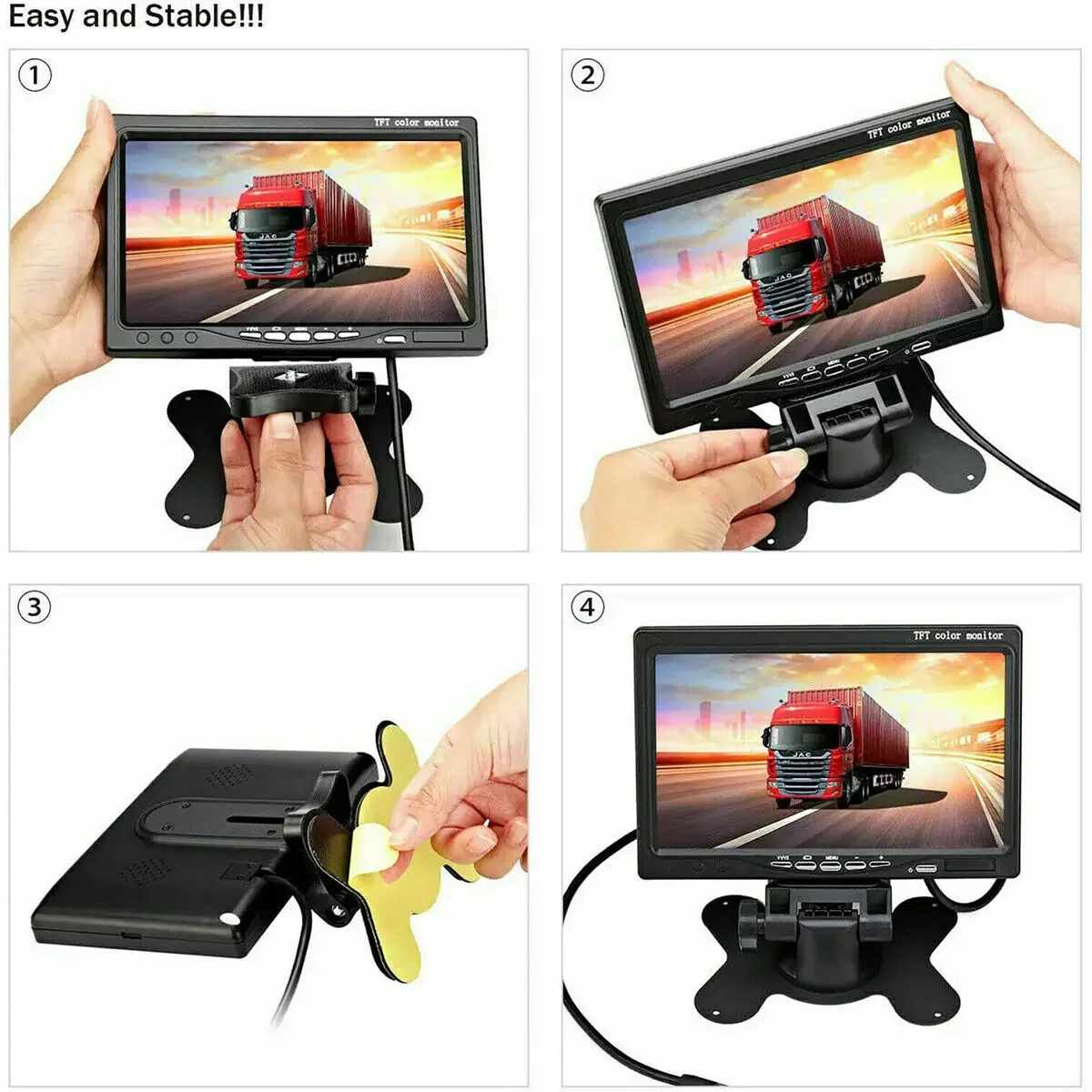

-Headrest style installation, support screen rotation, easy to mount & easy to use.
-When no video signal input, black screen will display.
-Comes with an IR remote controller.
-When parking, image can be changed V2 from V1.

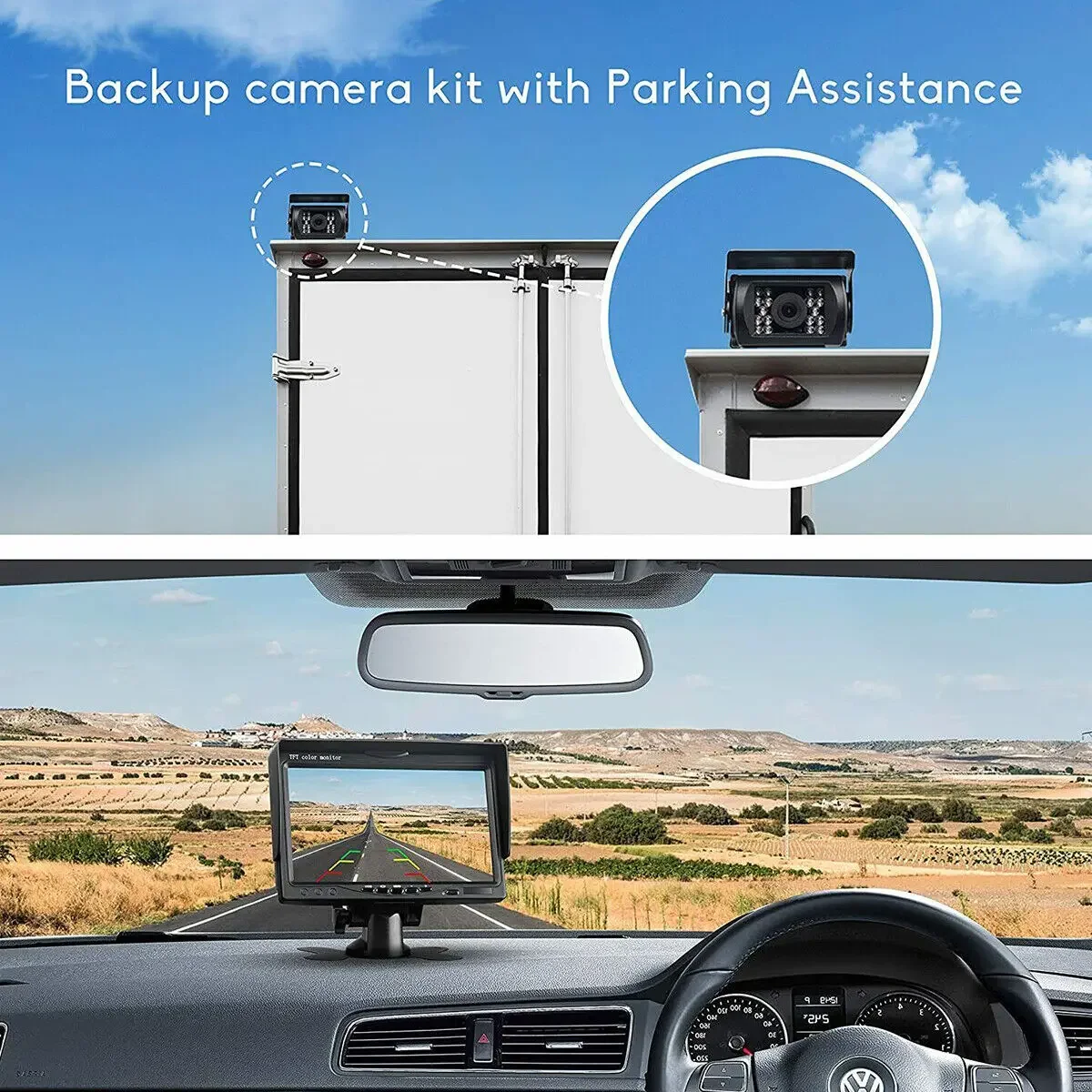

-The monitor will start up automatically, and synchronously display the video from rearview camera when you\\'re backing your car. And close after backing.
-Available for VCD/DVD/Camera







Camera Specifications:



•

  Effective Pixels: 800x488



•

  Vertical sync frequency: NTSC 60HZ Scanning system: 2:1 Interlace



•

  Sync System: Internal



•

  AGC: Auto



•

  BLC: Auto



•

  Resolution: 480 TV Lines



•

  S/N Radio: More than 48dB



•

  Current consumpition: No more 150mA



•

  Power supply: DC24V



•

  Operating temperature: -20℃~70℃ RH95% MAX;



•

  Storage temperature: -30℃~85℃ RH95% MAX;



•

  Horizontal angle: 92°/110°;



•

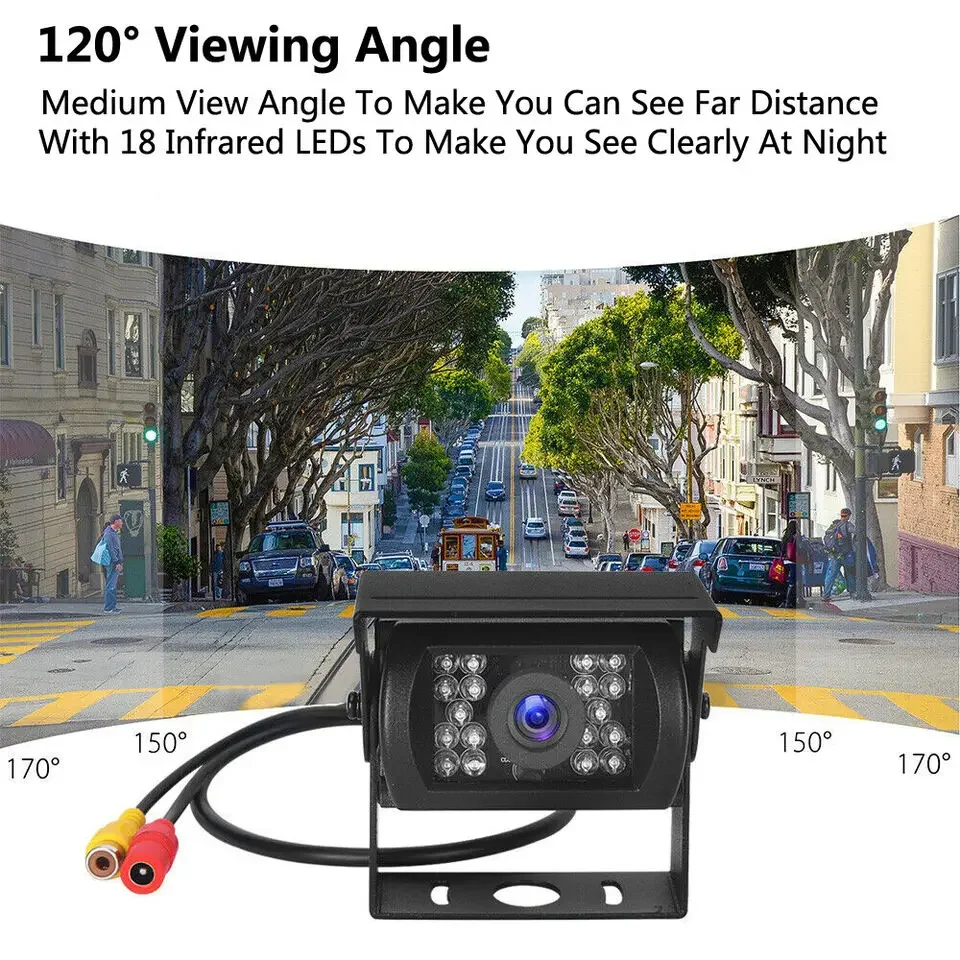

  Lens angle: 92°/120°;



•

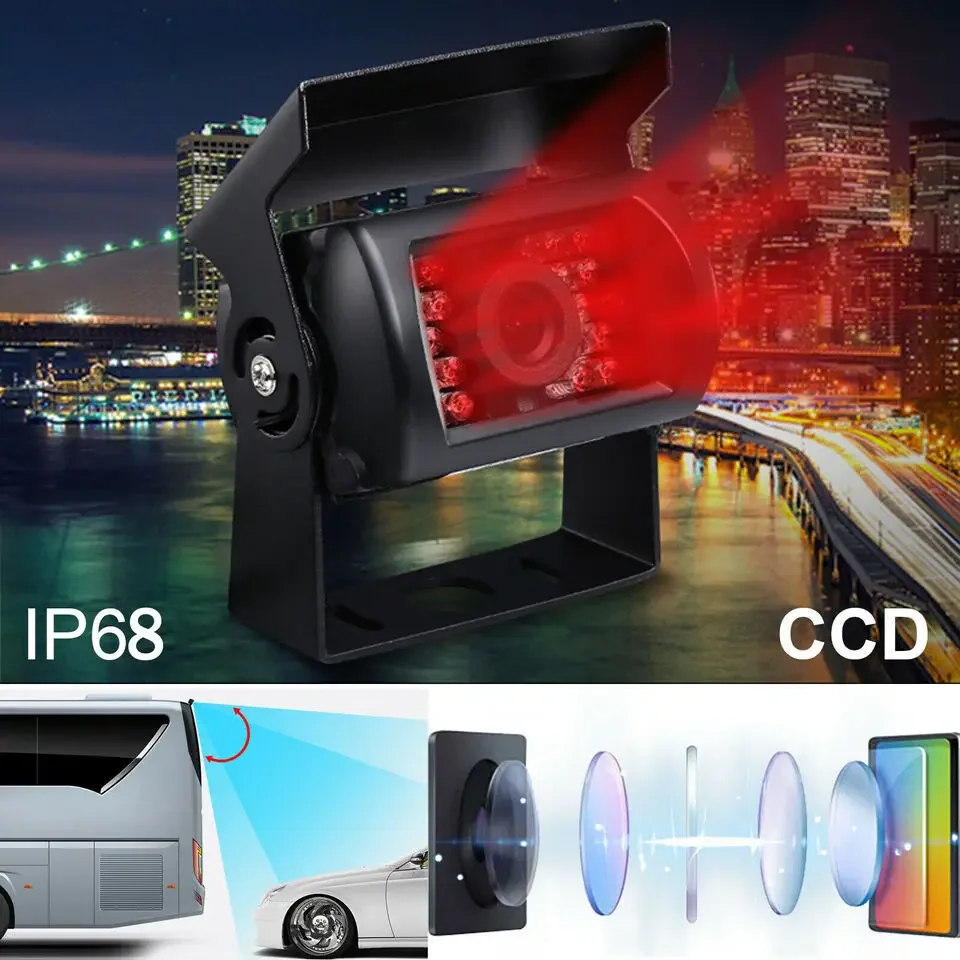

  Water-proof: IP67/IP68



•

  Minimum lumination:0.5Lux/F 1.2(0Lux with Led)





•
