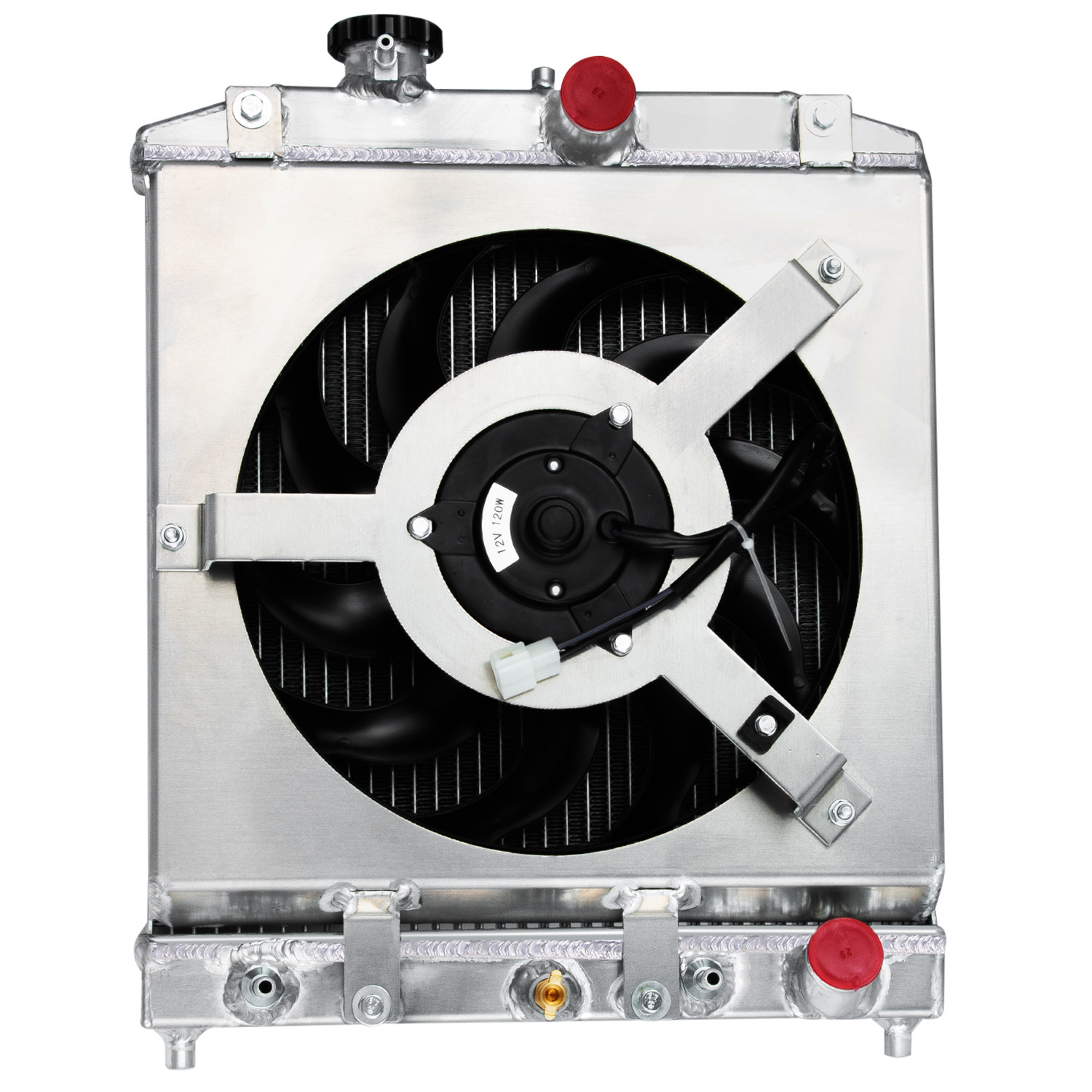

Package Includes:
1 X 2-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 12" 120W Fan (Includes mounting kits)
1 X Thermostat Relay Kit
Application:
For Honda Civic D15 D16 EK EG 92-00
For Honda Civic EK EG 92-00 DEL SOL 93-97
For Honda Acura Integra GS LS HX L4 L6 1992-01
ONLY FOR Automatic AT
Radiator Configuration:
High Performance Racing Spec.
2-Row of tubes Core Racing Design
Material: AA5052 Aluminum
Includes CNC machined filler neck and cap
Overall Size: 18 1/2"H X 14 1/2" WX 2 3/4"
Core Size: 14" H x 13 7/8" W
Inlet Size: 1 1/4"
Outlet Size: 1 1/4"
Transmisson Oil Cooler: M14*1.0 Include
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!
Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 80 watt motor will keep your engine cool.
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Description:
Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Advantages:
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one on eBay
7. Carefully crafted to exceptional OE standards for precise fit.
