SL7F Receiver Features:

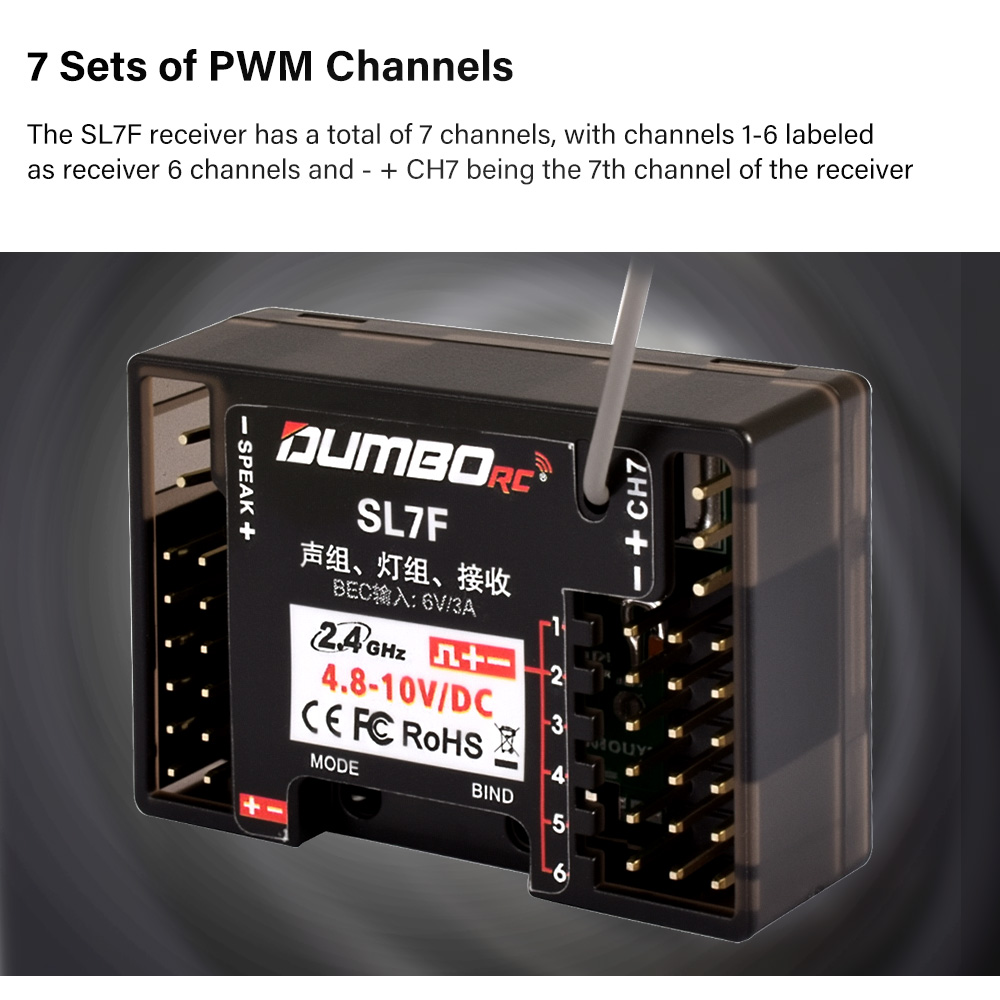

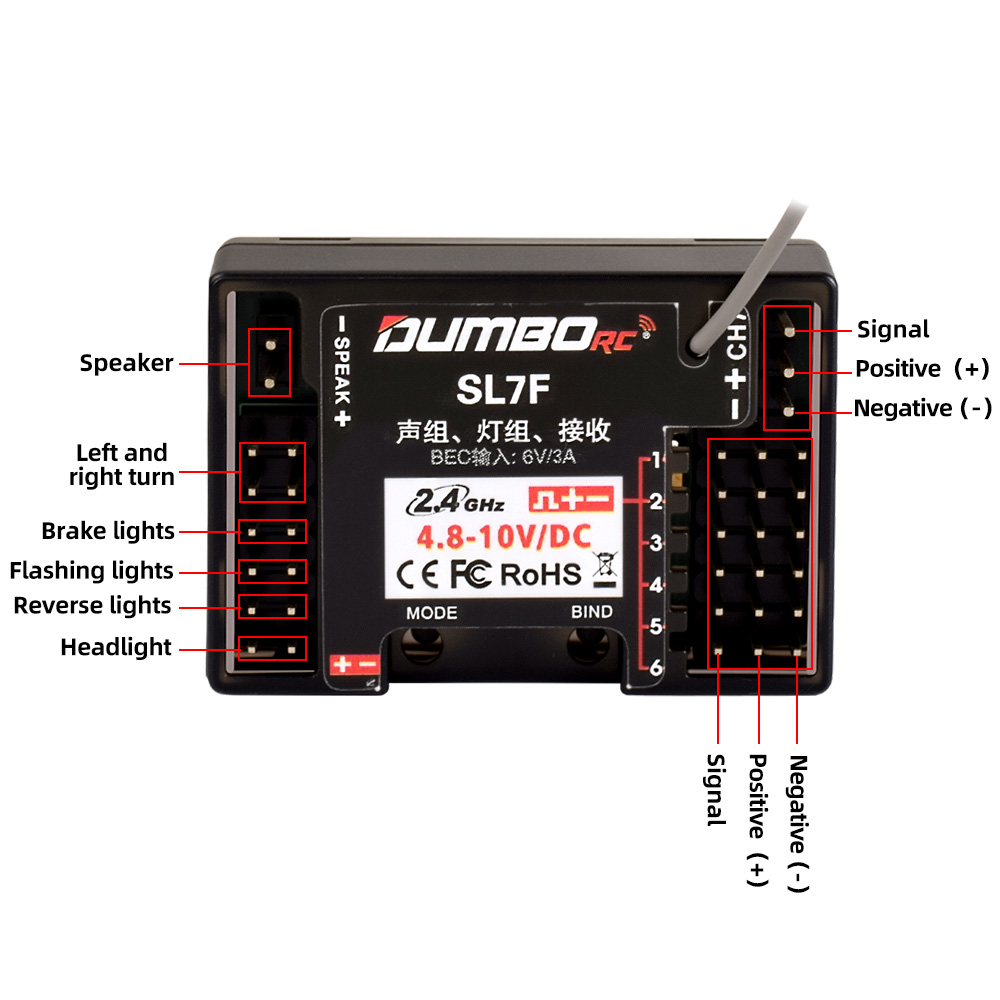

1. 7 Sets of PWM Channels:with channels 1-6 labeled as receiver 6 channels and - + CH7 being the 7th channel of the receiver

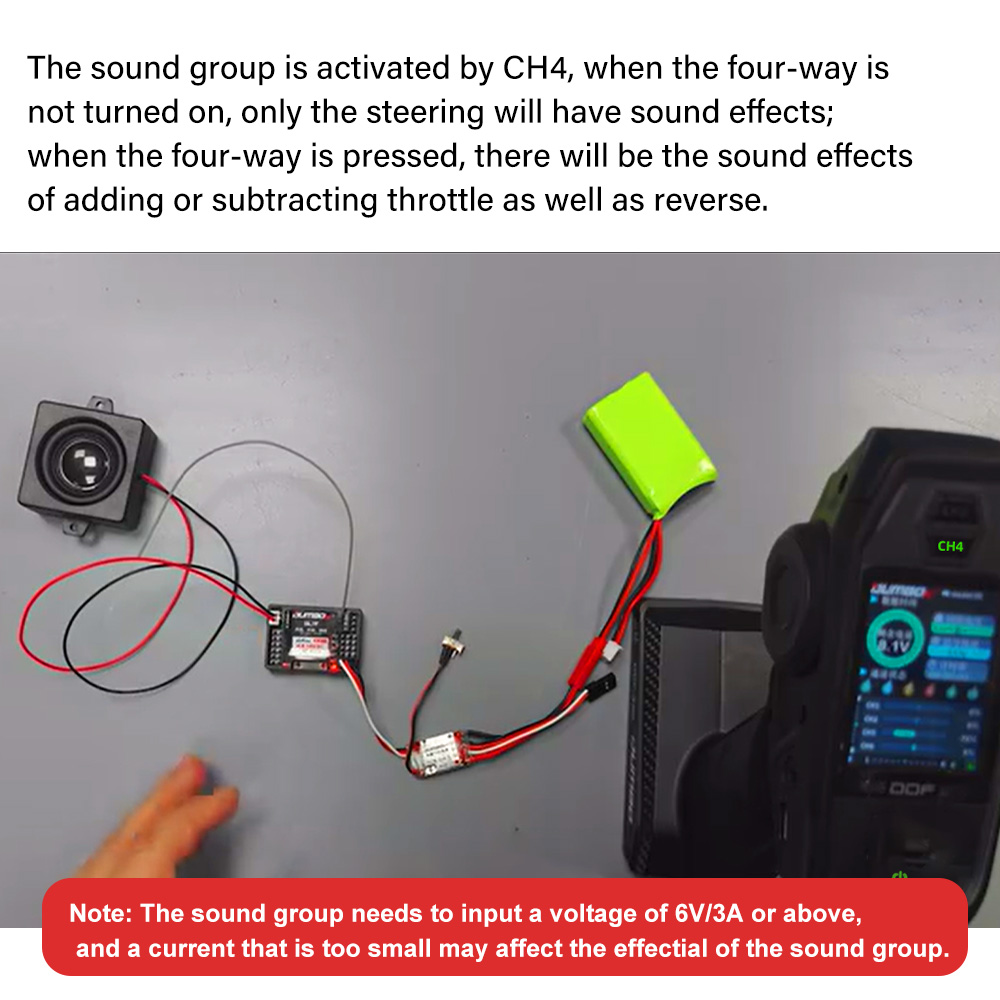

2. The sound group is activated by CH4, when the four-way is not turned on, only the steering will have sound effects; when the four-way is pressed, there will be the sound effects of adding or subtracting throttle as well as reverse.

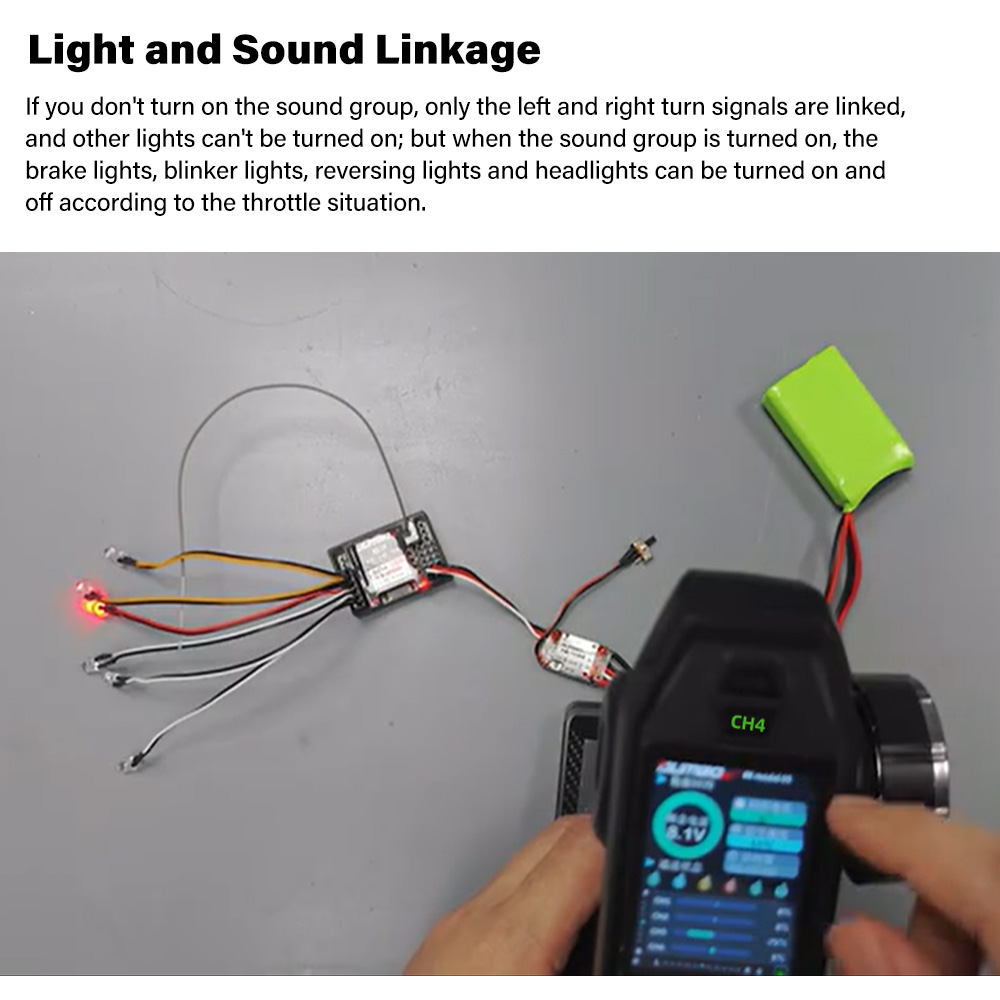

3. If you don't turn on the sound group, only the left and right turn signals are linked, and other lights can't be turned on; but when the sound group is turned on, the brake lights, blinker lights, reversing lights and headlights can be turned on and off according to the throttle situation.
(ote: The sound group needs to input a voltage of 6V/3A or above, and a current that is too small may affect the effectial of the sound group.)
How to Match Code With Transmitter:
1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Turn on the transmitter, then power on the Receiver.
3. There is a black button on the Receiver, press the binding button twice in two seconds and release, receiver light start blinking, after about blinking 8 times, match code success then receiver signal LED always on!
Description:

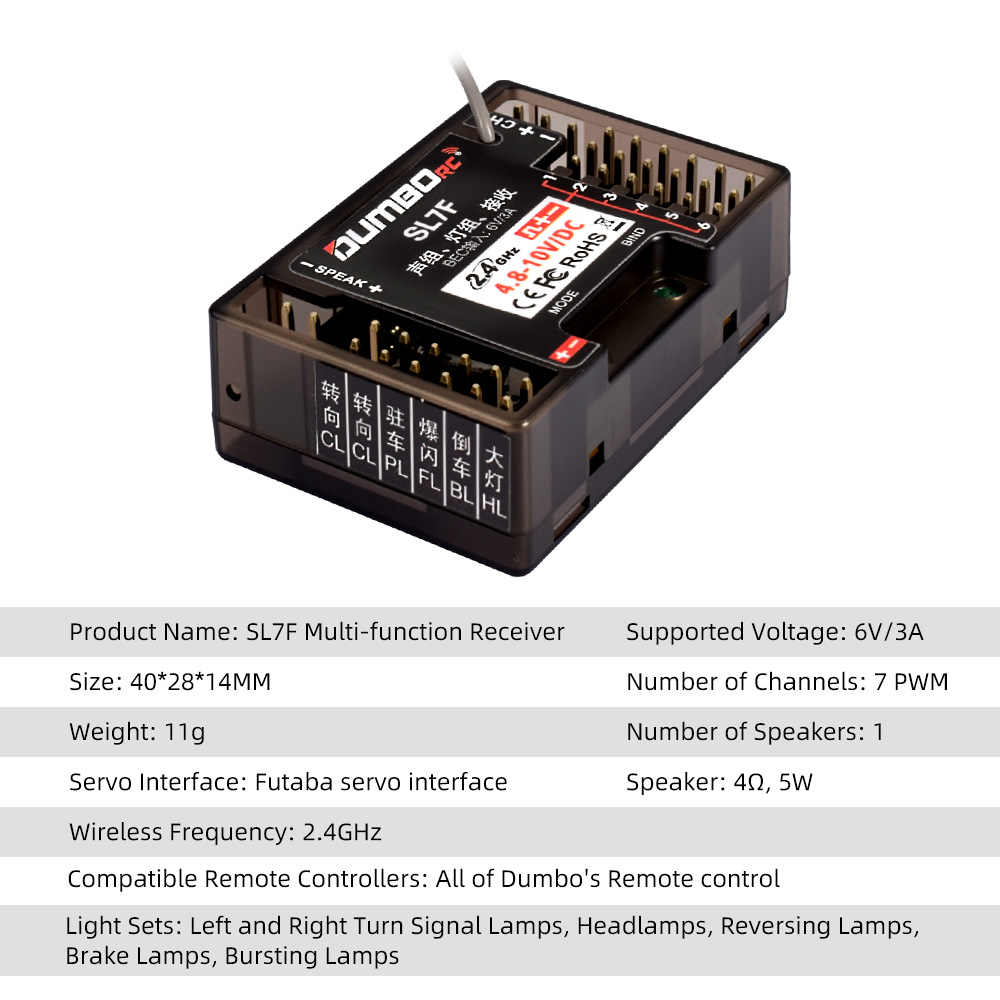

SL7F Receiver Specifications:
Product Name: SL7F Multi-function Receiver
Size: 40*28*14MM
Weight: 11g
Servo Interface: Futaba servo interface
Wireless Frequency: 2.4GHz
Supported Voltage: 6V/3A
Number of Channels: 7 PWM
Number of Speakers: 1
Speaker: 4Ω, 5W
Package contents:
1*DUMBORC Receiver
Only the above package content, other products are not included.
