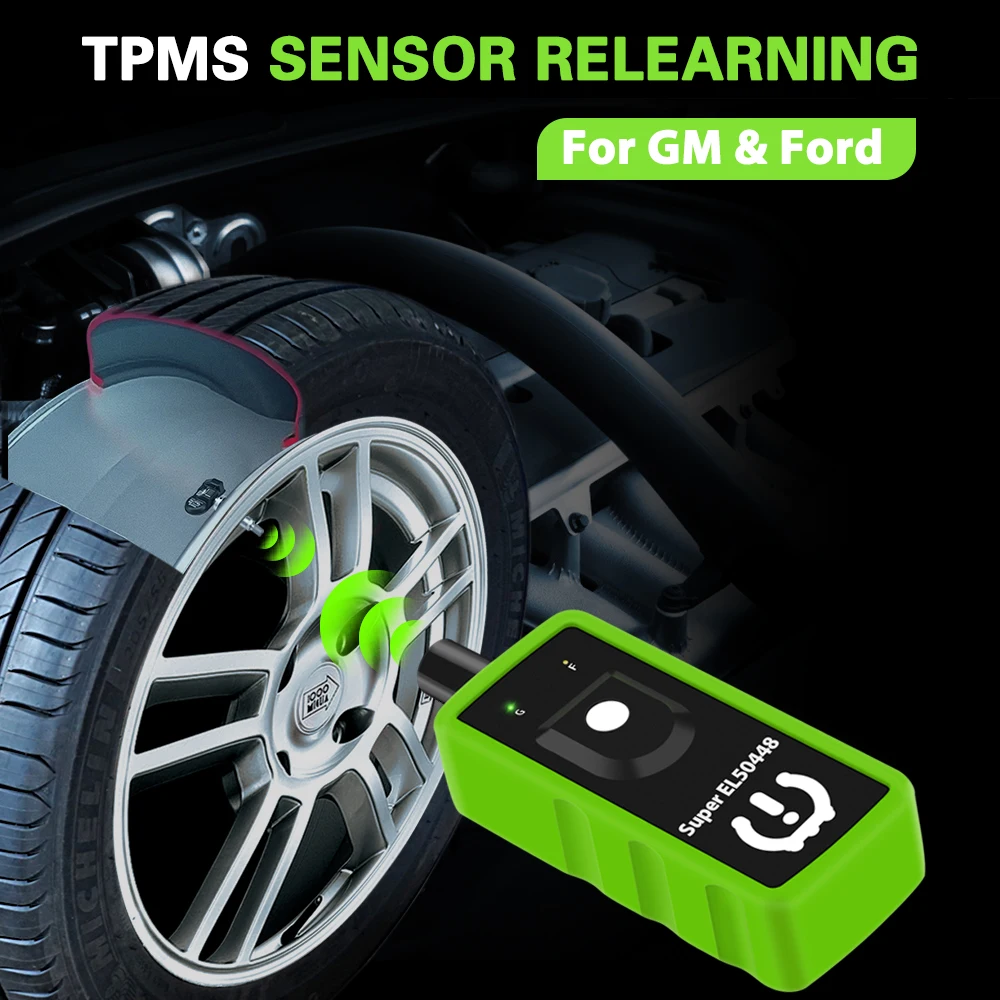

2IN1 TPMS Relearn Tool Super EL50448 for GM and Ford Tire Pressure Monitor Sensor TPMS Reset Tool 2024 Edition

9V Battery needed , not in package, need to prepare that yourself.

For Ford

tpms relearn tool ford

For GM

tpms tool

How to change between GM and Ford Model ?

tpms relearn tool for GM for Ford

2 in 1 TPMS Tool: Super EL50448 works as both EL-50448 series and EL-50449 Ford Series TPMS19 tire sensor reset tool.
Wide Vehicle Coverage: tps relearn tool work on most General Motors /Ford/Buick/Cadillac/Chevrolet/ /Lincoln/Mercury equipped tpms tire pressure monitor system can be reset.
Easy to Use: Super EL-50448 TPMS activation tool with ease, faster operation, activates the individual TPMS sensors by pressing one button.
How to Use: Ensure that the vehicle is in the relearn mode, and following the service procedure. Hold tool against the sidewall of the tire, near the valve stem. Depress press button while holding the tool against the tire sidewall.
Notice: [1] When using tpms relearn tool Ford, please make sure antenna in correct position; [ 2] And 9V battery should be in good condition, new and fully charged

Car Tyre Pressure Monitor Sensor Reset Automotive TPMS Relearn Tool 2 in 1 for and Ford Series Vehicles TPM Learning

2 in 1 TPMS Tool: Super EL50448 works as both EL-50448 series and TPMS19 tire sensor reset tool. Equipped with 315 or 433 MHz, need it when change new sensors or do tire rotation.

Warmly Notice

9V battery shold be in good condition: New & fully charged.
Make sure antenna fits in CORRECT position.
Do tire reset outside instead of in the garage.
Position of tires are also important, front tires have to be straight.
Sensors should be original / OEM sensors which are already well programmed.
Be sure all other sensors are out of range of vehicle antenna (10 ft range min).
Disable all other WIFI/Bluetooth and electronic accessory devices. Includs HID kits, car audio systems, navigation, back-up cameras, if NOT original equipment, these devices may cause RF disruption.

When You Need This Tire Relearn Tool?

New TPMS sensors installed, letting air out or adding air in to the tire couldn’t make the system recognize new sensors.
Do tire rotation, didn’t have a quick and easy way to let ECU relearn new tire information.
When tire pressure indicator light ON, after the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.
Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
Exchanging the winter tires or Summer tires.

Applicable Models:

(Equipped with 315/433 MHz, It won't work if you've purchased aftermarket sensors with wrong frequency.)

tpms relearn tool

How to switch between and Ford brand?

>>Hold power button for 5 seconds and 2 LEDs flashing 2 times, selected brand’s LED flashing 2 times. How to detect which mode the device in? >>Press power button, if Green LED flashing means tire reset tool in mode, if Yellow LED flashing, means Super EL50448 in Ford mode.

How to use Super EL50448?

Need 1x Pc 9V battery to work (Not included in this parcel) 1. Set the car in TPMS learning mode. (car horns twice) 2. Starting relearn process from left front tire, point antenna on correct position. Press & release power button. Once the speaker chirped, move to the next tire. 3. Follow this order to rest TPMS sensors: Front left, front right, rear right, rear left. 4. After all sensors reseted, the car horns twice means TPMS re-learn finished.

How to set my car in TPMS re-learn mode?

***For series vehicles***1. Make the gear in P position. 2. Use cruise to choose TPMS re-learn mode in the dashboard settings. 3. Horn will ring twice and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped, the message center will display the front left (LF) tire

***For Ford series vehicles***1. Make the gear in P position. 2. With the ignition switch to OFF, press and release the brake pedal 3. Turn the ignition switch from the OFF position to the RUN position 3 times and end at RUN position 4. Depress and release the brake pedal 5. Ignition to OFF position 6. Ignition goes from the OFF position to the RUN position 3 times and ends at RUN position 7. Horn will ring once and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped, the message center will display the front left (LF) tire

Packing List

1pc * Super EL50448 TPMS Reset Tool

1pc * English User Manual

U508 TPMS RELEARN TOOL FOR MOST VEHICLE

Product purchase notice (Very important ！！):

1.This one is for relearn TPMS , not for programming new sensor , if you replace new sensor , you need to use programming tool to program it first , then use this relearn tool to make it match the vehicles.

2.Please make sure your car can successfully enter the learning mode, if not please do not purchase, Some vehicles need to use other tools to enter the learning mode.for example, Subaru

3.The product does not support all models, please see the list of U508 Support Vehicle List， if your vehicle model and the year doesn't on our support list , please do not purchase !!!

4.There is no 9V battery inside package, you need to prepare that yourself.

When we need U508 Universal TPMS Sensor Reset Tool?

● New TPMS sensors installed, letting air out or adding air in to the tire couldn’t make the system recognize new sensors.

● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement,sensor damage, etc. After those problems solved, TPMS needs to be reset.
● Exchanging the winter tires or Summer tires.TPMS needs to be reset.
● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.

Description

The U508 Universal TPMS Reset Tool "wakes up" tire pressure monitoring system (TPMS) sensors mounted to the vehicle's wheel.

This item can do all function of EL50448 OTC-5 for , TPMS19 for Ford, function like ATEQ AT06 scanner.

U508 is universal TPMS realern tool, it is compatible with most vehicles brands: For Alfa Romeo, BMW, Buick, Cadillac, Chevrolrt, Chrysler, Dodge, Fiat, Ford, , Hummer, Hyundai, Infiniti, Isuzu, Jeep, Kia, Lincoln, Lotus, Maserati, Mercedes-Benz, Mercury, Mitsubishi, Pontiac, Ram, Retrofit, Rolls Royce, Saab, Saturn, Subaru, Suzuki, Volvo ect, support some model year up to 2019.

[ Not for Nissan Xtrail, Porsche Cayenne Panamera ]

Function

The U508 sends a RF signal to the TPMS sensor mounted to the vehicle's wheel to “wake up” the sensor. Once the tool triggers the sensor, the sensor is ready to communicate with the vehicle's ECU.

Instructions

While holding the tool next to the side wall of the tire above the sensor, press and hold the button to trigger the sensor (You can also press the tool directly against the sidewall of the tire). An orange light will illuminate on the tool.

Continue to hold the button down until successful signal transfer to the vehicle's ECU, diagnostic station or until the vehicle's horn "beeps".

Attention !!!! Some vehicles Need to Use Other Tools To Enter the Learning Mode

For example

SUBARU-1

SUB-1

**This Relearn procedure requires the use of a OBDII tool**

A properly formatted scan tool is required to learn sensor IDs when replacing sensors.

Inflate all tiresRead all sensor IDs using toolConnect tool to OBDII portReset ECU with toolIgnition OFF then ONDrive at 25 MPH for up to 10 minutes

Tips for using "U508 Universal TPMS Sensor Reset Tool"

1. 9V battery shold be in good condition: New & fully charged.
2. Make sure antenna fits in CORRECT position.
3. Do tire reset outside instead of in the garage.
4. Position of tires are also important, front tires have to be straight.
5. Sensors should be original / OEM sensors which are already well programmed.
6. Keep pressing the power button to send signal until it succeeded.
7. Be sure all other sensors are out of range of vehicle antenna (10 ft range min).
8. Disable all other WIFI/Bluetooth and electronic accessory devices. Includs HID kits, car audio systems, navigation, back-up cameras, if NOT original equipment, these devices may cause RF disruption.

Perfect Automotive Tire Pressure Monitor Sensor

【PERFECT AUTOMOTIVE TIRE PRESSURE MONITOR SENSOR】 you can be activated by Done alone within 3-5 minutes. Save time and money , much better than going to a dealer or tire storage just to reset the pressure sensor.

【SUITABLE SCOPE FOR VEHICLES】 BMW/Buick/Cadillac/Chevrolet/Chrysler/Dodge/Fiat/Ford/Genesis/ /Hummer/Hyundai/Infiniti/Isuzu/Jeep/Lincoln/Lotus/Maserati/Mercedes/Mitsubishi/Pontiac/Ram etc.please check whether your car model can be used with U508 tool in the detailed introduction.

【TPMS RESET TOO】 U508 is a essential tool with a 315MHz or 433 MHz tire pressure monitoring system, of replacement tire pressure sensor, tire pressure alarm remove or exchange tires.

【FOR BETTER CUSTOMER EXPERIENCE 】do you still hesitate to take this tool home ? 24 months guarantee and Return service are offered for you , relieve all your worries .

Easy To Use,Only 3 Steps:

No need install any software, only need install a 9V battery.

1. Make sure your car is in the TPMS Learning Mode.
2. Hold the tool against the sidewall of the tire, near the valve stem.
3. Depress learn button while holding the tool against the tire sidewall until horn bleeps once.

Steps to set car in TPMS Re-Learn mode:

For series vehicles:

1. Set the parking brake, turn the ignition switch to ON/RUN with the engine off.
2. Type A - Choose TPMS relearn mode in the dashboard setting, hold pressing the key for 5 seconds. Type B - Choose TPMS relearn mode in the dashboard setting, press and hold SET/RESET button until a double horn chirp sounds. Type C - Press the Remote Keyless Entry (RKE) transmitter's LOCK and UNLOCK buttons at the same time for 5 seconds.
3. Horn will sound twice and TPMS indicator flashes, then learning mode has been entered successfully. Start from the driver side front tire (LF).

For Ford series vehicles:

1. Set the parking brake.
2. Ensure ignition switch to OFF, press and release the brake pedal for 1 time.
3. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
4. Press and release brake pedal.
5. Turn ignition OFF position.
6. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
7. Horn will sound once and TPMS telltale will blink once train mode is initiated. If equipped with message center, it will display TRAIN LF TIRE. Start from driver side front tire (LF) .

U508 Support Vehicle List :

If your vehicle model and the year doesn't on our support list , please do not purchase

If you are not sure if the tool can works for your vehicle , just send us a message

Alfa Romeo 4C 2013-2019

Alfa Romeo MiTo 2 2013-2016

Aston Martin DBS Superlegera 2018

BMW 5 Series (G30 G31) 2017-2019

BMW 7 Series (G11 G12) 2016-2019

BMW M5 2018-2019

BMW X3 (G01) 2017-2019

BMW MOTORCYCLE ALL 2007-2018

Buick Allure 2007-2011

Buick Cascada 2016-2019

Buick Enclave 2008-2019

Buick Encore 2013-2019

Buick Envision 2015-2019

Buick LaCrosse 2006-2019

Buick LeSabre 2007

Buick Lucerne 2007-2011

Buick Regal 2011-2019

Buick Verano 2012-2018

Cadillac ATS 2013-2019

Cadillac CT6 2016-2019

Cadillac CTS 2008-2019

Cadillac Deville 2001-2005

Cadillac DTS 2006-2011

Cadillac ELR 2014-2016

Cadillac Escalade 2001-2006

Cadillac Escalade 2007-2019

Cadillac Seville 2001-2004

Cadillac SRX 2007-2016

Cadillac STS 2005-2008

Cadillac STS 2009-2011

Cadillac XLR 2004-2009

Cadillac XT4 2019

Cadillac XT5 2017-2019

Cadillac XTS 2013-2019

Chevrolet Avalanche 2004-2006

Chevrolet Avalanche 2007-2013

Chevrolet Aveo 2002-2011

Chevrolet Aveo 2018

Chevrolet Bolt EV 2017-2019

Chevrolet Camaro 2010-2019

Chevrolet Caprice 2011-2017

Chevrolet Captiva Sport 2012-2017

Chevrolet Cobalt 2008-2010

Chevrolet Colorado 2006-2012

Chevrolet Colorado 2015-2019

Chevrolet Corvette 1997-2000

Chevrolet Corvette 2001-2004

Chevrolet Corvette 2005-2009

Chevrolet Corvette 2010-2019

Chevrolet Cruze 2011-2019

Chevrolet Equinox 2007-2019

Chevrolet Express Series 2007-2019

Chevrolet HHR 2008-2011

Chevrolet Impala 2006-2019

Chevrolet Malibu 2008-2019

Chevrolet Monte Carlo 2006-2007

Chevrolet Orlando 2012-2014

Chevrolet Silverado 2004-2006

Chevrolet Silverado 2007-2019

Chevrolet Sonic 2012-2019

Chevrolet Spark 2012-2019

Chevrolet SS 2014-2017

Chevrolet Suburban 2004-2006

Chevrolet Suburban 2007-2019

Chevrolet Tahoe 2004-2006

Chevrolet Tahoe 2007-2019

Chevrolet Traverse 2009-2019

Chevrolet Trax 2013-2019

Chevrolet Uplander 2008-2009

Chevrolet Volt 2010-2019

Chrysler 300 2009-2019

Chrysler 300M 2002-2004

Chrysler Concorde 2002-2004

Chrysler Crossfire 2004-2008

Chrysler Intrepid 2002-2004

Chrysler Pacifica 2004

Chrysler Prowler 2001-2002

Chrysler Town & Country 2002-2003

Chrysler Town & Country 2011-2016

Chrysler Voyager 2002-2003

Dodge C/V 2012-2016

Dodge Caravan 2002-2003

Dodge Challenger 2008-2019

Dodge Charger 2009-2019

Dodge Durango 2011-2015

Dodge Grand Caravan 2001-2003

Dodge Grand Caravan 2011-2019

Dodge Intrepid 2002-2004

Dodge Journey 2011-2019

Dodge Viper 2003-2010

Dodge Viper 2013-2018

Fiat 500 2011-2019

Fiat 500L 2014-2019

Fiat 500E 2016

Ford EcoSport 2018-2019

Ford Edge 2015-2019

Ford Expedition 2003-2006

Ford Expedition 2018

Ford Explorer 2002-2005

Ford Explorer 2016-2019

Ford Fiesta 2018-2019

Ford Focus RS 2016-2018

Ford Freestar 2004-2005

Ford F-Series 2015-2019

Ford F-Series Super Duty 2017-2019

Ford Fusion 2017-2019

Ford GT 2017-2019

Ford Mustang 2015-2019

Ford Ranger 2019

Ford Transit 2019

Freightliner Sprinter 2014-2018

Genesis G70 2018-2019

Acadia 2007-2019

Canyon 2007-2012

Canyon 2013-2019

Savana 2008-2019

Sierra All 2004-2007

Sierra All 2007-2019

Terrain 2010-2019

Yukon All 2004-2006

Yukon All 2007-2019

Hummer H2 2007-2009

Hummer H3 2006-2010

Hyundai Santa Fe 2019

Hyundai Sonata 2015-2018

Hyundai Tucson 2016-2018

Infiniti QX30 2017-2018

Isuzu i-290 / i-370 2007-2011

Isuzu Rodeo 2004

Jeep Grand Cherokee 2001-2004

Jeep Grand Cherokee 2011-2015

Jeep Liberty 2002-2004

Jeep Wrangler 2013-2019

Kia Stinger 2018-2019

Lincoln Aviator 2003-2005

Lincoln Continental 2017-2019

Lincoln MKC 2018-2019

Lincoln MKX 2016-2019

Lincoln MKZ 2017-2019

Lincoln Navigator 2003-2006

Lincoln Navigator 2018-2019

Lincoln Nautilus 2019

Lotus Elise 2008-2011

Lotus Evora 2010-2014

Lotus Exige 2008-2011

Maserati Ghibli 2013-2019

Maserati Quattroporte 2014-2019

Mercedes AMG GT 2016-2019

Mercedes B Class 2014-2018

Mercedes C Class 2008-2019

Mercedes CL Class 2010-2014

Mercedes CLA Class 2014-2019

Mercedes CLK Class 2006-2009

Mercedes CLS Class 2012-2018

Mercedes E Class 2010-2017

Mercedes E Class 2018-2019

Mercedes G Class 2007-2018

Mercedes GL Class 2010-2018

Mercedes GLA Class 2015-2019

Mercedes GLC Class 2016-2019

Mercedes GLE Class 2016-2019

Mercedes GLK Class 2010-2017

Mercedes GLS Class 2017-2019

Mercedes M Class 2010-2015

Mercedes Metris 2016-2018

Mercedes R Class 2010-2012

Mercedes S Class 2010-2019

Mercedes SL Class 2013-2019

Mercedes SLC Class 2017-2018

Mercedes SLK Class 2008-2018

Mercedes SLS Class 2011-2015

Mercedes Sprinter 2013-2018

Mercury Monterey 2004-2005

Mercury Mountaineer 2002-2005

Mitsubishi Eclipse 2006-2012

Mitsubishi Endeavor 2004-2011

Mitsubishi Galant 2004-2012

Mitsubishi Montero 2003-2006

Plymouth Prowler 1997-2002

Pontiac G3 2009-2010

Pontiac G5 2008-2010

Pontiac G6 2008-2010

Pontiac G8 2008-2009

Pontiac Grand Prix 2007-2008

Pontiac Montana-SV6 2008-2009

Pontiac Solstice 2008-2010

Pontiac Torrent 2007-2009

Ram Promaster 2014-2019

Ram 1500 2010-2013

Ram 1500 2019

Ram 2500 2010-2013

Ram 3500 2010-2013

Ram 3500 Dually 2010-2013

Ram 4500 2010-2013

Ram 5500 2010-2013

Retrofit SCH-BRK-4PC 2017

Retrofit SCH-WRK-4PC 2017

Retrofit SCHRFK4S 2018

Rolls Royce Cullinan 2018-2019

Rolls Royce Phantom 2017-2019

Saab 9-3 2004-2007

Saab 9-3 2008-2012

Saab 9-4X 2011

Saab 9-5 2004-2007

Saab 9-5 2008-2009

Saab 9-5 2010-2012

Saturn Astra 2008-2009

Saturn Aura 2007-2010

Saturn Outlook 2007-2010

Saturn Sky 2008-2009

Saturn Vue 2007-2010

Smart Fortwo 2008-2017

Attention please :

please make sure your Subaru vehicle can enter the learning mode , IF not , do not purchase please!!!!!

because Subaru need to use other tools to enter the TPMS learning mode .

Subaru Ascent 2019

Subaru B9 Tribeca 2006-2007

Subaru Crosstrek 2015-2017

Subaru Crosstrek 2018-2019

Subaru Forester 2008-2017

Subaru Forester 2018-2019

Subaru Impreza 2008-2016

Subaru Impreza 2017-2019

Subaru Impreza WRX 2009-2017

Subaru Impreza WRX 2018-2019

Subaru Impreza WRX STI 2009-2019

Subaru Legacy 2004-2017

Subaru Legacy 2018-2019

Subaru Outback 2004-2017

Subaru Outback 2018-2019

Subaru Tribeca 2008-2014

Subaru XV Crosstrek 2013-2016

Suzuki Forenza 2007-2008

Suzuki Grand Vitara 2005-2013

Suzuki Reno 2007-2008

Suzuki SX4 2007-2013

Suzuki Verona 2005-2006

Suzuki XL-7 2005-2006

Suzuki XL-7 2007-2009

Volvo S60 2004-2009

Volvo S80 2004-2006

Volvo V70 2004-2007

Volvo XC60 2009-2010

Volvo XC70 2004-2007

Volvo XC90 2004-2014

Packing List:

1pc * U508 TPMS Relearn Tool

1pc * English User Manual
