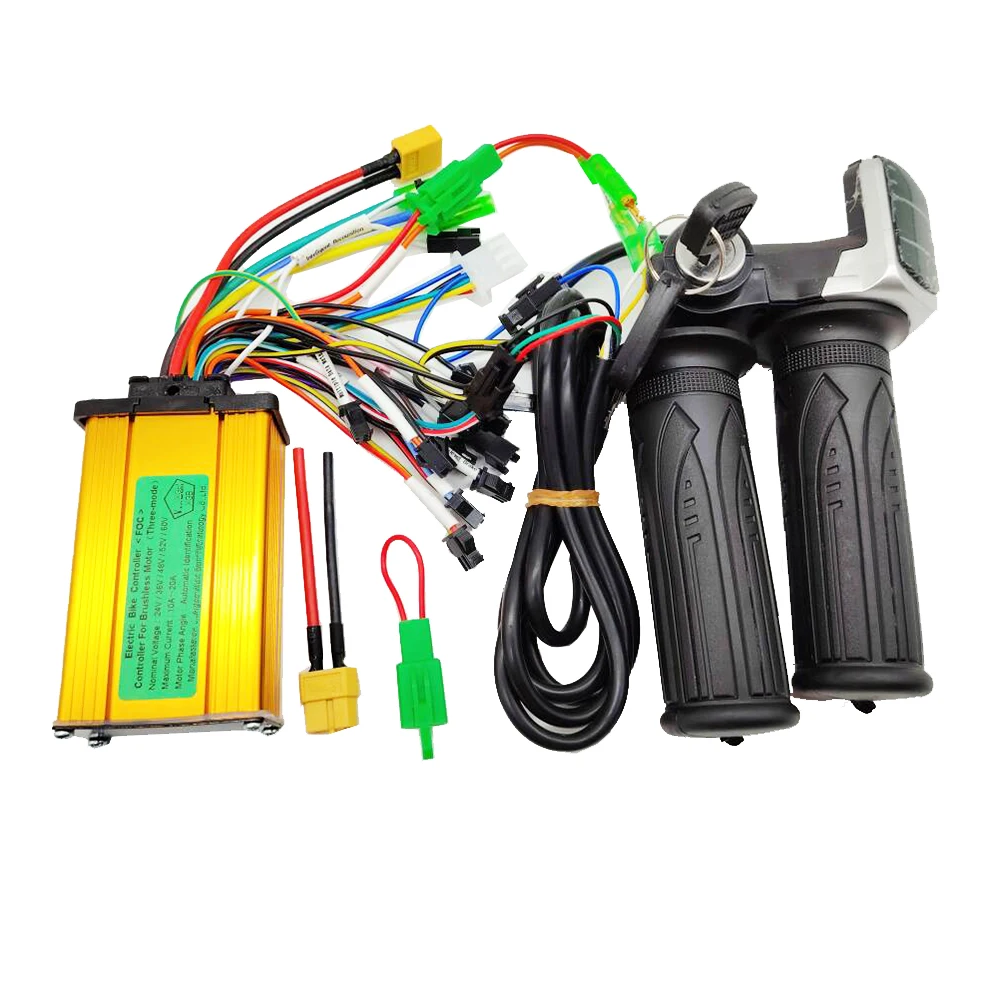

Voltage:36V/48V
line length:150cm
material:ABS
function 1:speed display/hall speed meter（can connect to hall wires）
function 2:battery power display
Use for:electric bike/scooter/tricycle/ebike
a. throttle signal
b. throttle positive
c. throttle negative
d. electric lock （connect to controller electric lock line）
e. battery positive（connect to battery +）
f. instrument speed display（connect to controller instrumentation line）

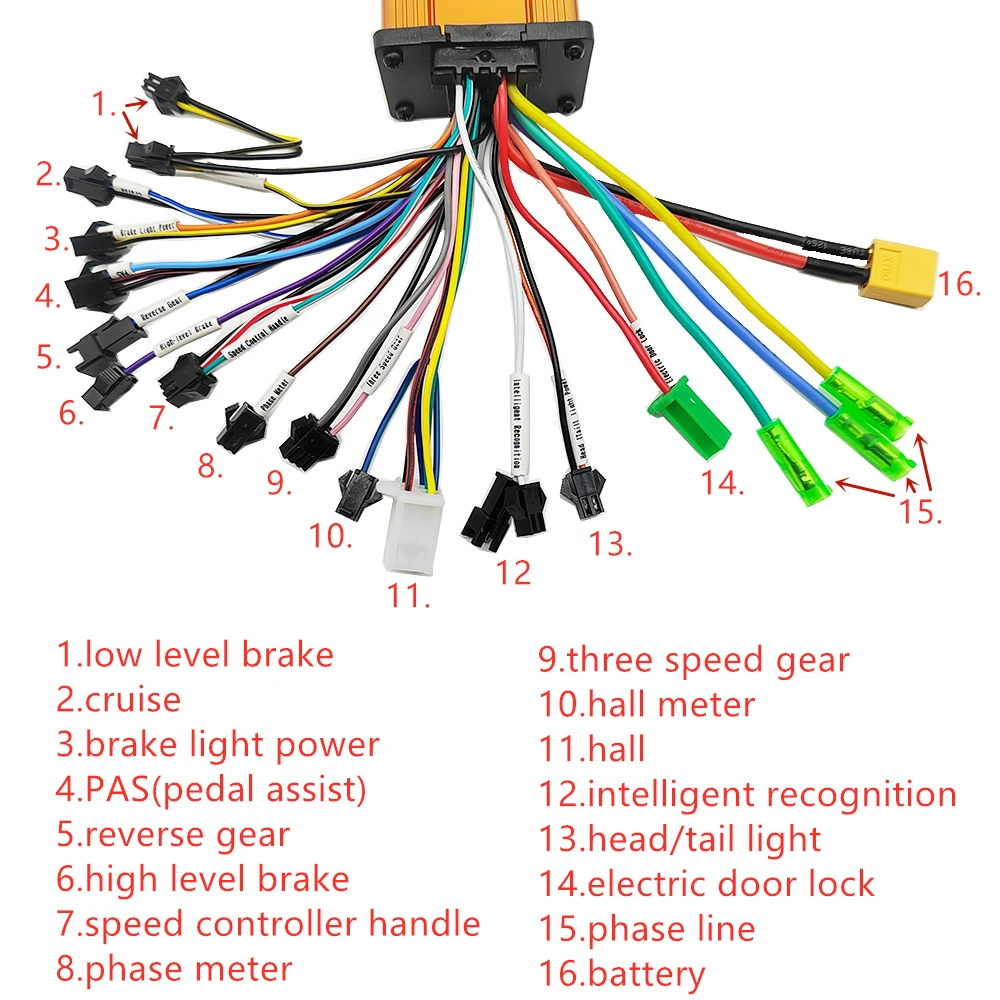

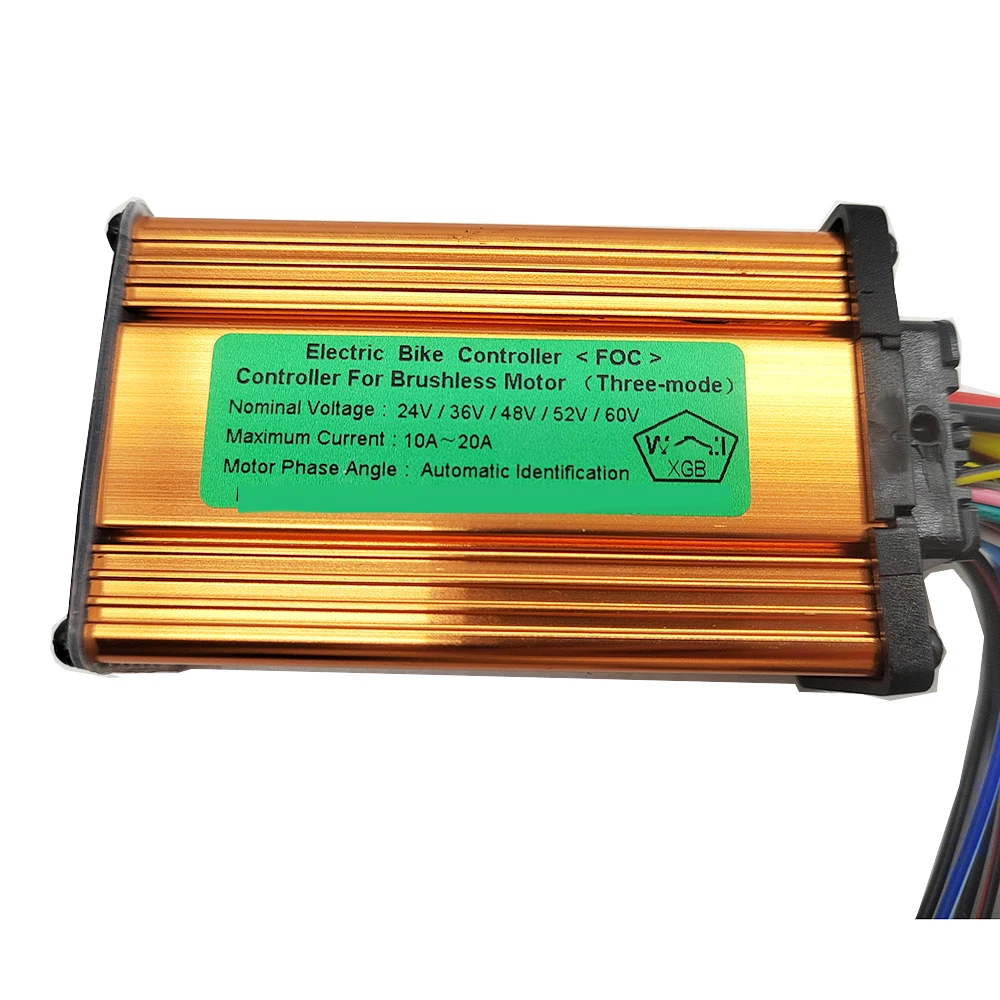

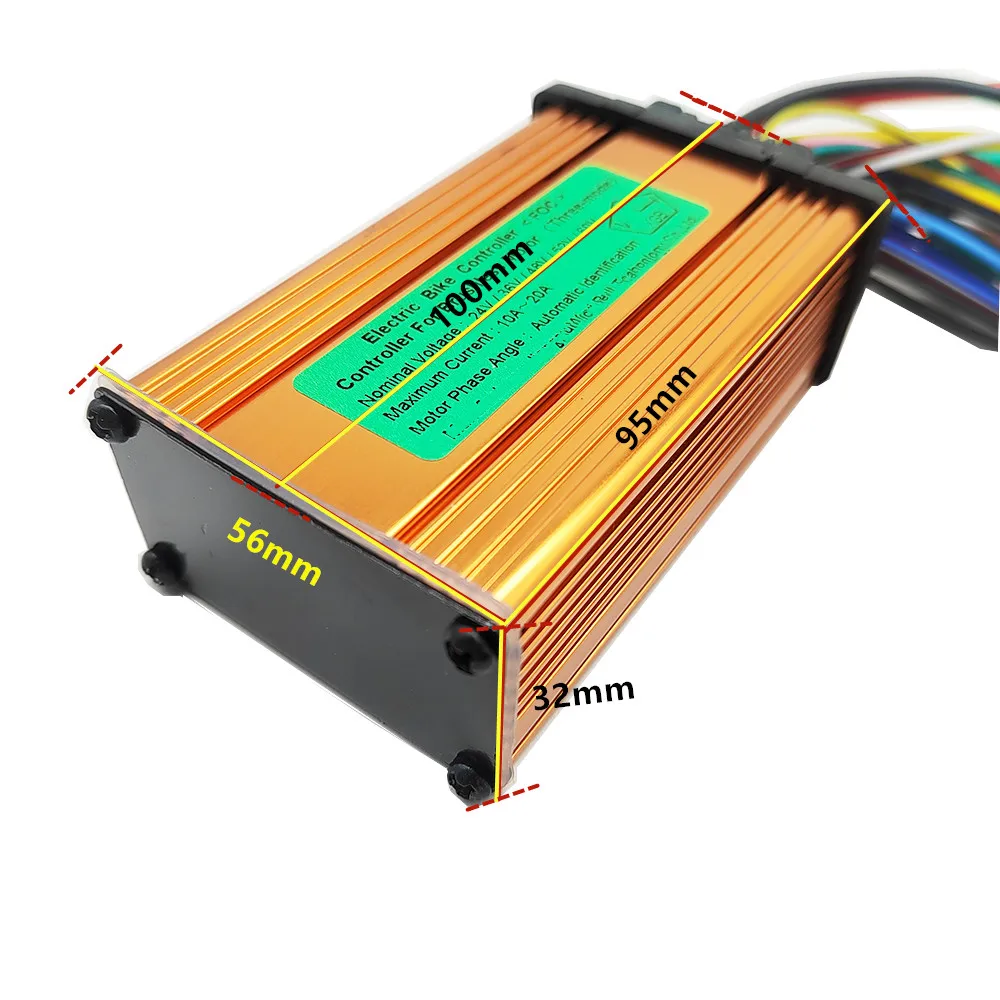

1.low level brake
2.cruise
3.brake light power
4.PAS(pedal assist)
5.reverse gear
6.high level brake
7.speed controller handle（throttle）
8.phase meter
9.three speed gear
10.hall meter
11.hall
12.intelligent recognition（self-learning lines）
13.head/tail light
14.electric door lock
15.phase line
16.battery

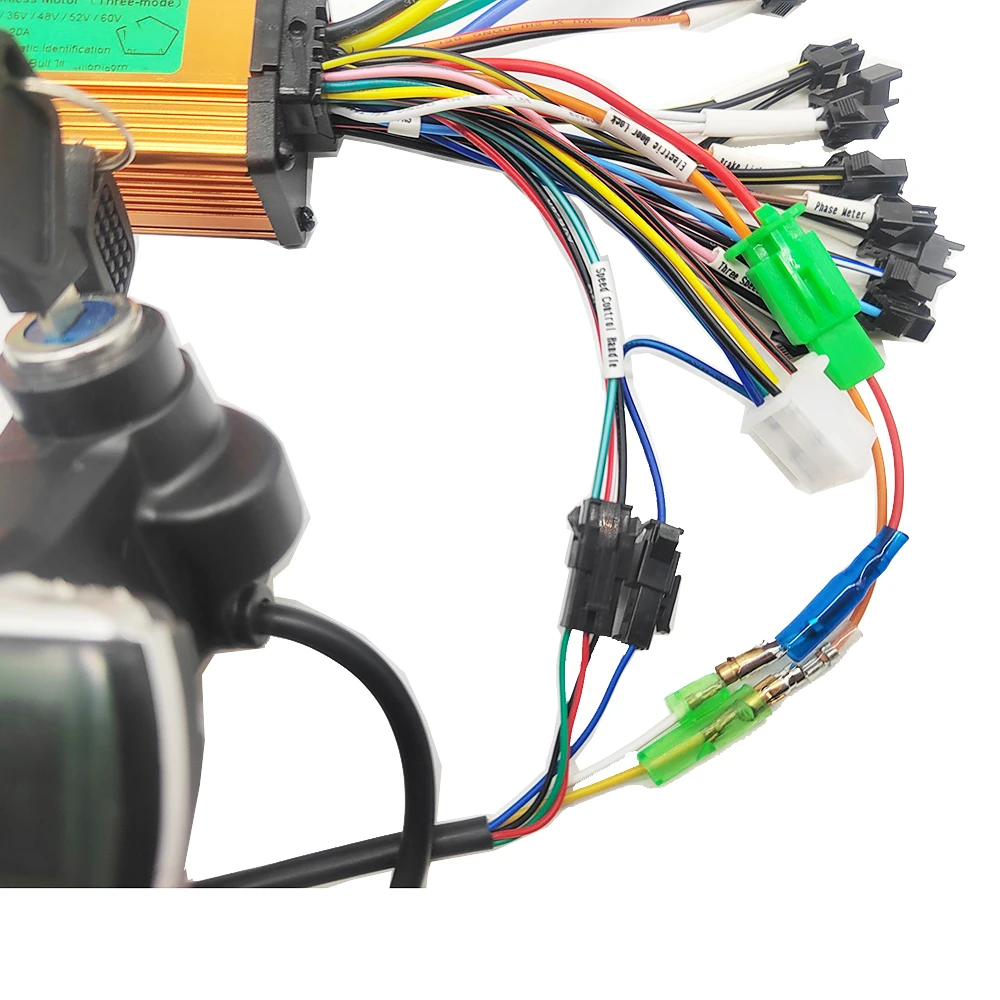

How to connect controller？
1.connect the motor phase line(color to color）
2. connect the hall line,color to color connect.(if motor without hall line, don't need connect)
3. connect the battery line(red:battery+ , black:battery-)
4.off power,let two intelligent recognition lines connect together,open power,then the wheel will forward or reverse.
(1.if wheel forward ,Separate the intelligent recognition line.
2.if wheel reverse, Separate the intelligent recognition line. Let intelligent recognition line connect together again,if wheel forward ,Separate the intelligent recognition line.)
This step needs to be effective within 2 minutes after the power is turned on. If the timeout occurs, please turn off the power and then turn it back on before proceeding with these steps.

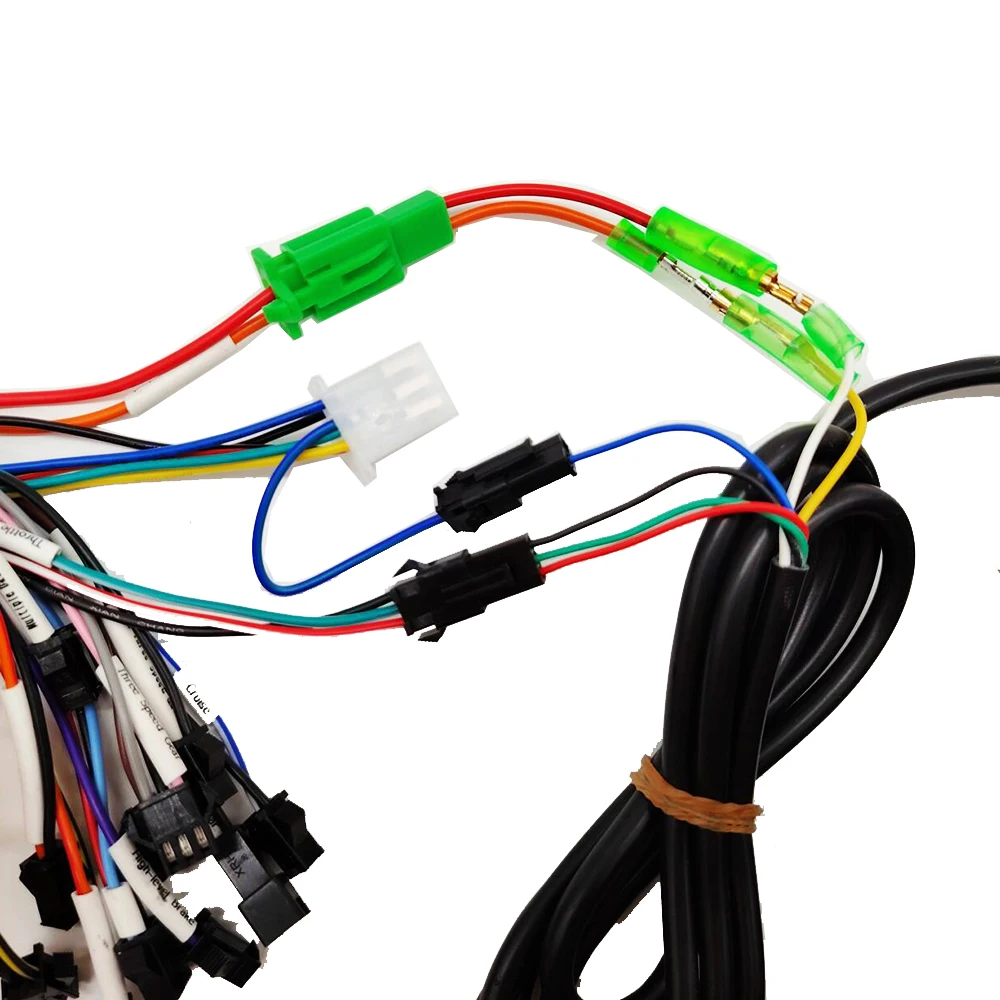

5. connect the controller throttle to throttle and need color to color connect,
connect controller electric door lock to throttle electric door lock
（if throttle not have electric door lock,let controller electric door lock short,
so controller electric door must connect ）
NOTE:when use throttle control speed,two intelligent recognition line must separate.
6.other functions can be connected as needed.
