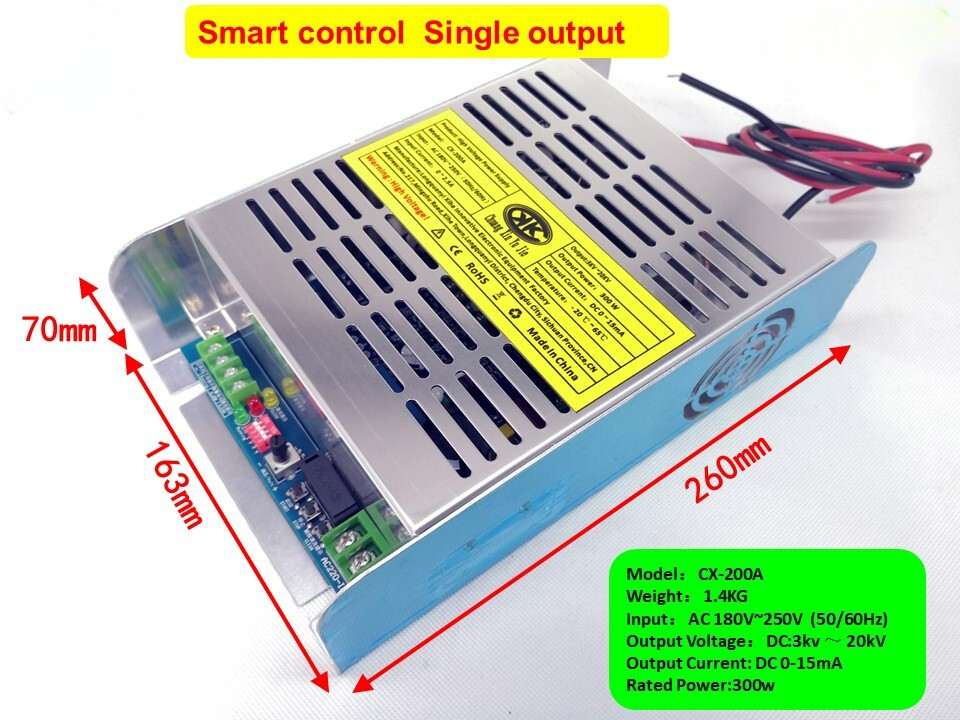

CX-200A  Single output

mainly parameter:

Input Voltage:180V~260V(50hz/60hz) or 110V±10V(50hz/60hz)

Output Voltage:DC:3KV~20KV

(Either the positive output cable or the negative cable can be connected to the Ground:

if you used the positive output as 0V ,the negative output will generate -3kv~-20kv

if you used the negative output as 0V(GND)the positive output will generate +3kv~+20kv)

Output Current:0-15mA

Size:260mm*167mm*70mm

Packed Weight:1.7kg

Pretecting Functions:

1: spark prevented

2: short circuit protect

3: over current protect

4: over voltage pretect

5: over temperature protect

short circuit protection:

when the positive output wire and the negative output wire are shorted ,the output voltage will be cut off

Preventing spark-over protection:

when the electrostatic field is genetating a spark-over,the HV power supply will cut the output, after half one second, the output will be restarted again,

the preventing spark-over protection  function can also be shut down by the pink dial switch on the mainboard,if the preventing spark-over protection function was closed, the HV power supply can continuously generate the high voltage spark between the positive and negative cable.

you can change the output voltage continuously with the regulator knob on the mainboard.

Application occasions: High voltage electric field, Electrotatic air cleaner  , electrostatic field ,clean smoke, air purifiers ,air ionizer,etc
