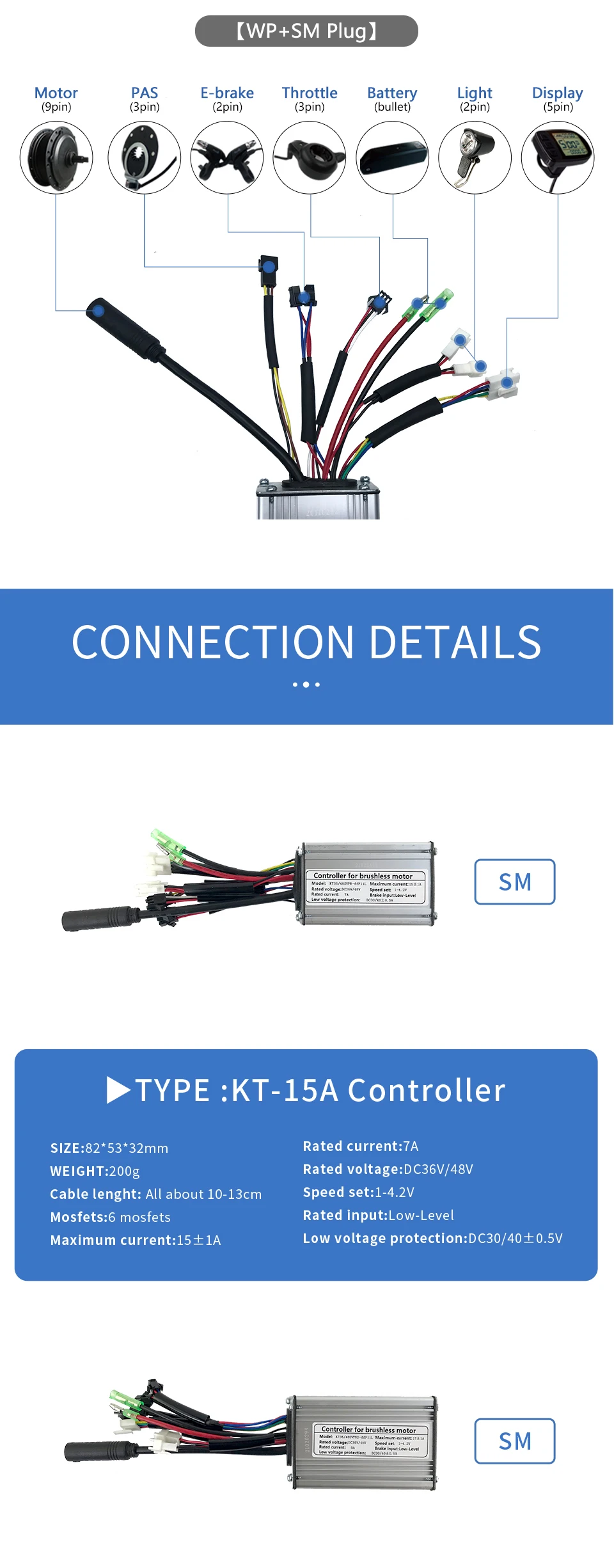

Type：KT-15A Controller(Sine wave)

◆Controller Brand :KT (KUNTENG)

◆Size: 82 * 53 * 32 mm

◆Weight:200g

◆Cable length :all about 10-13cm

◆Mosfets:6 mosfets

◆Maximum current:15±1A

◆Rated voltage:DC36V/48V

◆Speed set:1-4.2V

◆Rated current:7A

◆Brake input :Low-Level

◆Low voltage protection:DC30/40±0.5V

◆Wave:Sine wave

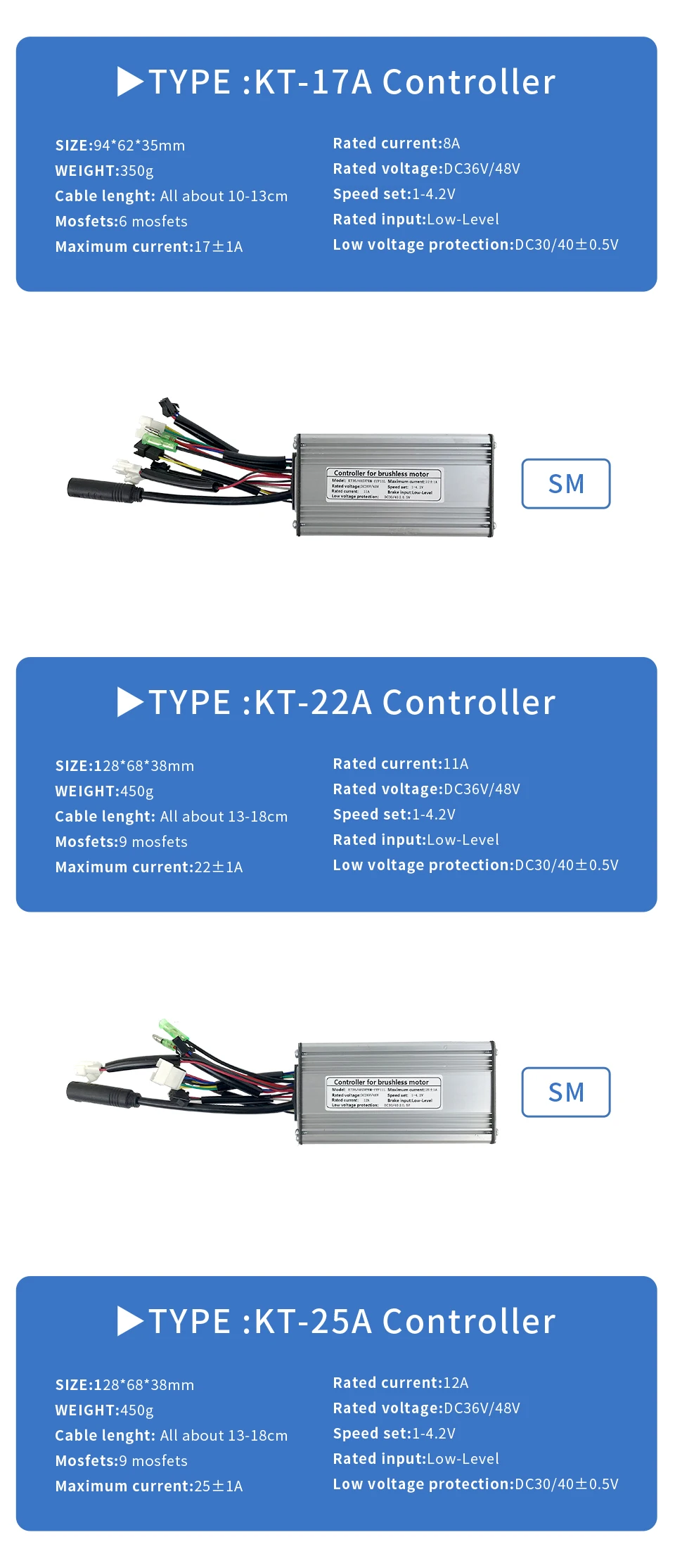

Type：KT-17A Controller(Sine wave)

◆Controller Brand :KT (KUNTENG)

◆Controller dimension :about 94 * 62 * 35 mm

◆weight:250g

◆cable length :all about 10-13cm

◆Mosfets :◆Mosfets :Big6 better mosfetsBig6 better mosfets

◆Maximum current:17±1A

◆Rated voltage:DC36V/48V

◆Speed set:1-4.2V

◆Rated current:8A

◆Brake input :Low-Level

◆Low voltage protection:DC30/40±0.5V

◆Wave:Sine wave



Type：KT-22A Controller(Sine wave)

◆Brand :KT（KUNTENG）

◆Color :Silver

◆Dimension :about 128 * 68 * 38 mm

◆Mosfet :9  Mosfets

◆Maximum current :22±1A

◆Rated current  11A

◆Rated voltage :DC36V/48V

◆Speed set :1-4.2V

◆Brake input :Low-Level

◆Low voltage protection :DC30/40±0.5V

◆Cable Length :all about 13-18cm

◆Weight:450g

◆Wave:Sine wave


Type：KT-25A Controller(Sine wave)Type：KT-25A Controller(Sine wave)

◆Brand :KT（KUNTENG）

◆Color :Silver

◆Dimension :about 128 * 68 * 38 mm

◆Mosfet :9  Mosfets

◆Maximum current :25±1A

◆Rated current :11A

◆Rated voltage :DC36V/48V

◆Speed set :1-4.2V

◆Brake input :Low-Level

◆Low voltage protection :DC30/40±0.5V

◆Cable Length :all about 13-18cm

◆Weight:450g

◆Wave:Sine wave

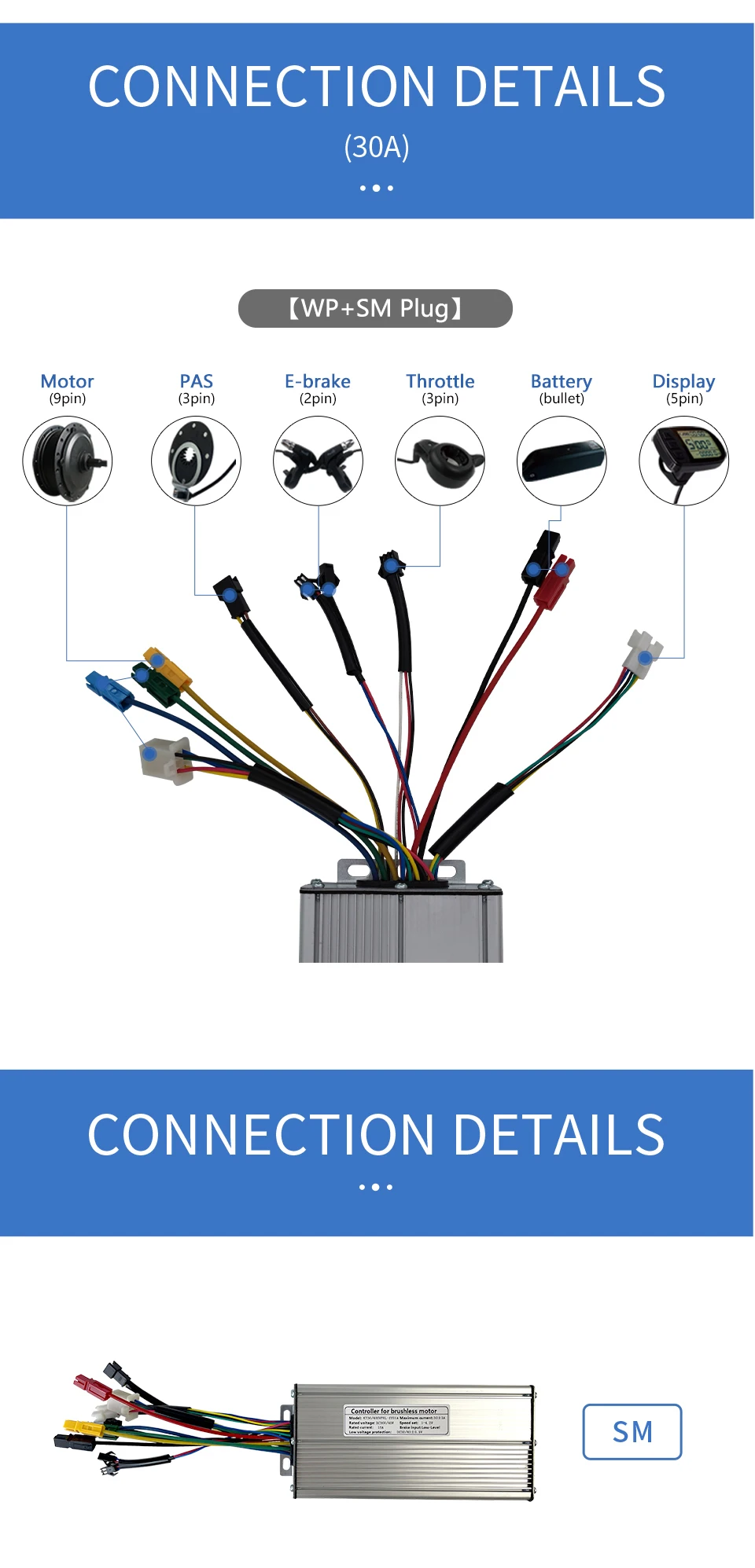

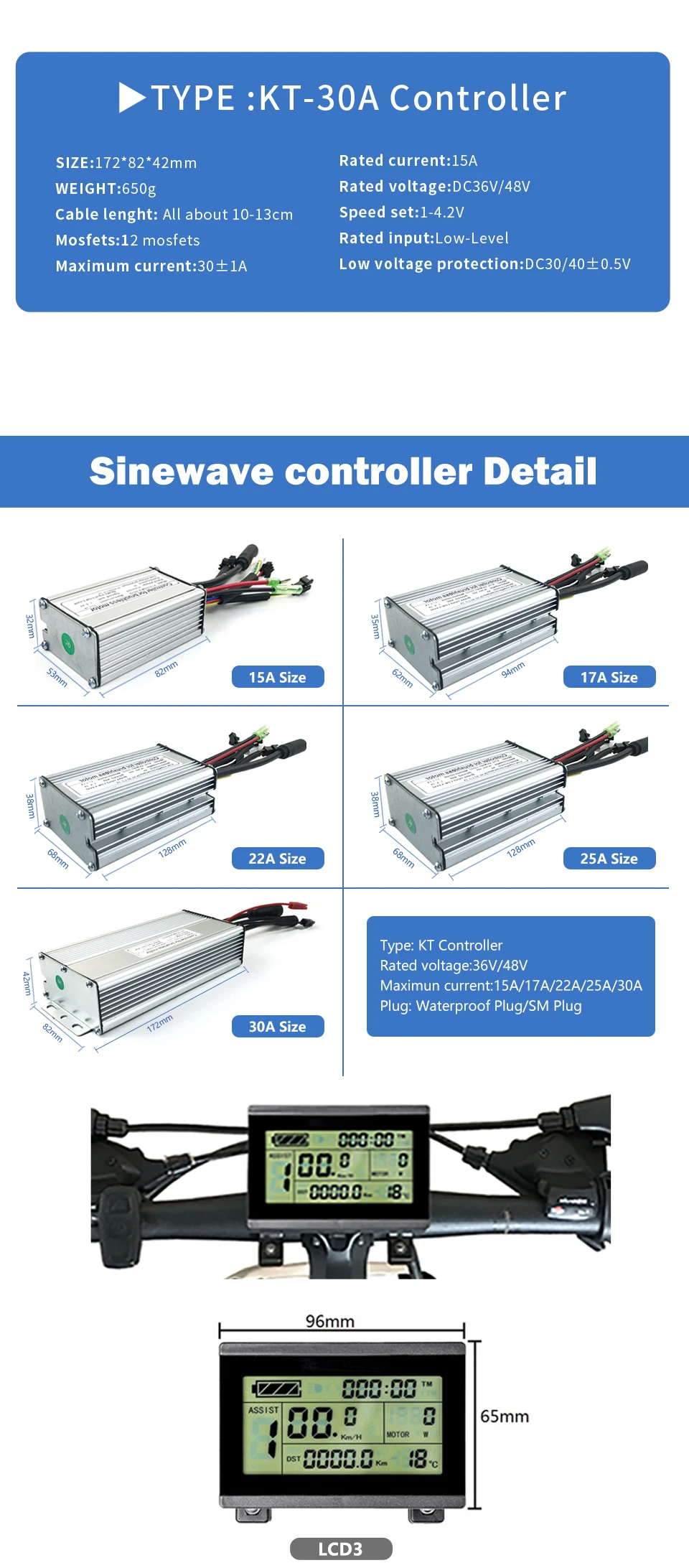

Type：KT-30A Controller(Sine wave)

◆Brand :KT（KUNTENG）

◆Color :Silver

◆Dimension :about 170 * 88 * 43 mm

◆Mosfet :12 Mosfets

◆Maximum current :30±1A

◆Rated current :17A

◆Rated voltage :DC36V/48V

◆Speed set :1-4.2V

◆Brake input :Low-Level

◆Low voltage protection :DC30/40±0.5V

◆Cable Length :all about 13-18cm

◆Weight:about 650g

◆Wave:Sine wave


ATTENTION:

KT(Kunteng) Display can only just match with KT controller.Please make sure first.

Please confirm your controller model first, if it is a Kunteng controller. If your purchase is wrong, we will refuse compensation, please understand, thank you! If you have any questions, please feel free to contact us.

Please mark when you order LED display if your PAS is 12 Magnetic.Usually we deliver the 8 Magnetic compatible if you don't mark!



Parameter:

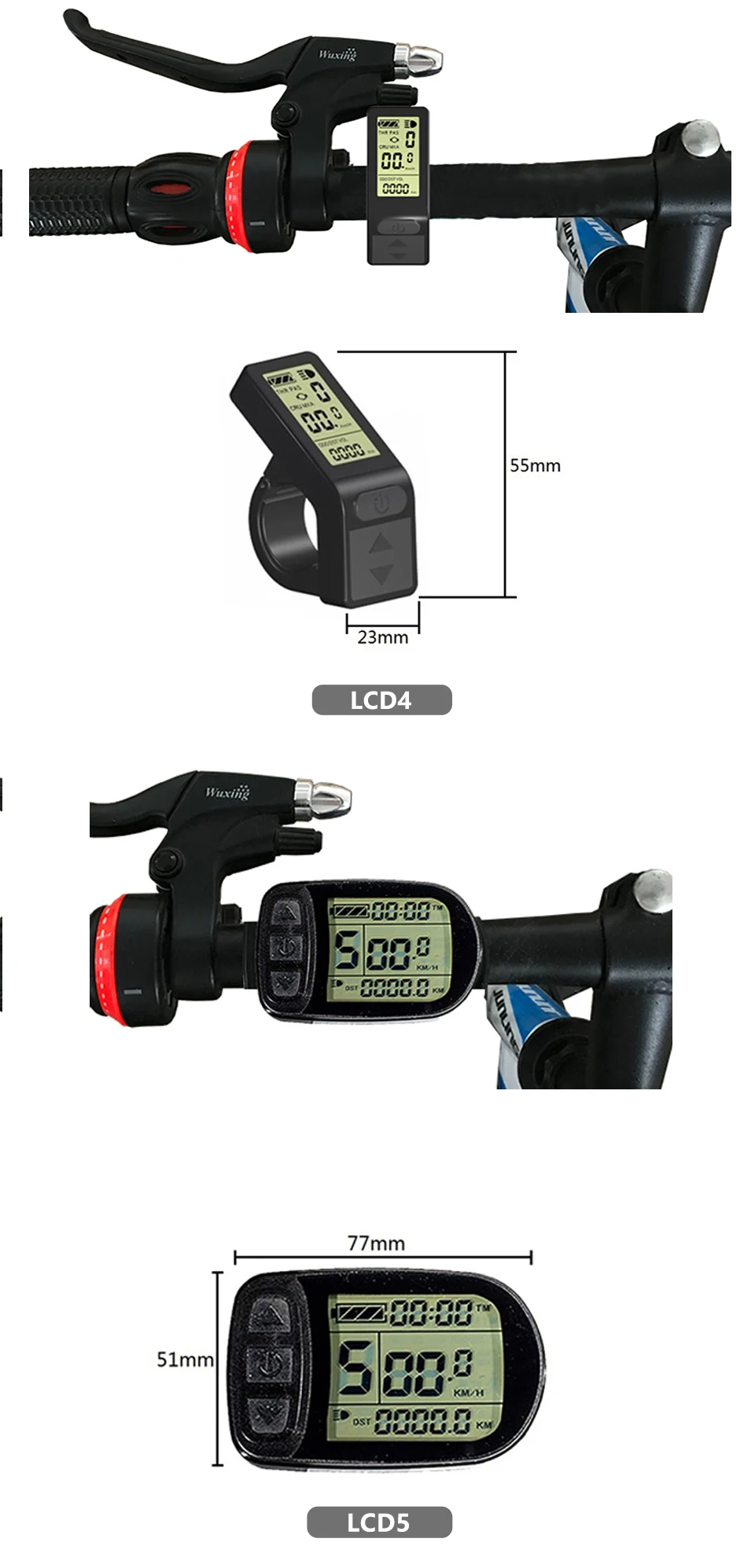

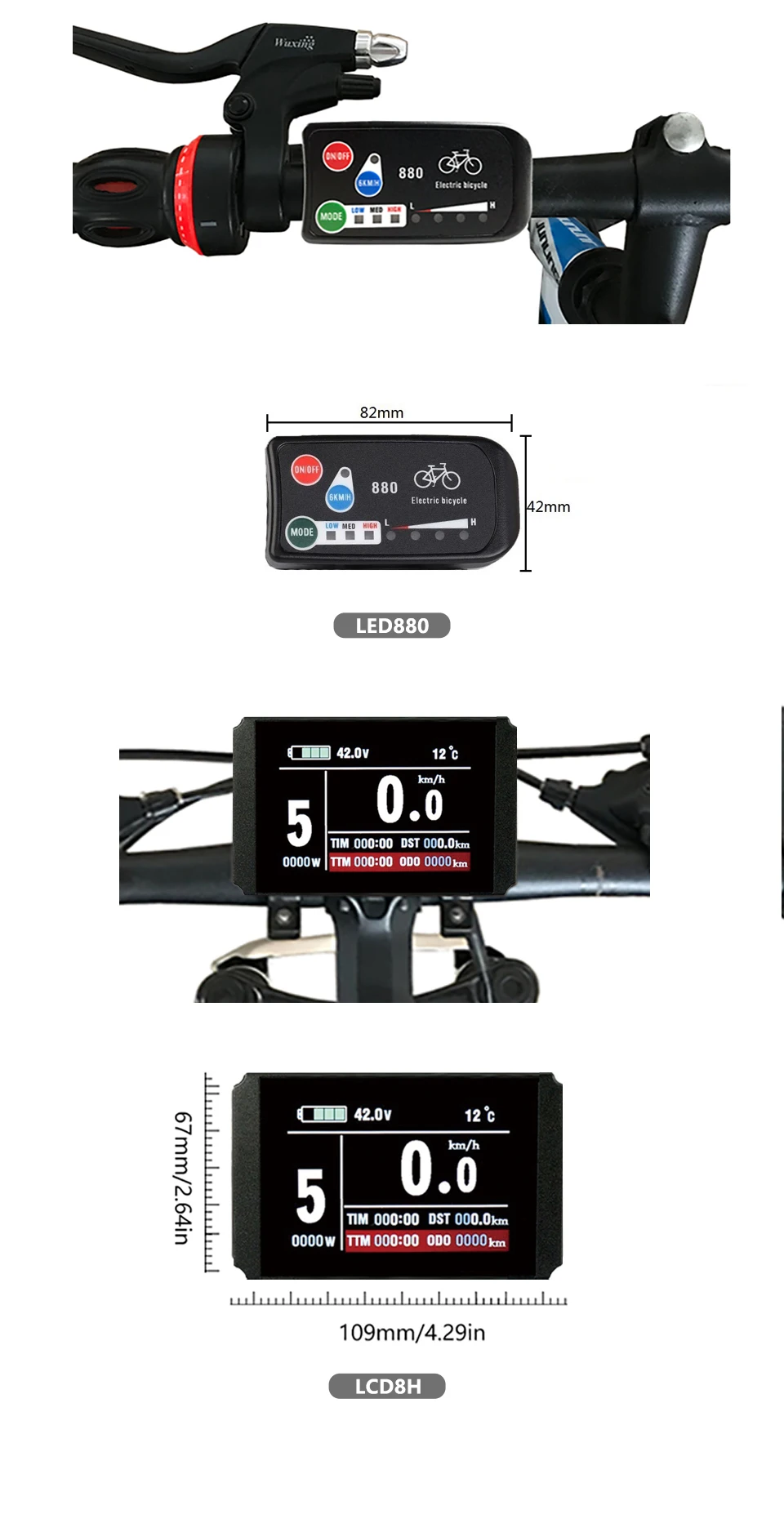

Type:KT LCD/LED/Colourful Display

Color:Black

Voltage:24V 36V 48V

Cable length:About 180cm(SM)

Plug:5 Pin SM Connector
