Introduction:

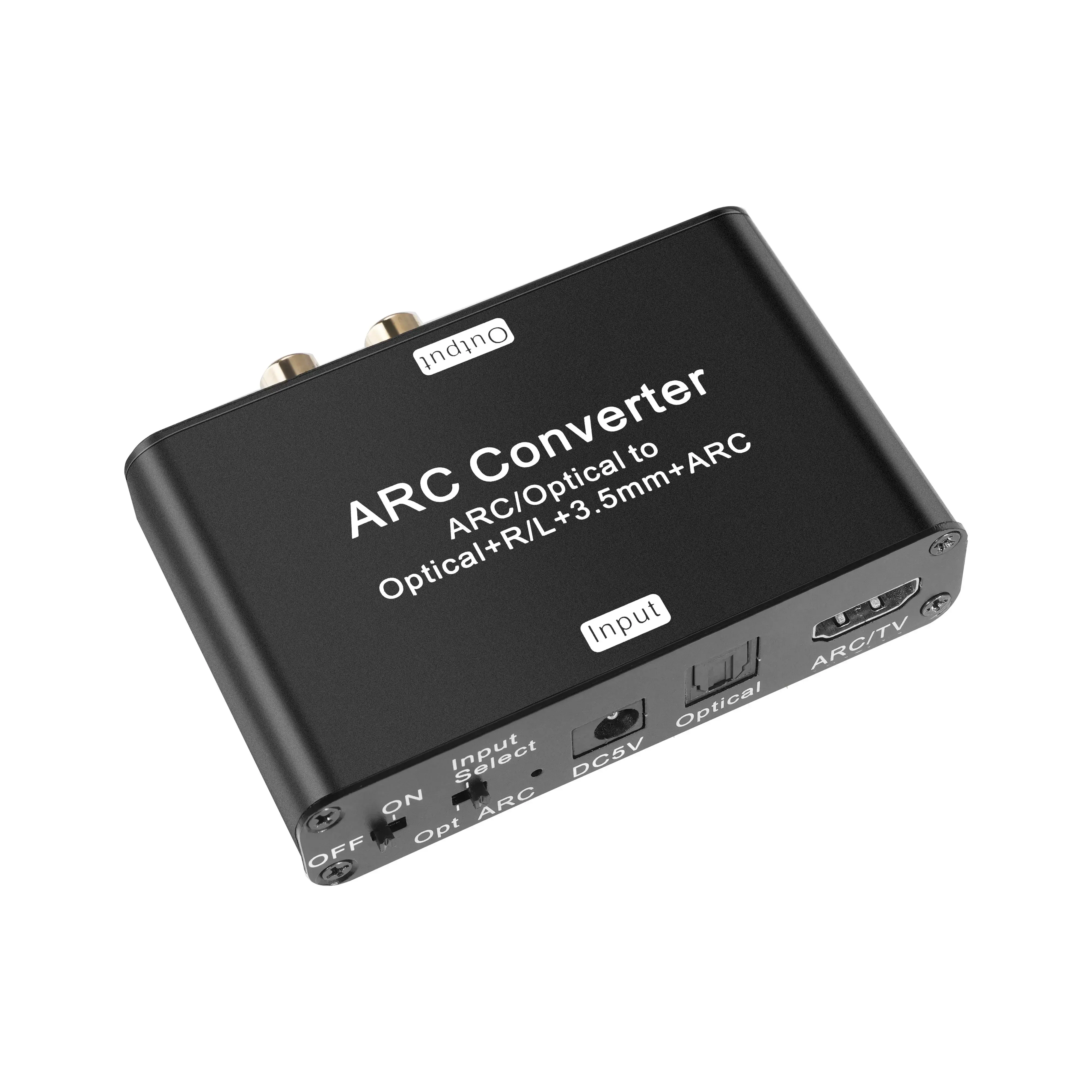

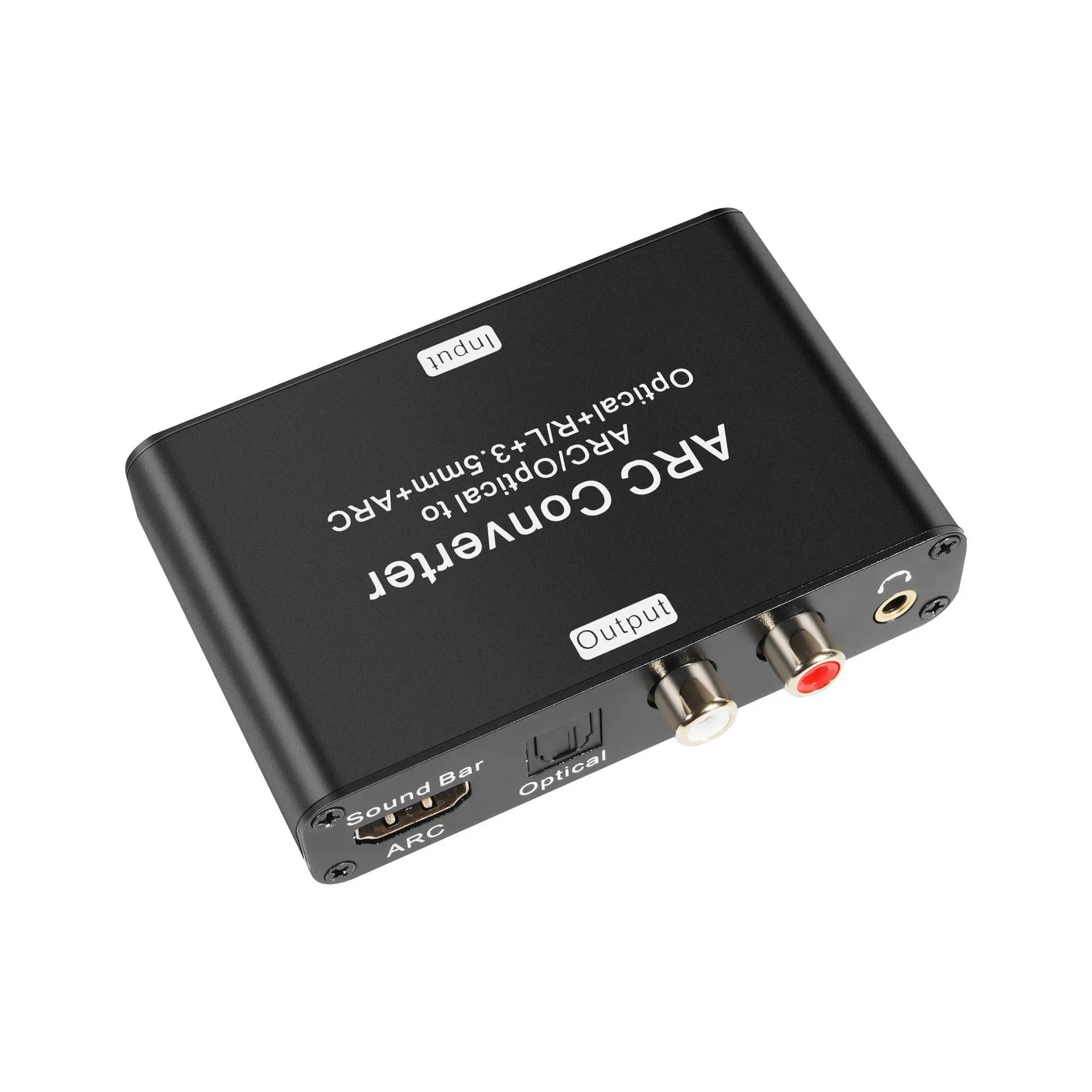

This HDMI audio return & DAC audio converter can return the sound of a TV that supports ARC function to the adapter's ARC loop output interface, optical fiber,Coaxial, and 3.5mm headphone jack output through the HDMI/ARC interface. It also supports optical digital The audio signal is converted into a stereo analog signal, and it can support optical fiber and ARC output at the same time, which perfectly solves the interface compatibility problem between the TV and the audio system.This product is very suitable for home theaters, teaching, training structures, conference rooms, home appliance stores and other places.


Features:

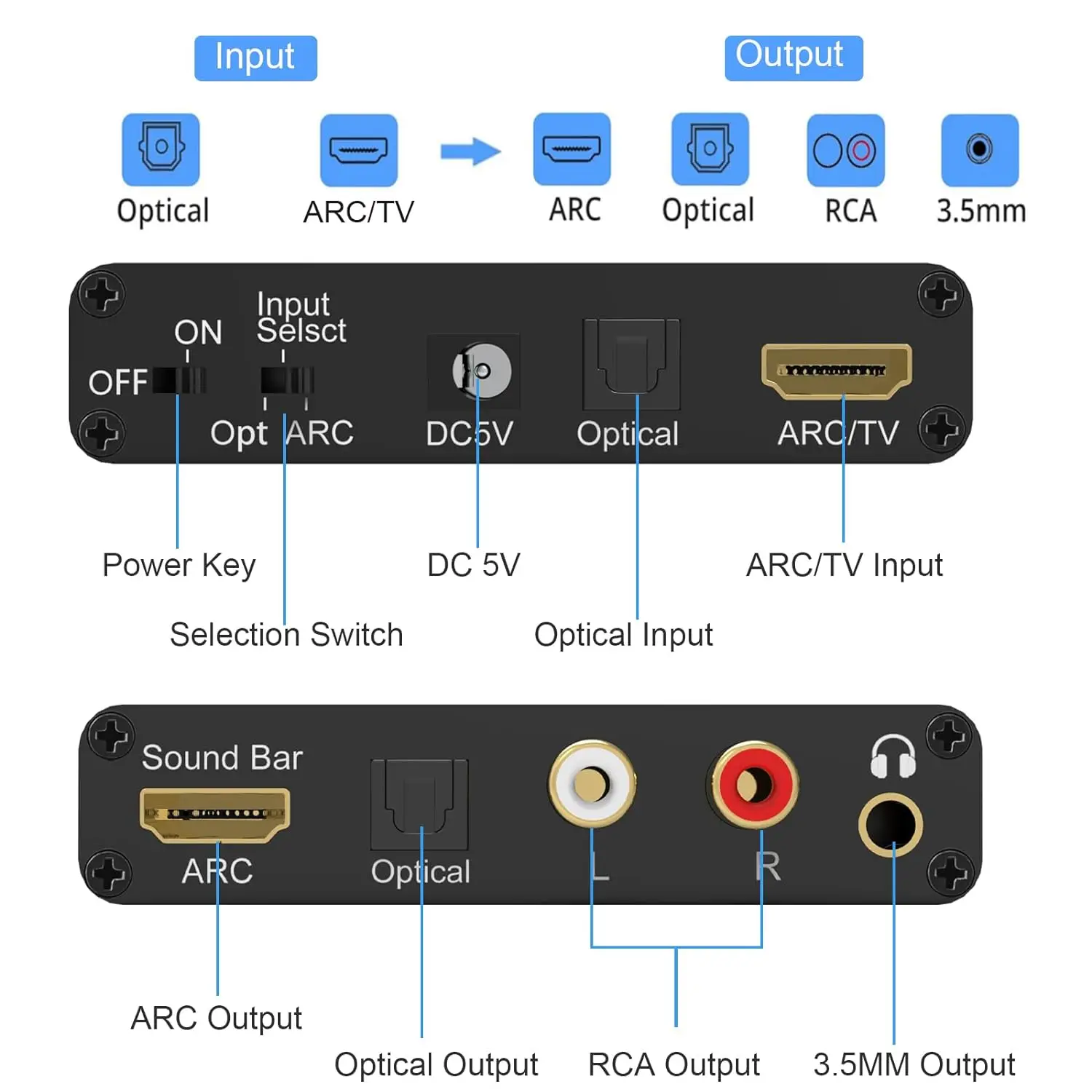

*Support HDMI ARC, optical fiber, coaxial input switching function

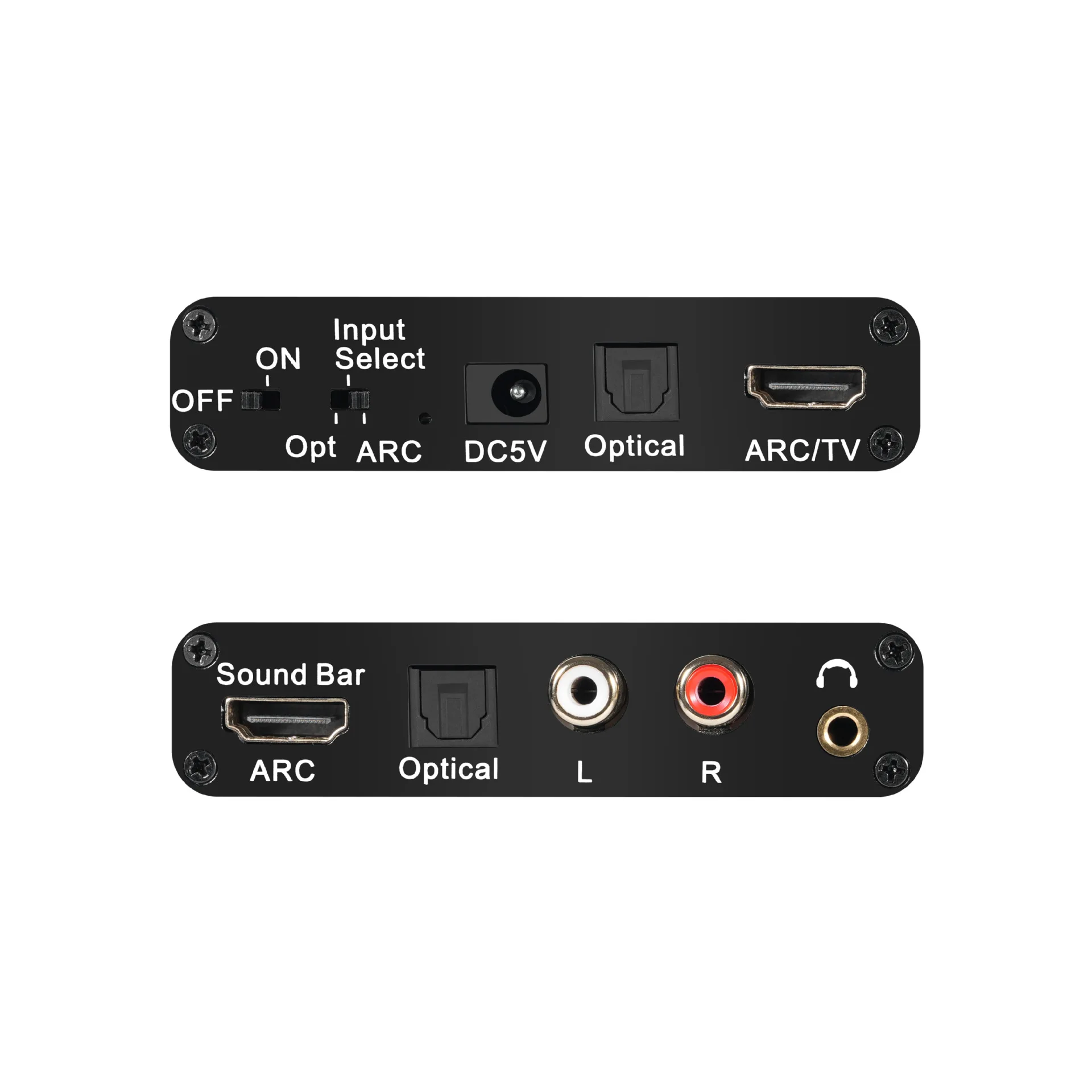

*Support optical, coaxial, RCA stereo, 3.5mm stereo headphone audio
* output at the same time
*3.5mm stereo headphone port equipped with high-performance audio amplifier
*Support transmission of 192KHz audio sampling rate
*Optical fiber coaxial interface supports 5.1 channel transmission(Signal pass-through)
*Support optical fiber or ARC input, optical fiber, ARC output (signal pass-through)
*ARC ,RCA and 3.5mm headphone output volume can be controlled by TV (CEC)
*Support volume memory


Specifications:
Shell Material........................................................................Aluminum Alloy
Color.....................................................................................................Black
Power Supply Interface.......................................................................DC5.5
Maximum operating current................................................................200mA
Working environment temperature...............................................-10~+55℃
Storage temperature.....................................................................-20~+60℃
Operating Humidity..........................................10~90%RH(non-condensing)
Storage humidity...............................................5~95%RH(non-condensing)
Case Size...............................................................................90*73*21(mm)
Weight.....................................................................................................92g

Package Content:
Audio Converter...................1pcs
USB Power Cable..........1pcs
User Manual...................1pcs


PLEASE NOTE:
When using the ARC channel,make sure that the HDMl port on the TV is marked with "ARC"
