Attention

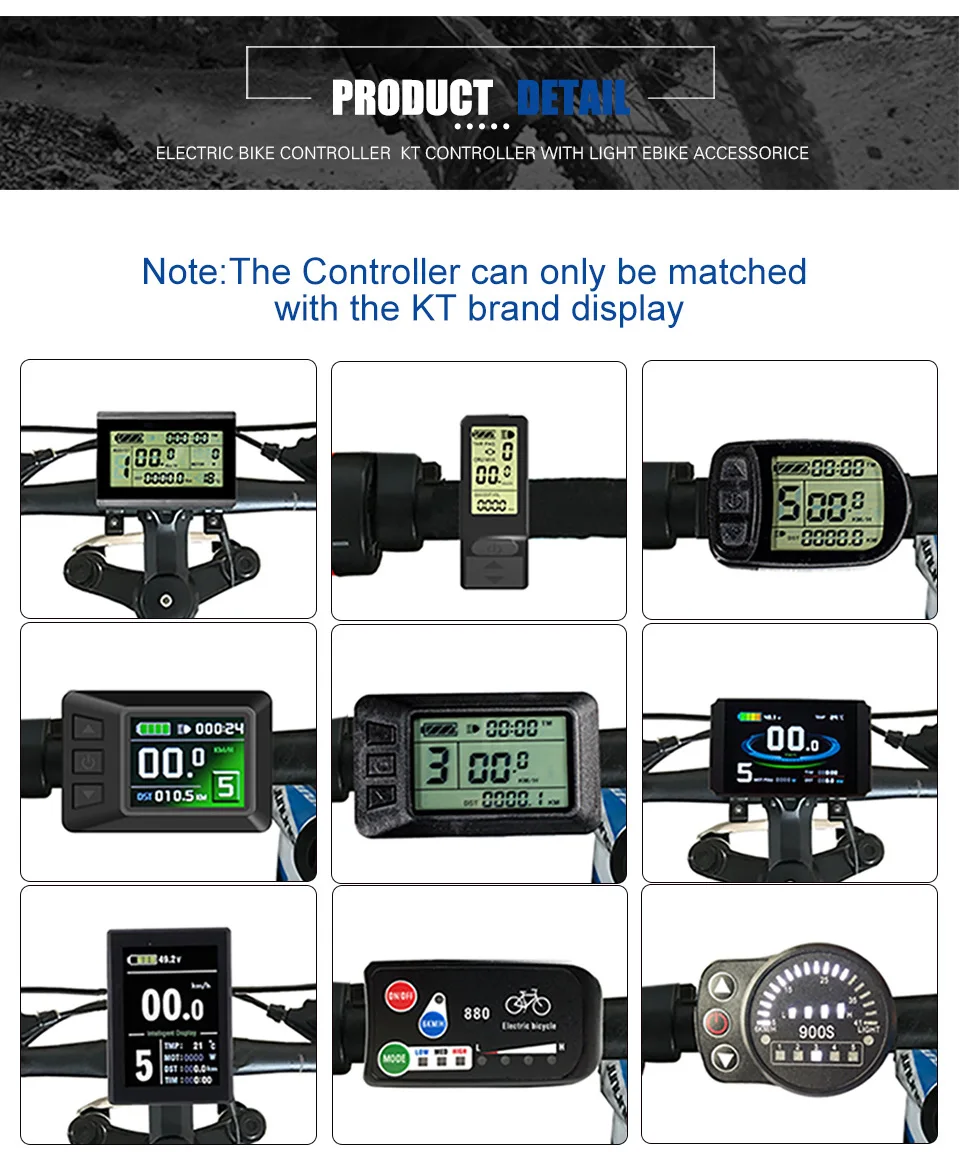

● 1.KT controller only compatible with KT display .Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order .

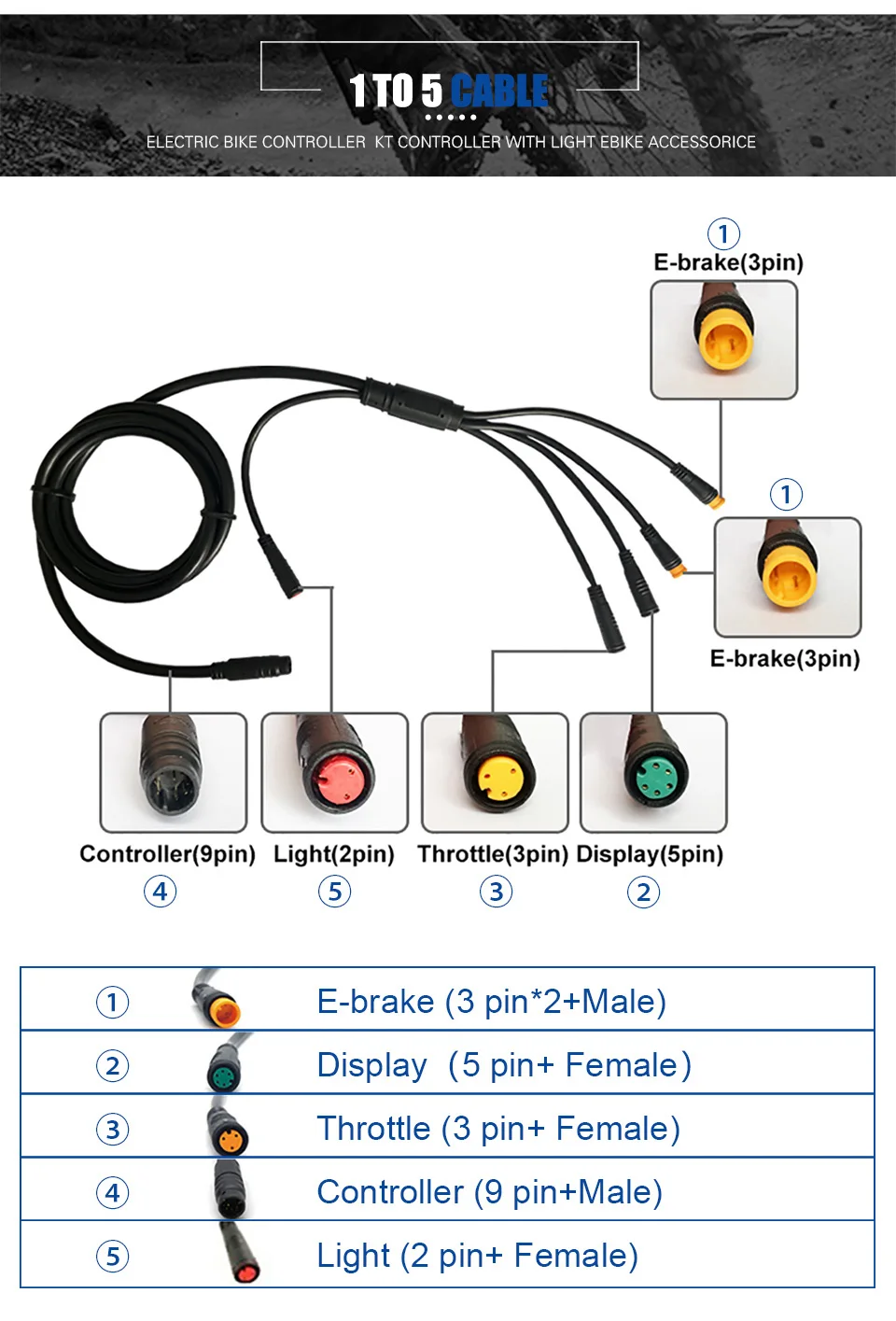

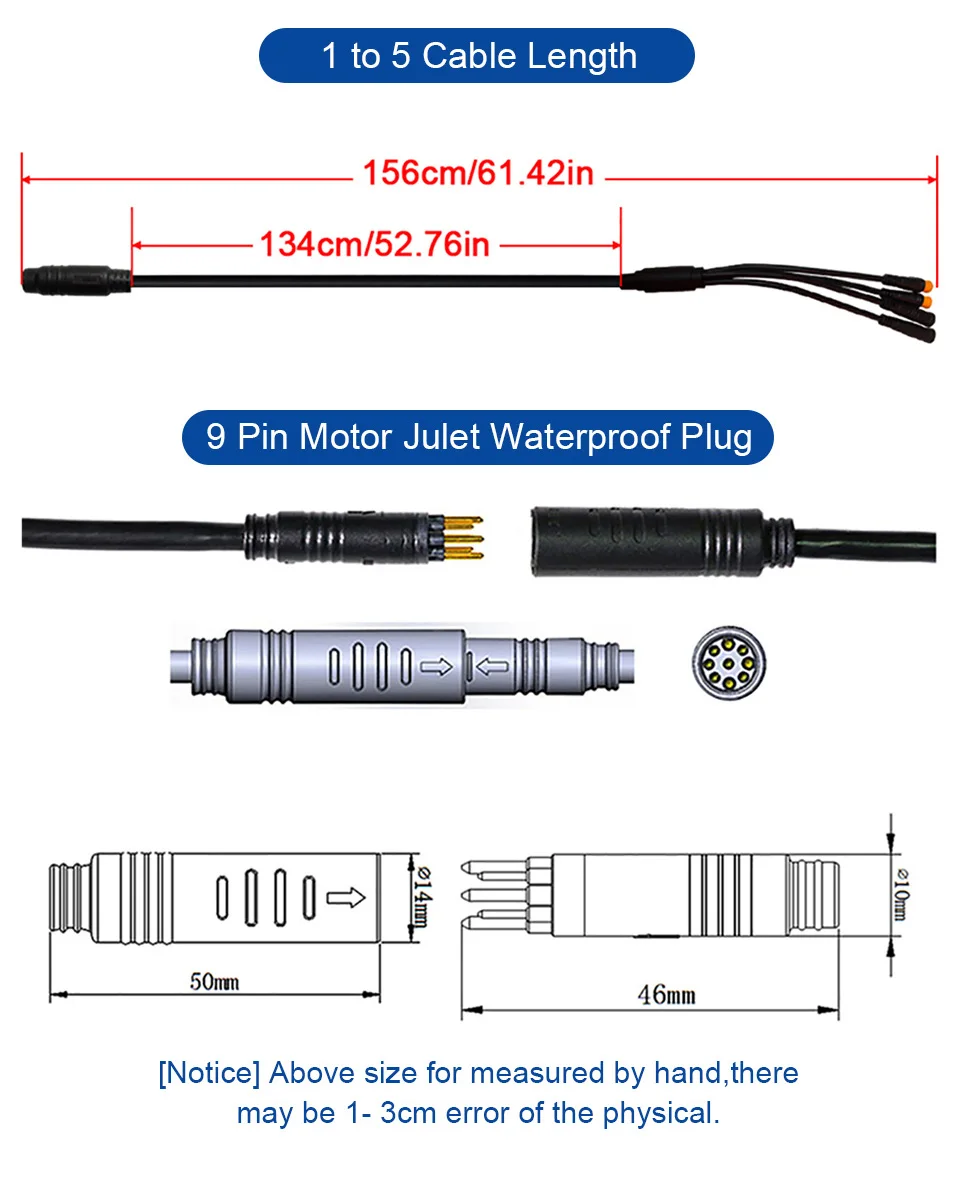

● 2.Even its KT system. Waterproof cnnector is special that I can///'t promise it will 100% compatible and work. Because of line sequance . Our controller cable brand is Julet.Please check and confirm yours on the appearance of connector.Including cable brand as I know kind of Julet .Usually 90% of them will work well. Please contact with us if you have problem when install it.We will try to help you to solve .
● 3.Compare with sinewave and squarewave .Sinewave means less noise.more smooth when riding.
● 4.Please contact me if you are not sure which is right for you or have further questions by Aliexpress message.
● 5.The cable length is manually measured, there may be some difference, please understand.
● 6.This ebike controller is not suitable for scooters.
● 7.Work voltage:36V or 48V Universal (support both voltage)
● 9.This one is Square Wave/Sinewave Controller.
36/48V15A Controller WP Plug
●A:WP Sinewave
●B:WP Squarewave
●Brand:KT
●Color:silver
●Dimesion:82 * 53 * 32 mm
●Mosfet:6 mosfets
●Maximum current:15±1A
●Rated current:7A
●Rated voltage:DC36V/48V
●Speed set:1-4.2V
●Brake input :Low-Level
●Low voltage protection:DC30/40±0.5V
●Cable length:all about 10-13cm
●Weight:200g

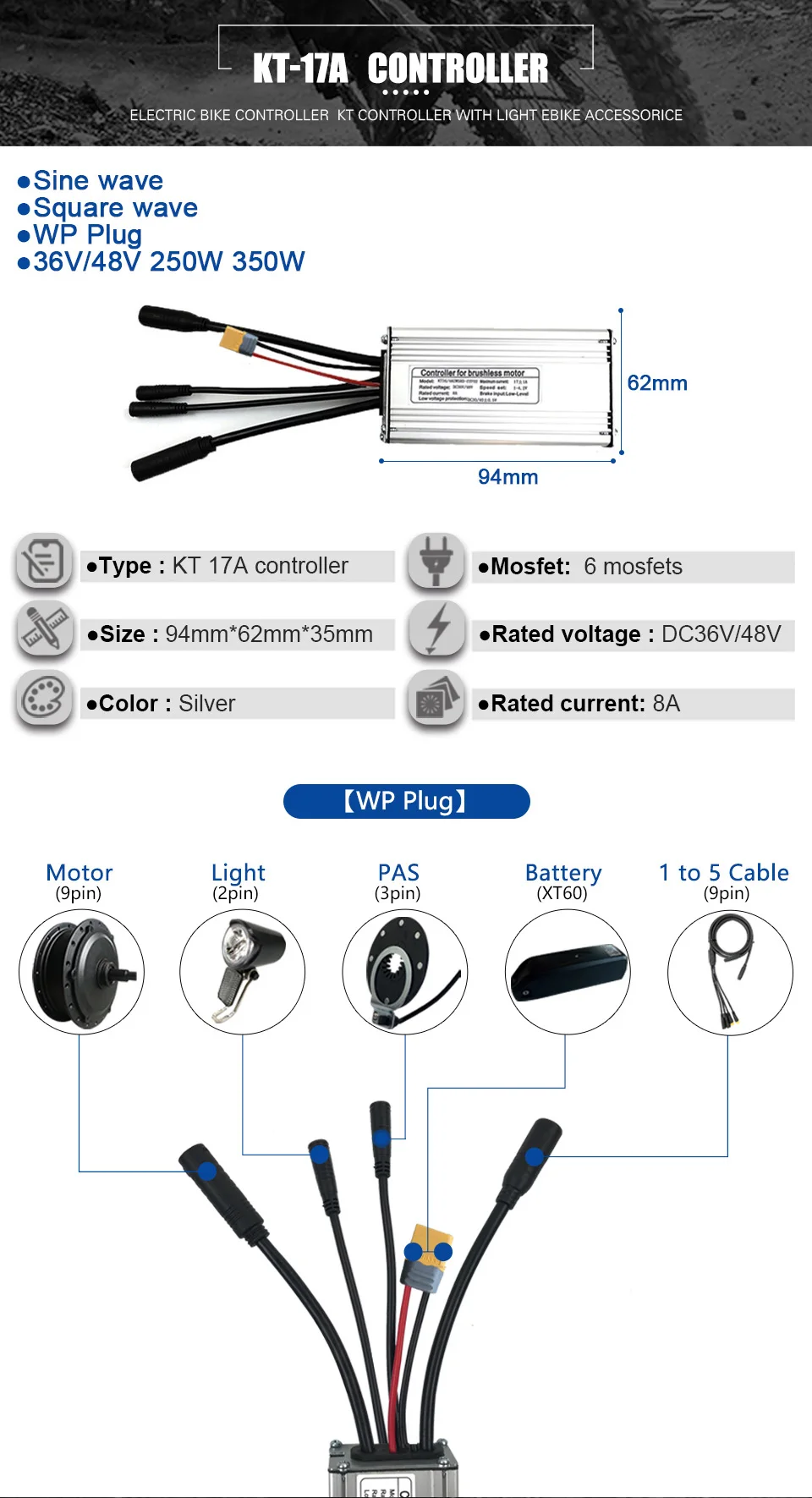

36/48V17A Controller WP Plug
●A:WP Sinewave
●B:WP Squarewave
●Brand:KT
●Color:silver
●Dimesion:94 * 62 * 35 mm
●Mosfet:6 mosfets
●Maximum current:17±1A
●Rated current:8A
●Rated voltage:DC36V/48V
●Speed set:1-4.2V
●Brake input :Low-Level
●Low voltage protection:DC30/40±0.5V
●Cable length:all about 10-13cm
●Weight:350g
36/48V 22A Controller WP Plug
●A:WP Sinewave
●B:WP Squarewave
●Brand:KT
●Color:silver
●Dimesion:128 * 68 * 38 mm
●Mosfet: 9 mosfets
●Maximum current:22±1A
●Rated current:11A
●Rated voltage:DC36V/48V
●Speed set:1-4.2V
●Brake input :Low-Level
●Low voltage protection:DC30/40±0.5V
●Cable length:all about 10-13cm
●Weight:450g

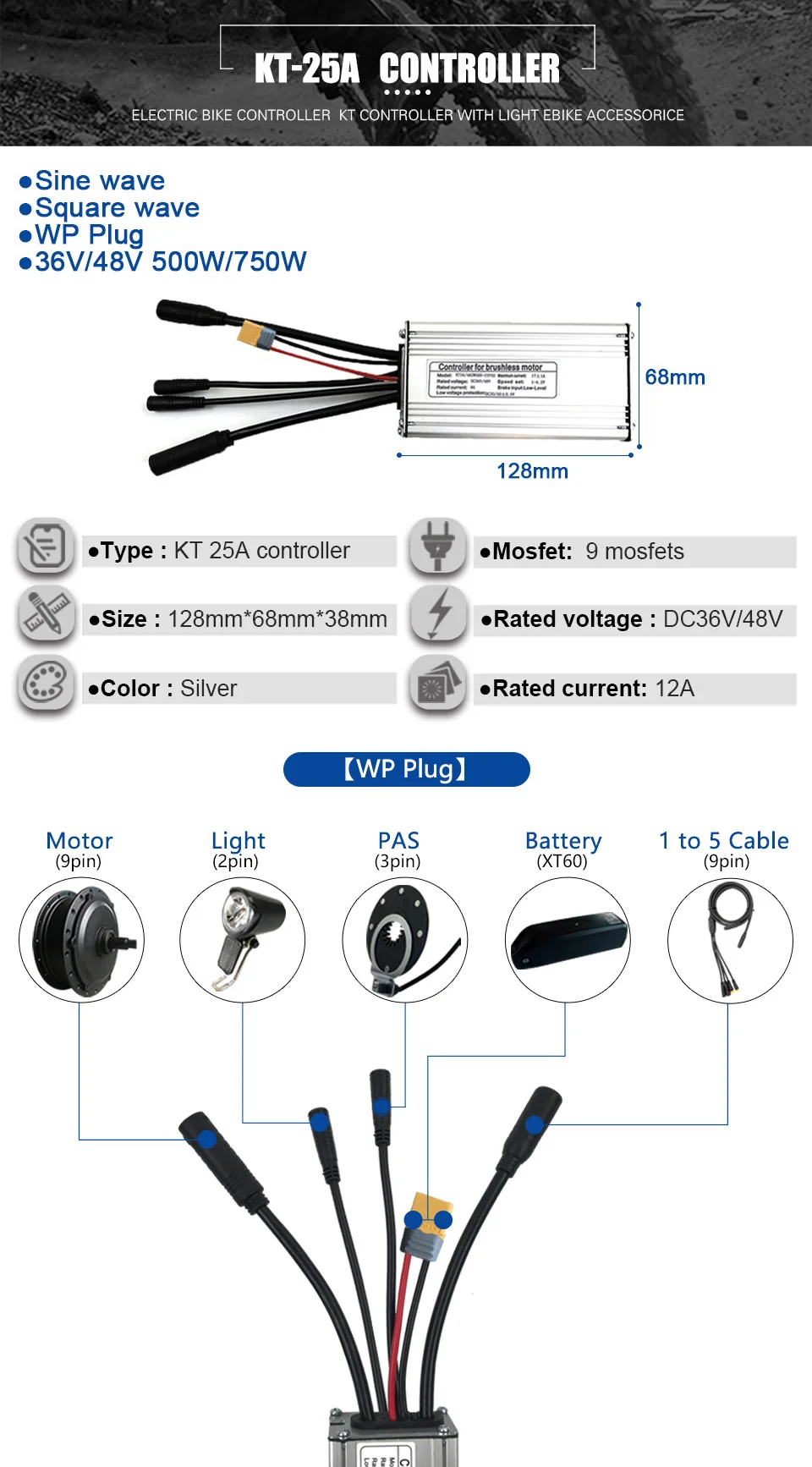

36/48V 25A Controller WP Plug
●A:WP Sinewave
●B:WP Squarewave
●Brand:KT
●Color:silver
●Dimesion:128 * 68 * 38 mm
●Mosfet: 9 mosfets
●Maximum current:25±1A
●Rated current:12A
●Rated voltage:DC36V/48V
●Speed set:1-4.2V
●Brake input :Low-Level
●Low voltage protection:DC30/40±0.5V
●Cable length:all about 10-13cm
●Weight:450g

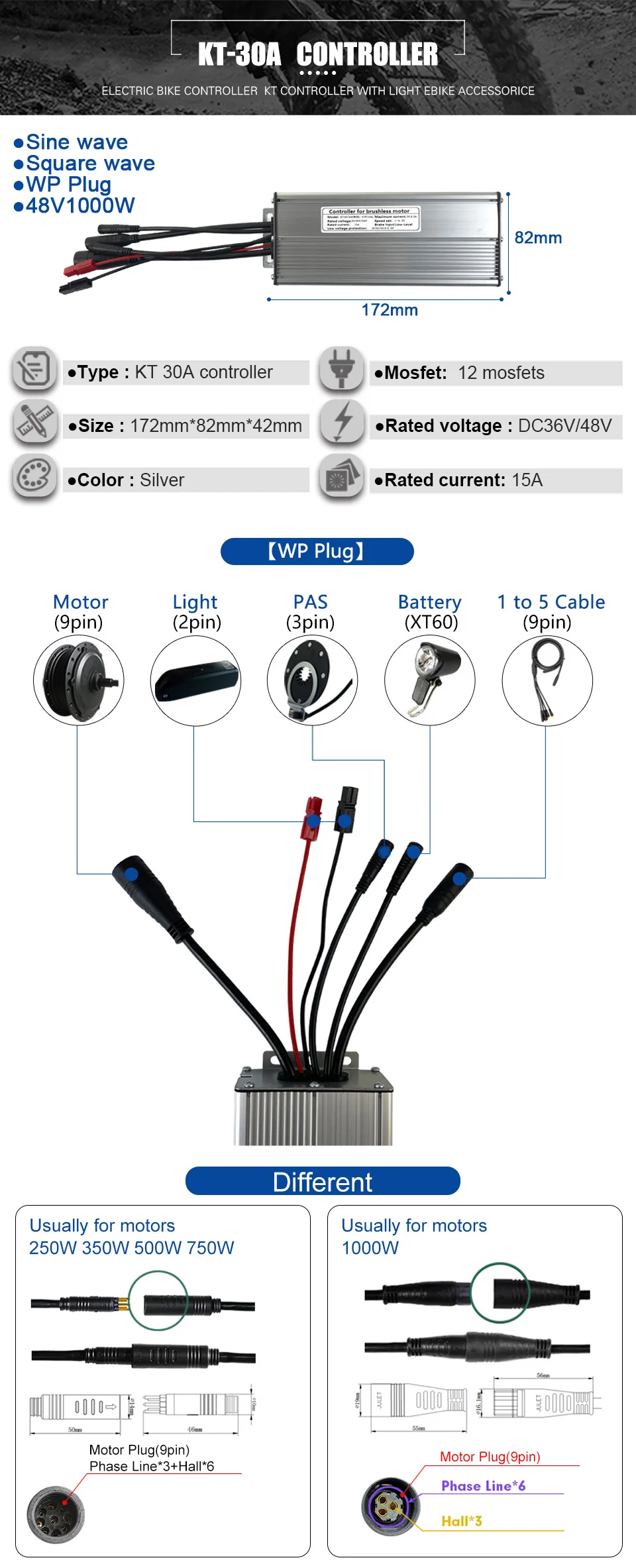

48V 30A Controller WP Plug
●A:WP Sinewave
●B:WP Squarewave
●Brand:KT
●Color:silver
