Hydraulic Crimper Tool for 1/8" 3/16" Stainless Steel Cable Railing Kit Hardware System Fittings, with Cable Cutter
Description
| Item model number | 12awg~00awg Crimping Tool+wire rope Cut |
| Part Number | 12awg~00awg Crimping Tool+wire rope Cut |
| Batteries Required? | No |
| Power Source | NO |
| Item Package Quantity | 1 |
| Color | Green |
| Material | Steel, Chrome, Vinyl, Cr-Mo Steel, High-Carbon Steel |
| Grip Type | Ergonomic |
| Item Weight | 3.51 Kilograms |
| Handle Material | Vinyl |
| Batteries Included? | No |
| Usage | Electrical work, Construction, DIY projects, Maintenance |
| Model | 12awg~00awg Crimping Tool+wire rope Cut |
| Package Dimensions | 13.23 x 9.06 x 3.39 inches |
| Included Components | Crimping Tool+wire rope Cut |
- Hydraulic Crimping Tool : Crimps 12 AWG to 2/0 AWG size copper and aluminum wires. Maximum crimping power: 10 tons. Crimping Stroke : 11mm. The hydraulic crimper's head can be rotated 180° freely to benefit narrow space working, a good choice for battery and welding cables, power wires, electrical cables, etc.
- Material and workmanship: The plier head is precision cast with 5140 steel, which is quenched and tempered at high temperature to make it extremely tough and has no risk of fracture. Dies are made of hardened steel with chrome finish. Vinyl-dipped grip for comfort and easy control.
- Chrome Crimping Dies: Comes with crimping dies for 12 AWG, 10 AWG, 8 AWG, 6 AWG, 4 AWG, 2 AWG, 0 AWG and 2/0 AWG and 1/8 "for stainless steel wire rope，cables and creates strong, hexagonal crimps for a clean, efficient look for your projects.
- Easy to use: On/Off control for fast operation, easy crimping and arm retraction when crimping aluminum or copper wire. The C-style head makes side entry easier to change the dies.

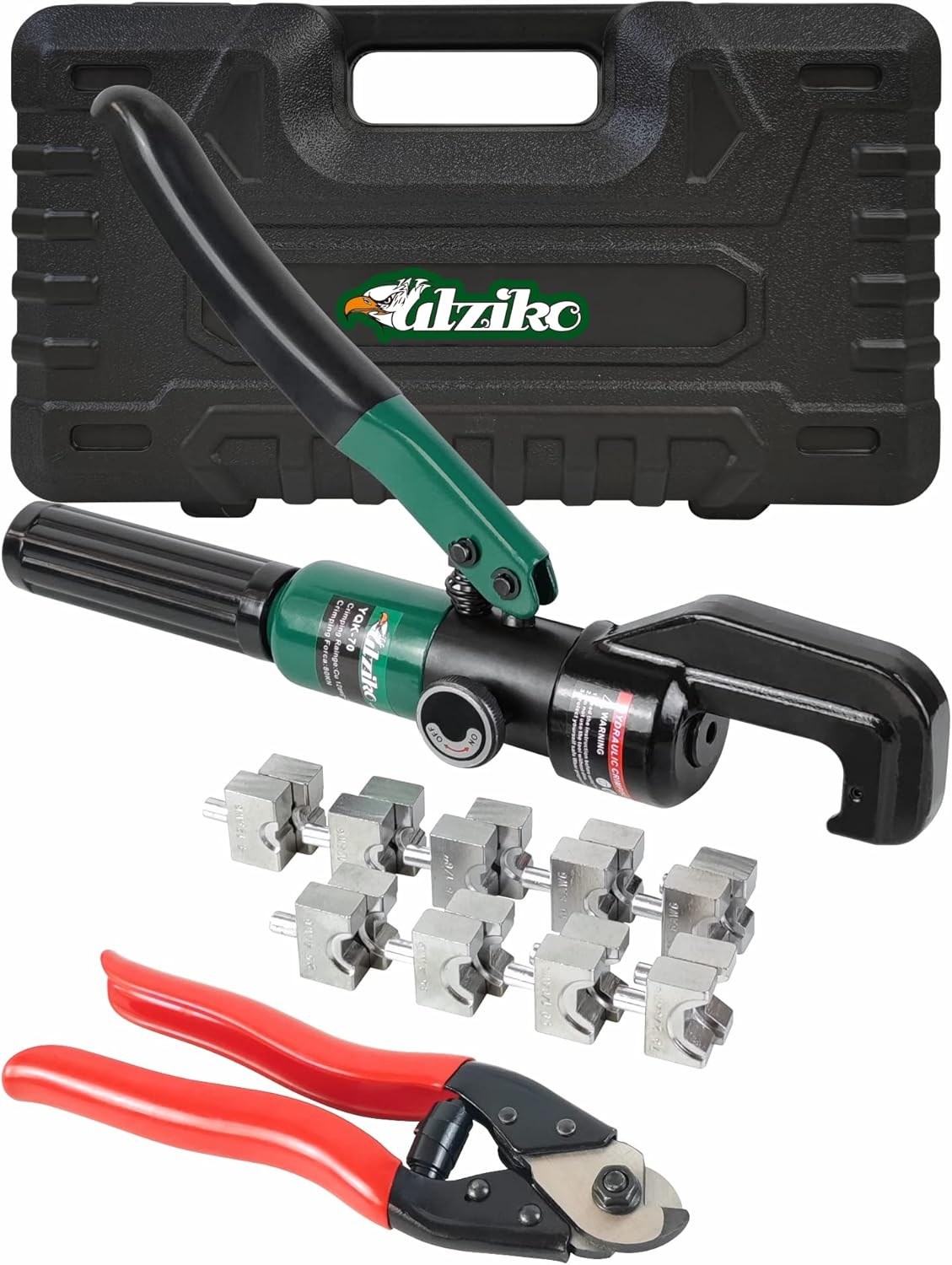

- Package List: 1X Hydraulic Crimper Tool + 9 pairs of crimping dies + 1X Cable Cutter + Seal Rings + 1X Work Gloves + 1X Carrying Case. If you're not satisfied with this item at any time within one month of purchase, we'll provide a refund or replacement.
Product description
PRODUCT PARAMETER
| Product name: | Hydraulic Crimping Tools |
| Item No.: | YQK-70 |
| Crimping Range: | 12AWG~2/0AWG |
| Stroke: | 1/2” |
| Rated Crimping Force | 80KN |
| Maximum Crimping Force | 100KN |
| Length: approx | 12” |
| Weight: approx | 4 |
PRODUCT DETAILS
-
Innovative collet structure
Strong and Sturdy
- Increase the mold guide, the mold will not shake left and right.
- Combined with the overall quenching technology, the pliers head is strong and will not break.
-
INNOVATIVE HANDLE RETURN SPRING
Humanized Design
One hand can operate both handles. Compared to products without return springs, it is easier to operate the handle with one hand, and one person can complete the crimping job independently.
-
INTEGRATED PLUNGER PUMP
Precision Production
Precision machining ensures a flawless fit between every component. The high-pressure piston pumps, crafted from alloy steel, exhibit exceptional strength and durability.
-
ANTI-SLIP HANDLE
Ergonomic Structure Design
Non-slip and elastic, ergonomic structure design, large crimping forceWavy handle sleeve.
-
STANDARD MOLD
Hydraulic crimping tool 9 pairs of dies: 12.10.8.6.4.2.1/0. 2/0 AWG and 1/8 "for stainless steel wire rope
-
steel wire rope shear
Max. Cutting: 5/32"
Length: approx 8"
-
Install Crimping Die
Select the crimping die corresponding to the cable and insert it fully into the upper and lower jaws
-
Close Valve
Tighten valve clockwise
-
Operating Handle
Operate the handle repeatedly to drive the piston.
-
Reset
After completing the crimping, turn the valve counterclockwise.
9 DIE SETS
-
Hydraulic Crimping Tools rebound
Tool maintenance the right way
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. -
Hydraulic Crimping Tools leaking oil
Tool maintenance the right way
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. -
Hydraulic Crimping Tools Show up without stress
Tool maintenance the right way
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
