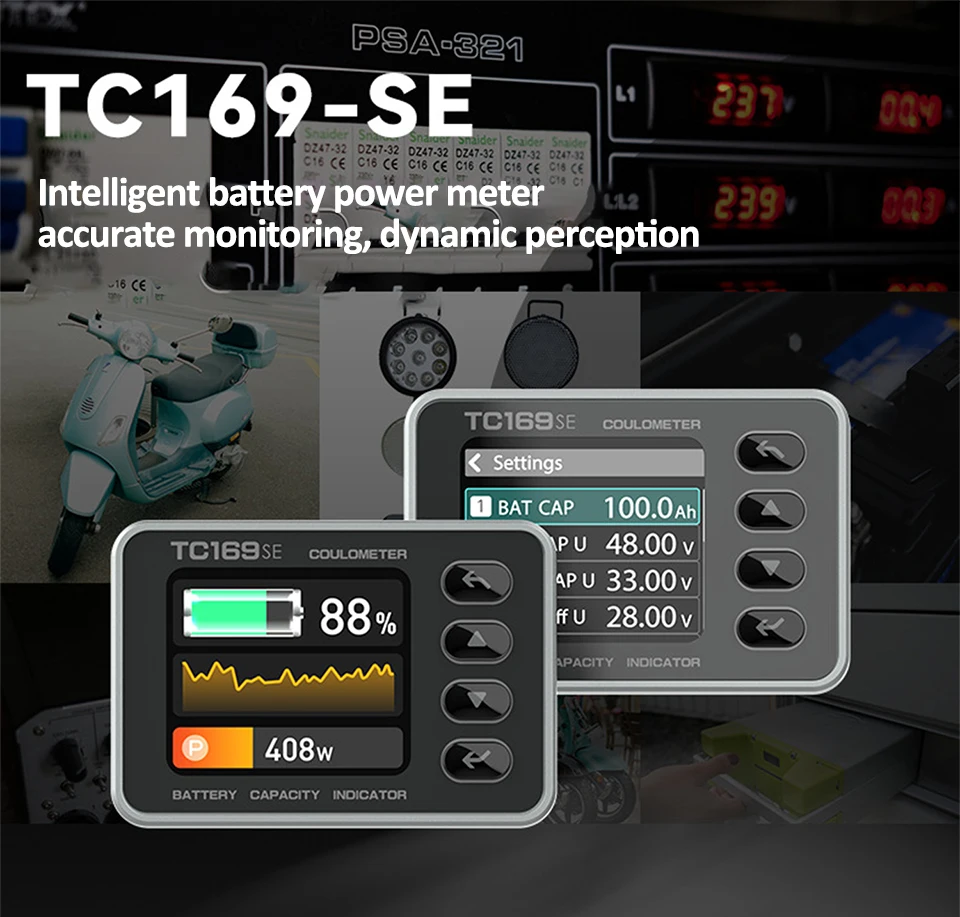

TC169SE Coulomb Meter DC6-60V Battery Voltage and Current Meter High-Precision Color Screen Battery Capacity Display Tester

Please note: There are two models in this link, namely TC169SE and TC147SE. Please carefully observe the difference between the two models and purchase according to your needs. Thank you!

Features：

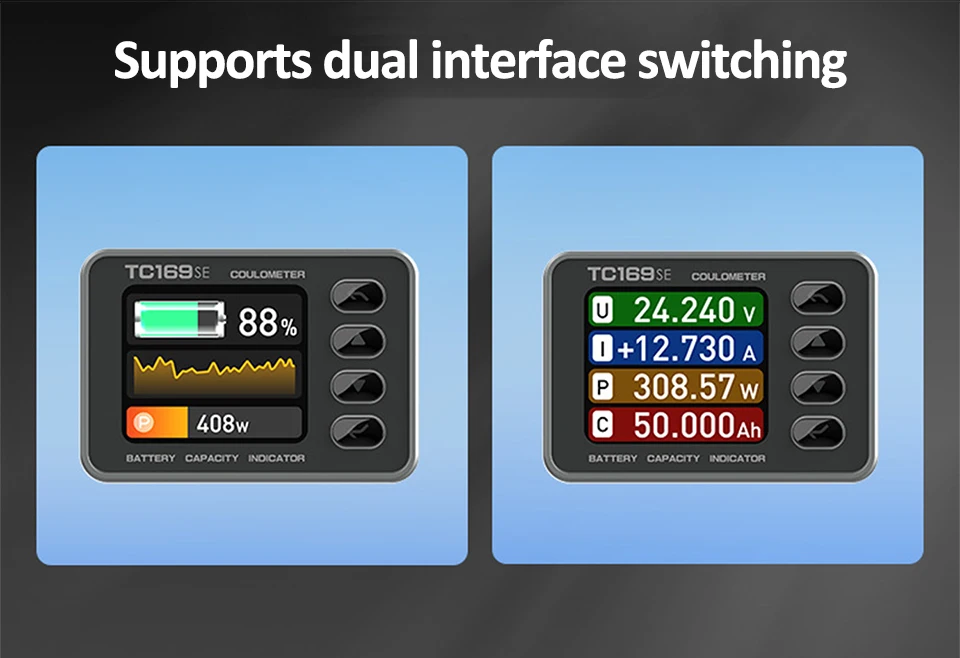

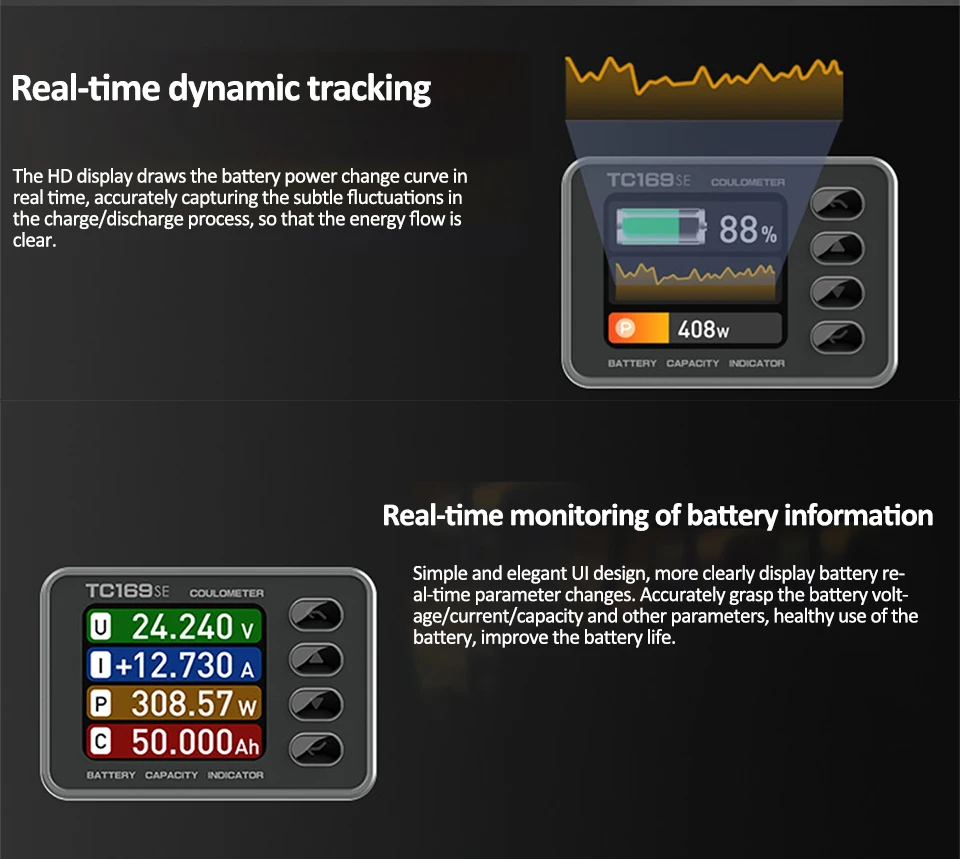

1. Two styles of screen switching: You can choose the real-time dynamic tracking interface, where the high-definition display screen draws the battery power change curve in real time, accurately capturing subtle fluctuations during the charging/discharging process, making the energy flow clear at a glance. You can also choose the real-time monitoring interface for battery information, with a simple and elegant UI design that displays real-time changes in battery parameters more clearly. Accurately grasp battery voltage/current/capacity parameters, use batteries healthily, and improve battery life.

2. Support custom low capacity alarm values

3. Support zero capacity/full capacity voltage settings

4. Support brightness adjustment function (automatic/manual)

5. Support shutdown voltage setting

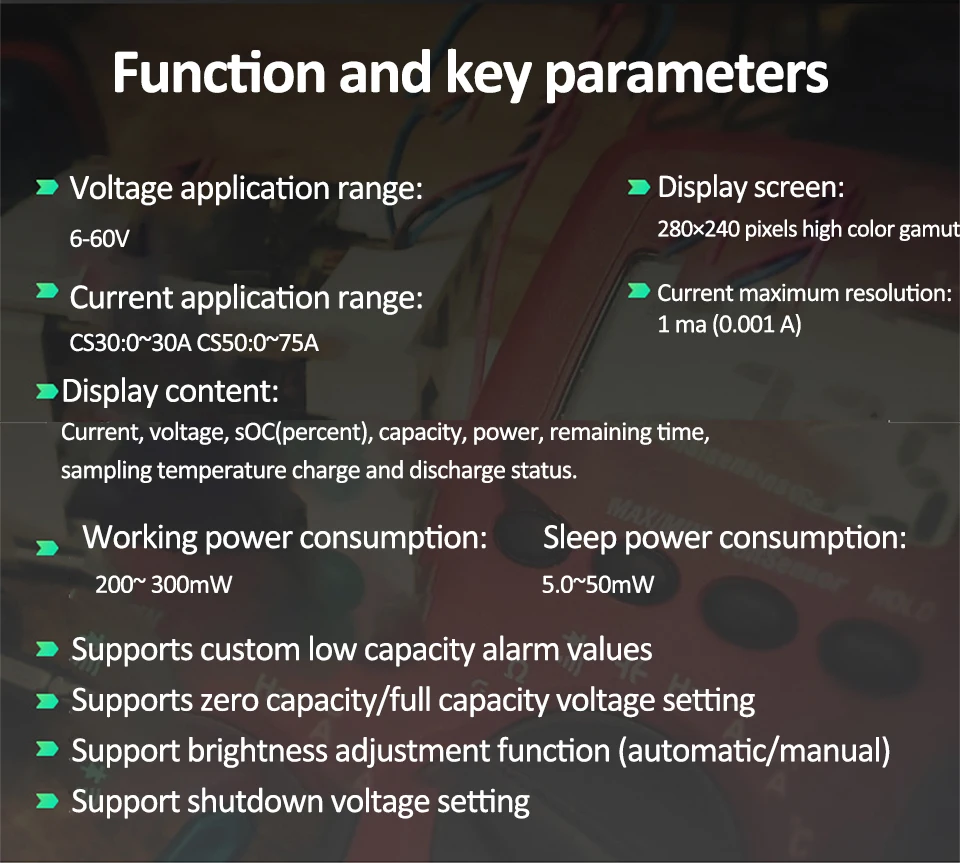

Specification:

Voltage applicable range: 6-60V

Display screen:

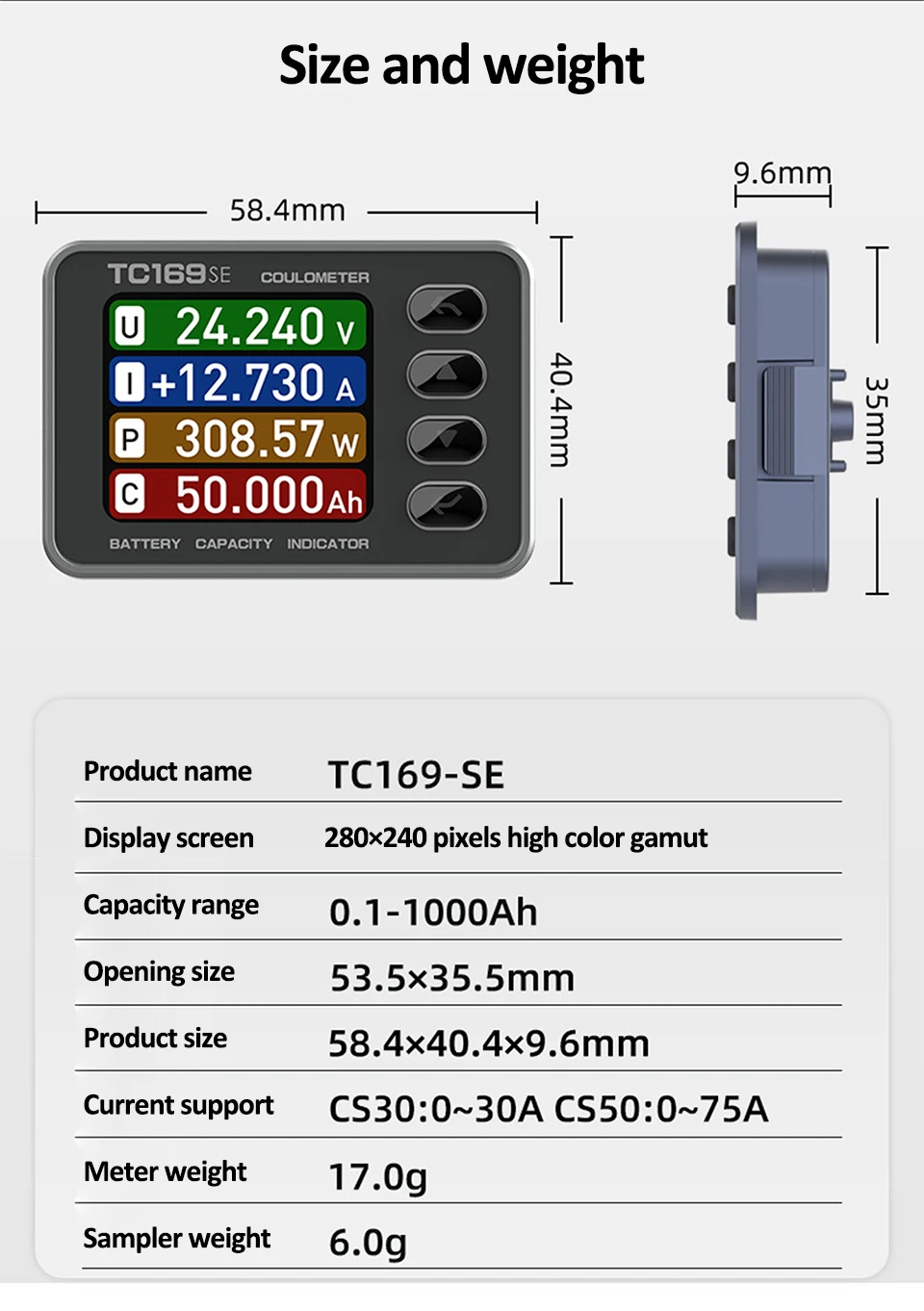

                 TC169SE:280 × 240 pixels high color gamut

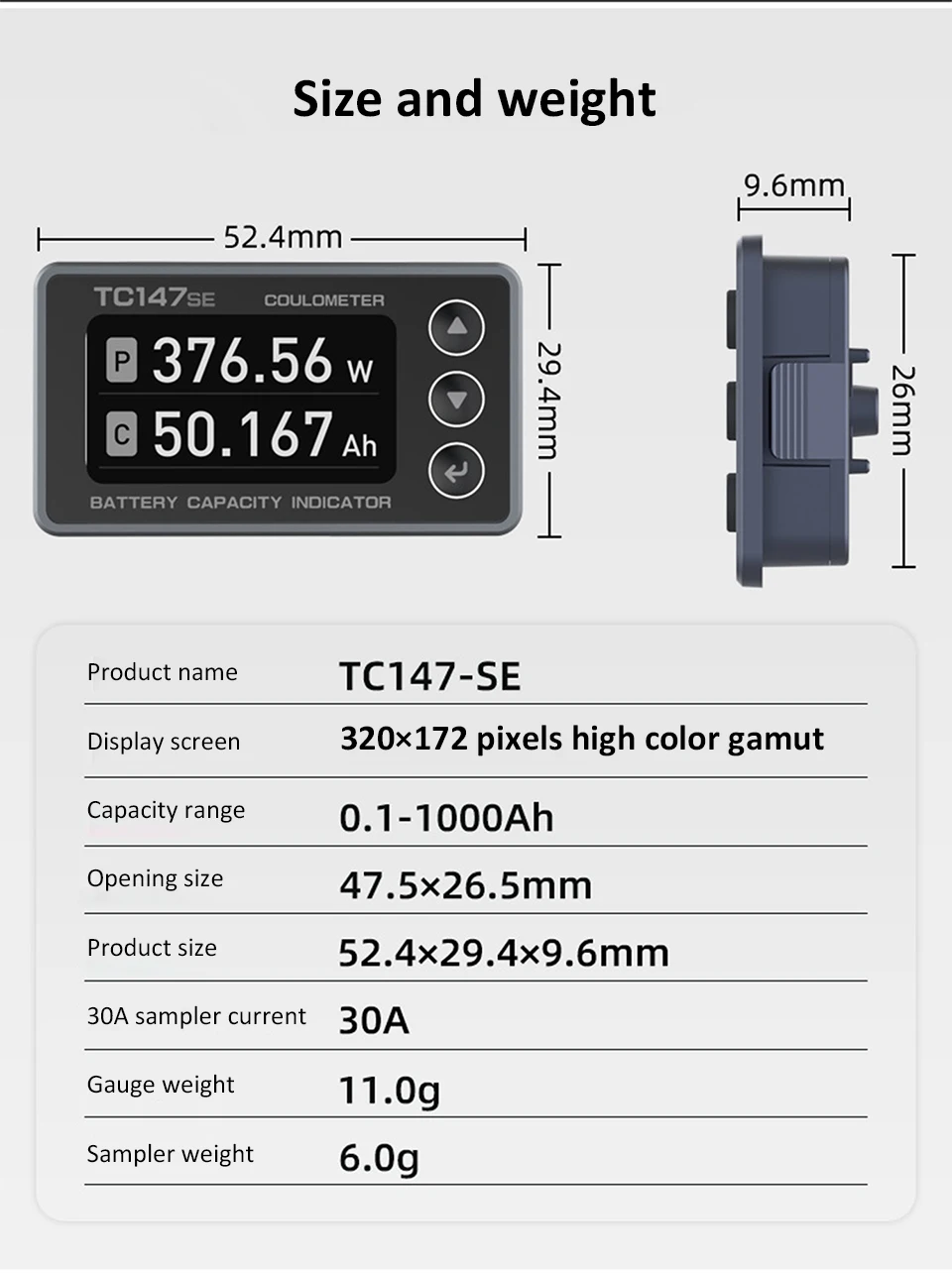

                 TC147SE:320 × 172 pixels high color gamut

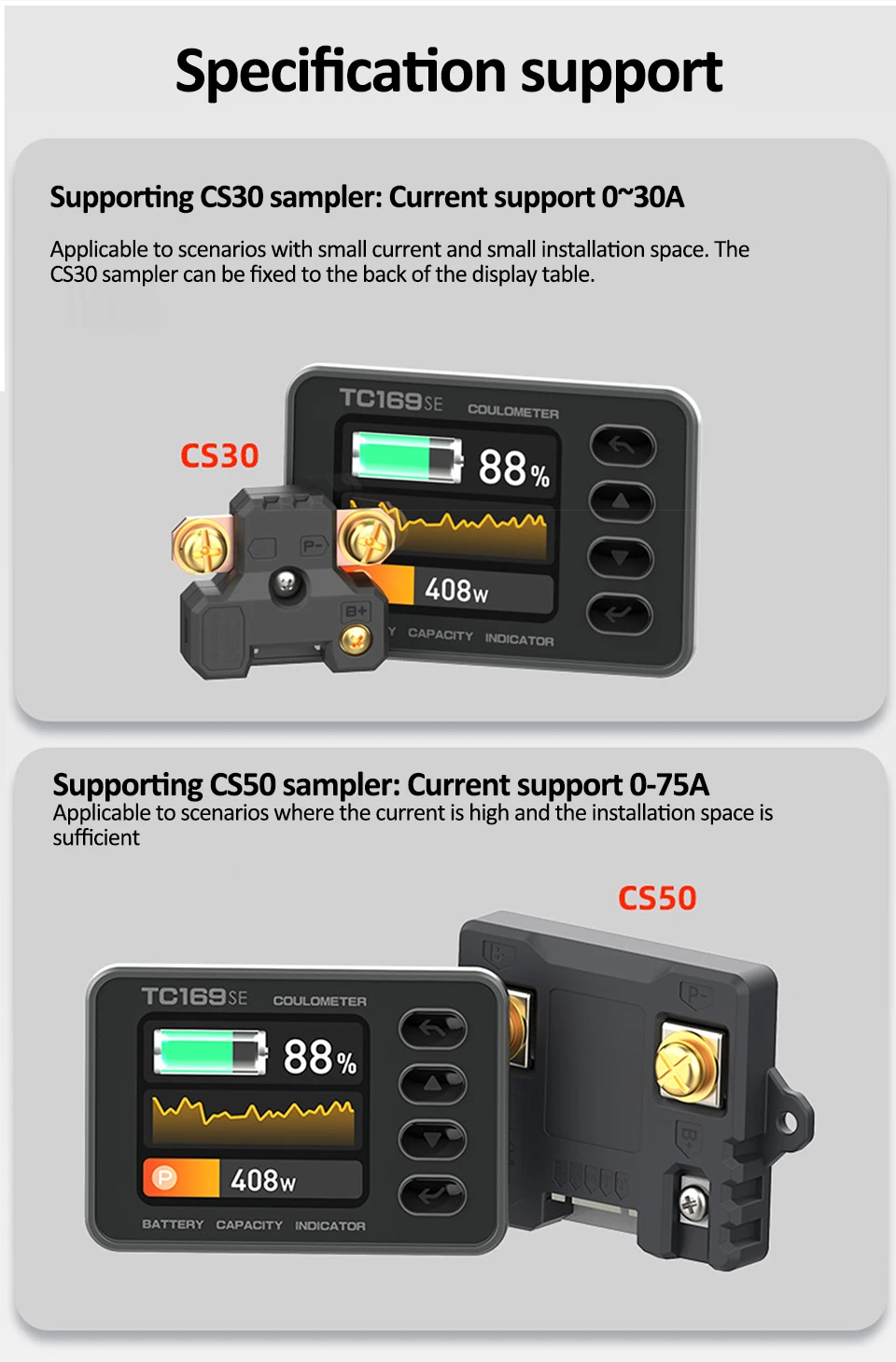

Applicable range of current: CS30:0~30A /CS50:0~75A

Maximum current resolution: 1mA (0.001A)

Display content: current, voltage, SOC (percentage), capacity, power, remaining time, sampling temperature, charge and discharge status.

Working power consumption:

                  TC169SE:200-300mW

                  TC147SE:180-260mW

Sleep power consumption: 5.0~50mW

Packing list:

1 * Battery tester(optional)

1 * Sampler

1 * User Manual
