Angle Brackets for Wood 90 Degree Corner Brace Heavy Duty 2mm Zinc Steel Repair
Zinc plated steel L-shape corner brace angle brackets for wood, 2mm thick with a narrow 13mm flange, for strong right-angle joint repairs. Four sizes from 20mm to 50mm.
This listing covers the 20 x 20mm, 30 x 30mm, 40 x 40mm and 50 x 50mm sizes, each in packs of 4, 8, 10, 12, 16 or 20, so you can order the size and quantity the job needs.
Narrow 13mm flange L brackets
Narrow 13mm flange sits flush on the narrow edges of boards and panels without overhanging, so the fixing stays neat.
Strong 90 degree metal brackets
Strong 2mm mild steel on every size, folded to a precise 90 degree angle with equal legs, so the brace closes the joint square.
Silver zinc plated angle brackets
Bright, corrosion-resistant silver zinc plated finish.
Metal brackets for wood screws or bolts
Countersunk 6.5mm holes, 2 or 4 per size, for 4mm wood screws, euro screws or M6 machine screws/bolts.
Corner brackets for wood in four sizes
Four sizes from 20 x 20mm to 50 x 50mm, for furniture, carpentry, shelving, frames and joint repair.
Technical Specification
Zinc-plated steel L-shape corner brace, folded to a precise 90 degree angle from 2mm (0.08in) mild steel, built to reinforce and repair right-angle joints in furniture, shelving, and general carpentry and joinery work. Every brace is pressed from cold-rolled EN 10130 DC01 steel, so leg length, angle and fixing-hole position stay consistent from one to the next, and each is zinc-plated for a bright, corrosion-resistant finish for dry interiors, including spaces with occasional moisture (service class 2 to EN 1995-1-1).
The defining feature of this bracket is its narrow 13mm (0.51in) flange width, held to the same dimension across all four available sizes. That narrow profile lets the brace sit flush against the edge of a board or panel without overhanging its face, so once the joint is closed up the fixing stays neat and largely out of sight – a detail that matters on cabinet backs, drawer boxes and other narrow-edge carpentry where a wide, visible bracket would spoil the finish.
Because both legs of the brace are always the same length within a given size – 20 x 20mm (0.79 x 0.79in), 30 x 30mm (1.18 x 1.18in), 40 x 40mm (1.57 x 1.57in) or 50 x 50mm (1.97 x 1.97in) – the bracket is fully symmetrical. There's no particular top, bottom or side to it, so it can simply be turned to whichever orientation lines up neatest against the board edges before it's marked and fixed.
Key Features
- Folded from 2mm (0.08in) mild steel to a precise, consistent 90 degree angle, so every brace closes the joint square.
- Zinc-plated finish gives a bright, corrosion-resistant surface.
- Manufactured from cold-rolled EN 10130 DC01 steel for a consistent gauge and flat, even legs.
- Narrow 13mm (0.51in) flange width on every size, so the brace sits flush against board edges without overhanging.
- Four sizes available, from 20 x 20mm (0.79 x 0.79in) up to 50 x 50mm (1.97 x 1.97in), to match the scale of the joint.

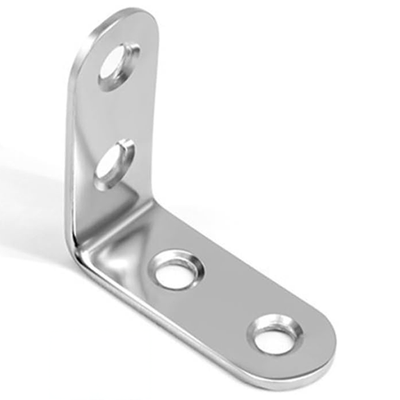

- Pre-drilled, countersunk 6.5mm (0.26in) fixing holes: 2 on the 20 x 20mm size and 4 on the 30, 40 and 50mm sizes, ready for 4mm wood screws, euro screws or M6 machine screws/bolts.
- Consistent 2mm (0.08in) material thickness across the whole size range, so strength doesn't drop off on the smaller braces.
- Lightweight construction, from 4.85g (0.17oz) each on the smallest size up to 17g (0.60oz) on the largest, for discreet reinforcement that doesn't add bulk.
Specification
| Bracket size (both legs) | Flange width | Fixing holes (6.5mm) | Weight (each) |
| 20 x 20mm (0.79 x 0.79in) | 13mm (0.51in) | 2 | 4.85g (0.17oz) |
| 30 x 30mm (1.18 x 1.18in) | 13mm (0.51in) | 4 | 7.75g (0.27oz) |
| 40 x 40mm (1.57 x 1.57in) | 13mm (0.51in) | 4 | 11.95g (0.42oz) |
| 50 x 50mm (1.97 x 1.97in) | 13mm (0.51in) | 4 | 17g (0.60oz) |
All four sizes share the same 2mm (0.08in) material thickness and pre-drilled 6.5mm (0.26in) fixing holes, so strength and fixing method stay consistent whichever size is chosen.
Typical Applications
- Cabinet and furniture carpentry – reinforcing carcass corners, drawer boxes and frame joints where a low-profile fixing is needed.
- Drawer and frame construction – squaring up and holding butt joints while glue cures, then providing permanent reinforcement once fixed.
- Shelving supports – strengthening the corner joints of shelf units and small storage frames.
- Picture and mirror frames – reinforcing mitred or butt corners on the back of a frame without the brace showing from the front.
- General joinery repairs – re-fixing a loosened right-angle joint on existing furniture or fittings without replacing the whole piece.
Because the flange width stays the same 13mm (0.51in) across all four sizes, the fixing stays just as discreet on the larger sizes: the smaller braces fit narrow-section timber and delicate framing, such as picture frames and small drawer boxes, and the 40 x 40mm (1.57 x 1.57in) and 50 x 50mm (1.97 x 1.97in) sizes reach further across wider boards and carcass corners.
Fitting & Installation Guidance

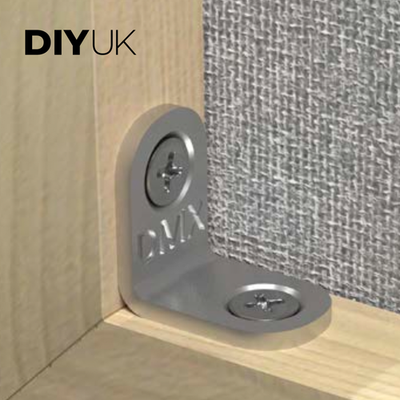

Offer the brace into the internal corner of the joint, with both legs sitting flush against the adjoining faces, and check it is square before marking. Mark the fixing points through the pre-drilled 6.5mm (0.26in) holes, then pilot-drill the timber or panel to suit. Fix with 4mm wood screws or euro screws for timber and panel joints, or M6 machine screws/bolts where a through-bolted connection is needed, tightening evenly across all fixing points so the brace draws the joint up square rather than pulling it out of alignment. Choose the smallest size that comfortably spans the joint for the neatest, most discreet finish, and step up a size where the board is wider or the joint needs extra rigidity.
Common Questions
- What are these corner brackets used for? These metal brackets for wood, also called L brackets, corner braces, metal corner brackets or right angle brackets, reinforce and repair right-angle joints in furniture, cabinets, drawer boxes, shelving and picture frames. Each 90 degree bracket has equal legs and a narrow 13mm flange that fixes to the narrow edges of boards and panels.
- What sizes are available? Four sizes, all 2mm thick with a 13mm flange: 20 x 20mm, 30 x 30mm, 40 x 40mm and 50 x 50mm, in packs of 4, 8, 10, 12, 16 or 20.
- What do I fix them with? 4mm wood screws or euro screws for timber and panels, or M6 machine screws/bolts, through the countersunk 6.5mm holes: 2 on the 20 x 20mm size and 4 on the larger sizes.
