Specification：

• Voltage: 12V/24V DC;
• Stroke Length: 2"-40" (50mm-1000mm),
• No load speed: 0.2 "/sec (5mm/s)
• Maximum Load: 660lbs (3000N);
• Maximum current draw: 5A/2.5A;
• Duty Cycle:10%, Working power should reach 40W-50W

Powerful & Long-Lasting Upgraded Motor:

Linear motion actuator with high-performance motor provides 660 lbs max thrust & 440 lbs max pull, ideal for heavy-duty use.Built-in screws ensure strong rustproof & waterproof performance, while reducing exposed fasteners and lowering maintenance difficulty.

Durable & Robust Material：

Crafted from high-quality aluminum alloy, this linear actuator with corrosion resistance,heat dissipation and high hardness,it can extend the service life,and the black powder-coated surface of the actuator can enhance corrosion resistance.

Quiet Operation & Stable Base Design：

Low-noise design (≤50dB),with a premium plastic turbine that resists oxidation, extends service life, and ensures quiet movement.Upgraded four-corner fixed base, which resists loosening and breakage, enhances stability and ensures operational safety.

Reliable Operation & Easy to Install：

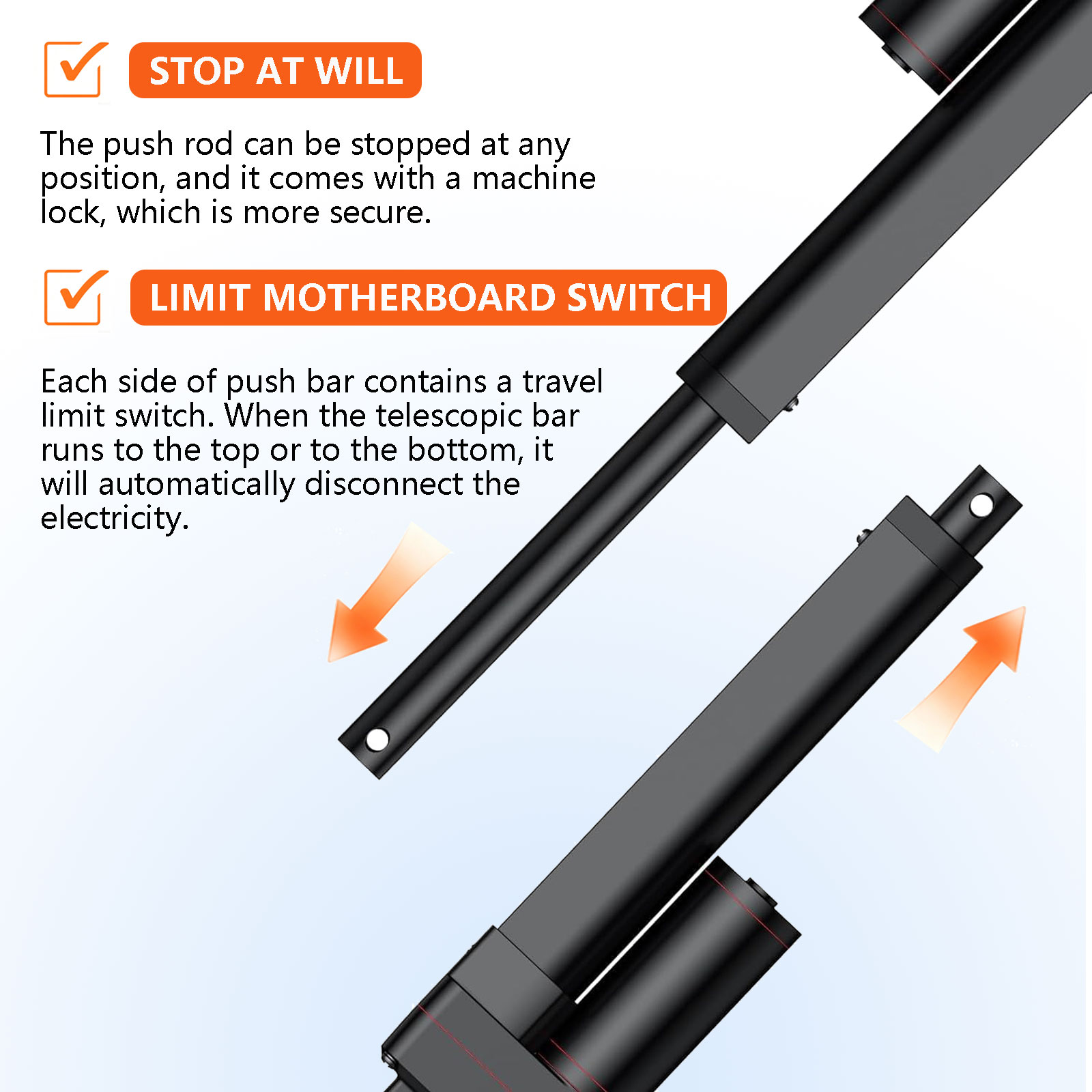

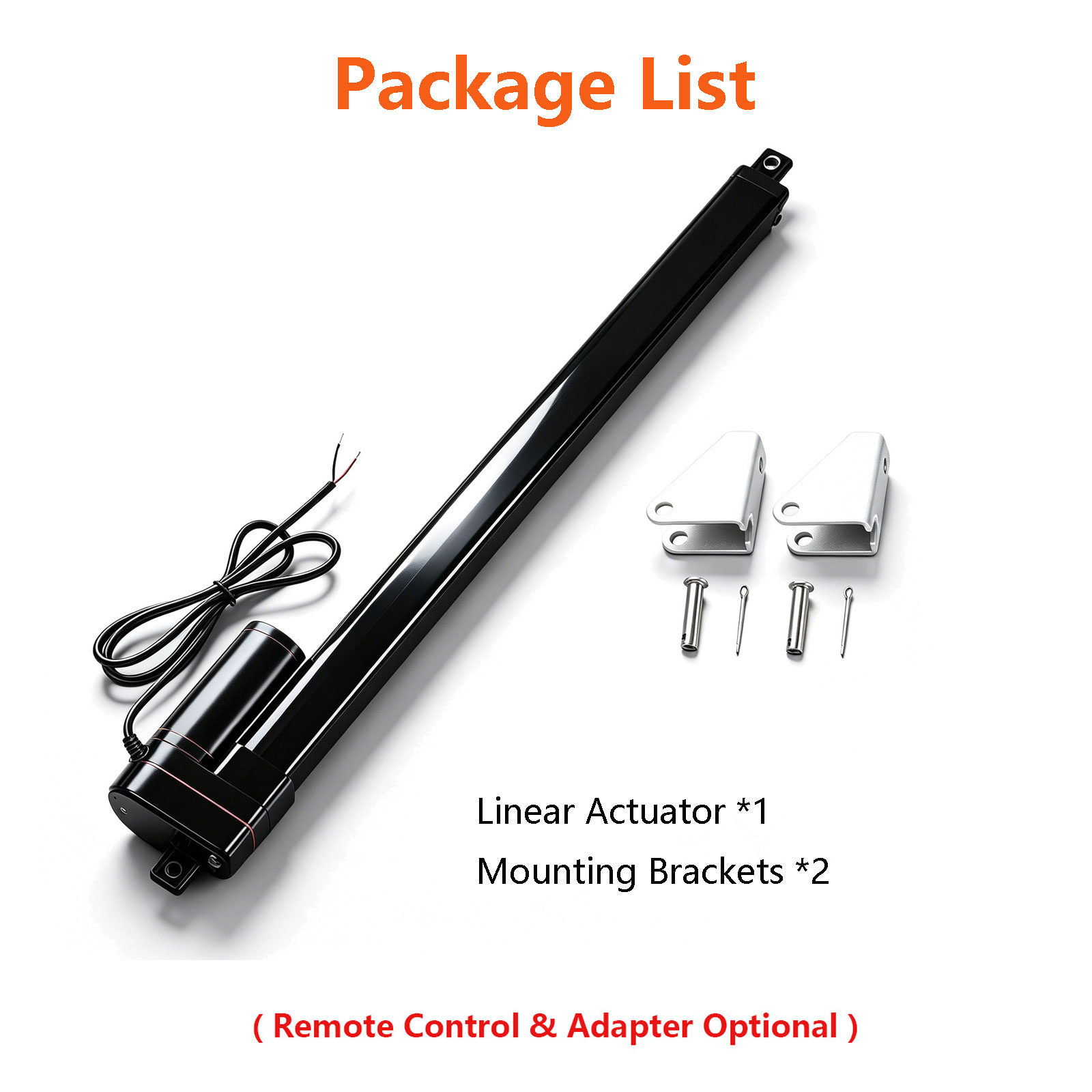

Equipped with a limit switch,it can automatically stop the motor when reaching both ends, and its strong self-locking function allows it to stay in any position,preventing motor burnout and load slipping.The linear actuator comes with mounting brackets for quick, easy assembly.

IP65 Waterproof Rating & Multi-Scene Applications：

With an IP65 waterproof rating, this actuator is suitable for indoor & outdoor use, withstands dusty environments, splashing water, and lightly humidity (Note:Please take appropriate protective measures for long-term outdoor use). Ideal for industrial electric lifting systems, door openers, electric beds, sofas, sunroofs, solar trackers, and various marine and RV equipment.

NOTE:

• Please use the 12V/24V DC power battery. If the voltage is lower than 12V/24V, the linear actuator can't work normally, if the voltage is much higher than 12V/24V, the linear actuator will be damaged.
• Please makes sure that the actual load does not exceed the rated load.
• All the actuators have duty cycle, they are unable to work all the time without stop.
• Operating Temperature: -4°F to 140°F (-20°C to 60°C). Please don't store or operate in high temperature or humid environment, and do not place in corrosive gas.
• The working power should reach 40W-50W.
• For optimal performance,you can use the actuator in conjunction with a controller,which makes it easier to control the extension and retraction of actuator.
