Features:

• Each side contains a travel limit switch. When the telescopic pole moves up or down, the power supply is automatically cut off,the engine does not idle. Turn off the power supply, it can be stopped at any position with self-locking function;
• Driven by a DC motor with a screw drive. The telescopic rod can only be retracted without turning;

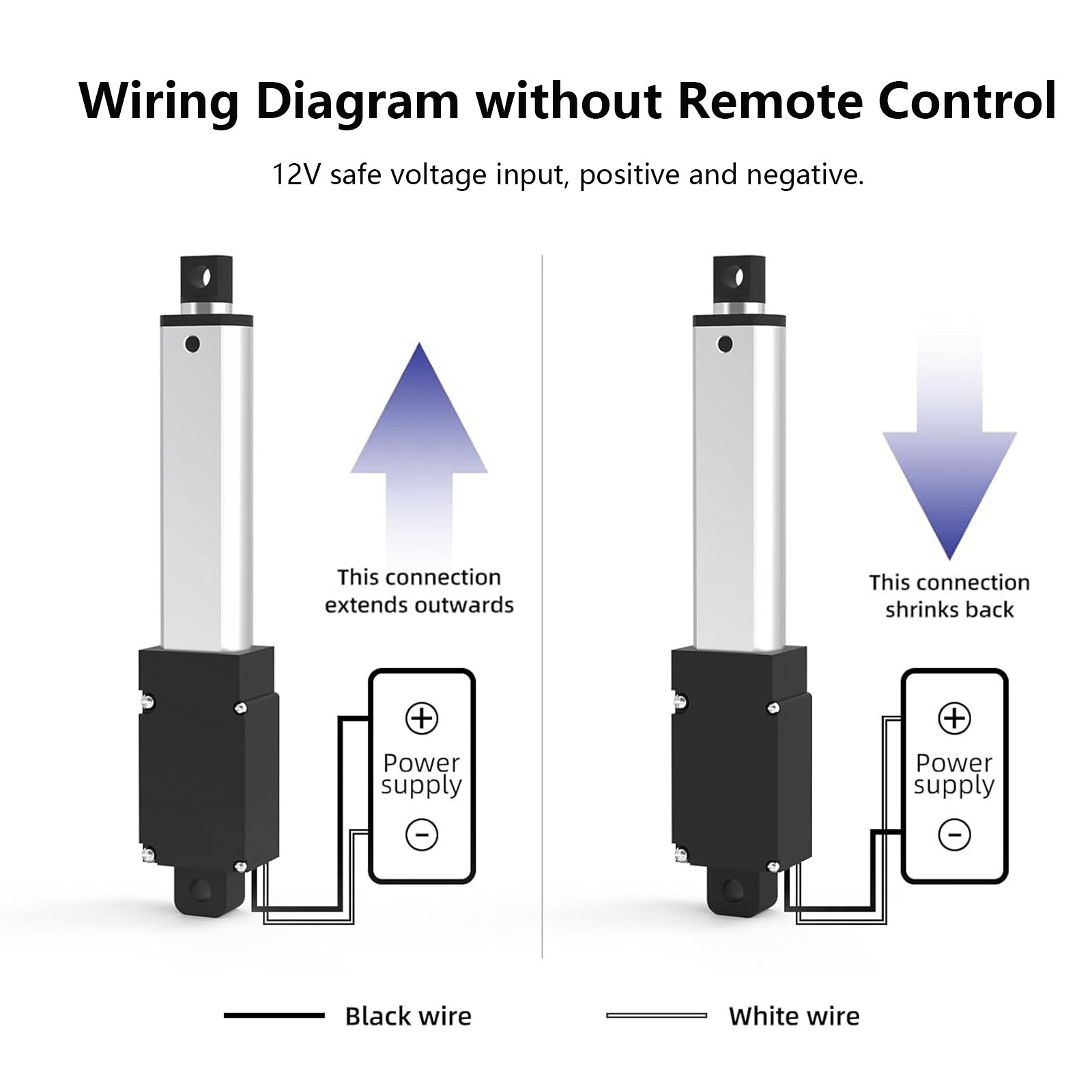

• The engine has positive and negative. For example, when the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it;
• Ambient temperature -10 ° C to + 50 ° C;
• Standard protection class: IP54;

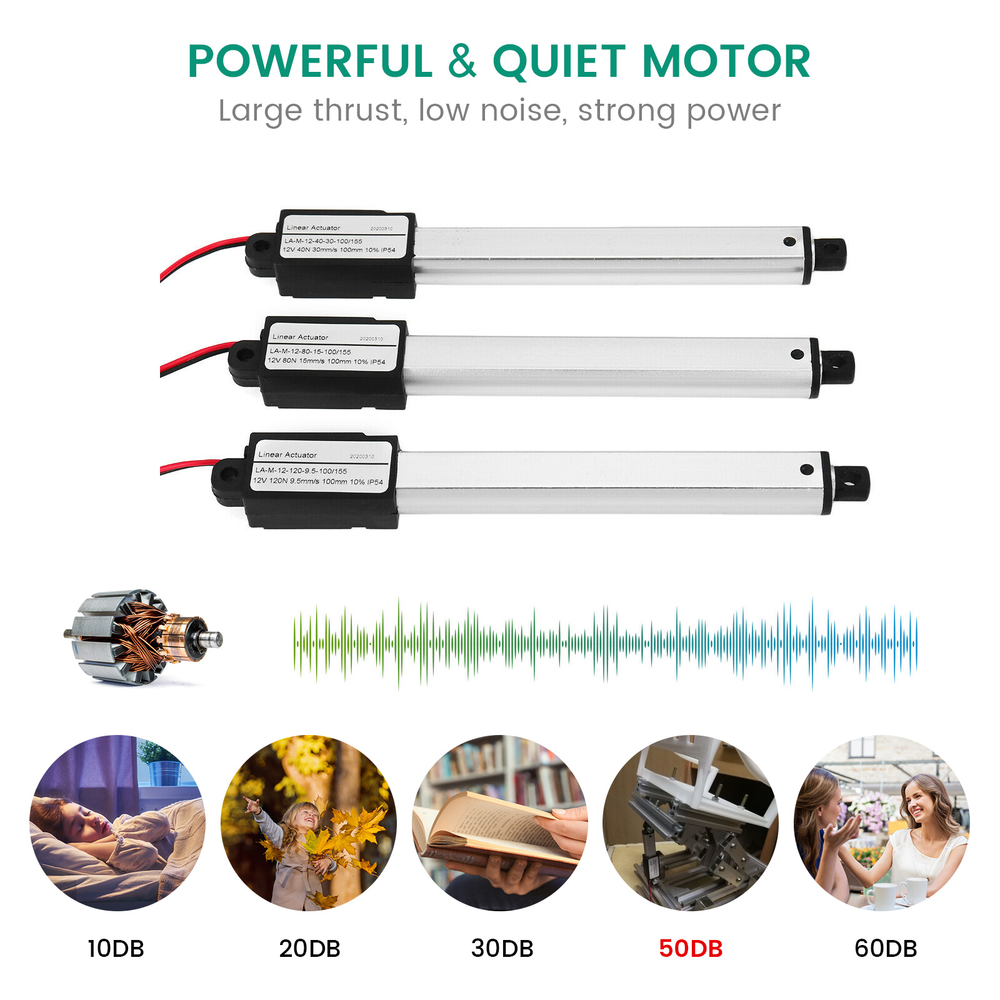

• Low noise design, noise level below 50dB;
• Product features: drive other objects to push, pull, lift and fall;
• Product Applications: TV Lift Tables, Massage Beds, Electric Beds, Medical Chairs, Electric Appliances, Micro Devices, Electric Sofas, Camera Frames, Cameras, and More;

Specifications:

• Input voltage: DC 12V;
• Current: 0.04A~0.2A;
• Stroke Length: 0.83"/21mm,1.18"/30mm, 2"/50mm, 3"/75mm, 4"/100mm (Optional);
• No-load Speed: 6.4N(150mm/s), 19.2N(50mm/s), 32N(30mm/s), 64N(15mm/s), 96N(9mm/s), 188N(5mm/s)(Optional);
• Low noise: The low noise design, noise level below 50dB;
• Operating frequency: 10%;
• Material: aluminum alloy housing;
• Degree of protection: IP54, protection against dust, water and corrosion, suitable for outdoor use.
• Internal limit switch, switch off automatically when it reaches in the case of motoridling.

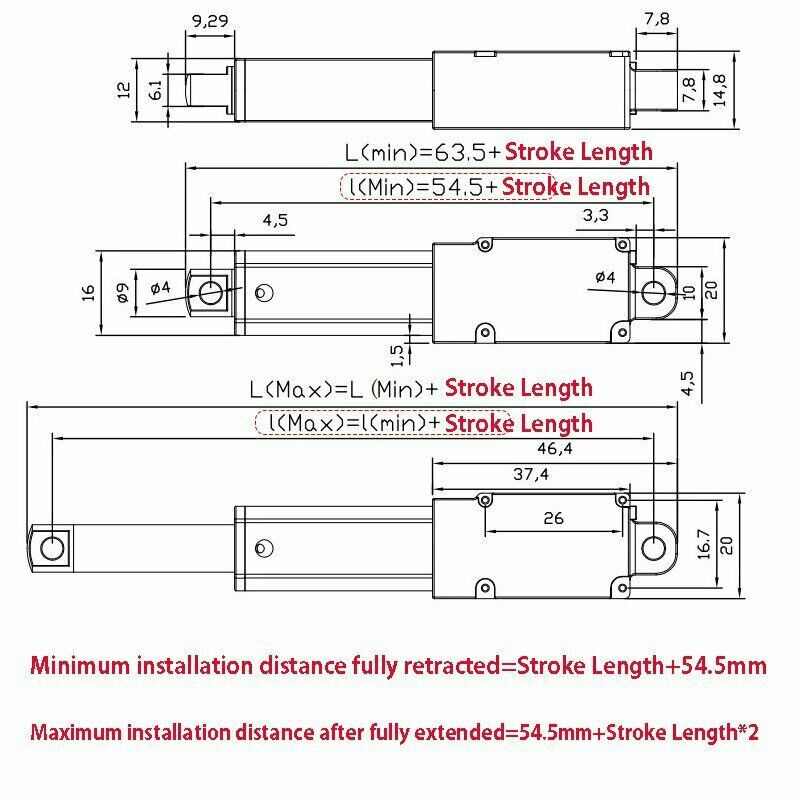

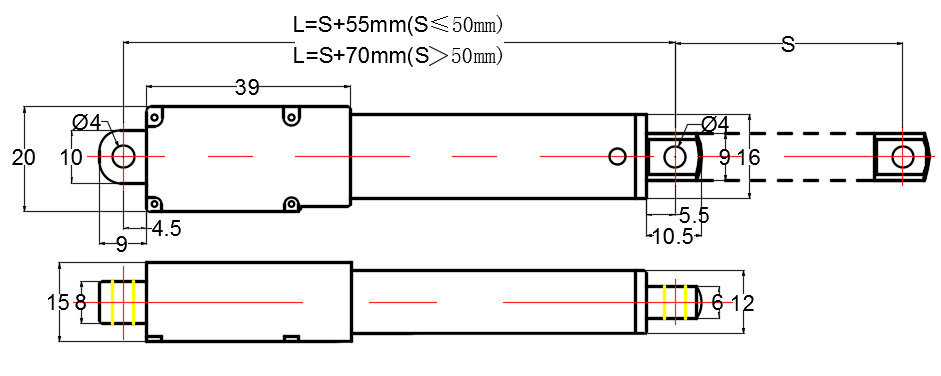

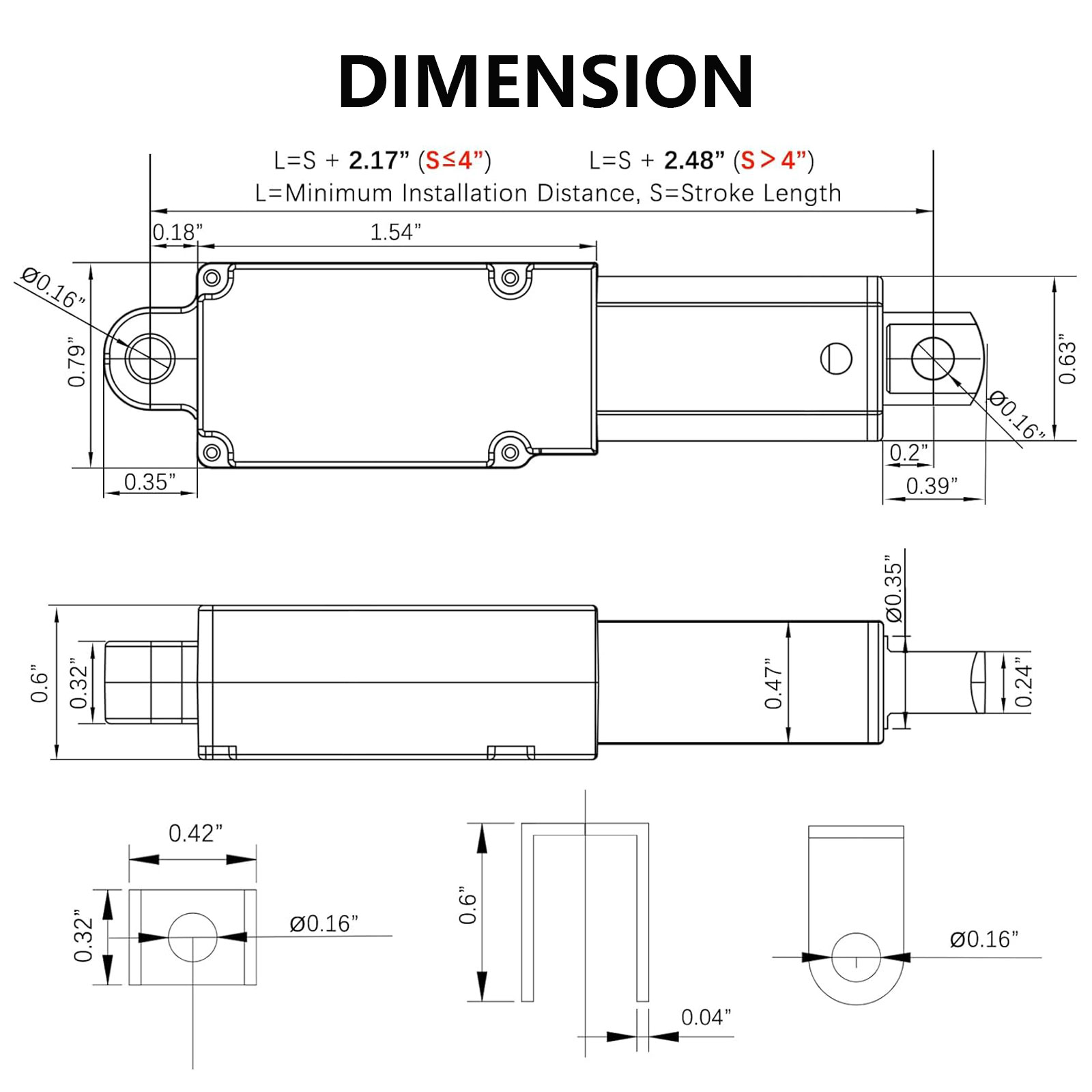

Stroke length=S

The mini installation distance=L, The max installation distance=L+S

Please allow +5% tolerance due to manual measurement.

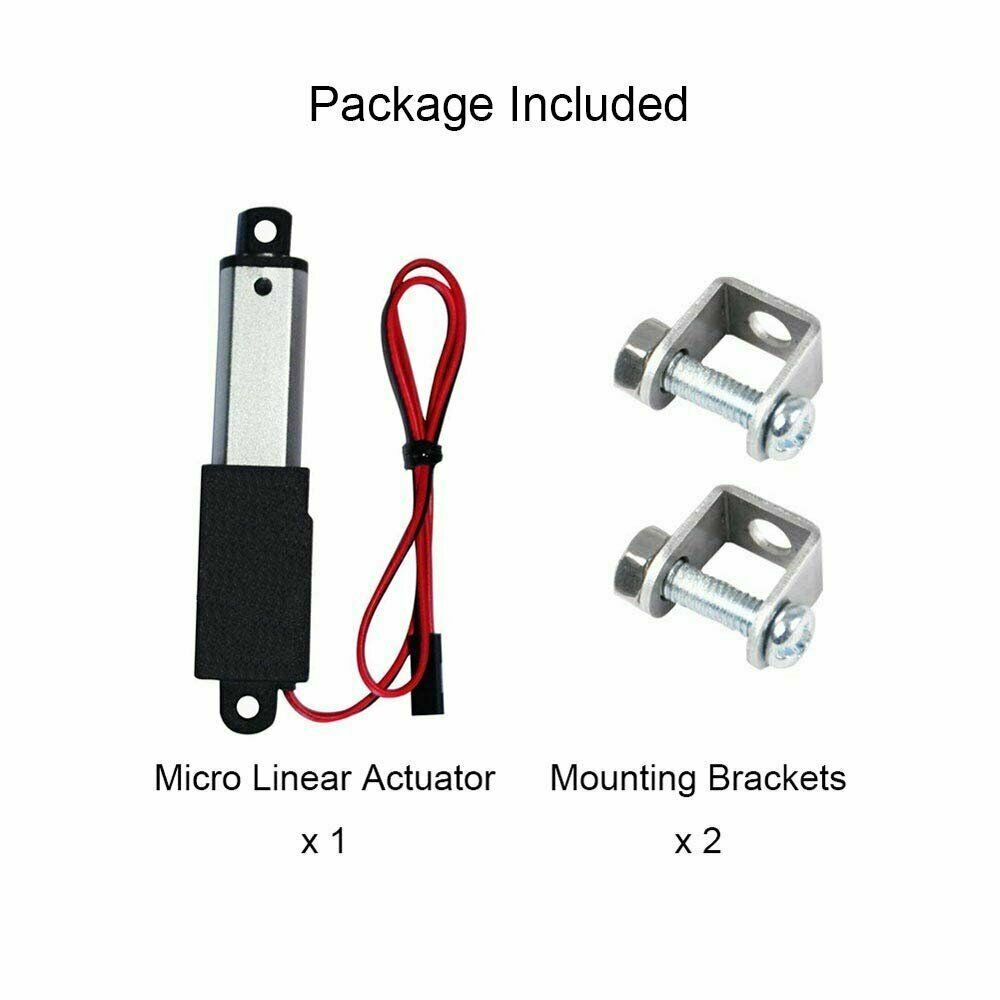

Package included:

• 1* Mini linear actuator
• 2 * Mounting brackets
• Remote Controller (Optional)
• 12V Power Supply (Optional)

Details：

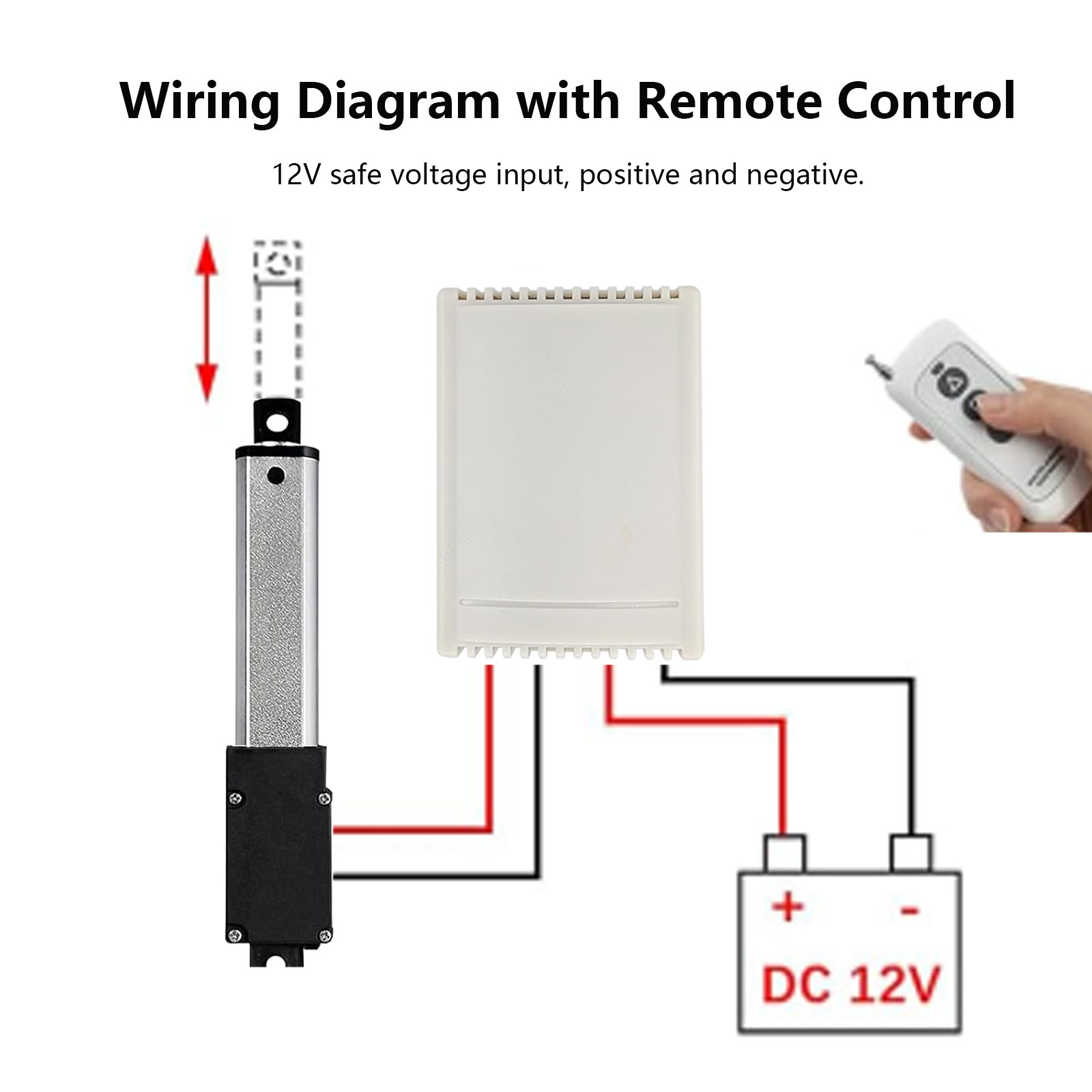

Remote Controller：

12V Power Supply：
