High-quality XLPE sheathing, resistant to harsh weather conditions, withstands temperatures up to 120°C (248°F)

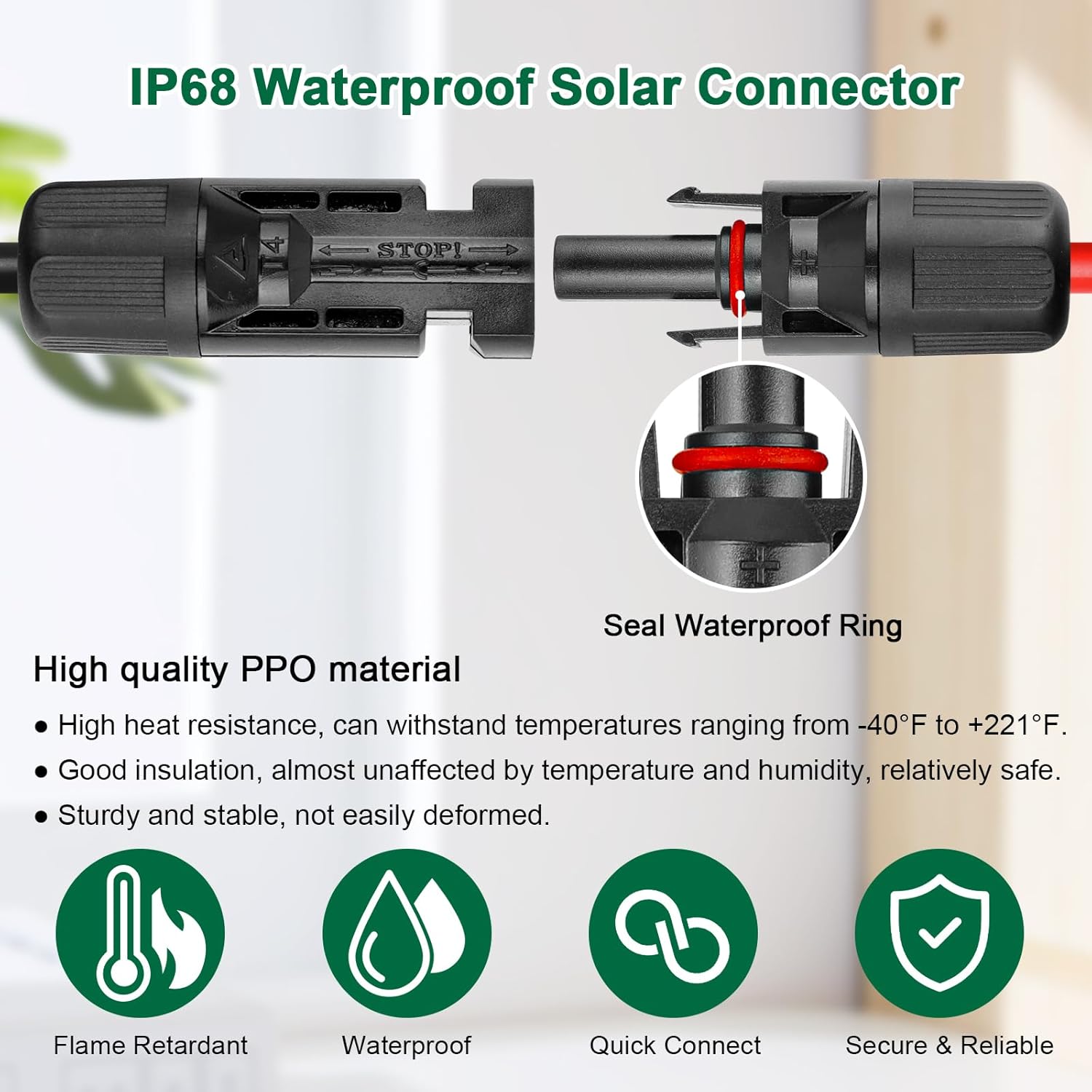

Standard solar connector, quick connection, made of PPO material, corrosion resistant, oxidation resistant, long service life.

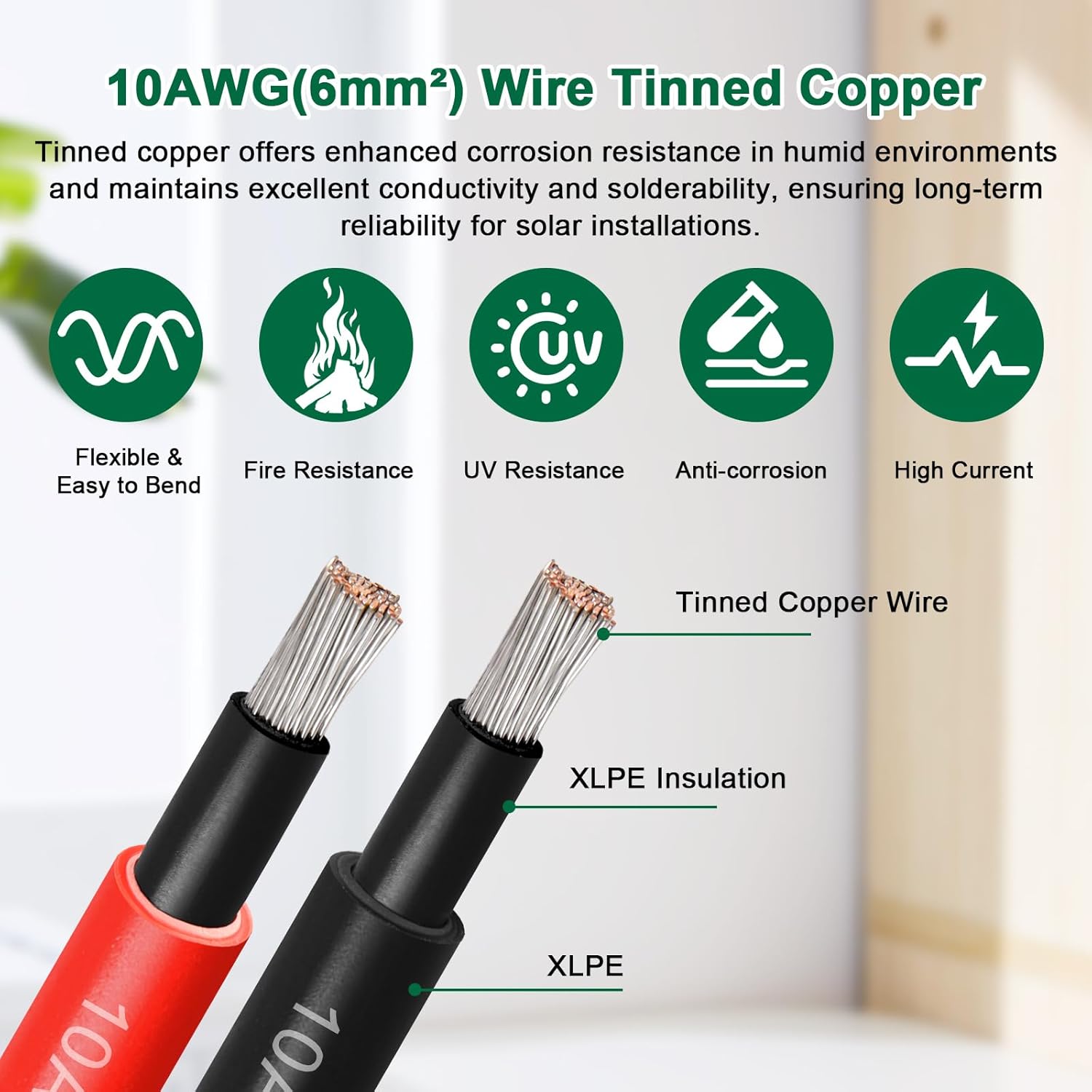

The tin-coated copper core provides superior oxidation and corrosion resistance, maintaining stable high conductivity even in humid, salty, or harsh environments to extend cable lifespan. The tin layer also improves solderability and ductility, ensuring more secure connections and reducing resistance-related overheating risks.
Product Name: Solar Cable
🍀Product specification: Black + Red 12AWG
🍀Conductor cross-section is 4.0mm² or 6.0mm²
🍀Protection class: IP67
🍀Short circuit resistance: up to 200°C / 5s
🍀Thermal expansion test at 200°C
🍀Rated voltage (Uo/U): AC 0.6/1.0 kV / DC 0.9/1.5 kV
🍀AC voltage test: AC 6.5 kV
🍀Maximum permissible voltage: 1.8 kV
🍀Temperature range: -40°C to 90°C
🍀Max. Conductor temperature: 120°C
🍀Rated voltage: 0.6/1 kV AC
🍀Operating voltage: 1.5 kV DC according to EN 50618
🍀Test voltage 50 Hz: 3500 V
🍀Insulation material: PPO (polypropylene)
🍀Insulation resistance: 1000 MΩ/km
🍀Minimum insulation resistance at 20°C: 580 MΩ.km
🍀Minimum insulation resistance at 90°C: 0.58 MΩ.km
🍀Permissible wire position in the conductor: 0.31 mm
🍀Wall thickness of the insulation: 0.7 mm
🍀Wall thickness of the housing: 0.8 mm
🍀Operating temperature: -40°C to +90°C
🍀Maximum core temperature during cable operation: + 120 °C / 20,000 h
Specifications:

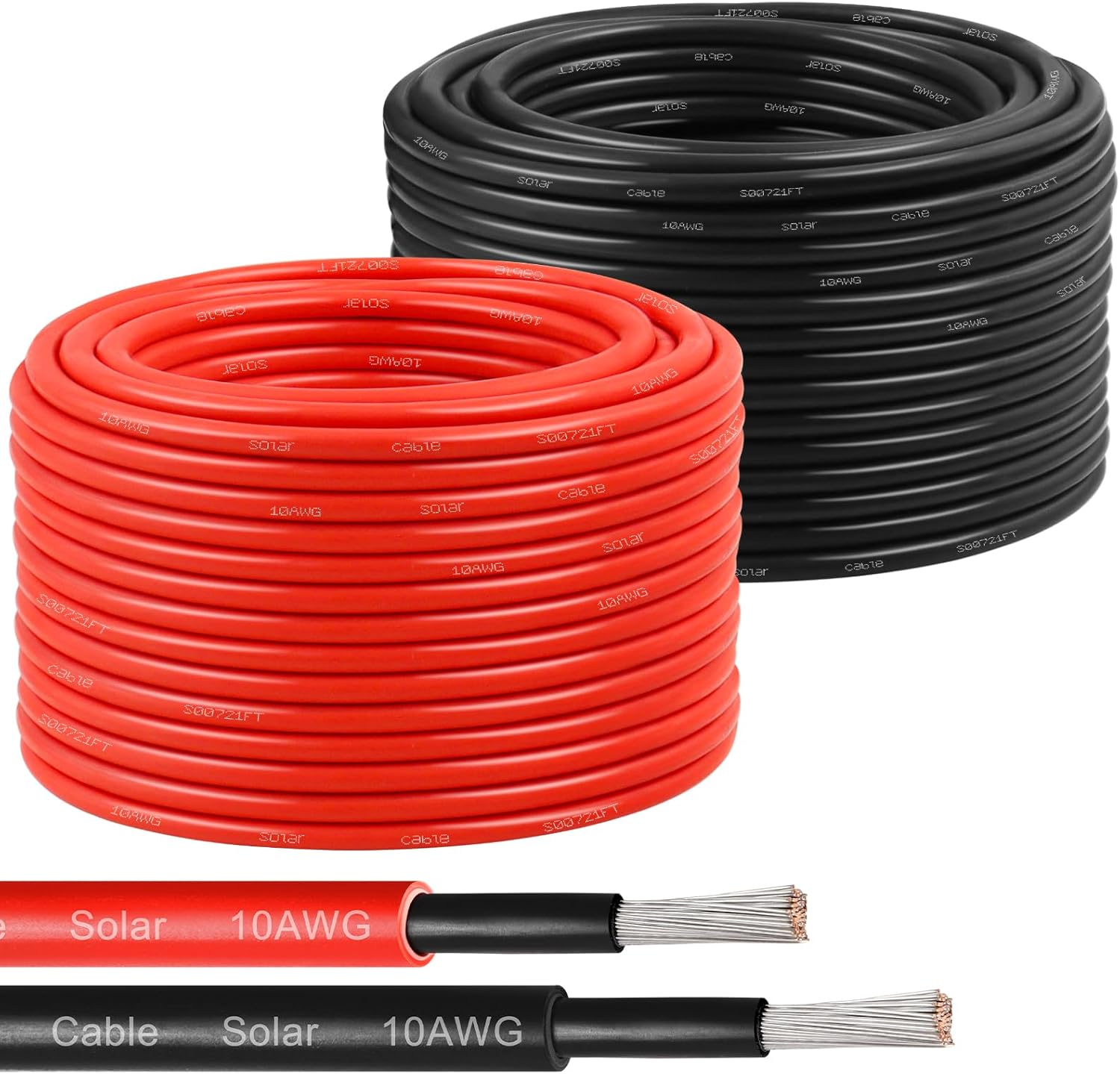

【Quality Solar Panel Extension Cable】The solar panel extension cable is made of tinned conductive copper material
to ensure good electrical conductivity and the solar connector shell is made of PP insulating material with excellent
anti-ageing and UV resistance. The wiring not affected by weather and the solar cable can withstand heat or cold
environment.

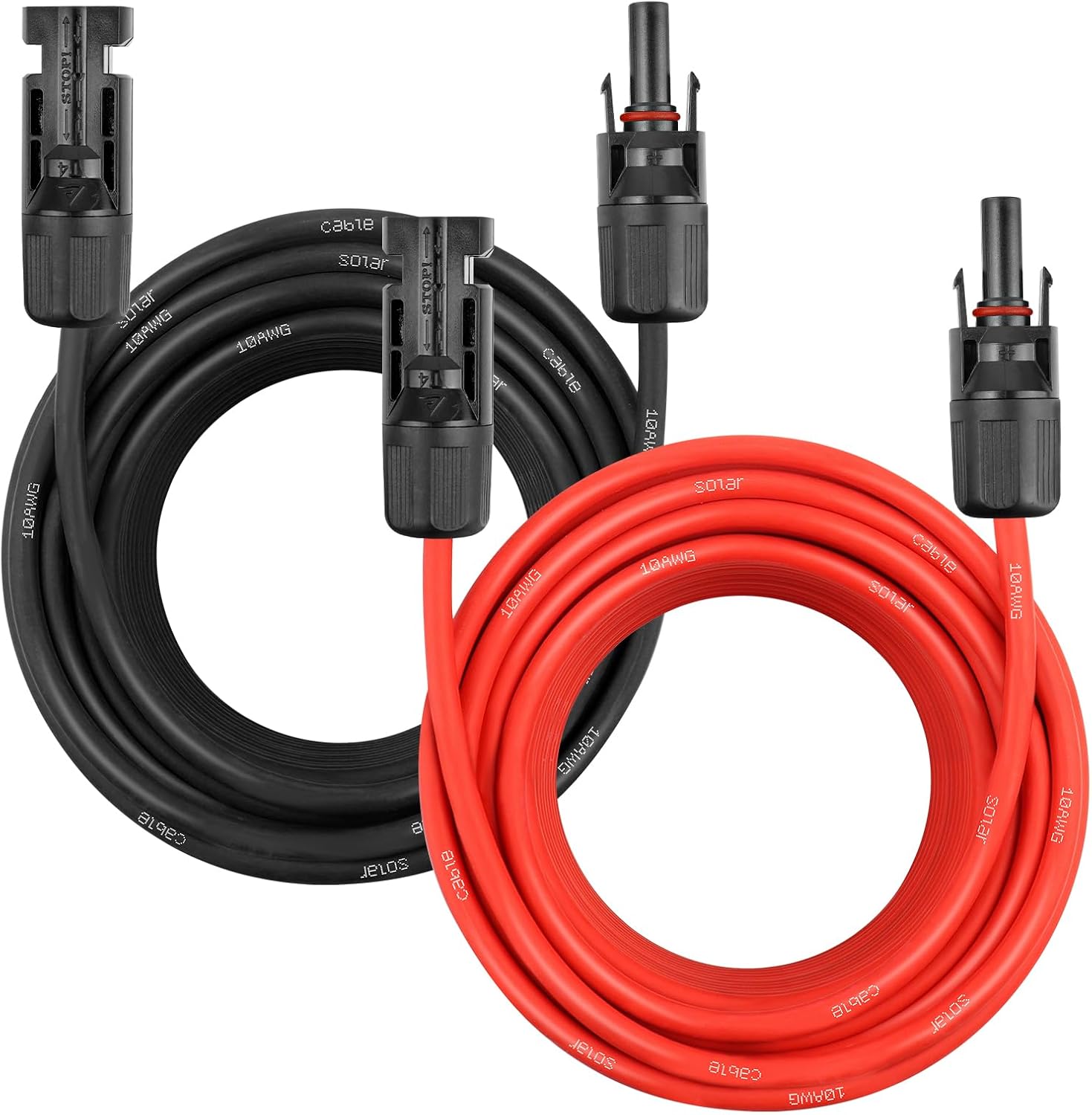

【Technical Specifications】One set includes one red cable and one black solar extension cable. Cross sectional area:
approx 4/6.0mm². Insulation thickness 0.65mm. Temperature range:-40~120℃. Rated voltage: AC 0.6/1kV. Rated current:
30A. (Parameters may vary slightly depending on the environment or cable length)
【Easy to Install】Our solar panel cables come with connectors and can be used without the need to install the cables
and plugs yourself. Male and female connectors have a stable self-locking system and are easy to insert and withdraw.
No tools are required for installation or removal. Only one end needs to be connected to the solar panel and the other to
the solar charge controller.
【Widely used Solar Panel Connector】Designed for outdoor use, they are moisture resistant, high/low temperature resistant,
UV resistant, corrosion resistant and IP68 waterproof. The red and black PV extension cables are suitable for outdoor use on

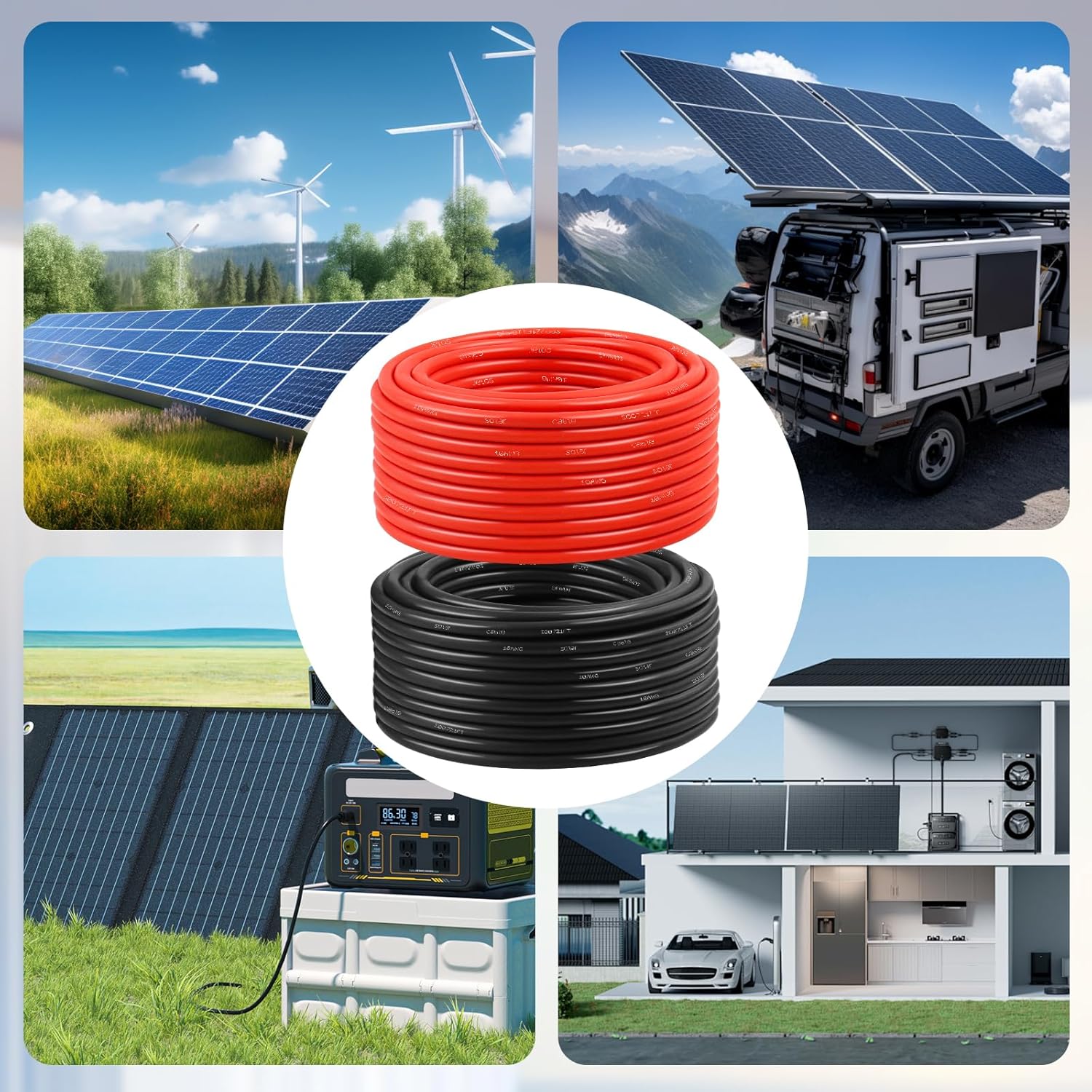

solar panel roofs, boats, caravans, traffic lights, car park charging stations or cars powered by solar panels, and many other
applications.
【Reduced Power Loss】The more common solar extension cables are the 14AWG, 12AWG and 10 AWG sizes. The solar cables
we offerred are 10 AWG which are designed for on-grid and off-grid systems. The use of larger diameter cables minimises power
loss in solar panel system
