1. Input voltage range DC10-60V, ultra-wide voltage range
2. Easy to install and use
3. High-end material configuration, long service life
4. Strong practicality, wide range of uses, the speed controller can control the speed of the motor in the speed range of 5%-100%.
5. Advanced technology, high efficiency, large torque, small heat, has been revised many times, has been widely and stably used in industrial production
Governor of the power supply positive and negative can not be reversed, reverse will directly damage the governor!!!!
Input voltage range: DC10-60V
Applicable current range: continuous current within 10A.
Maximum current: 20A
Speed control range: 5%-100%
Model:CCM96SK
Potentiometer: Resistance value B100K; Opening 8mm.
Input voltage:DC10-60V
Output voltage is about 0-100% of input voltage.
Control power:12V*10A=120W,24V*10A=240w......
Rated current:10A
Maximum current:20A
Speed control range:5%-100%.
Size:88mm*59mm*35mm
PWM frequency:25kHz
Weight:94g
1, DC motor speed regulator input is DC, can not be directly connected to the AC power (such as: home)
(such as: home 220V AC) or it will burn out!
2, DC power supply positive and negative poles can not be reversed, otherwise the governor will be damaged.
3, the motor can not be divided into positive and negative, when the running direction is inconsistent with the expectations, can be adjusted through the wire sequence
to change the direction; 4, adjust the potentiometer knob
4、Adjusting the potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.

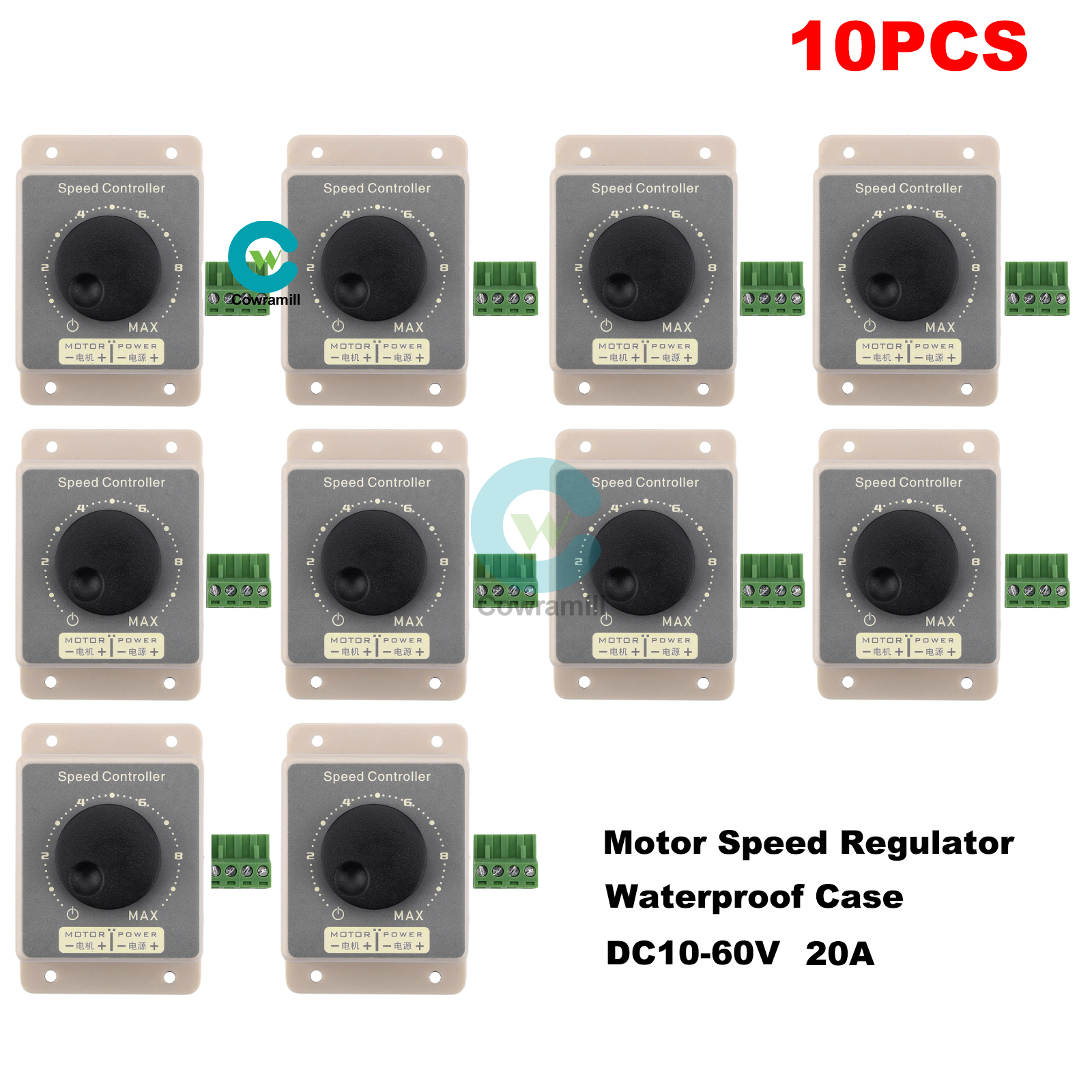

10X Speed Controller
