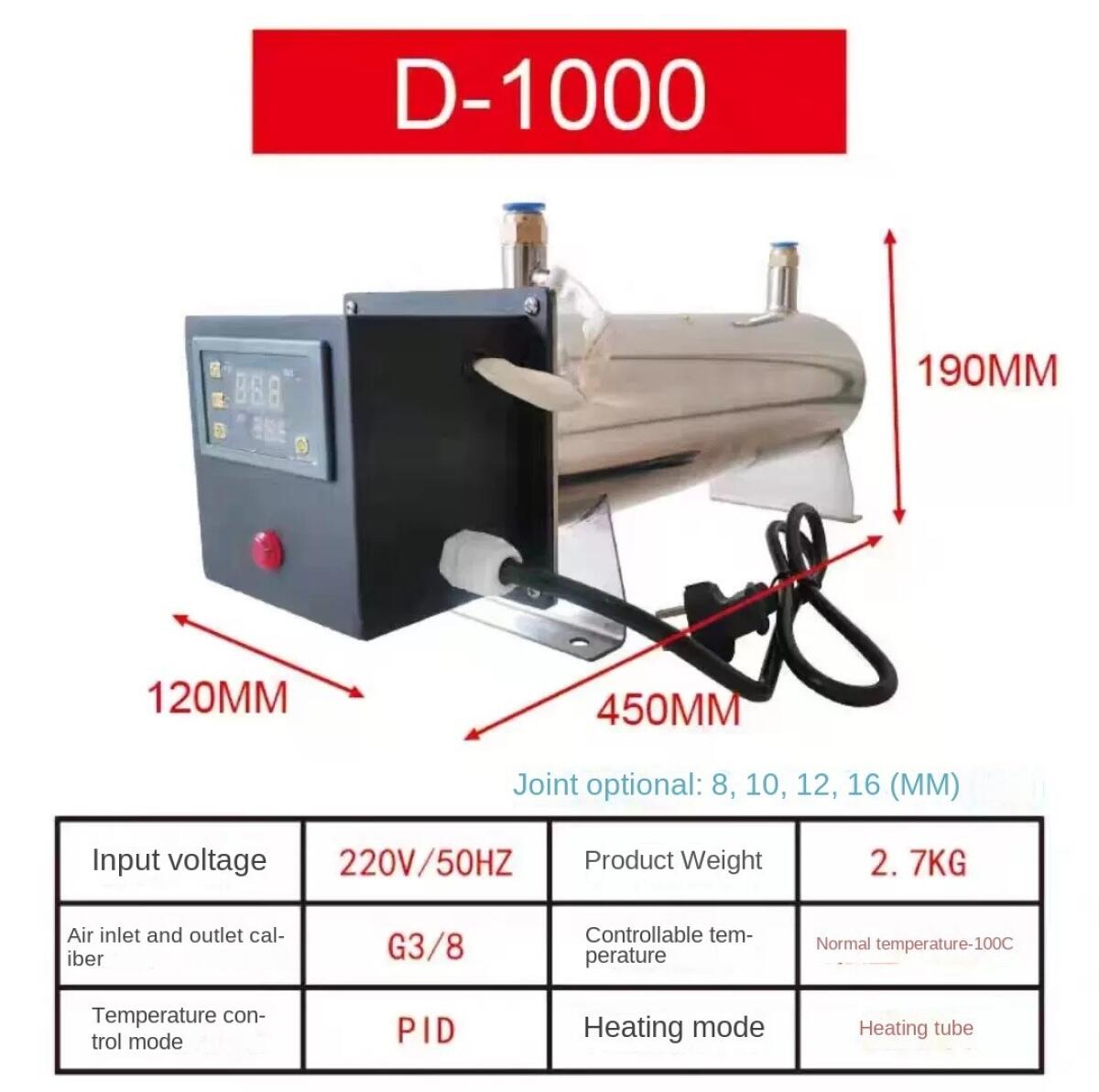

Input voltage: 220V/50HZ
Product weight: 3KG
Inner diameter of entrance and exit: G3/8
Controllable temperature: room temperature to 100°C
Temperature control method: button
Heating method: heating tube
Automatic temperature control, not afraid of dry burning
Independent protection device, cut off the power immediately if the temperature is too high
Safety and energy saving
fast heating
Controllable from normal temperature to 80°C, wide adjustment range, uniform heating
Cold air in, hot air out
Heats up quickly and effectively removes moisture from compressed air
Rapid heating effect is outstanding: built-in high-end resistance wire, filled with heat-conducting crystalline magnesium oxide powder, resulting in uniform heating.
Lightweight and space-saving: Abandon the large volume design and adopt a small and exquisite appearance, thus saving you more space
The flame-retardant shell is safe and secure: thermosetting material, good heat resistance, even if exposed to an open flame, it will only gradually carbonize and will not burn, which is safer
Working principle of air heater:
The air heater can heat up, keep warm and heat the gaseous medium of the airflow. When the heating medium passes through the heating chamber of the electric heater under pressure, the principle of fluid thermodynamics is used to uniformly take away the huge heat generated by the electric heating element when it is working, so that the temperature of the heated medium meets the requirements of the user's process.
The heating element has an independent overheating protection device. When the temperature of the heating element is too high, the heating power will be cut off immediately, which effectively prolongs the service life of the electric heater.
Scope of application: Mainly suitable for cold areas, dry air areas, hot air spraying in electrostatic spray booths, and pipeline heating, which can effectively prevent the frosting phenomenon of the compressed air of the air motor from being too cold, and make the painting effect better.
In the southern region, the air is too humid and the air contains high moisture, which can effectively dehumidify and prevent moisture, and control the air temperature at a normal temperature.
Applicable to: electrostatic spraying room, not afraid of dry burning, can work without air flow
Hot air spraying: fast heating response, adjustable heating temperature from room temperature to 80°C
Pipeline heating: start to heat up immediately, built-in electric heating pipe knob temperature control
