Description
APC AP8958 switched 16A PDU new and unused in original and sealed APC box.

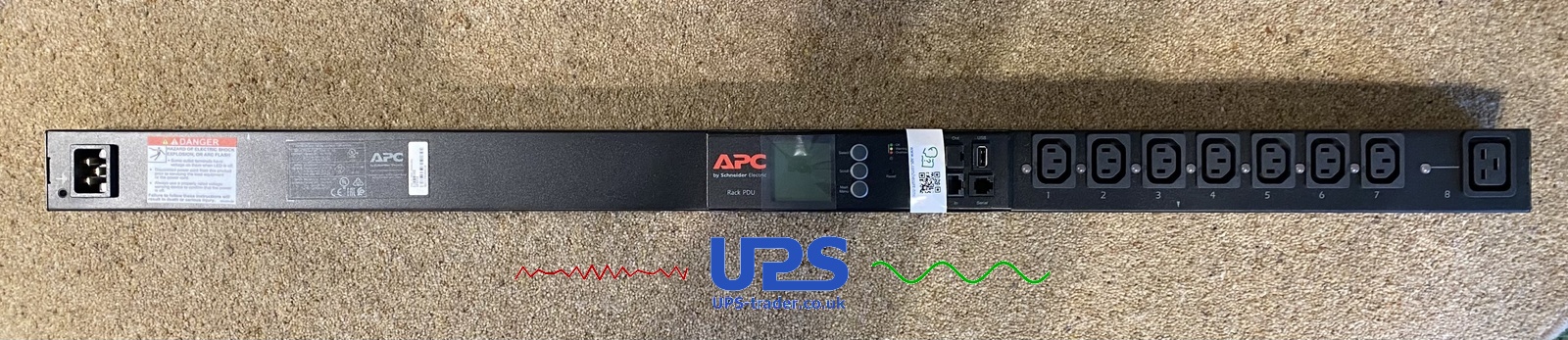

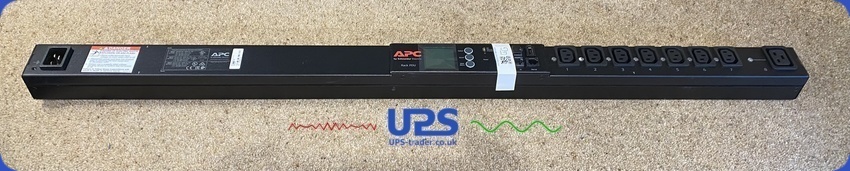

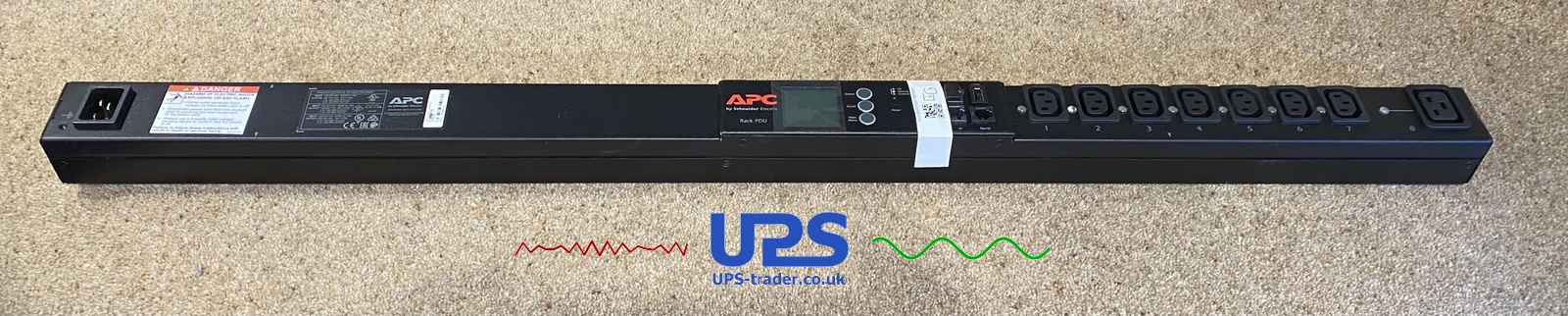

This PDU has 7 x C13 outputs and 1 x C19 output.

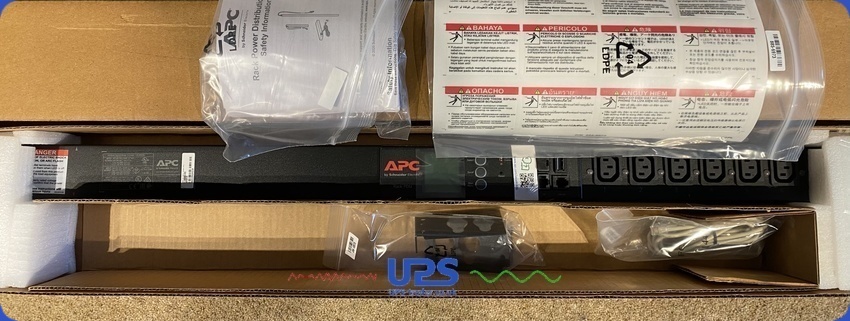

We've opened one of the sealed boxes here to show the content and the PDU itself. All the other boxes remain sealed.
We set our same day dispatch times on eBay as a guide. This is a broad stroke estimation, as our items are of varying complexity. While simple orders can be packed and shipped quickly, large units or volume quantities may roll over to being dispatched the following working day. You can contact us if you need to be sure of when we can send an order and we can make a plan.
All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated and can be subject to surcharge. Large UPS may be palletised or shipped with the UPS in one box, and the cells in another. We have the packing materials to make sure that there are few problems in transit. Our warehouse is based in the UK.
When we process the order, we issue a dispatch notification via email. This will have a PDF invoice attached, and detail which courier we have shipped with, along with the tracking number and any pertinent information & guidance.
Specification
MAIN
Colour Black
Product or component type PDU
PDU type Switched
Provided equipment Installation guide
Rack mounting brackets
Serial configuration cable
Safety guide
Complementary
Input Voltage 200 V
208 V
230 V
Height 98.8 cm
Width 5.6 cm
Output Voltage 100 V
200 V
208 V
230 V
Depth 4.6 cm
Net weight 3.23 kg
Mounting location Side
Mounting preference No preference
Input Plug Type IEC 60320 C20
Mounting mode Rack-mounted
Rack units 0U
Mounting position Vertical
[In] rated current 16 A
Permissible voltage 100…240 V
Input current limits 20 A
Load capacity 3300 VA
Network frequency 50/60 Hz
Outlet type and quantity 7 IEC 60320 C13
1 IEC 60320 C19
ENVIRONMENT
Product certifications cUL listed
PSE
UL listed
VCCI class A
VDE
Standards EN 55022 class A
EN 55024
EN 61000-3-2
EN 61000-3-3
FCC part 15 class A
ICES-003
Ambient air temperature for
operation
-5…60 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for
storage
-25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0…15240 m
PACKING UNITS
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 112.5 cm
Package 1 Width 16.5 cm
Package 1 Length 11.4 cm
Package 1 Weight 4.76 kg
|
|
