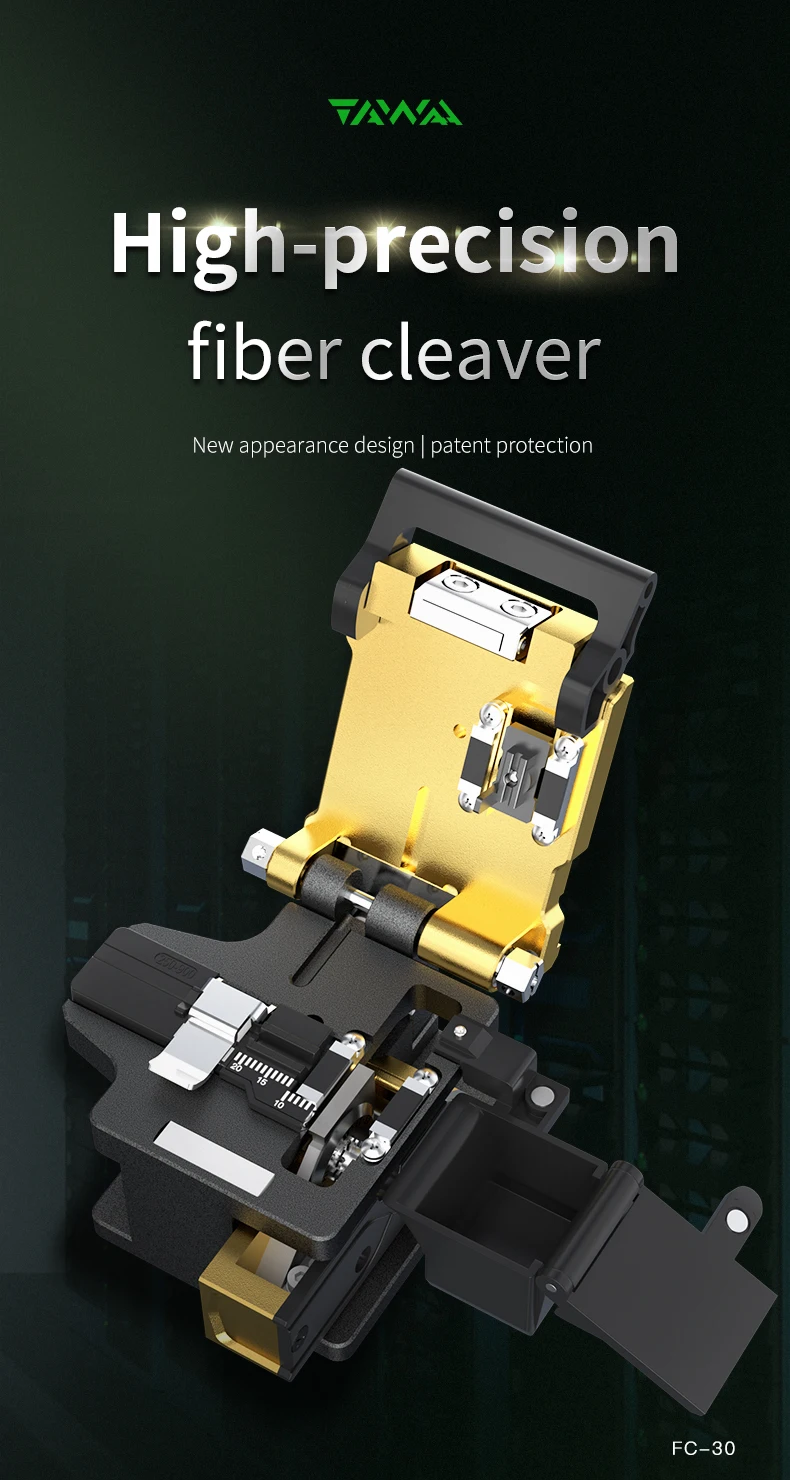

TAWAA FC-30 Fiber Cleaver High Precision Optical Fiber Cleaver Fiber Cutter
Product Description：
TAWAA FC-30 is a traditional bench top cleaver.simple and easy to use. It isavailable with a fibre offcut collector.
It is applicable to 250um. 900um, 3.0mm fiber cable and flat cable. Work efficiency and high precision cleavedangle of typical 0.5 degree. The blade provides over 48,000 fiber cleaves byeasy and simple blade position selection.
Product Features：
Blade life up to 48,000 times
Typical cutting angle ≤0.5 degree

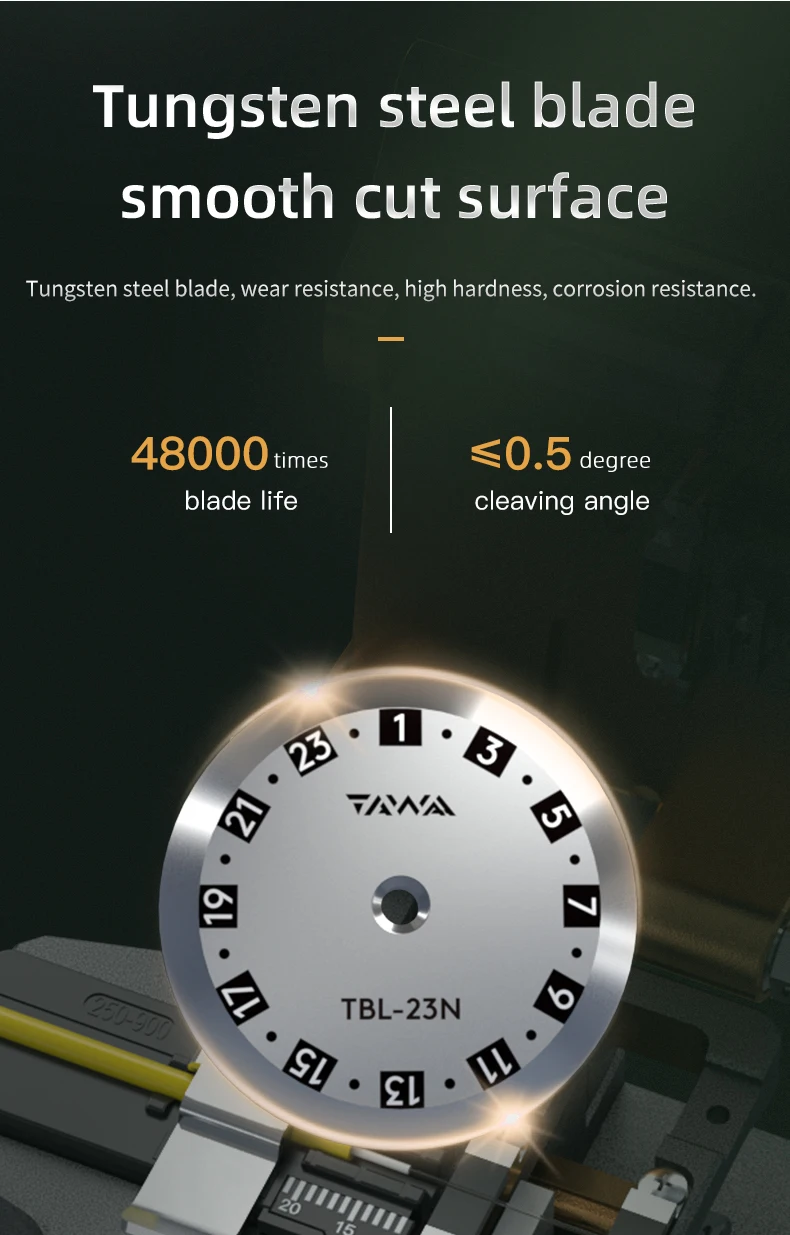

Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Traditional bench top design, simple andeasy to use

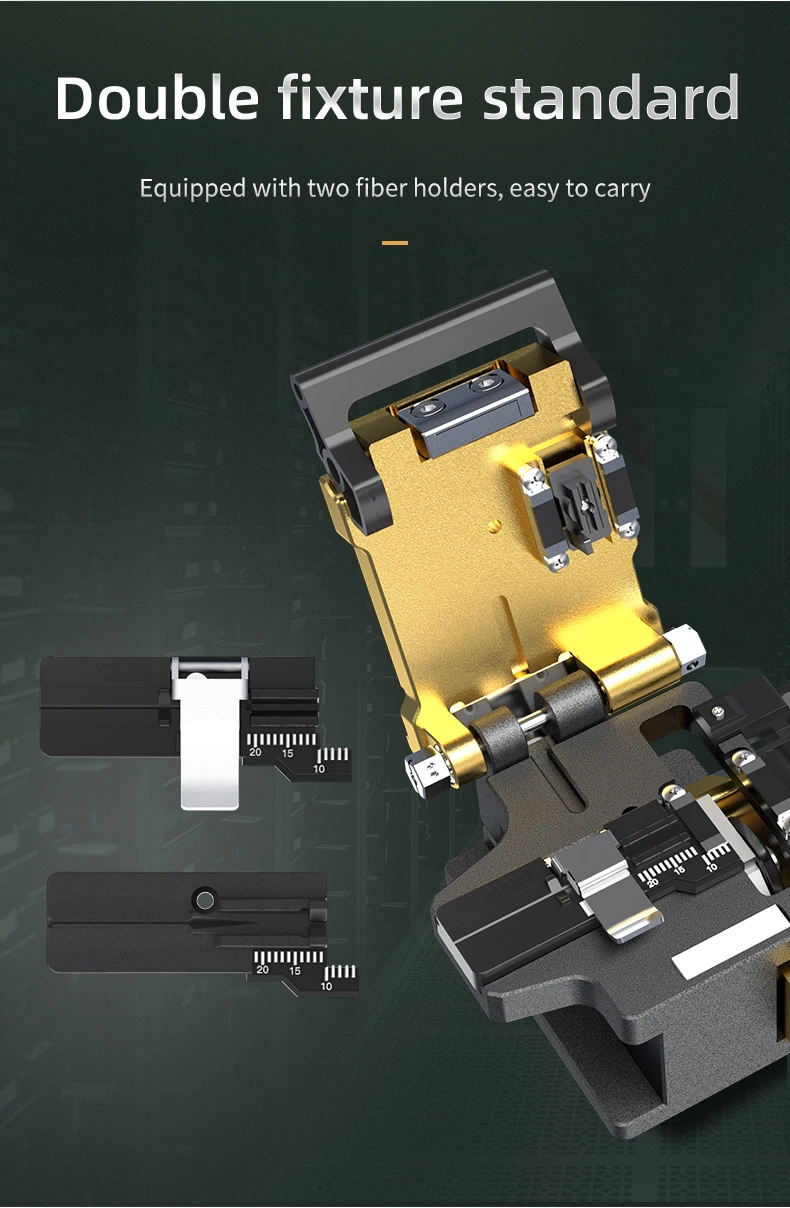

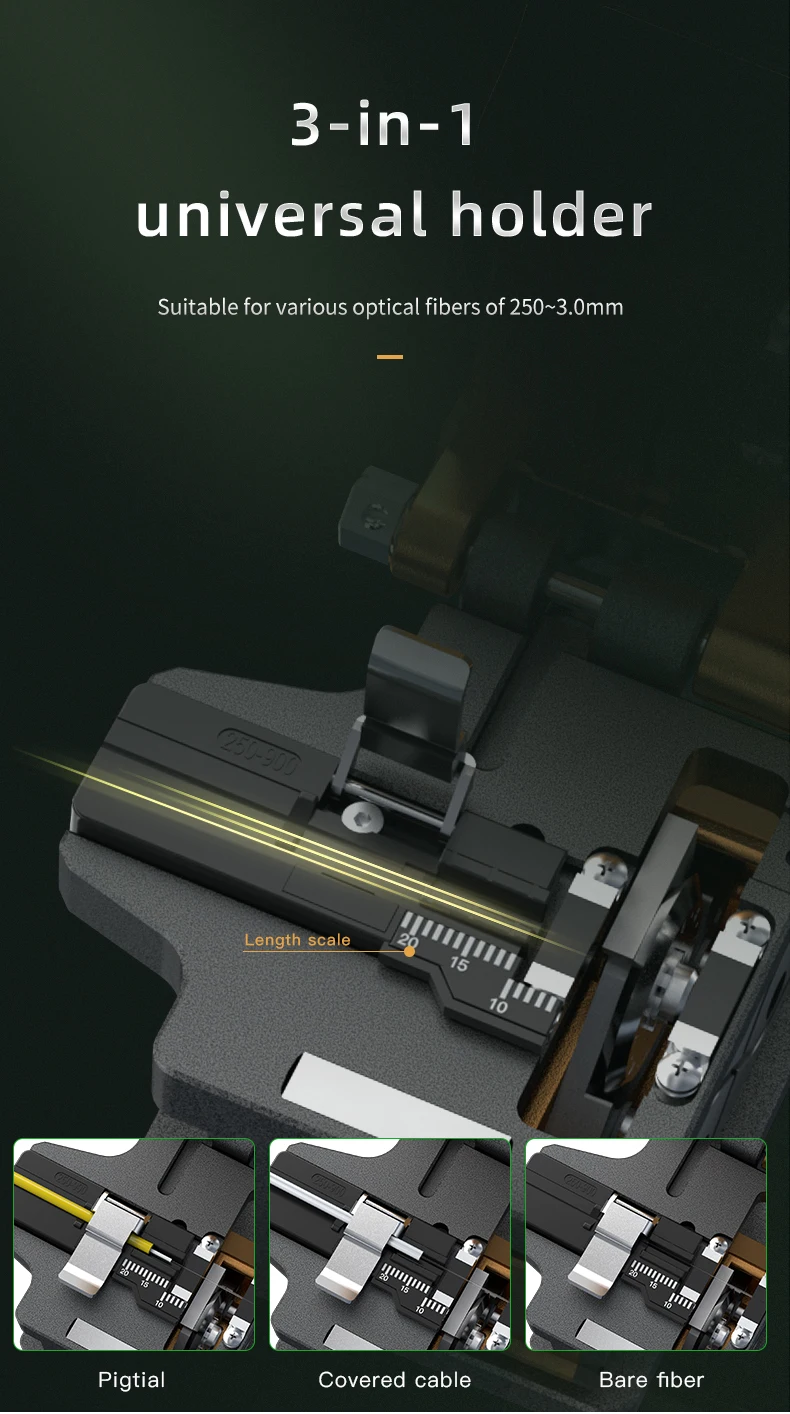

Double fixture design, suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture
Product Parameter：
Fiber Meterial | Single fiber |
Cladding Diameter | 125μm |
Cleaved Length | Single fiber: 8~20mm |
Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm / Flat cable |
Typical Cleaved Angle | Less than 0.5 Degrees ★① |
Typical Blade Life | Total 48,000 fiber cleaves （replaceable） ★② |
Off-cut Collector | Pre-fitted |
Type of Offcut Bin | Manual |
Auto Return | Pre-fitted |
Dimension / Weight | 63W *77D*63H(mm) / 335g |
★① The fiber cleave angle changes by operating environment
★② Blade life changes by operating environment
