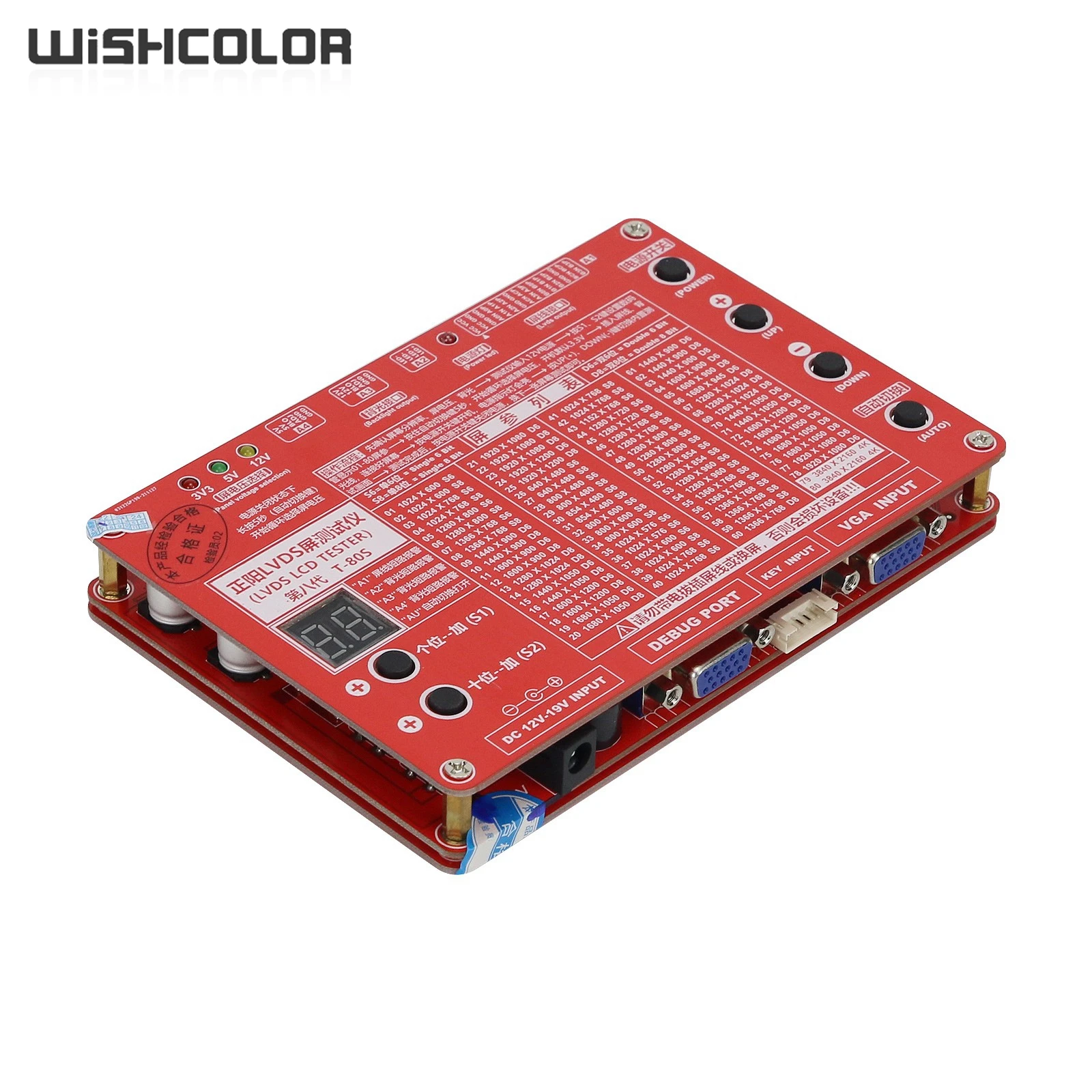

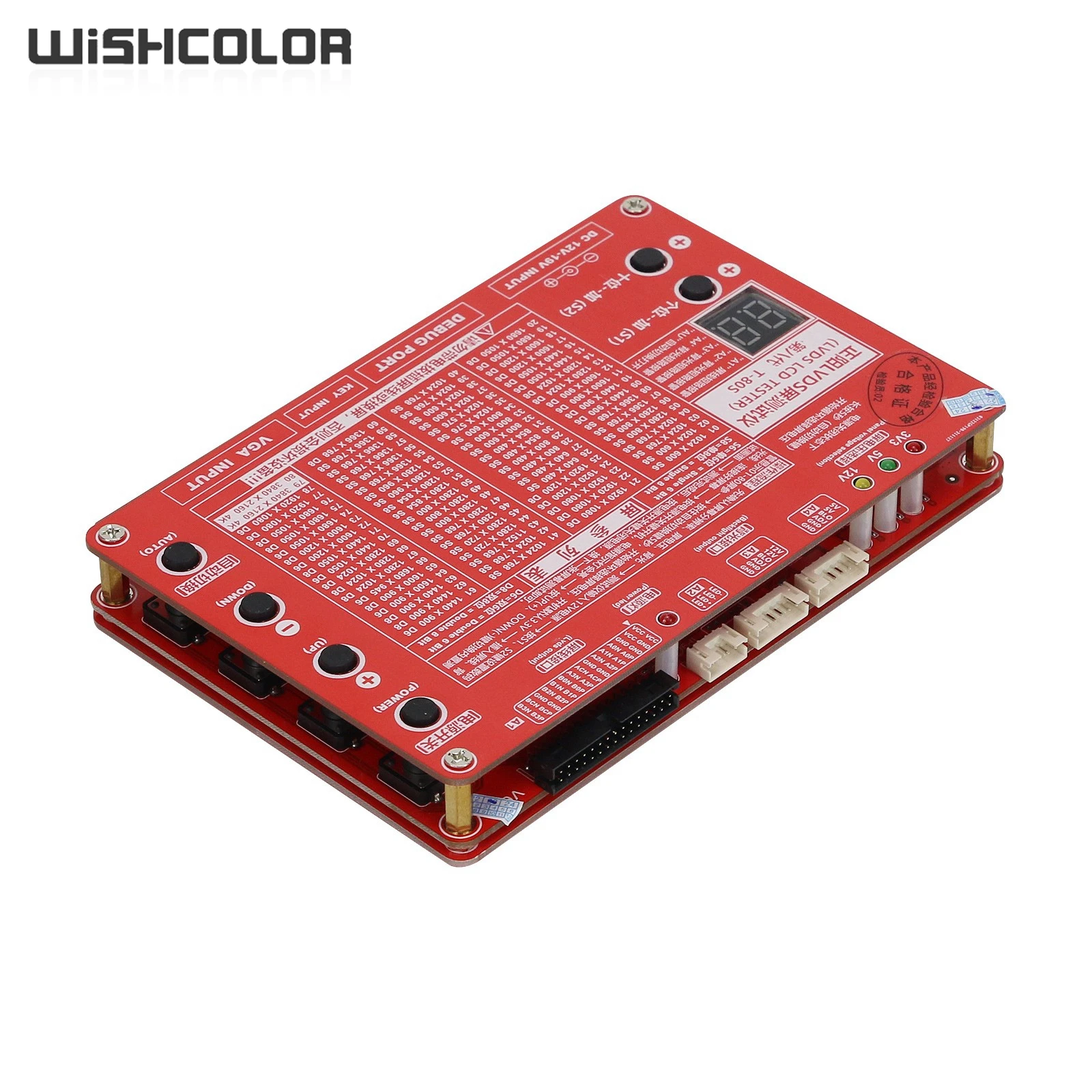

Features:
- Test tool for 4K/VB1/V-by-one + LVDS LCD, LED, and LCD TV/monitor screens
- 8th generation tester for 2K and 4K large TV screens

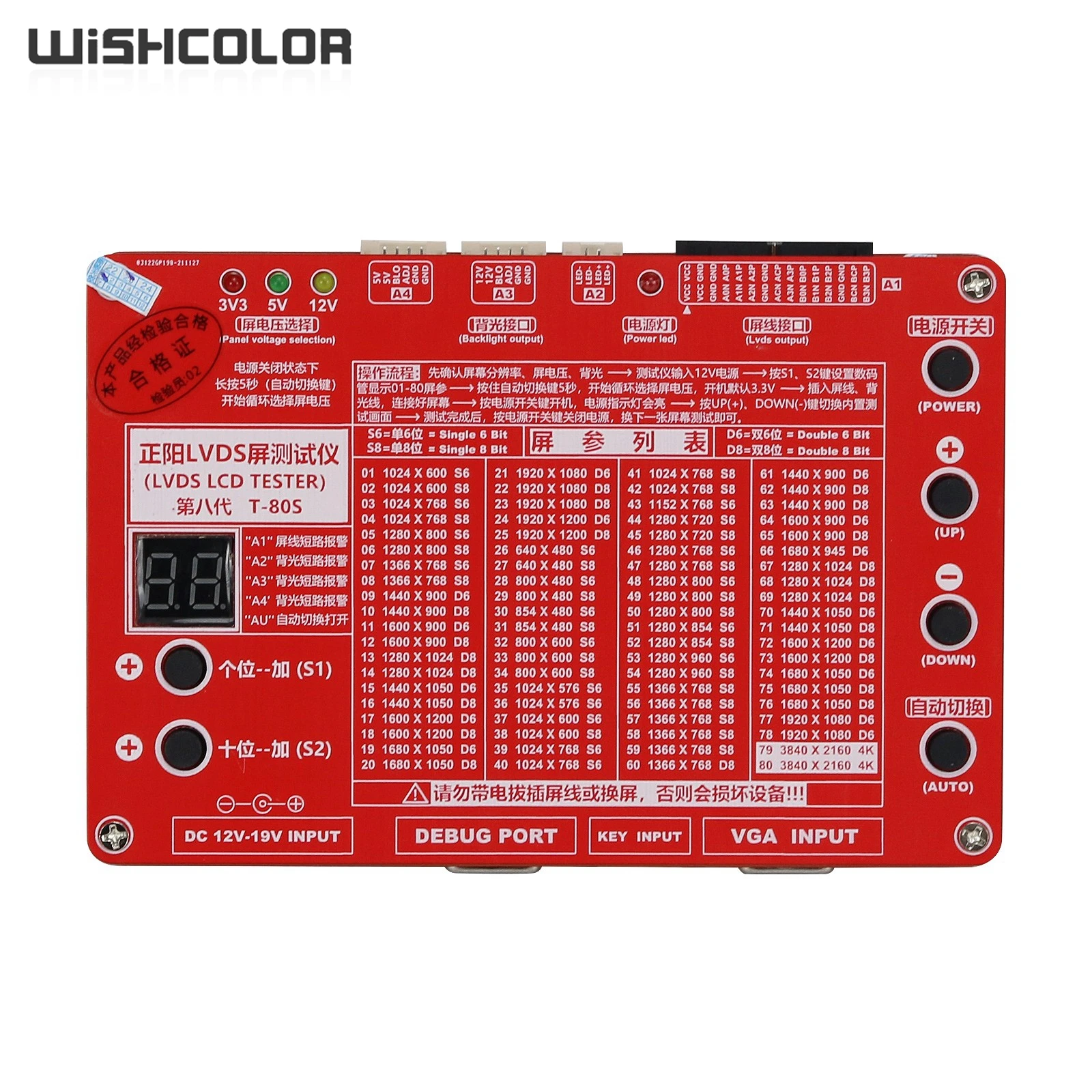

- With 80 kinds of real screen parameters
- Minimum resolution 640x480 and maximum resolution 3840x2160
- Power-off memory function for resolution codes (exclusive)
- Adjust the resolution code of units digit and tens digit separately
- Designed with a booster board
- Built-in 14 kinds of professional testing pictures
- Interface circuits, including screen cable interface, high-voltage board, and boost board, with short-circuited protection
- All solid capacitors, enclosed inductors and class A circuit board
- With an adapter box for LVDS to 4K/V-by-one/VB1. Developed by the original manufacturer, featuring good compatibility and stable performance
- Screen cables for TV screens above 17 inches, over 32 inches in particular
Advantages:
1. With 80 kinds of real screen parameters, all of which have passed tests
2. Minimum resolution 640x480 and maximum resolution 3840x2160 (protocol conversion circuit board is required to test 4K screens)
3. 14 kinds of professional testing pictures, while other screen testers in the market with only 8 kinds
4. The resolution code of units digit and tens digit can be adjusted separately
5. With an LED boost board, a constant current board, which outputs voltage up to 35V and current up to 120mA
6. LVDS screen cables' interfaces with professional protection card slot. They can be plugged again and again, and prevent bent pins
7. Adopt full-interface circuit with short-circuit protection to open a new era of LCD screen protection. It has interface short-circuited protection for screen cable, high-voltage board, and boost board. And when it is short-circuited in different places, there will be different hint codes
8. With resolution code quick setting and auto-save function. The next time you boot the system, it will automatically restore the last code screen parameter, which is a feature that other similar products on the market do not have
9. It fits our LVDS to 4K adapter board and LVDS to EDP adapter board
10. Premium PCB Board: Built with military-grade circuit board, solid capacitors & sealed inductors, it outperforms other screen testers in terms of components
11. Users can adjust the resolution code directly in the power-on state. The source chip is automatically reset
Attention:
- Theoretically, it supports 95% of 10-84 inch LVDS screen of double 8 bit and below, and VB1 (4K screen)
- When using, please confirm the power supply voltage, bits of screen cables, resolution, and select the appropriate screen cable by yourself.

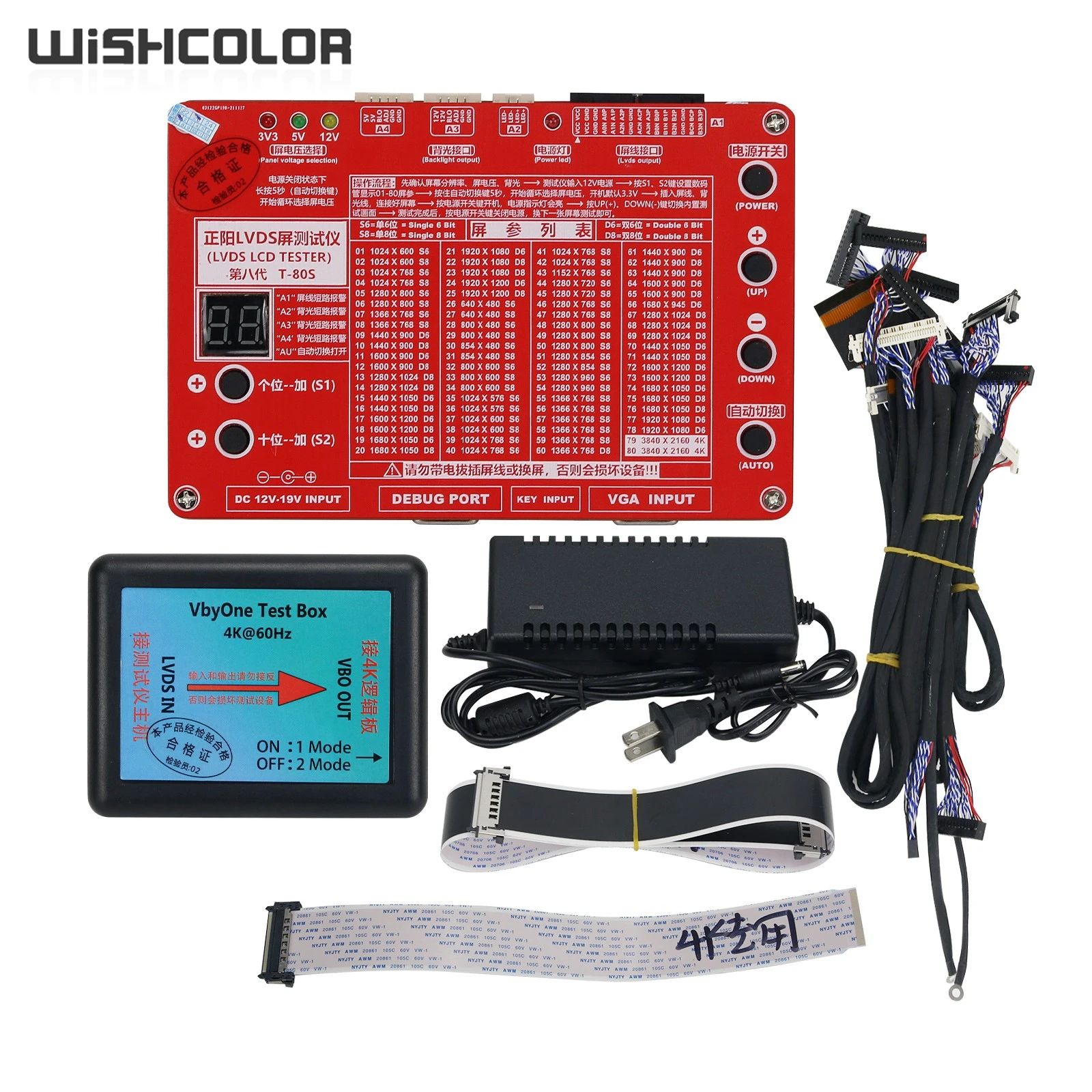

Package Included:
- 1 x Main Unit
- 8 x LVDS Screen Cables
- 1 x 4K Test Box
- 2 x 4K Screen Cables
- 1 x Power Adapter
Package Included:
- 1 x LVDS Adapter Box
Note:
- The board in Red or in Green will be delivered at random. Please make sure that you don't mind before purchasing.

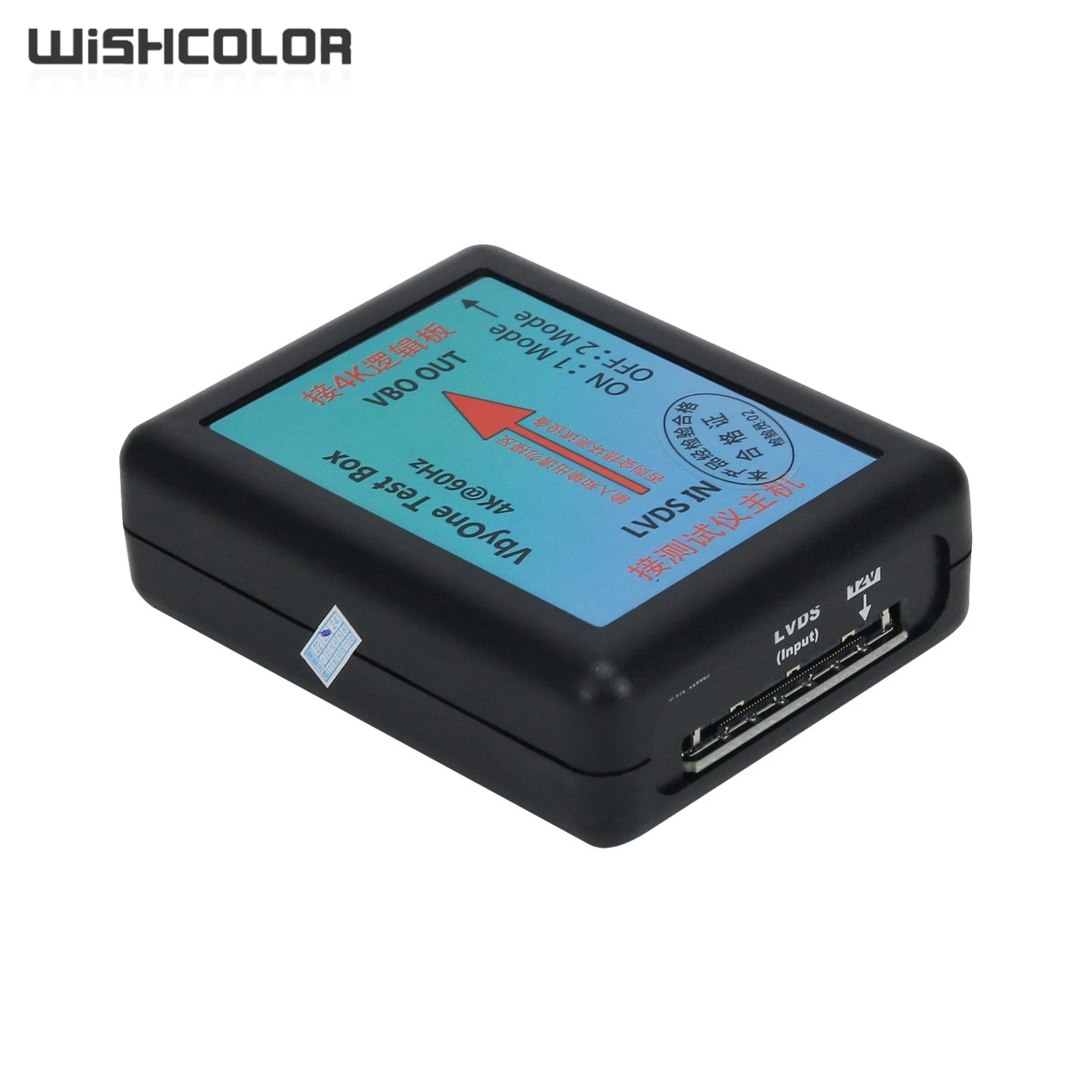

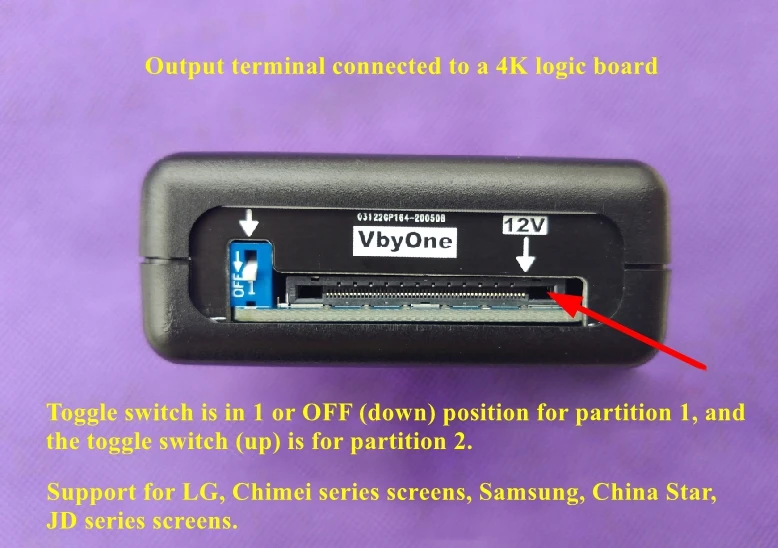

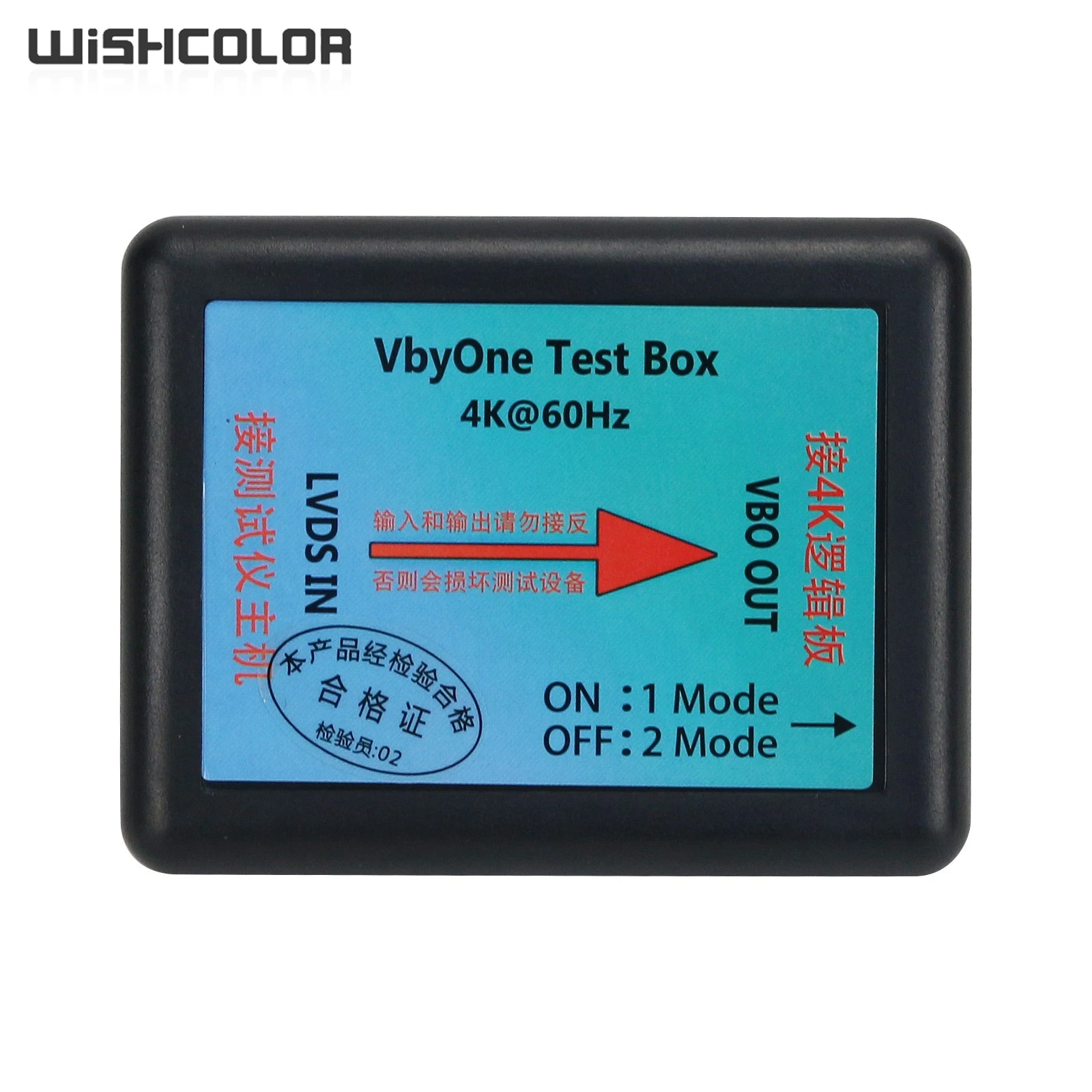

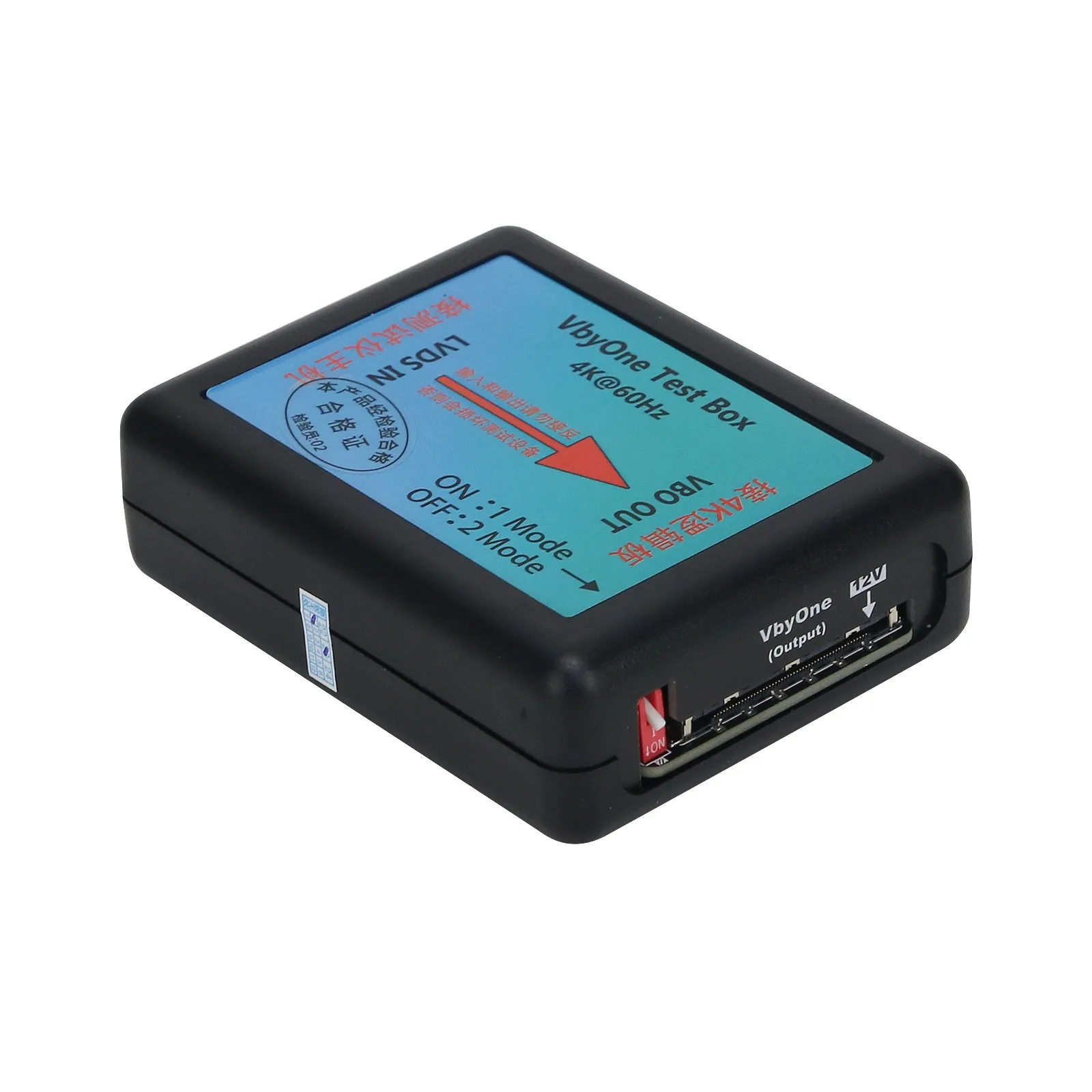

LVDS Adapter Box
Wishcolor LVDS Adapter LVDS To V-by-one/VB1/VB0 4K Adapter Box Suitable For T-60S/T-80S TV LCD Screen Tester
Description:

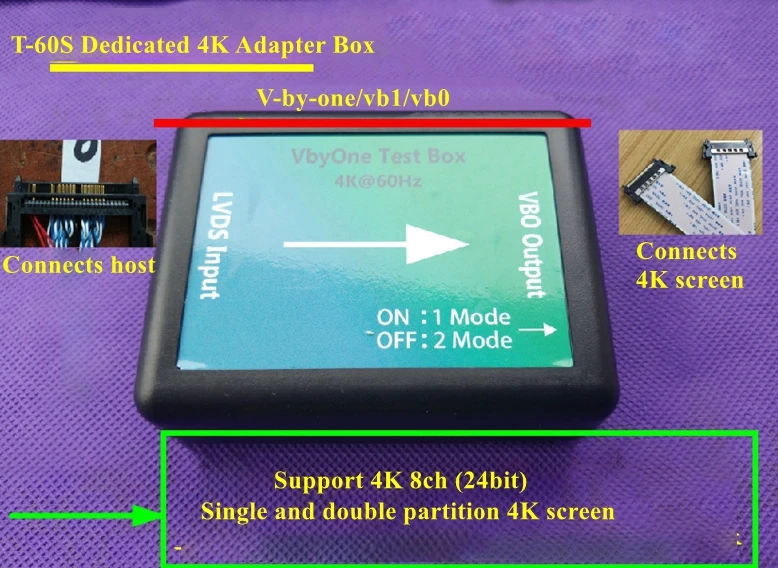

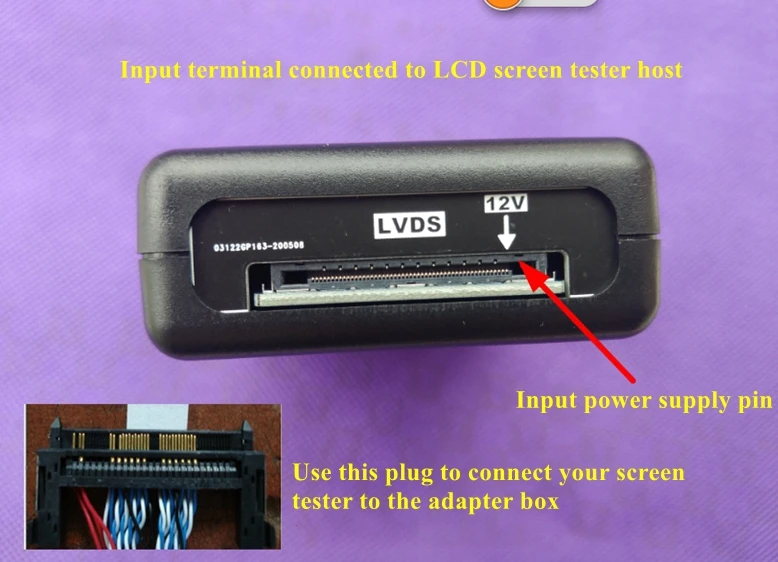

Thanks to this adapter box, your T-60S screen tester can test 4K screens. The adapter boasts stable performance, seamless docking with the host interface docking program, good compatibility, supporting the common 60HZ 4K screen test on the market. It is better than the professional-level 4K screen tester performance (measured). Your screen tester provides an LVDS interface, although the appearance of 4K/VB0 and LVDS high-resolution screens is the same, the number of interface's pins is the same, the interface definition and communication protocol are completely different (common high-resolution screens' 1-4pins for power supply. 4K screens' 1 to 8 pins for power supply). So when you want your screen tester to support both LVDS high and low split screens and 4K screens, you must add a communication protocol and interface definition conversion module. This adapter box is specially developed for users of screen testers, so that it can measure LVDS high and low split screens, and can also support common 4K screens. It is developed by the original manufacturer with good compatibility and stable performance.
Package Included:
- 1 x Set of Adapter Box
Note:
- 2pcs common 4K screen cables are not included.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
