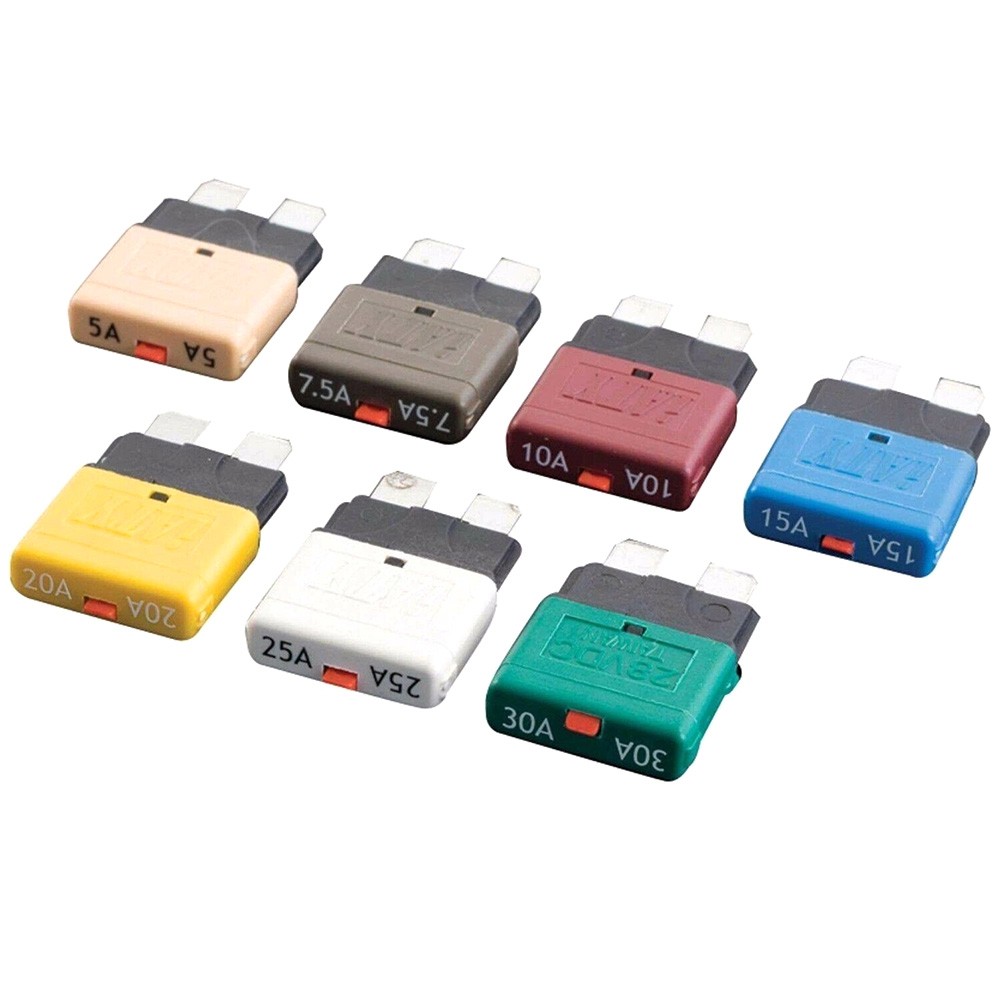

Breaker Blade Breaker Automatic Reset 1PCS Automatic Reset Breaker Circuit
DESCRIPTION


Features:
* New and
* Made of - materials,
* Automotive fuse ATC automatic/manual reset circuit breaker (thin) 12/24V, RV, boat.
* Automatic reset, starting after cooling, you no longer need to replace the burned fuse.
* ATC circuit breaker (thin).
* Compatible with ATC (standard) fuse box.
* for ignition for protection according to SAE J553 and SAE J1171.
* Thermal circuit breaker, standard size blade, suitable for standard car blade fuse box. Suitable for automotive, marine and racing applications.

Specifications:
Voltage: suitable for 12V and 24V applications, up to 28VDC
Rated current: 5A/7.5A/10A/15A/20A/25A/30A (optional)
Reset Type: Automatic/Manual Reset
Operating temperature: -40oC (-40oF) to 85oC (185oF)
Dimension length: 19.7 Width: 6.2 Height: 29.5 Unit: mm
Weight: 8g
Standard: RoHS SAEJ 553; SAEJ 1171 ( for ignition for protection); UL1500
Termination: 5.2mm wide blade (ATC type)
Storage temperature: -40oC (-40oF) to 125oC (260oF)

Package Included：
1 x circuit breaker fuse
