Features:

1. Using solid brass valve core, durable and not easy to rust.
2. There is a filter screen at the connection of cold and hot water to protect the water from other impurities.
3. The wall-mounted bathtub thermostatic mixing valve is easy to install and suitable for most water heaters.
4. It is easy to control the amount of hot and cold water, and adjust the water temperature as needed.
5. Built-in temperature control safety device, automatically shut off hot water when there is no cold water, to protect scalds.

Specifications:
Size: G1/2"(DN15)
Usage: Pipe Water Valve, Use for Wash Basin, Bidet, Shower
Water Pressure: Working Pressure: 0.03-1.0Mpa, Recommend Pressure: 0.1-0.5Mpa
Temperature: Inlet Cold Water: 5-29°c, Inlet Hot Water: 50-95°c,
Mixing Water: 35-45°c, Adjustment Accuracy: ±2°c
Flow Rate: 11.67L/min in 1 Bar Water Pressure
Assembly Parts: Plastic Handle + "Vernet" Thermostatic Probe + Brass Body+ SUS304 Filter + SUS304 Spring + EPDM Oring + Plastic Check Valve + PPO Shutter

Product introduction:
Thermostatic mixing valve is an accessory product specially developed for hot water systems, widely used in electric water heaters, pipeline water valves, washbasins, bidets, showers, solar water heaters and central hot water supply systems.
It can also be applied to electric water heaters and solar water heaters. Users can adjust the mixing temperature of cold and hot water according to their needs. The required temperature can be quickly reached and stabilized, ensuring a constant water temperature and is not affected by changes in water temperature, flow, and water pressure. Influence, solve the problem of hot and cold water temperature in the bath.
When the cold water is interrupted, the mixing valve can automatically turn off the hot water within a few seconds, which plays a role in safety protection.

Working principle:

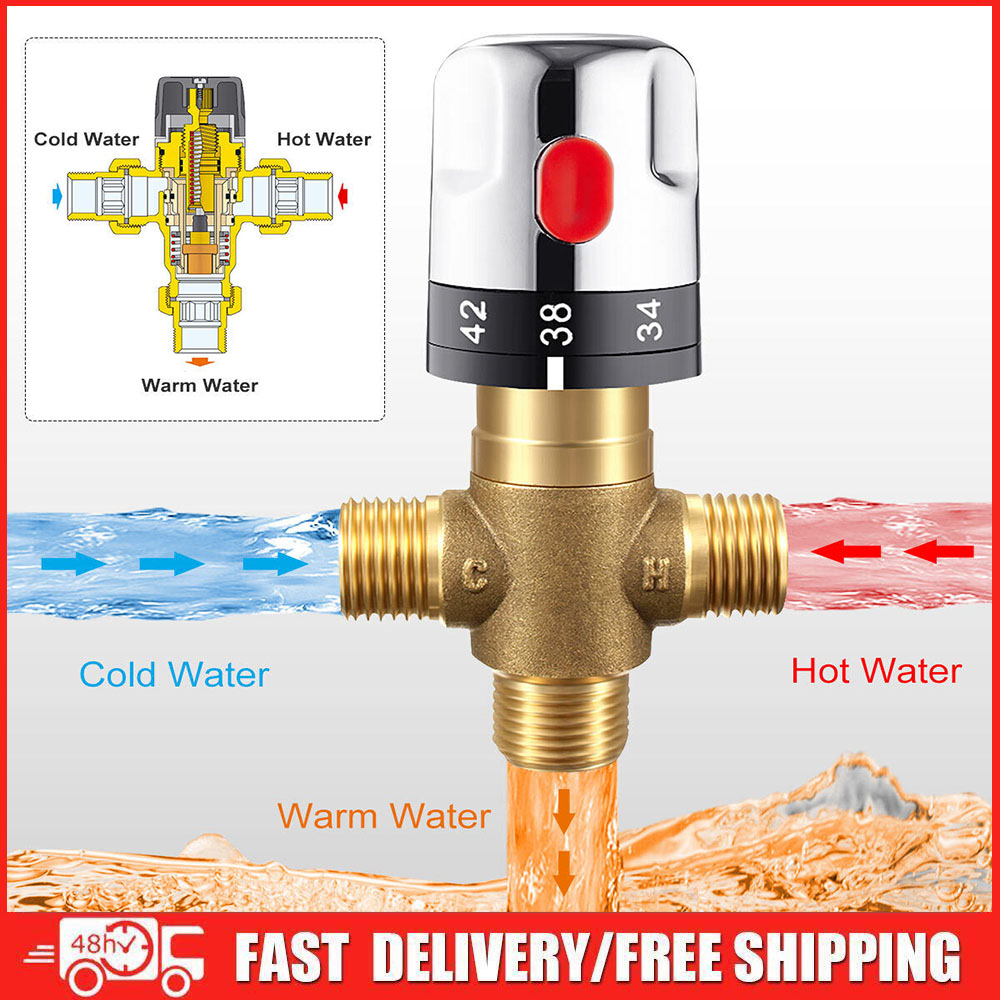

At the mixing outlet of the thermostatic mixing valve, a heat-sensitive element is installed, which uses the characteristics of the temperature-sensing element to push the valve core in the valve body to move, blocking or opening the water inlet of cold and hot water.
When the cold water is blocked and the hot water is turned on, when the temperature adjustment knob sets a certain temperature, no matter how the cold and hot water inlet temperature and pressure change, the ratio of cold and hot water entering the water outlet also changes, so that the The outlet water temperature is always kept constant, the temperature adjustment knob can be set arbitrarily within the specified temperature range of the product, and the thermostatic mixing valve will automatically maintain the outlet water temperature.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package lists:
1x Brass thermostatic valve kits
