Specifications:

Model No.: ES32
PIR sensor/Daylight Sensor/Max 32 step/Compatible with 27 kinds IC/Max 960 pixels/OLED display

● Input voltage: 5-24VDC
● Output voltage:32 x (5-24)V DC
● Output current: 32CH,1A/CH
● Output power:32 x (5-24)W
● Output type: Constant voltage + SPI(TTL)
● IP rating: IP20

Features:

● PIR sensor stair light controller with daylight sensor.
● 32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
● 2 groups SPI(TTL) signal output, drive 27 kinds IC digital RGB LED strip, IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903,
UCS2909, UCS2912, WS2811,WS2812, TM1829, TM1914A, GW6205, GS8206, LPD6803, LPD1101,
D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.
● Easy operation with OLED display and 3 buttons.
● four work light mode selectable.
● Two stair light controller can cascade.
● Built-in multiple color mode, speed 1-8 grade adjustable.
● Push switch can also be as induction signal input.
● With fast self-testing function. Note:
This product requires professional installation.
Due to the large variety of items, shipments will arrive in batches.
Due to the large variety of products, delivery time may increase by 1-2 days.
For those with time constraints, please ensure your purchase is made in advance.

Package Including: ES32 Controller Only as follows:

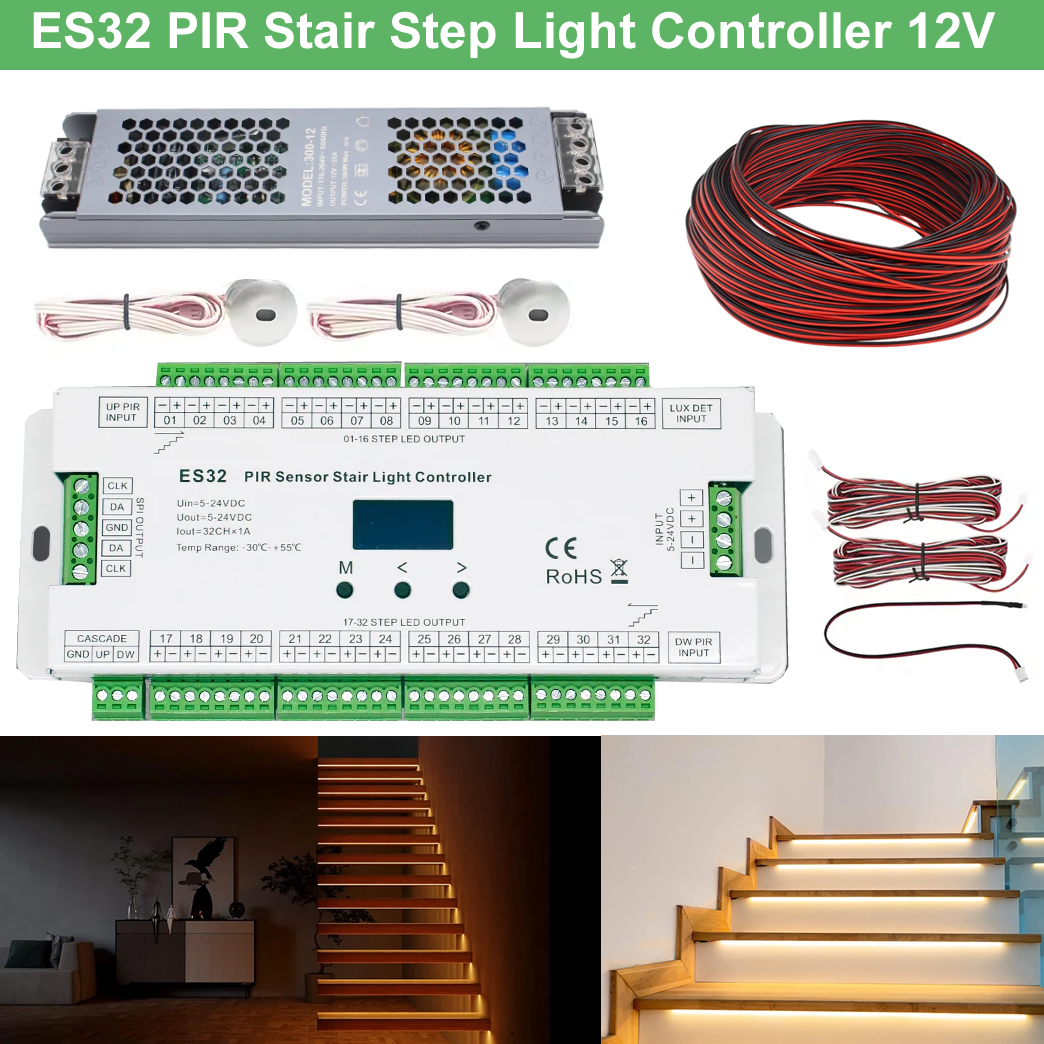

1* ES32 PIR sensor stair light controller
2* PIR sensors
1* Daylight sensor(30cm)
2* PIR sensor extension wire (5m)
LED Strip Only:
1 * 5m LED Strip (12V COB LED Strip)
Power Supply Only:

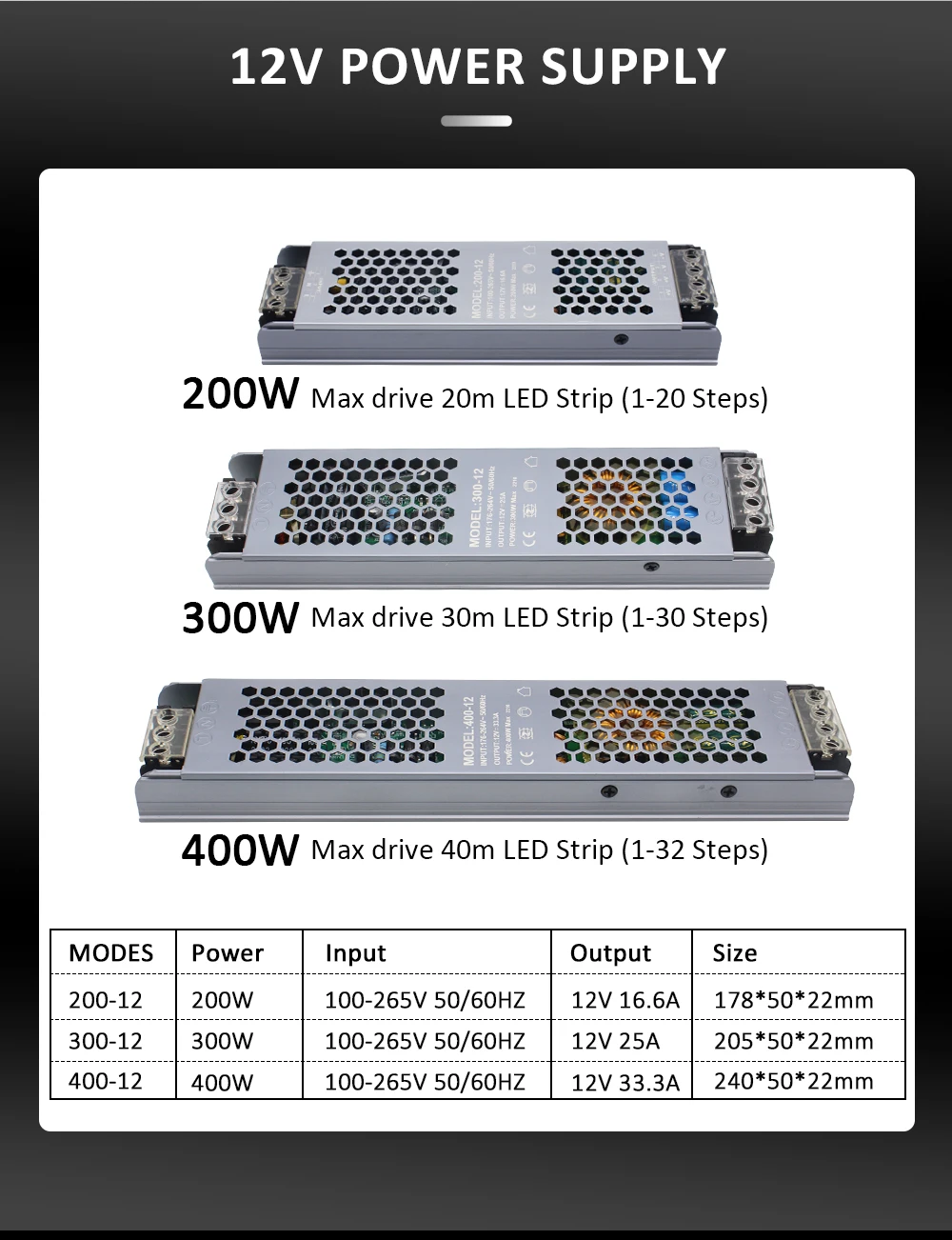

1 * Power Supply (200W/300W/400W Optional)
Wire Only:

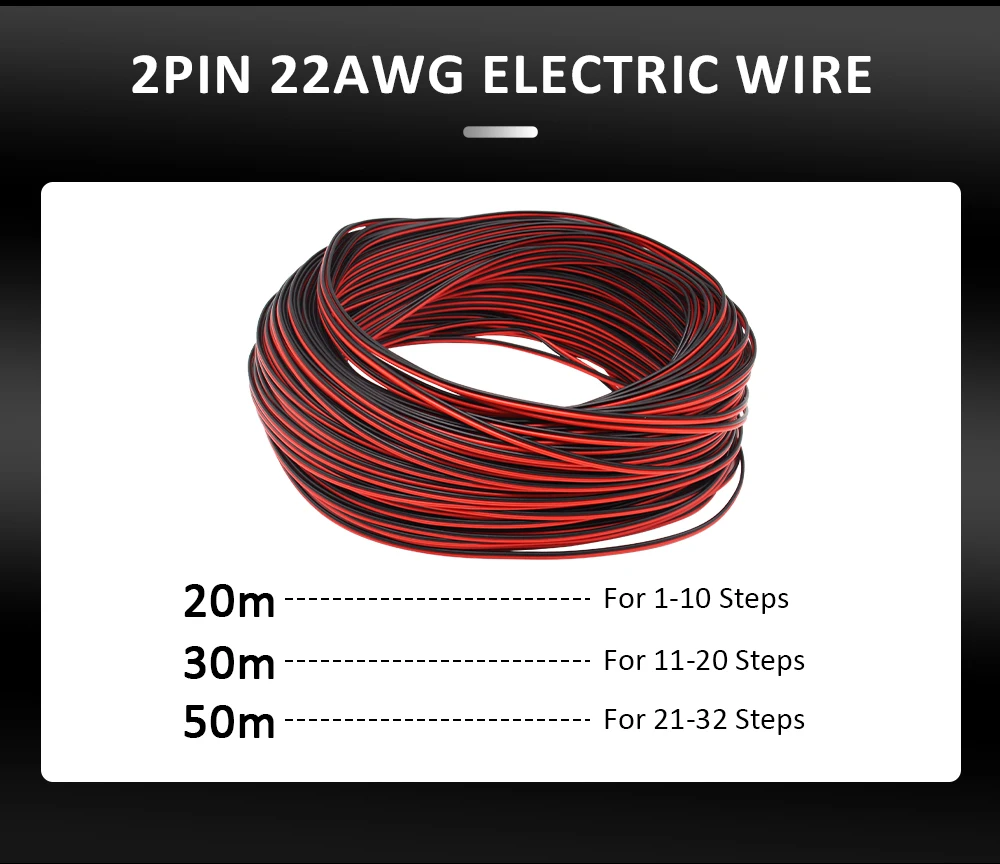

2Pin 22AWG wire(20m/30m/50m optional)
Strip to Wire connector Only:

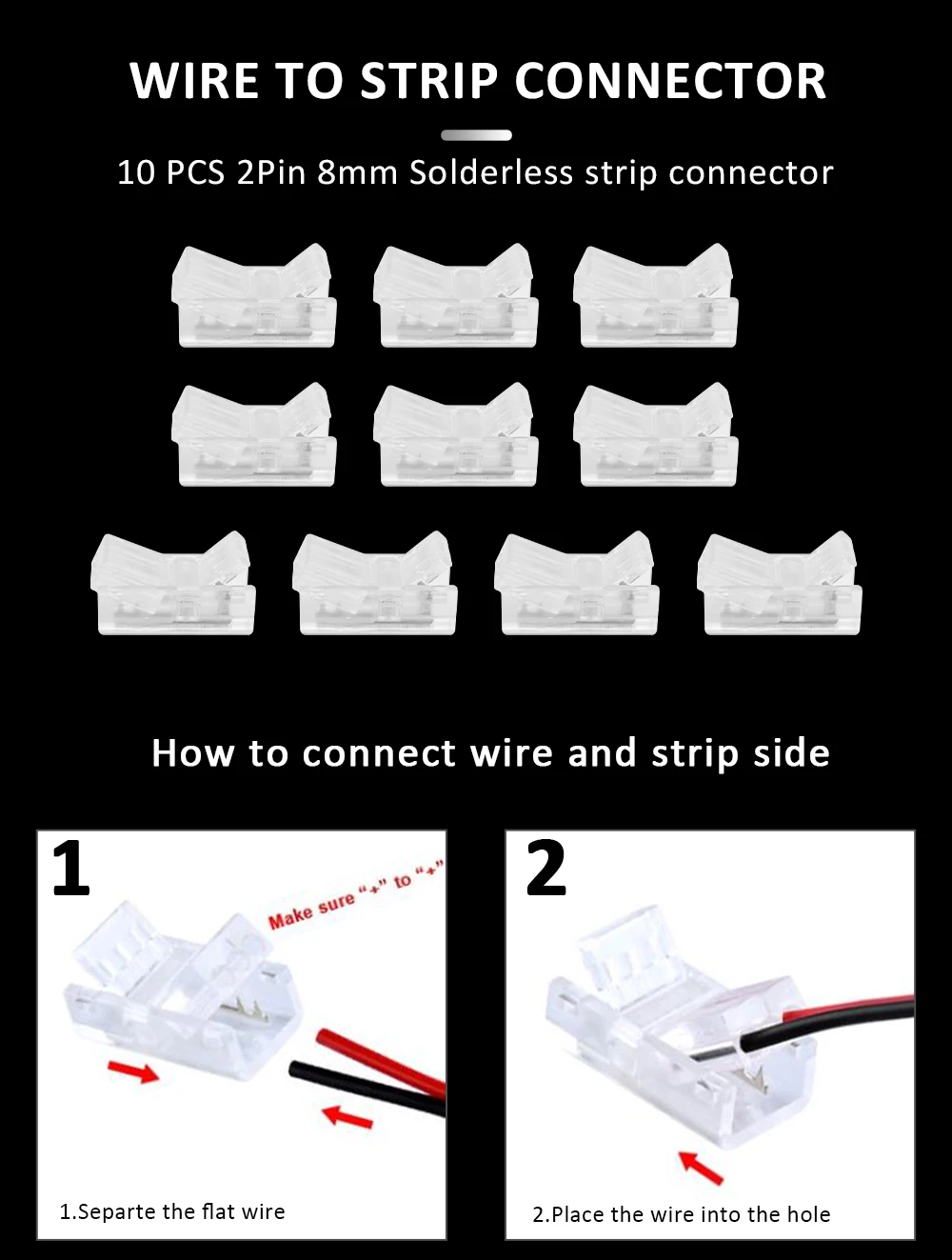

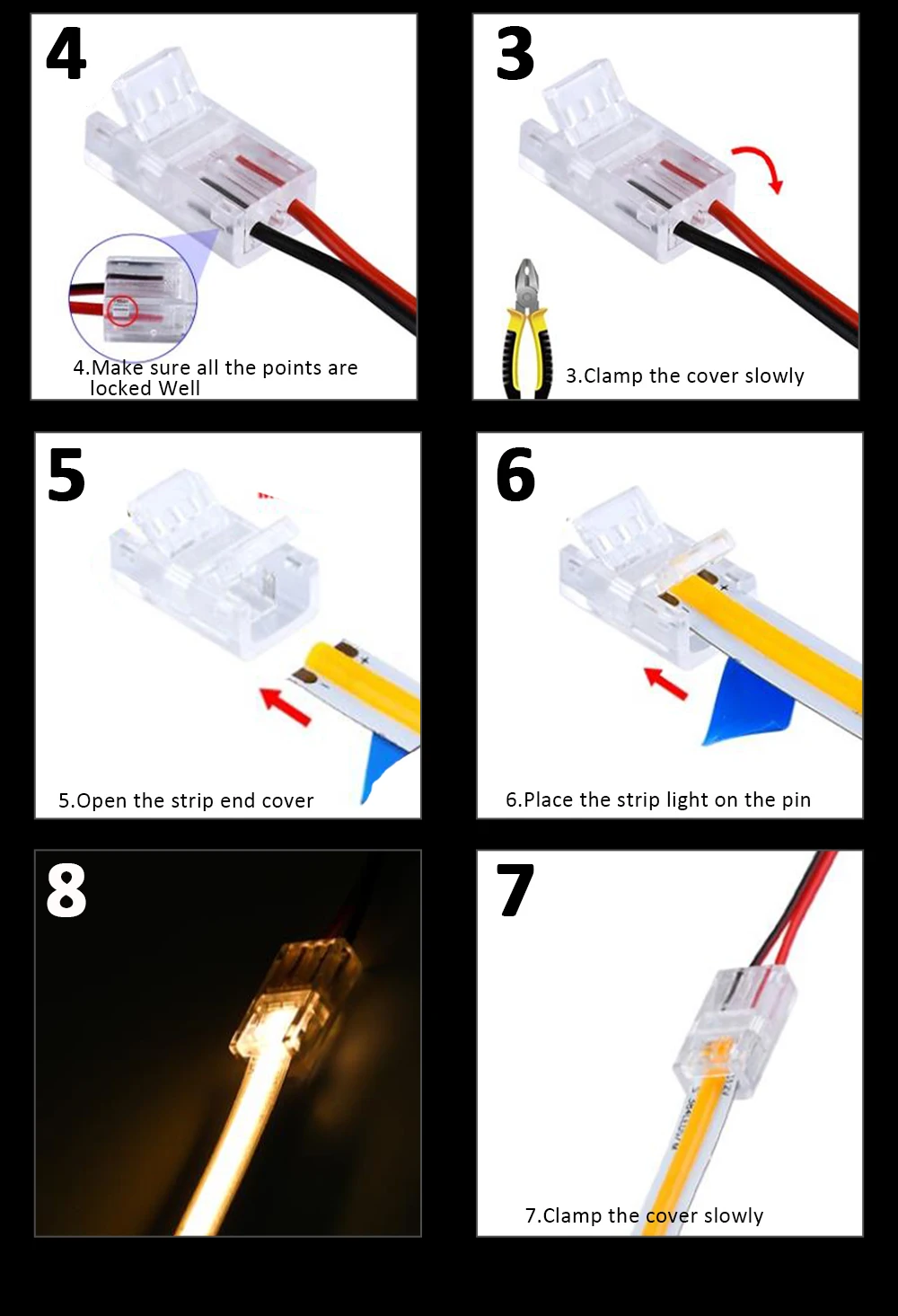

1 *10pcs/bag solderless strip connectors
