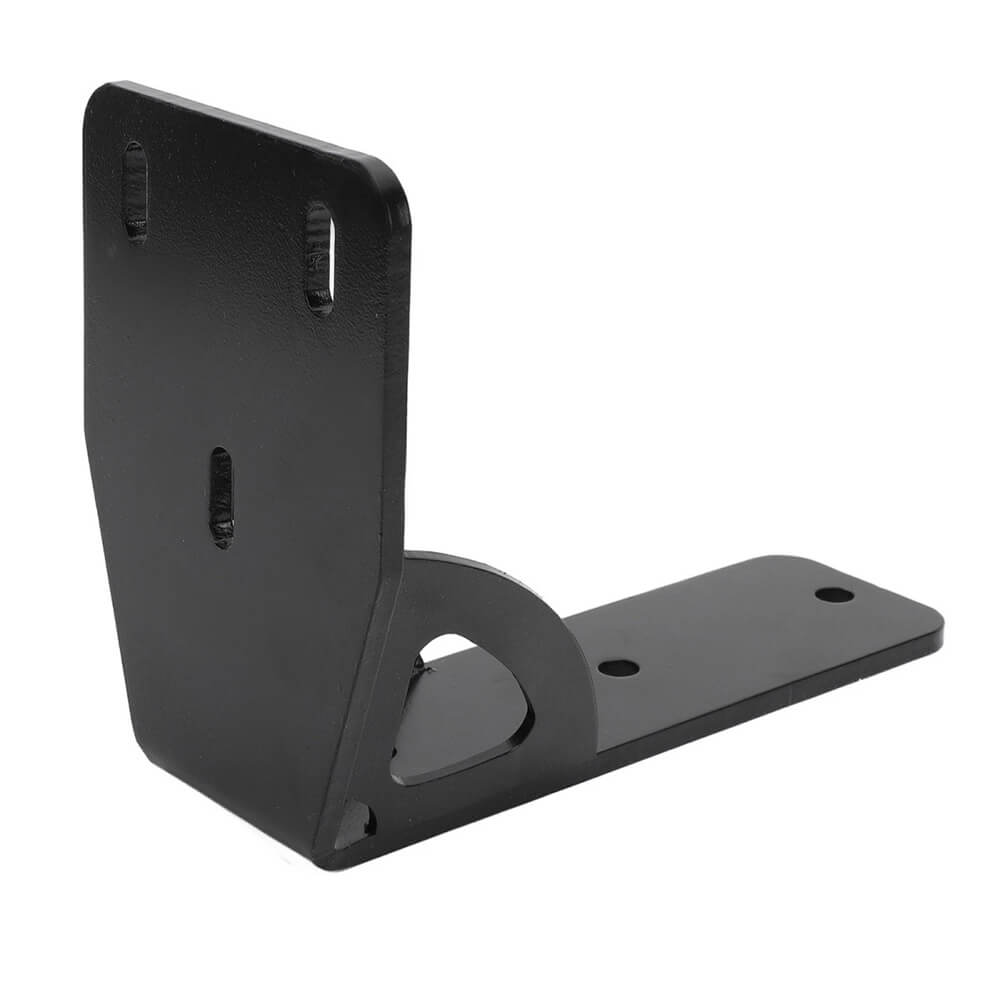

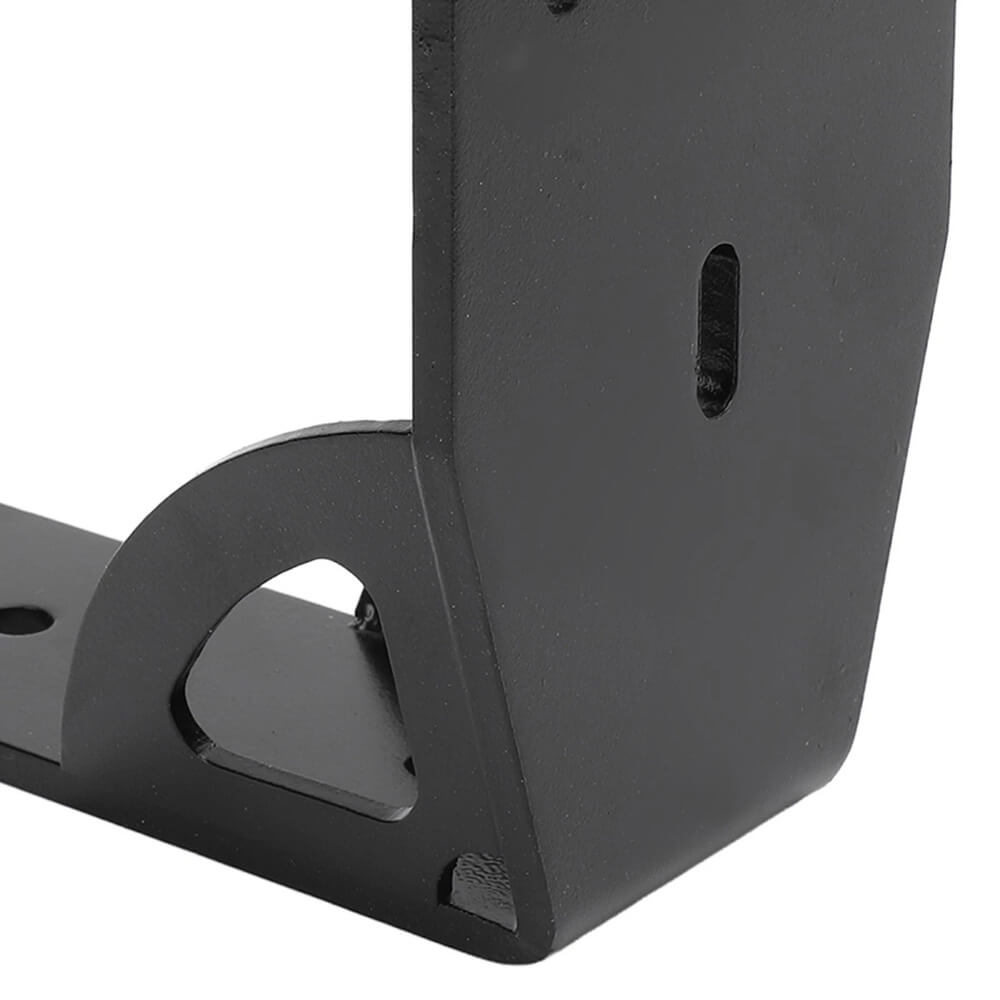

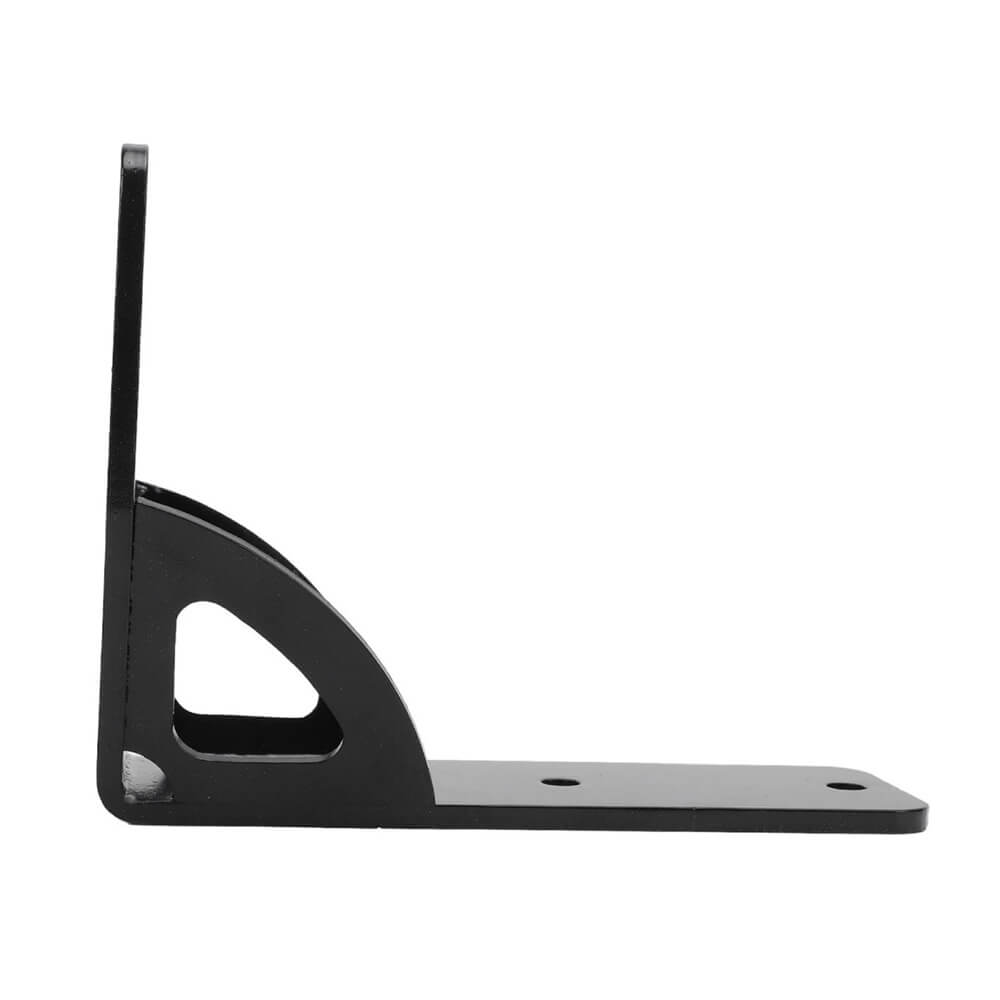

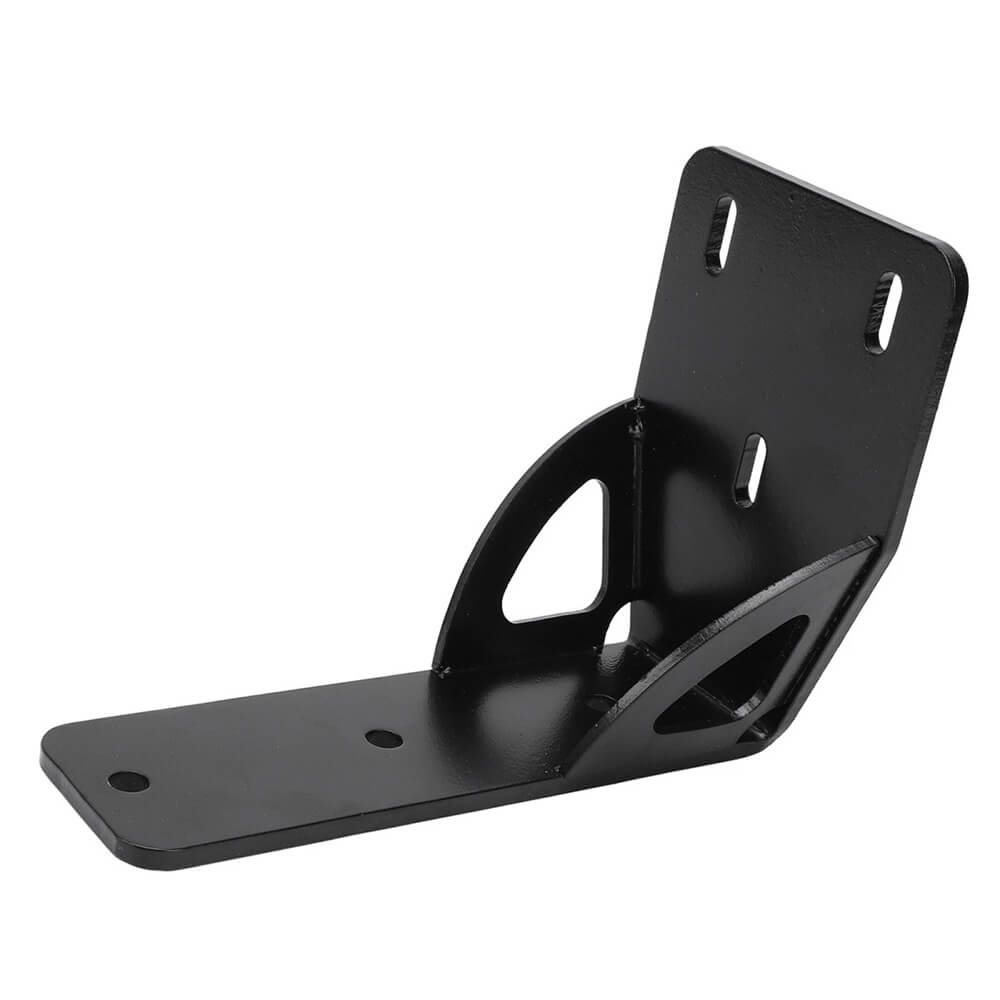

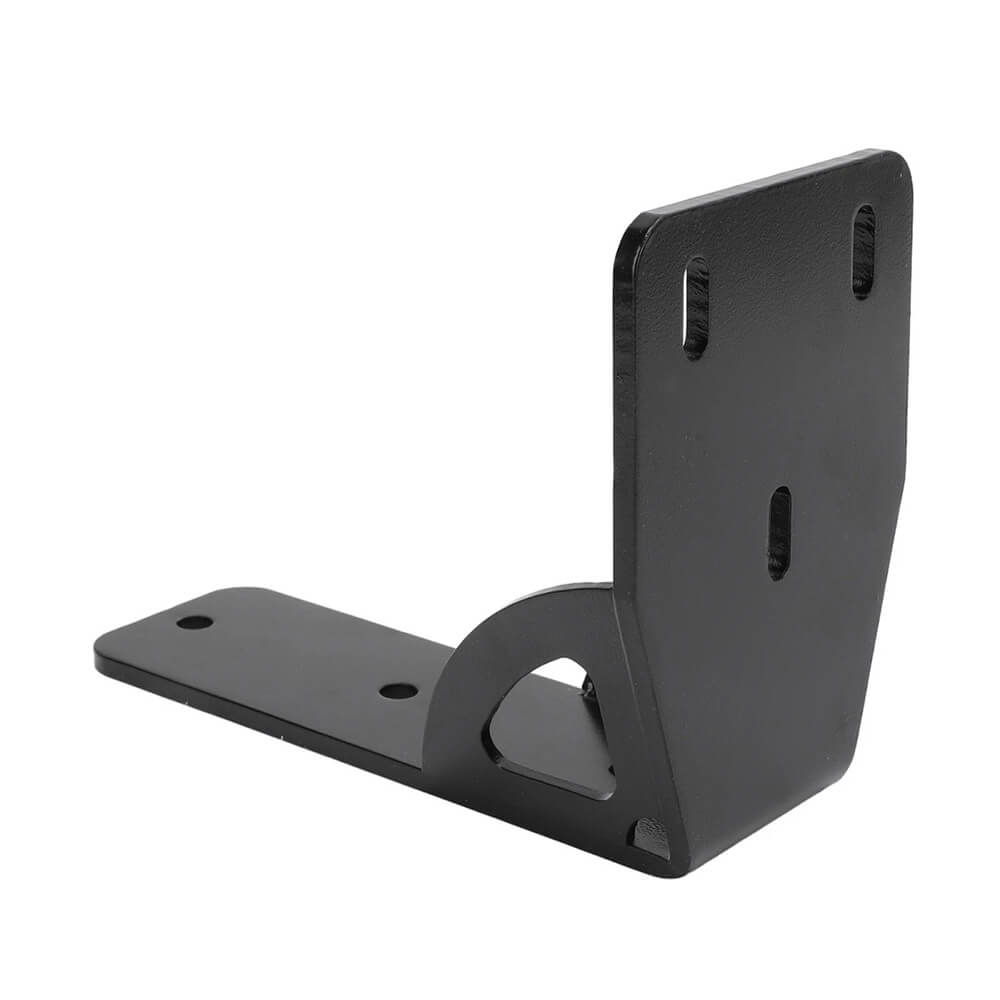

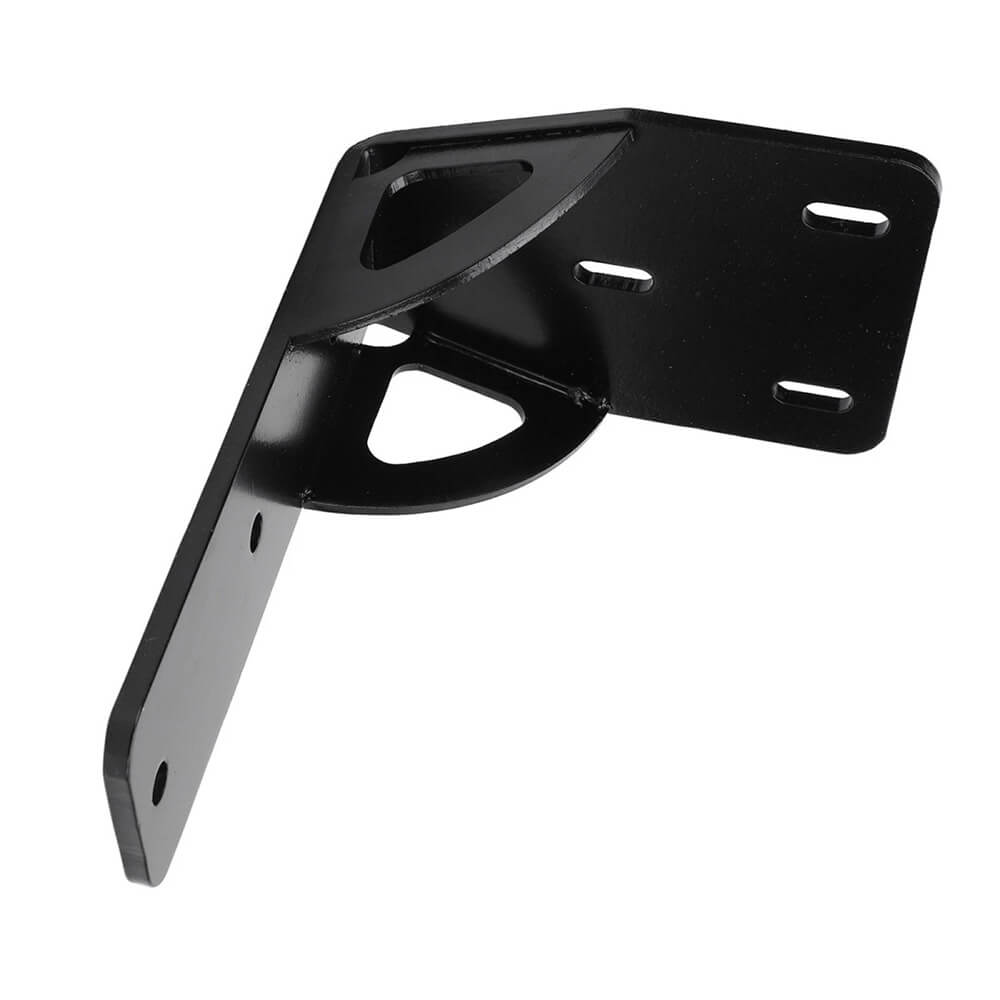

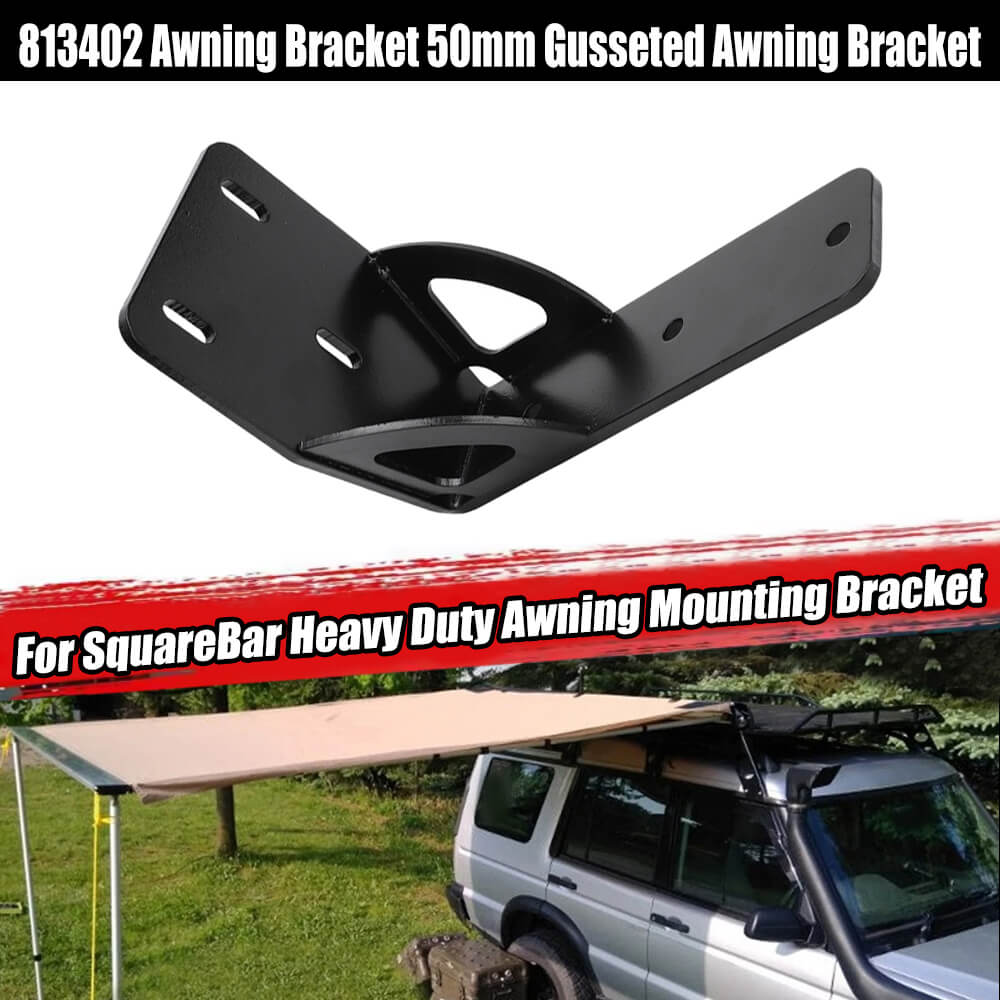

【STURDY AND LONG LASTING】: Designed with welded gussets to provide additional strength when awnings are mounted to roof bars on vehicles used off-road or under extreme conditions.
【HIGH LOAD CAPACITY】: Due to its high strength material and robust construction, this awning mounting bracket can reliably hold and secure your awning, ensuring stability even in windy conditions.

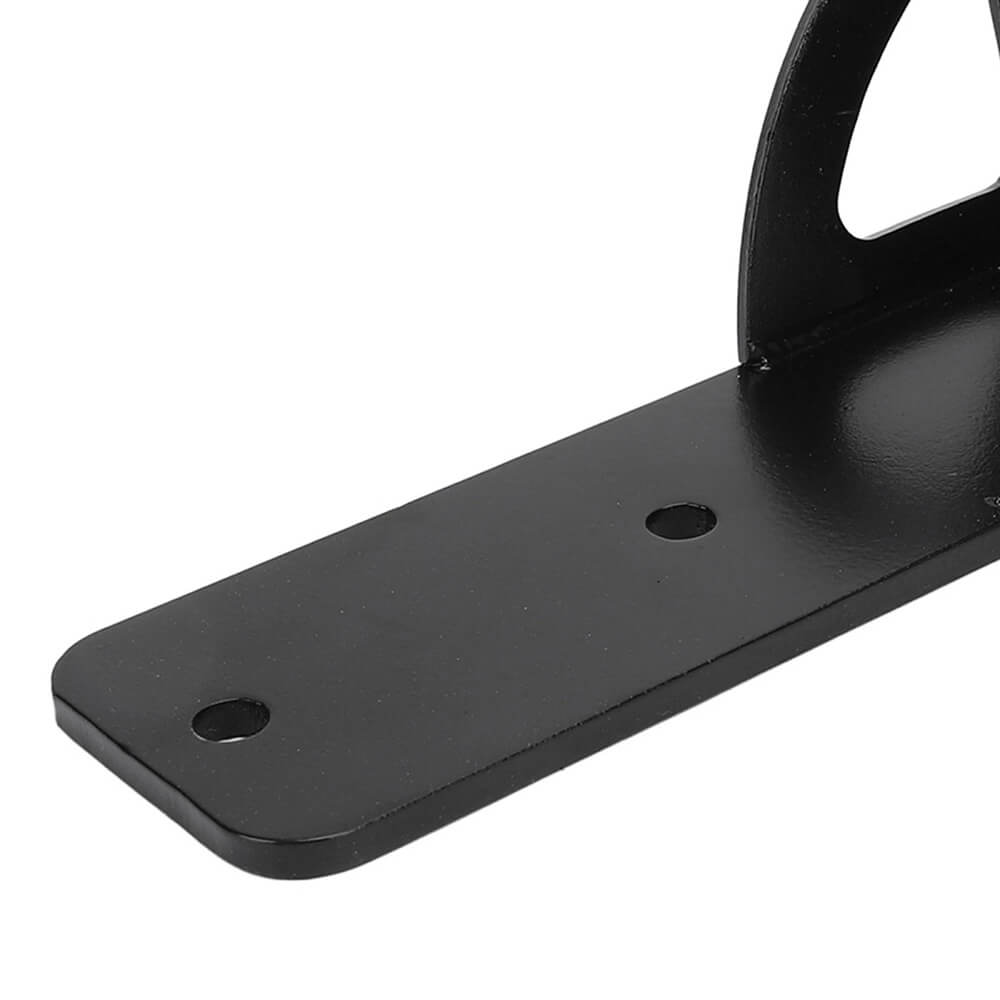

【PRE DRILLED HOLE】: Awning bracket features pre drilled holes, making installation and dismantling convenient for you. It significantly saves your time and labor during the setup process.

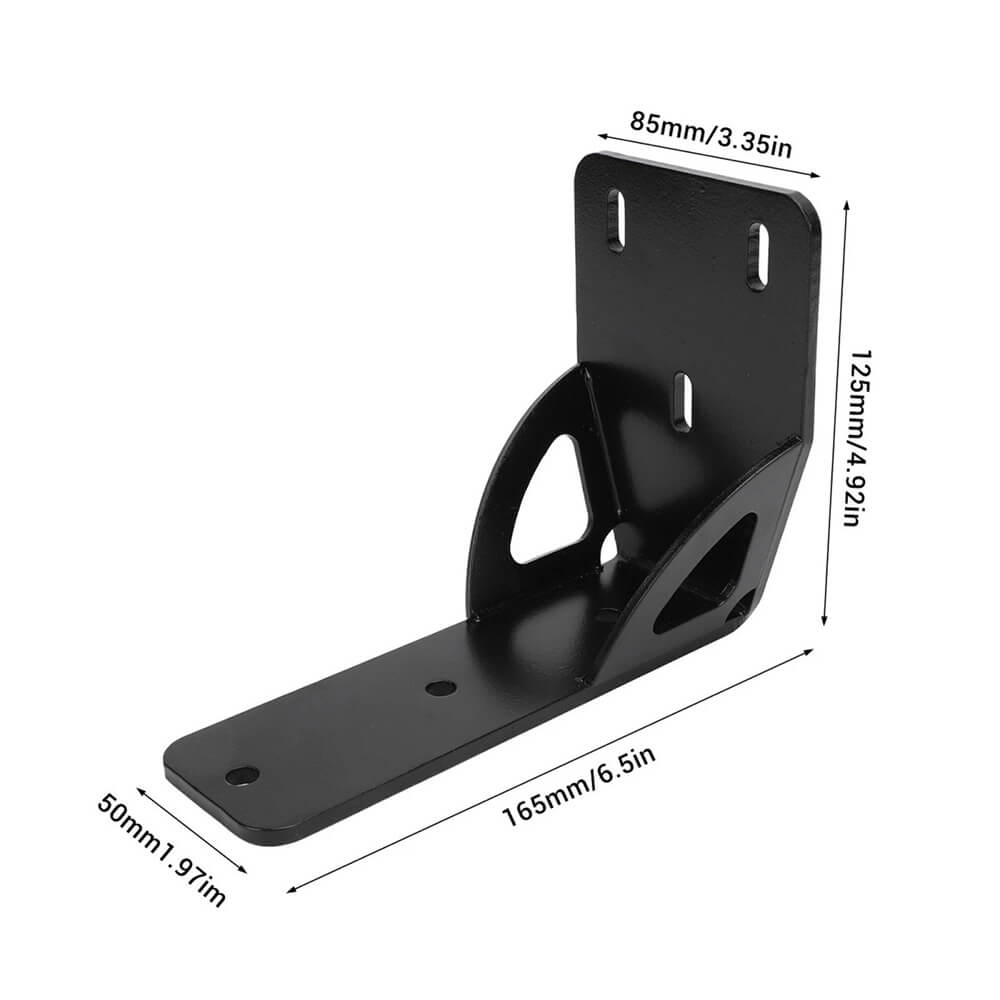

【BRACKET FEATURES】: Bracket is 50 mm wide. Pre-drilled to accept 8 mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning.
【MULTIPURPOSE APPLICATION】: The awning bracket is not only suitable for off road use but is also ideal for a wide range of outdoor activities, including traveling, picnics, and more, providing you with a comfortable outdoor space.
【RECOMMENDATION】: A minimum of two brackets are required to mount the ARB Awnings, three brackets are highly recommended for the 2500 mm Aluminum and PVC Bag Awning versions. ARB recommends no more than 18 inches of unsupported overhang.
Specification:
Item Type: Awning Bracket
Material: Metal
Part Number: 813402
Fitment:
For SquareBar
For Rhino heavy duty bars
For ProfessionalBar
For WingBar
For AeroBar
For Rhino heavy duty T bolts or Channel nuts
Package List:
1 x Awning Bracket
Note:
1. Please carefully check the Part number and Fitment model before purchasing.
2. It is strongly recommended to have the installation done by a professional mechanic.
