Switch Mode DC Power Supply Variable Voltage manufacture OEM Programmable DC power supply for LED LCD

PD9600 series is the high-quality programmable DC power supply of new generation, and this series of products can be equipped with communication interface. PD9600 series power supply has the characteristics of both desktop type and system type, and can be freely matched with other instruments to integrate into the test system with special functions so as to meet measurement demands on different occasions, and the program can be edited through panel keyboard to bring great convenience to users. It is an alternative product of the ordinary programmable power supply, and has advantage of high cost performance.

This series of power supply boasts of the following characteristics:

•Non-polar servo, intelligent fan system

•Multi-group data storage

•Standard instrument rack design

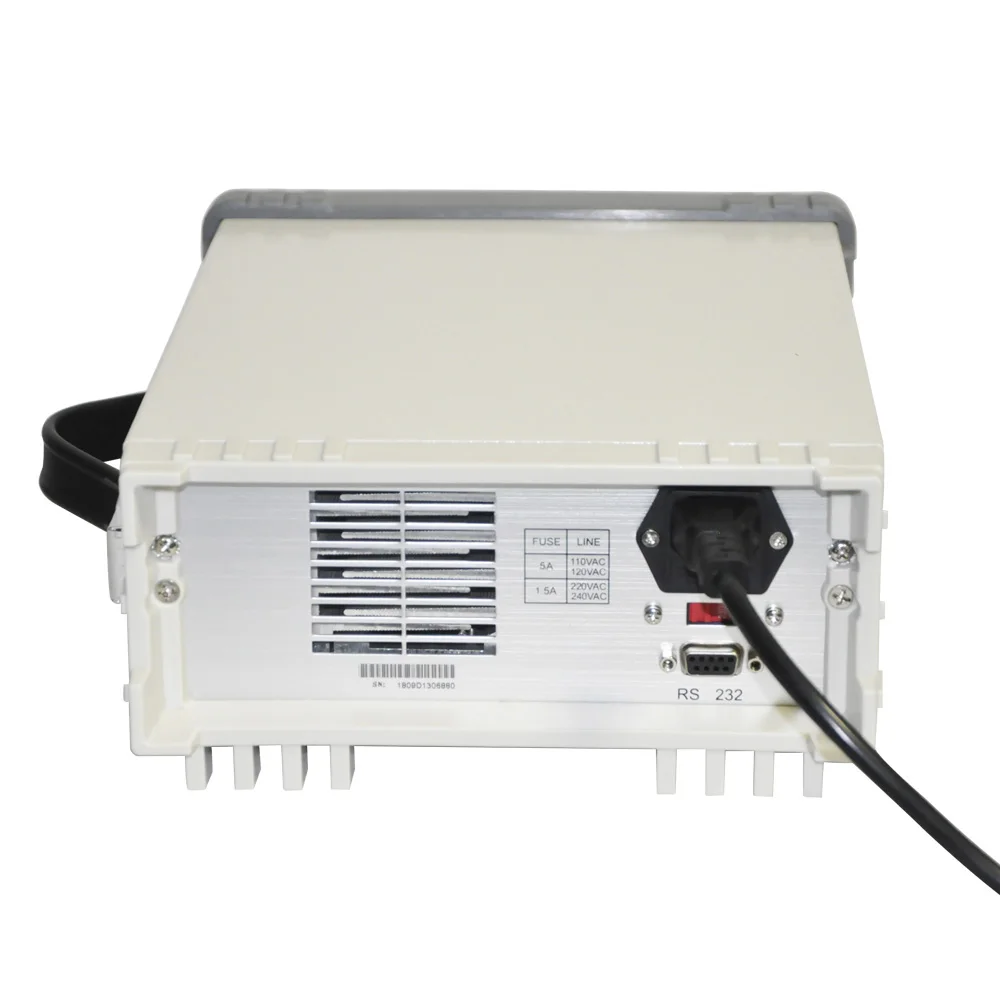

•Support RS232, communication

2.1 MaiTechnical specifications

Technical specifications form of PD9600 series power supply:

Model number		PD9603&9605 36V/3A&5A	PD9610 36V/10A
Rated input voltage		AC220V/110V±5%
Rated output voltage		0-36V	0-36V
Rated output current		0-3A&5A	0-10A
Voltage changing mode		Linear power supply	Linear power supply
Load regulation rate	Voltage	<0.02%+3mV	<0.02%+3mV
Load regulation rate	Current	<0.02%+3mA	<0.02%+3mA
Power supply regulation rate	Voltage	<0.02%+3mV	<0.02%+3mV
Power supply regulation rate	Current	<0.02%+3mA	<0.02%+3mA
Resolution of setting value	Voltage	10mV	10mV
Resolution of setting value	Current	1mA	1mA
Accuracy of setting value	Voltage	≤0.02%+2 byte	≤0.02%+2 byte
Accuracy of setting value	Current	≤0.02%+2 byte	≤0.02%+2 byte
Resolution of readback value	Voltage	10mV	10mV
Resolution of readback value	Current	1mA	1mA
Readback accuracy	Voltage	≤0.2%+2 byte	≤0.2%+2 byte
Readback accuracy	Current	≤0.2%+2 byte	≤0.2%±6mA
Temperature	Operating environment	0 to 40 ℃ ≤ 85 R.H.	0 to 40 ℃ ≤ 85 R.H.
Temperature	Storage environment	-15 to 70 ℃ ≤ 85 R.H	-15 to 70 ℃ ≤ 85 R.H
Size (WHD(mm))		214108305	214108365
Packing weight (net weight)		5.2Kg	6.2Kg

2.2 Supplementary characteristics

Status memory capacity: 9 groups of operating status

Recommended calibration frequency: once a year

Cooling mode: forced air cooling

Temperature of operating environment: 0 to 40℃

Temperature of storage environment: -20 to 70℃

Using environment: indoor use design, pollution class: 2, maximum humidity: 90%
